Collection: Semi-Truck Clutch Assembly

Clutch kits for heavy-duty, medium-duty and automated transmissions. 15-1/2 in. and 14 in. kits for Class 8 trucks, 14 in. for medium duty, and 430 mm or ECA for Volvo I-Shift, Mack mDRIVE, Detroit DT12 and Eaton UltraShift PLUS. Choose manual adjust, EZ Pedal or self-adjusting, pick a torque rating that equals or exceeds your engine's peak torque, then match the flywheel bore and input shaft spline.

27 products

  1. Splined transmission input shaft

    Step 1: Input shaft

    Measure the transmission input shaft: most are 1-3/4 in. or 2 in.

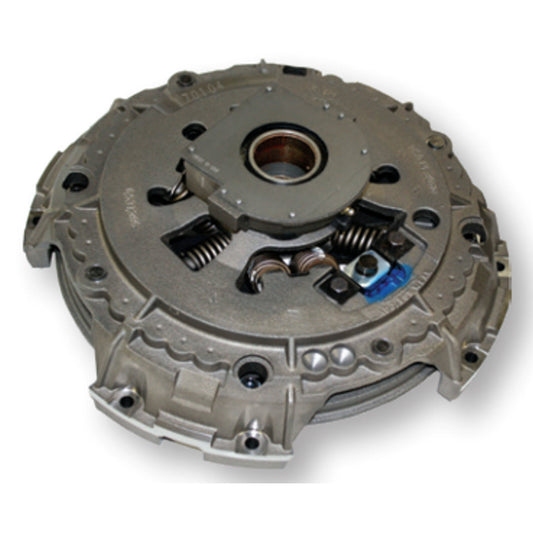

  2. 15-1/2 in. heavy-duty clutch assembly, front view

    Step 2: Clutch size

    14 in. or 15-1/2 in. on manual transmissions; 430 mm on Volvo I-Shift, Mack mDRIVE and Detroit DT12.

  3. Flywheel drawing showing the center bore opening, Dimension A

    Step 3: Flywheel bore

    On 15-1/2 in. clutches, measure the flywheel center opening: it sets the disc (table below).

  4. Excerpt of the Road Choice engine torque chart

    Step 4: Engine torque

    Use the engine’s torque at its current settings, the highest rating on variable-horsepower engines. The clutch must equal or exceed it.

  5. Clutch release fork from the clutch linkage

    Step 5: Linkage

    Mechanical linkage: manual adjust or EZ Pedal. Hydraulic linkage: self-adjusting; manual adjust is not recommended.

Flywheel bore sets the disc
Flywheel boreDiscClutch size
7 in.8-springAll 14 in.; 15-1/2 in.
8-1/2 in.10-spring15-1/2 in.
10 in.7-spring (9-spring for Mack)15-1/2 in.; no organic facing
What we carry
SizeTypes in this collectionTorque range (ft-lb)
14 in.Manual Adjust, EZ Pedal (single and dual disc)620–1400
15-1/2 in.EZ Pedal, Self-Adjusting, ECA for UltraShift PLUS1400–2250
430 mmSelf-Adjusting AMT for I-Shift / mDRIVE and DT121850–2400

Clutch questions, answered

What size clutch does my truck use?

On Class 8 trucks the most common sizes are 14 in. and 15-1/2 in.; Volvo I-Shift, Mack mDRIVE and Detroit DT12 automated transmissions use a 430 mm clutch. Check the size on your current clutch or with your part number.

How do I pick the right torque rating?

Choose a clutch rated at or above your engine’s torque at its current settings; rate variable-horsepower engines at their highest rating. The engine torque chart is in the Road Choice catalog.

Manual adjust, EZ Pedal or self-adjusting?

Manual adjust clutches, including the EZ Series with lower pedal effort, are for mechanical linkage. Self-adjusting clutches take up wear on their own; use them with hydraulic linkage, where manual adjust is not recommended.

What does the flywheel bore opening change?

It sets the disc on 15-1/2 in. clutches: 7 in. takes an 8-spring disc, 8-1/2 in. a 10-spring disc and 10 in. a 7-spring disc (9-spring for Mack). Do not use organic facing with a 10 in. bore. All 14 in. clutches use 8-spring discs and fit only a 7 in. bore.

What comes in the clutch kit?

Road Choice clutches ship as a matched unit with the discs, a sealed, permanently lubricated release bearing and a fiber spacer. The pilot bearing and clutch brake are sold separately; replace both with every clutch.

Which clutch fits my automated transmission?

AMT clutches are transmission-specific: 15-1/2 in. ECA clutches for Eaton UltraShift PLUS (14-spline), and 430 mm clutches for Volvo I-Shift / Mack mDRIVE (24-spline) or Detroit DT12. Confirm the OE number on the product page.
