Road Choice CLU10723710 is a new 14 in. x 1-3/4 in. two-plate, manual-adjust, pull-type clutch for medium-duty trucks with a 10-spline input shaft and 7 in. flywheel bore. It replaces OE 107237-10 (Eaton), is rated 860 ft-lb with 2400 lb. plate load and is made in the USA. It comes as a serialized unit with cryo-treated chrome-silicon disc springs and a fiber spacer. Replace it when the clutch slips under load or has no adjustment left. One per truck.
Road Choice® is the premier one-stop solution for high-quality, all-makes replacement parts and accessories designed specifically for class 6-8 heavy-duty trucks. Built on a rock-solid foundation of Confidence, Coverage, and Commitment, our mission is to provide the parts and expert advice necessary to keep your fleet moving forward. Our extensive selection features over 50 product lines, covering every essential category from air disc brakes and electrical systems to drivetrain components, lighting, and wheels. Road Choice parts are precisely engineered to strict OEM factory standards and are proven to fit virtually all major truck makes, including Freightliner, Kenworth, Mack, Peterbilt, and Volvo, across almost every model year
Basic Part Information5 attributes
| Product Line | Transmission |
|---|---|
| Category Name | Clutch Components |
| Part Type | Clutch Assembly |
| Alternate Part Name | Clutch Assemblies, Medium Duty Clutch Assembly, Clutch Kit, Dual Disc Clutch, Two Plate Clutch, 14 Inch Clutch |
| OEM Part Number | 107237-10 |
Application/Fitment Attributes5 attributes
| Application Type | Semi-Trucks, Medium Duty Trucks |
|---|---|
| Clutch Diameter | 14 in. |
| Flywheel Bore Diameter | 7 in. |
| Spline Count | 10 |
| Spline Diameter | 1-3/4 in. |
Dimensional/Physical Attributes1 attribute
| Material | Steel, Ceramic Pad |
|---|
Technical/Performance Attributes10 attributes
| Adjustment System | Manual |
|---|---|
| Clutch Technology | Standard |
| Disc Facing Material | Ceramic |
| Disc Paddle Type | 3 |
| Disc Spring Quantity | 8 |
| Duty Rating | Medium Duty |
| Pressure Plate Clamp Load | 2400 lb. |
| Release Type | Pull |
| Torque Rating | 860 ft-lb |
| Transmission Type | Manual |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 125 lb. |
|---|
Additional Information2 attributes
| Clutch Disc Qty | 2 |
|---|---|
| Flywheel Type | Flat |

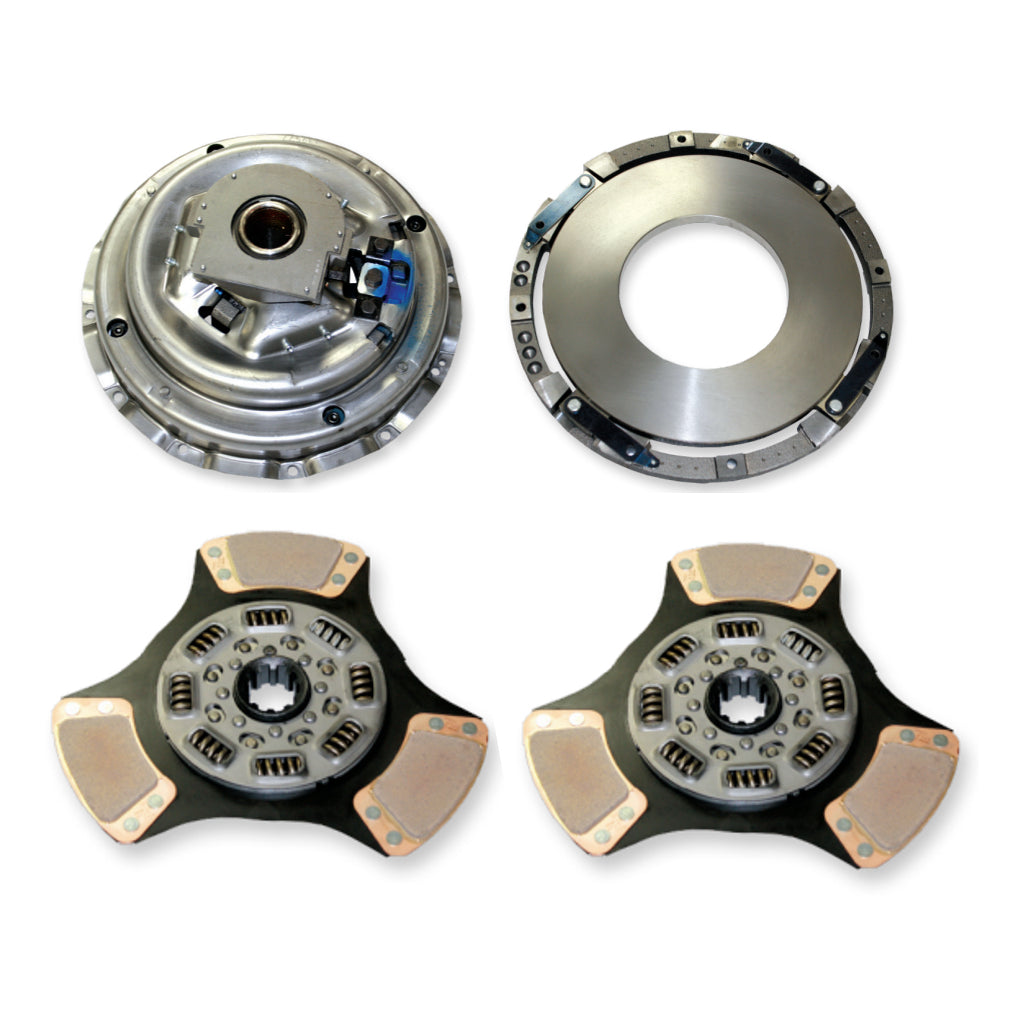

Bill Of Material

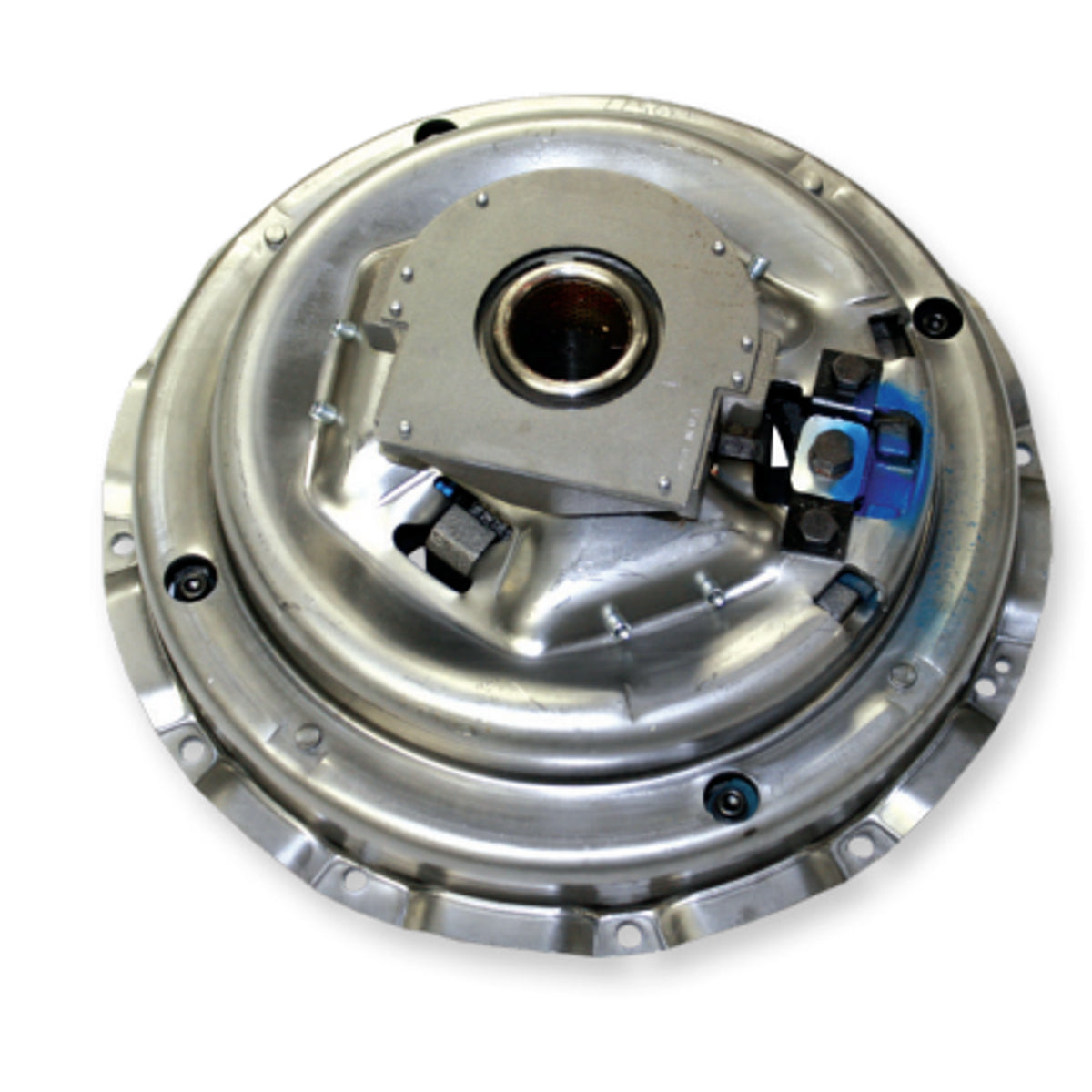

- Cover assembly with release bearing (1)

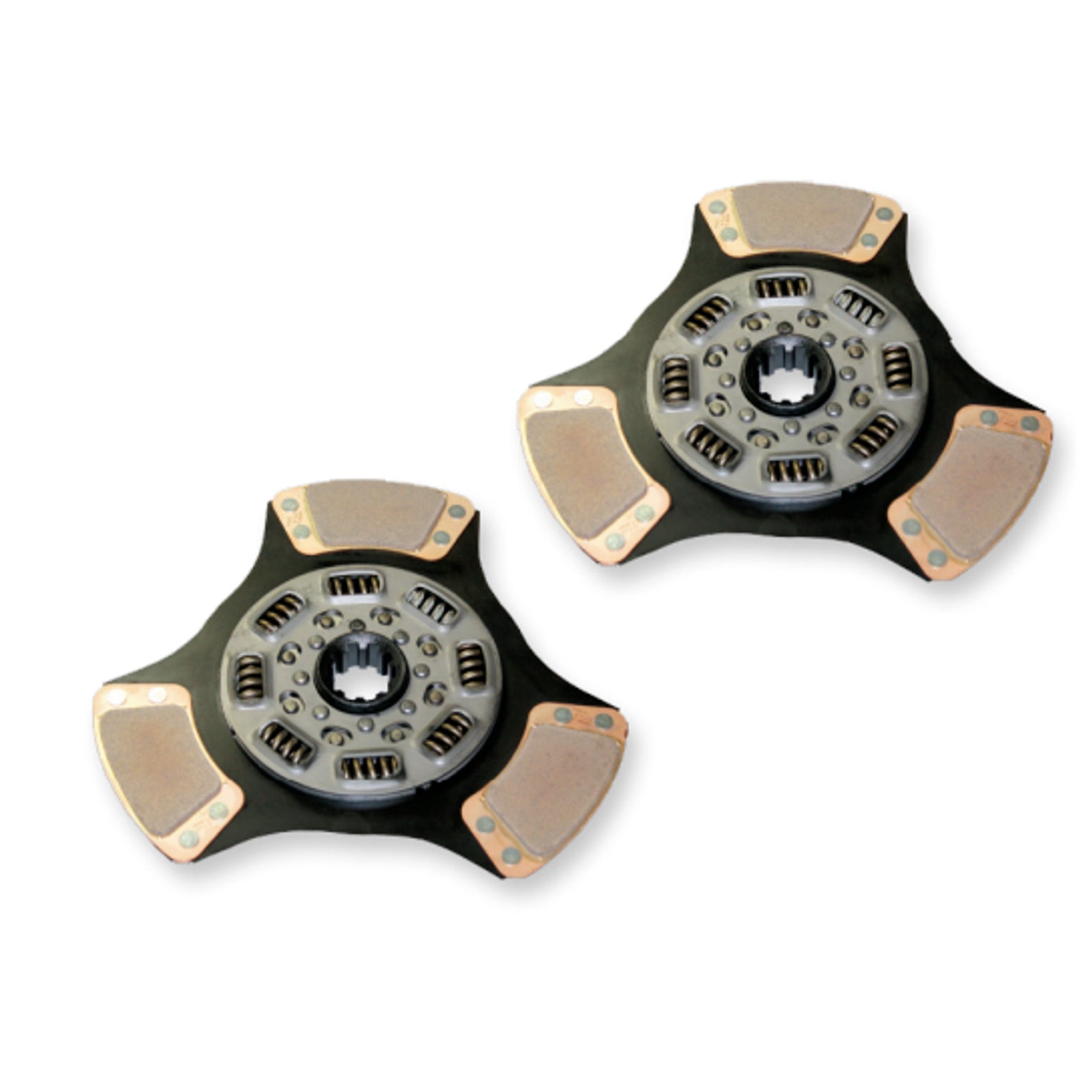

- Clutch disc, 3-pad, 8 springs (2)

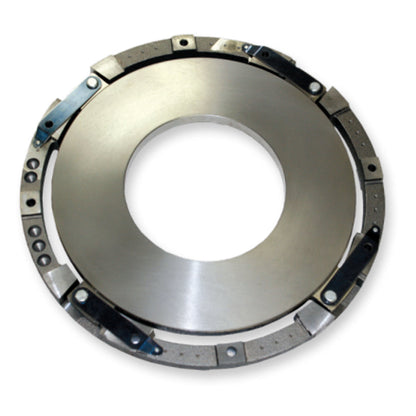

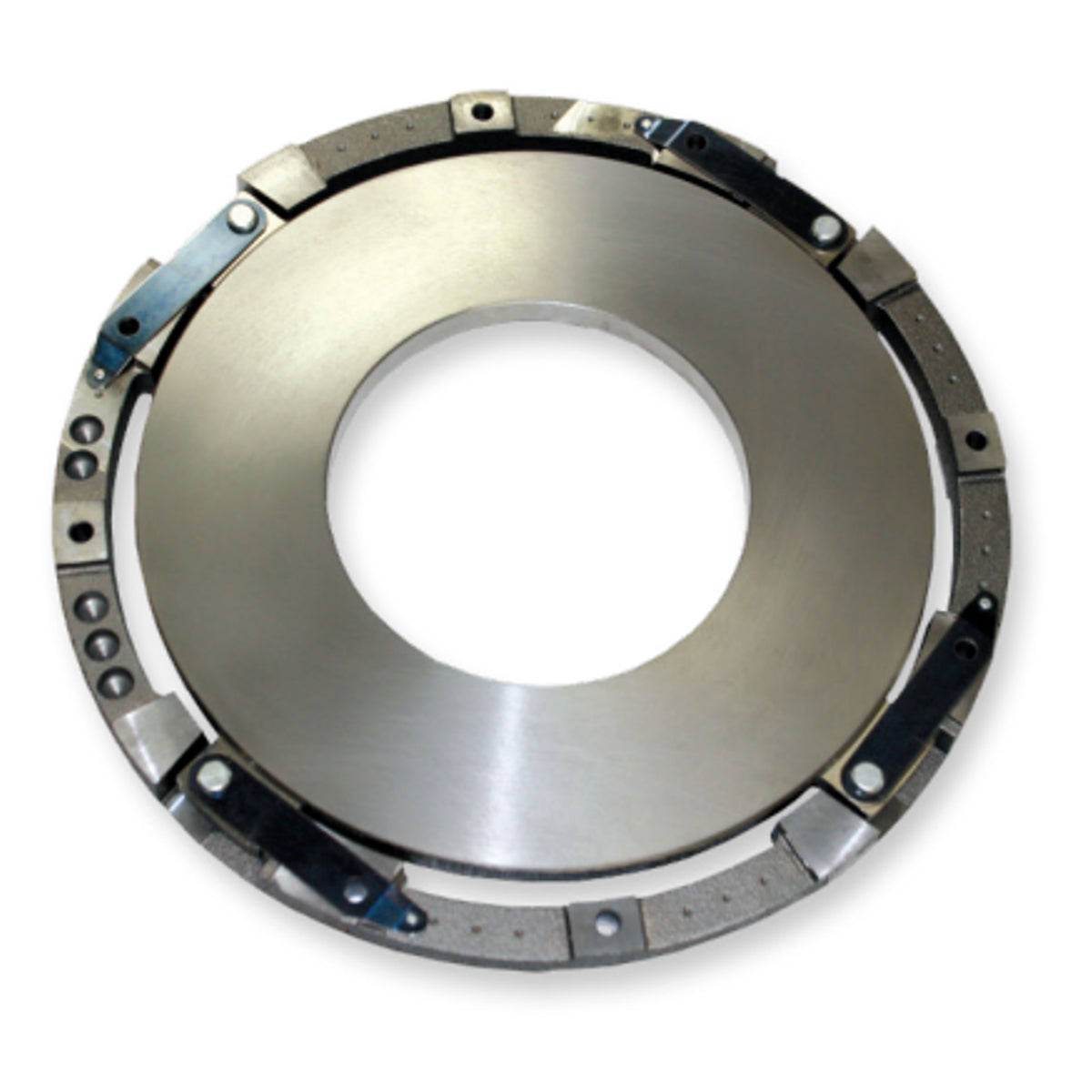

- Intermediate plate (1)
- Fiber spacer (1)
Intended Application
- For 14 in. pull-type, manual-adjust 2-plate clutch systems with a 1-3/4 in. x 10 spline transmission input shaft
- For flat flywheels with a 7 in. bore
- For engines rated up to 860 ft-lb
- For mechanical clutch linkage; manual-adjust clutches are not recommended for hydraulic release systems
- Replaces OE 107237-10 (Eaton); verify the number on your old clutch before ordering
Technical Notes
- Resurface or replace the flywheel; if machined past .060 in., install the included fiber spacer
- Replace the pilot bearing (Viton seal) and the clutch brake at every installation
- Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in. at 40-50 ft-lb; 3/8 x 1-1/4 in. at 25-35 ft-lb
- Release bearing to cover: 1/2 to 5/8 in.; free travel at the yoke: 1/8 in. (mechanical linkage); release bearing to clutch brake: 1/2 to 9/16 in.
- Adjust the clutch when half of the pedal free travel is lost
- Lubricate the release bearing with high-temperature grease each time the chassis is lubricated
- Disc spring life two to five times that of an untreated spring, per Road Choice testing
- Eaton: 107237-10, 107237-10MO, 107237-22
- Meritor: MAF-107237-22
- TRP: CL107337-10
- Alliance: ABP N25 14860ST
- IATCO: NMU060-022-5-A
- PAI: CCA-9724
- Euclid: EP10723722
- Fleetrite: FLTC10723710
- Dayton Parts: MU129044-26NCR
- Fortpro: F276007
