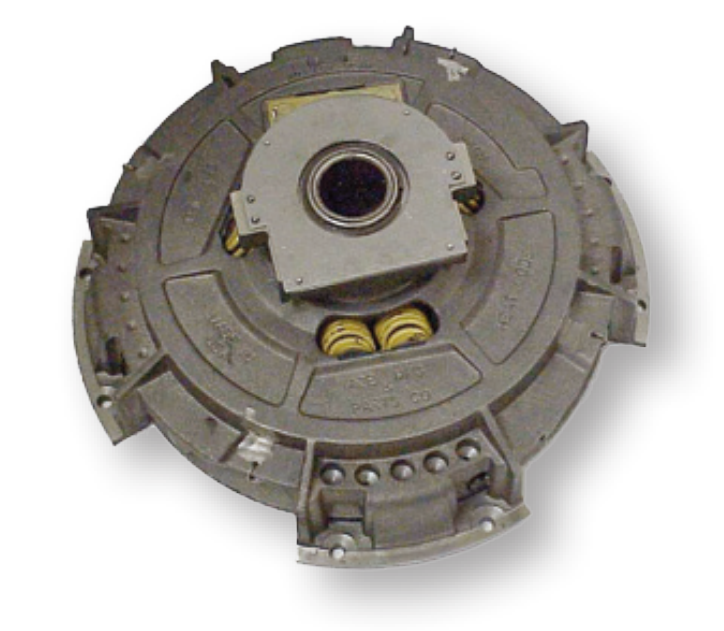

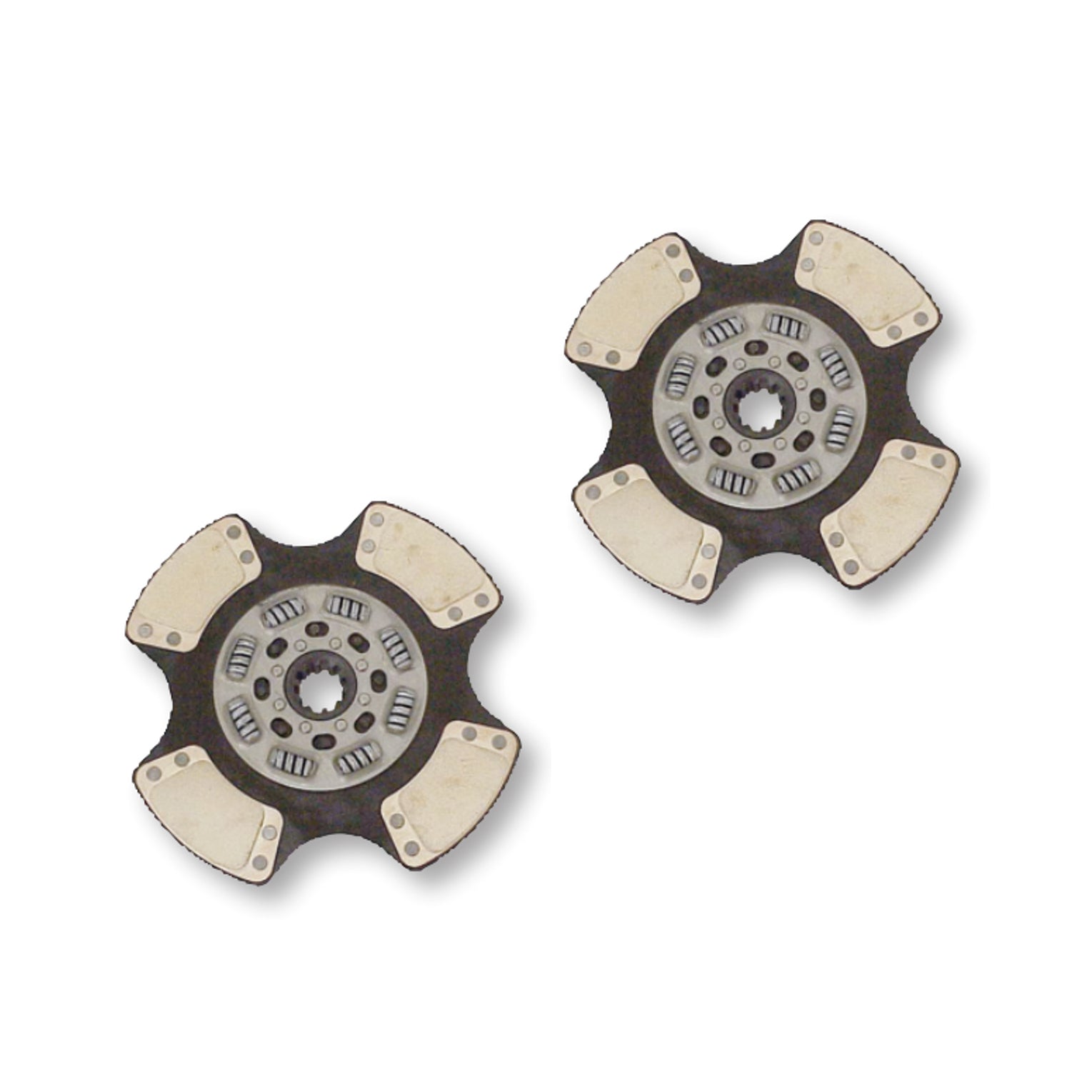

This is the heavy-duty cast version of the standard stamped steel clutch. It’s a beast for 14" flat flywheels, packing 950 ft-lbs of torque and a 2800 lb plate load. The EZ Pedal design saves your leg, and the 8-spring ceramic disc provides superior grip. Direct replacement for Eaton 107342-24
Road Choice® is the premier one-stop solution for high-quality, all-makes replacement parts and accessories designed specifically for class 6-8 heavy-duty trucks. Built on a rock-solid foundation of Confidence, Coverage, and Commitment, our mission is to provide the parts and expert advice necessary to keep your fleet moving forward. Our extensive selection features over 50 product lines, covering every essential category from air disc brakes and electrical systems to drivetrain components, lighting, and wheels. Road Choice parts are precisely engineered to strict OEM factory standards and are proven to fit virtually all major truck makes, including Freightliner, Kenworth, Mack, Peterbilt, and Volvo, across almost every model year
Basic Part Information5 attributes
| Product Line | Transmission |
|---|---|
| Category Name | Clutch Components |
| Part Type | Clutch Assembly |
| Alternate Part Name | Clutch Assemblies, Medium Duty Clutch Assembly |
| OEM Part Number | 1076864 |
Application/Fitment Attributes5 attributes
| Application Type | Semi-Trucks |
|---|---|
| Clutch Diameter | 14 in. |
| Flywheel Bore Diameter | 7 in. |
| Spline Count | 10 |
| Spline Diameter | 2 in. |
Dimensional/Physical Attributes1 attribute
| Material | Steel, Ceramic Pad |
|---|
Technical/Performance Attributes8 attributes
| Adjustment System | Manual |
|---|---|
| Clutch Technology | EZ Pedal ™ (Easy Pedal) |
| Disc Facing Material | Ceramic |
| Disc Paddle Type | 4 |
| Disc Spring Quantity | 8 |
| Pressure Plate Clamp Load | 2.800 lb. |
| Torque Rating | 950 ft-lb |
| Transmission Type | Manual |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 125 lb. |
|---|
Intended Application
- Compatible with medium- to heavy-duty (Class 6-8) diesel trucks equipped with 2 in. x 10 spline input shaft manual transmissions and 14 in. flat flywheel systems, designed for engines within an approximate torque range up to 950 ft-lb, geared towards regional haul, vocational, heavy-duty delivery, utility, and municipal operations where greater thermal capacity, wear resistance, and structural durability are required in frequent stop-start cycles, but not intended for severe high-torque line-haul configurations.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
- Eaton: 1076864, 107342-24
- Haldex: N1076862CE
- Illinois Auto Truck: NMU0610243A
- Meritor: MAF-107342-24
- Mid-America: MU12905537DSCB, MU129055DSCB
- OTR: TT1076864CB
- Road Choice: CLU1076864
