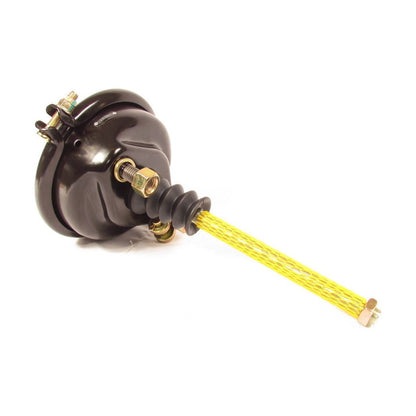

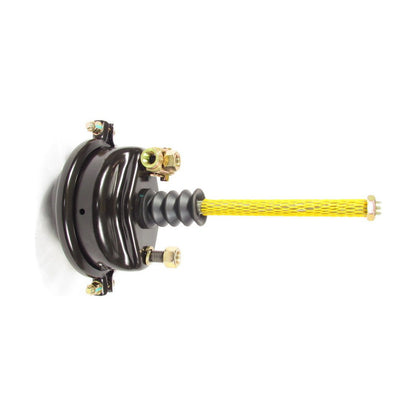

Fortpro Type 24 Brake Chamber - Standard Stroke, Serviceable | F224727

Fortpro Type 24 Brake Chamber - Standard Stroke, Serviceable | F224727

SKU: F224727

Availability: More than 50 in Stock

Regular price $24.20 USD
Regular price $28.60 USD Sale price $24.20 USD
Sale Sold out
Shipping calculated at checkout.

Important things to Consider

CHECK COMPATIBILITY: Ensure that your OEM part number matches the one in our cross-reference list before making a purchase.

PREVENT UNNECESSARY RETURNS: Don’t rely on appearance alone. Always confirm compatibility by verifying part numbers, not just how the part looks.

TRUCK BRAND MENTION DOES NOT GUARANTEE FIT: If we reference a specific truck brand, it doesn’t imply compatibility with all models. Double-check model specifics to avoid any mismatch.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com

About this Item

  • Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
  • Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
  • Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
  • Standard Stroke with Length: 2 1/4"
  • Type 24 - Push Rod Length: 10.20"
View full details
Check Specification & Cross-references

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information
Part Type Air Brake Chamber Alternate Part Name Brake Canister / Brake Can / Air Brake Canister
Model T24, T-24, 24 OEM Part Number 288808
Application/Fitment Attributes
Application Type Heavy Duty Trucks, Semi-Trucks Brake System Compatibility S-Cam
Brake Type Drum Chamber Style Single Diaphragm
Chamber Type Service Brake Chamber Clevis Mounting Type Threaded
Mounting Bolt Length 1.44 in. (36.6 MM) Mounting Bolt Thread Size 5/8-18 UNF-2A
Outside Diameter (O.D.) 7 1/2" Push Rod Length 10.20 in.
Push Rod Thread Size 5/8-18 UNF-2A Service Chamber Joint Type Single Clamp Band
Service Port Thread Size 3/8-18 NPTF
Technical/Performance Attributes
Clevis Yoke Included Maximum Operating Pressure 150 PSI
Port Orientation 90° Serviceability Serviceable
Stroke Lenght 2.25 in. Stroke Type Standard Stroke
  • Automann: 179.SC24
  • Bendix: 288808
  • BWP: M458
  • Euclid: E-24S
  • Haldex: SC24, KN36240
  • Velvac: 30019
Dimensions Not Available.
