Fortpro Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded - Premium | F224746

Fortpro Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded - Premium | F224746
(27)

SKU: F224746

Availability: More than 50 in Stock

$54.99 USD
$0.00 USD $54.99 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3rd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments tthere are some special terms you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Heavy-Duty Braking Performance: Type 30/30 double diaphragm sealed spring brake chamber engineered for semi-trucks, heavy-duty commercial vehicles, and trailers with S-Cam drum brake systems.
  • Rigorously Tested Quality: Manufactured under ISO/TS 16949:2009 standards and passed stringent endurance, salt spray, and leak-tightness testing to ensure long-term dependability and road safety.
  • Maximum Corrosion Resistance: Features a rugged 9-gauge steel service housing with a protective powder-coated finish for superior resistance against mechanical fatigue, rust, and harsh weather.
  • Precision Specifications: Engineered with a standard 2.50 stroke, 12.00 push rod, threaded clevis (5/8-18 UNF-2A), 90° port orientation (3/8-18 NPTF), and 150 psi maximum operating pressure.
  • Easy & Secure Installation: Includes threaded clevis yoke and mounting hardware (5/8-11 UNC-2A studs, 1.50 length) for precise pushrod adjustment and secure mounting on commercial axles.
View full details

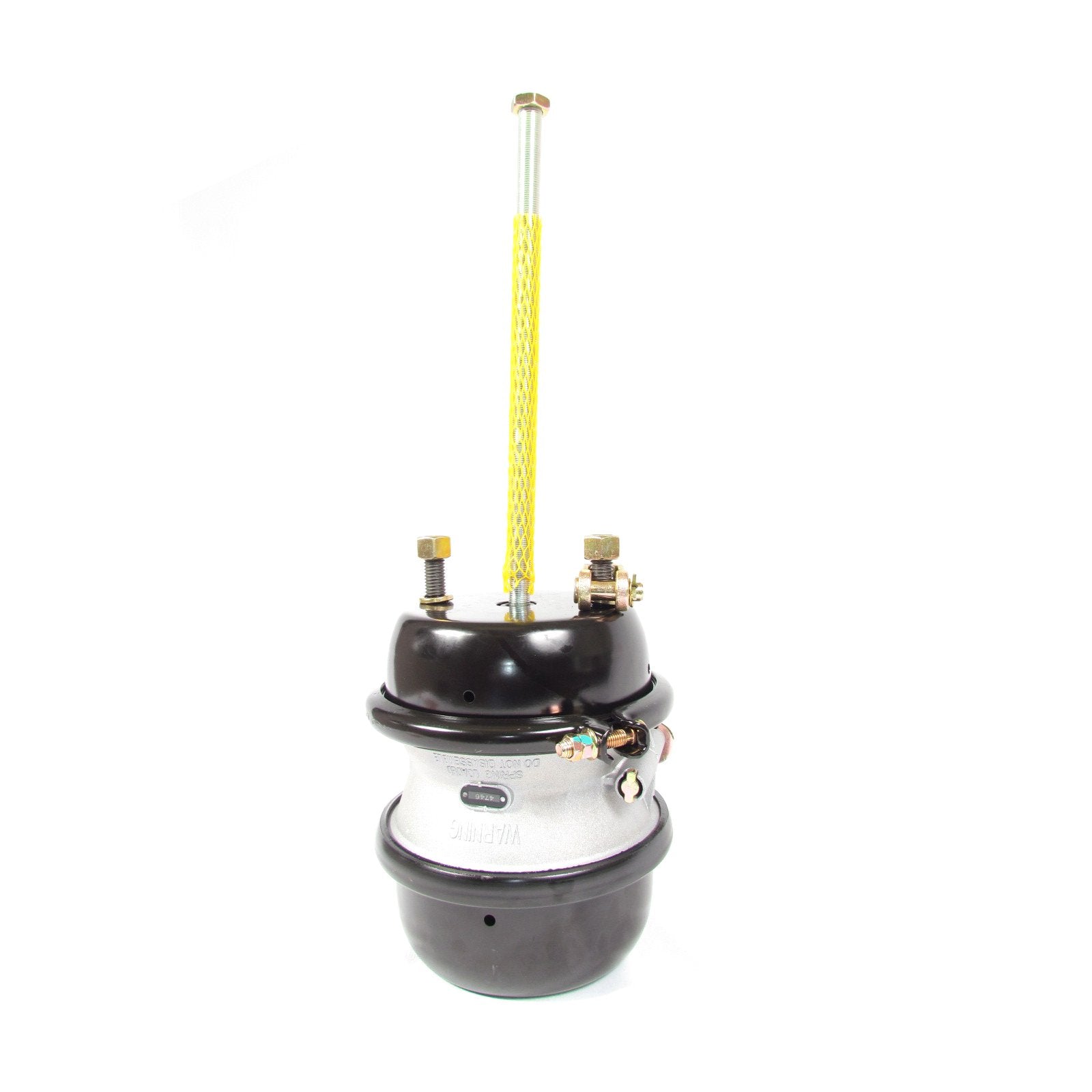

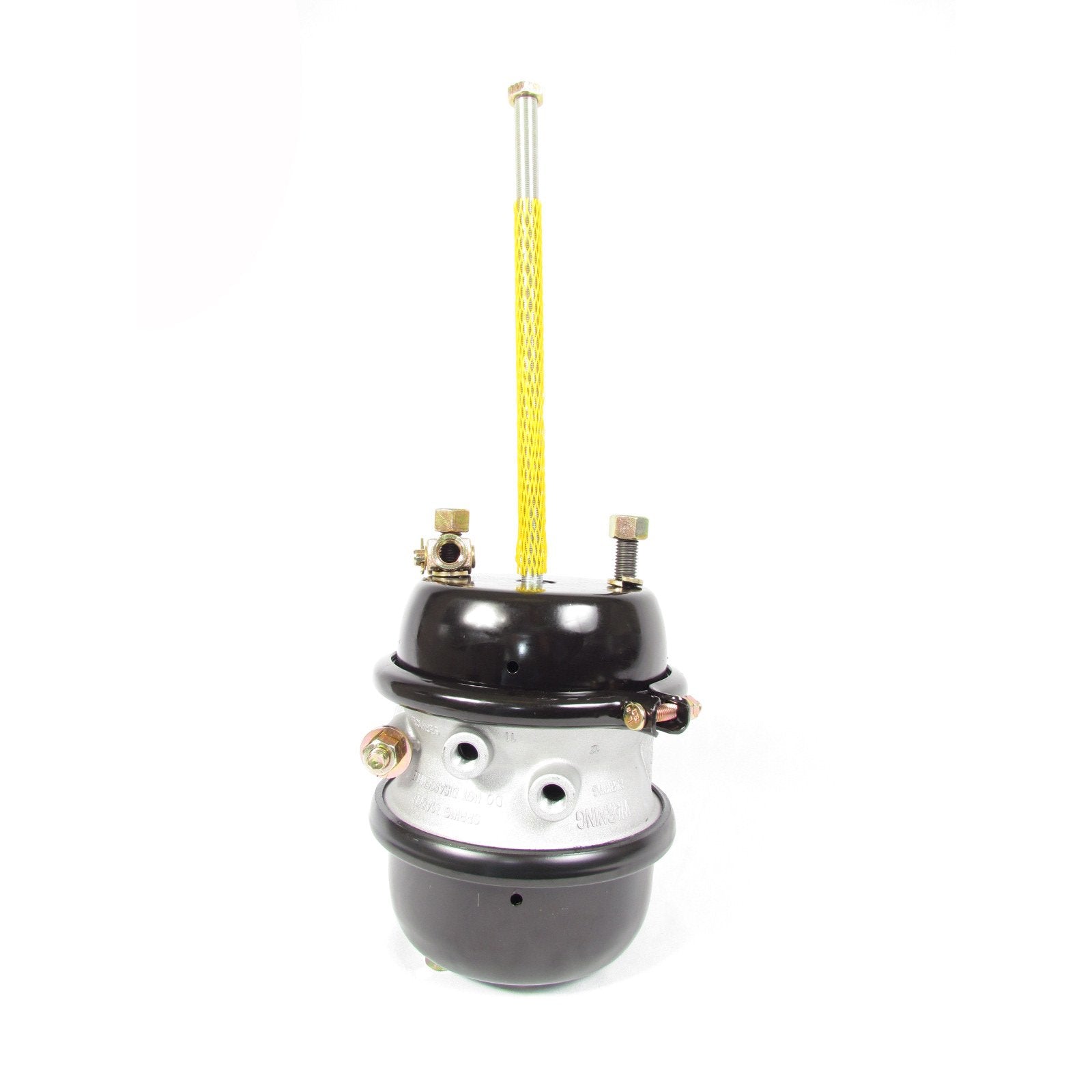

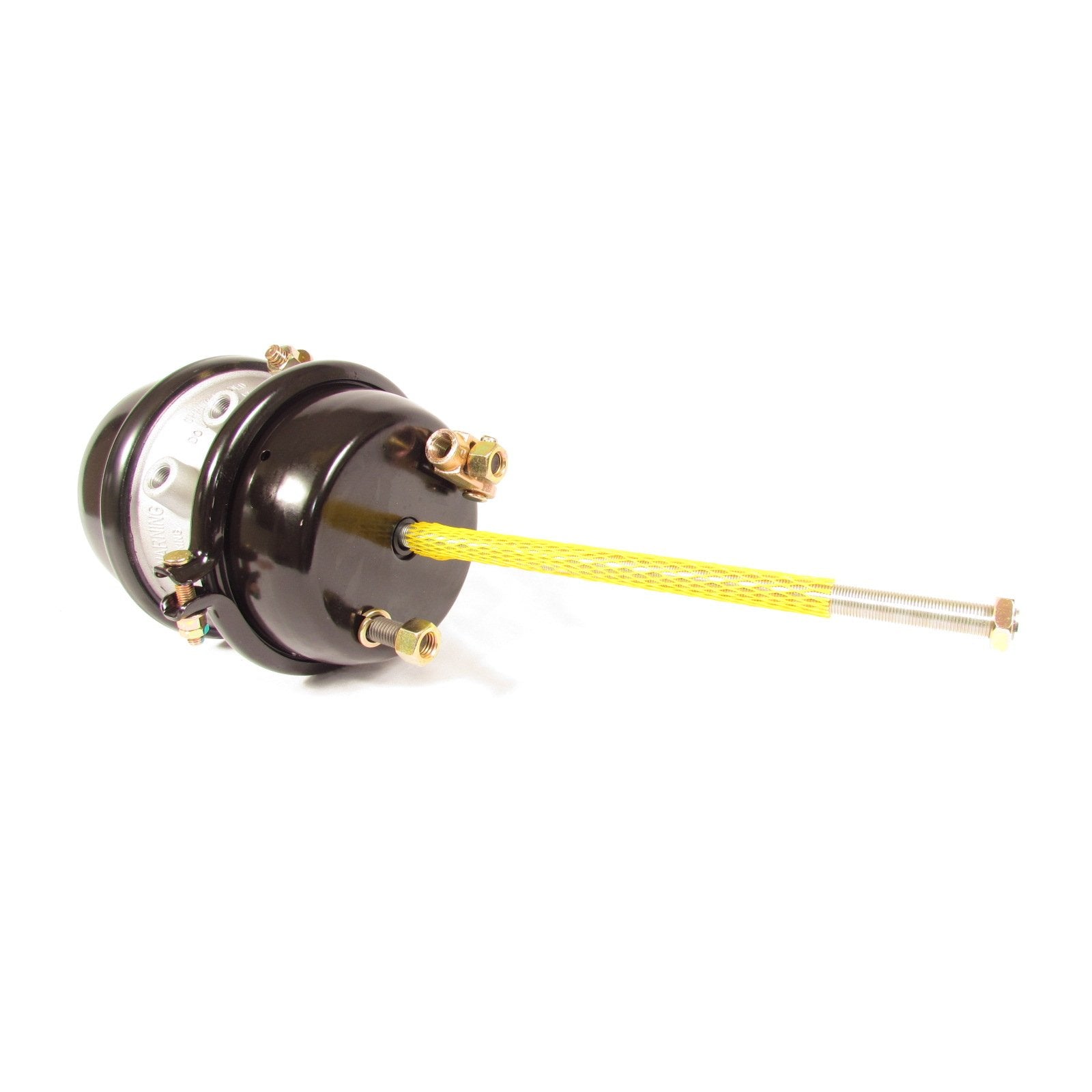

The Fortpro Type 30/30 Sealed Air Spring Brake Chamber (F224746) is a heavy-duty braking component engineered for semi-trucks and commercial trailers with S-Cam drum brakes. Featuring a standard 2.50 stroke, 12.00 push rod with threaded clevis, and 90° port orientation (3/8-18 NPTF), it delivers reliable stopping power under up to 150 psi operating pressure. Constructed with a 9-gauge steel housing and powder coating, it ensures exceptional durability in extreme road conditions.



Fortpro Logo

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information5 attributes
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeAir Brake Chamber
Alternate Part NameAir Brake Canister, Brake Can, Brake Pots, Brake Pod, Brake Canister, Spring Brake Actuators
OEM Part NumberK049898
Application/Fitment Attributes16 attributes
Application/Fitment Attributes
Application TypeSemi-Trailers, Heavy Duty Trucks, Semi-Trucks, Trailers, Buses
Brake System CompatibilityS-Cam
Brake TypeDrum
Chamber StyleDouble Diaphragm
Chamber TypeSpring Brake Chamber
Clevis Mounting TypeThreaded
Emergency Port Thread Size3/8-18 NPTF
Mounting Bolt Length1.50 in.
Mounting Bolt Thread Size5/8-11 UNC-2A
Outside Diameter (O.D.)8.30 in.
Port Angle90 Deg.
Push Rod Length12 in.
Push Rod Thread Size5/8-18 UNF-2A
Service Chamber Joint TypeSingle Clamp Band
Service Port 113/8-18 NPTF
Service Port Thread Size3/8-18 NPTF
Dimensional/Physical Attributes1 attribute
Dimensional/Physical Attributes
MaterialSteel
Technical/Performance Attributes6 attributes
Technical/Performance Attributes
Clevis YokeIncluded
Maximum Operating Pressure150 psi
Port Orientation90 deg.
ServiceabilitySealed
Stroke Length2.50 in.
Stroke TypeStandard Stroke
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight20.28 lb.
Intended Application
Intended Application
  • Designed for rear axles with drum brakes on heavy-duty commercial trucks, tractor-trailers, trailers, and semi-trailers. It functions as a Sealed Type 30/30 Spring Brake Chamber, integrating the compressed air-actuated service brake system and the high-power mechanical spring-actuated parking/emergency brake system into a single, sealed, safety module.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Automann: 179SB3030
  • Bendix: K049898, NT3030STD120
  • Euclid: E-BC3030C
  • MGM: 3232951, 3232951X
  • TRP: SB3030CC
  • OTR: OTR3030SB
  • WA: WA3030T
Dimensions Not Available.
