Dana Spicer SPL100-1X U Joint For SPL100 Series

Dana Spicer SPL100-1X U Joint For SPL100 Series

SKU: SPL100-1X

Availability: In Stock

Stock Level: Only 2 left in stock - Order Soon!

Shipping: Calculated at Checkout

Regular price $79.63 USD
Regular price Sale price $79.63 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Outer Snap Ring (OSR) Retaining Type
  • Its hardness ensures both durability and strength with a unique trunnion cross design
  • Maintains lower operating temperature with thrust washers that reduce metal-to-metal contact
  • 1625 bearing cap diameter
  • Precisely heat-treated, case-hardened and durable shaft-grinding processes ensure power can be transmitted with high performance


The SPL100-1X is a heavy-duty universal joint, designed to withstand high loads and work in various conditions. It is made of high-quality materials and features a precise and robust design to ensure optimal performance and long life


  • Brand: Dana
  • Part Type: Universal Joints / U-Joints / U Joints
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: SPL100-1X
  • Type: Outer Snap Ring (OSR) Retaining Type
  • OEM Mfg: Spicer
  • OEM Series: SPL100

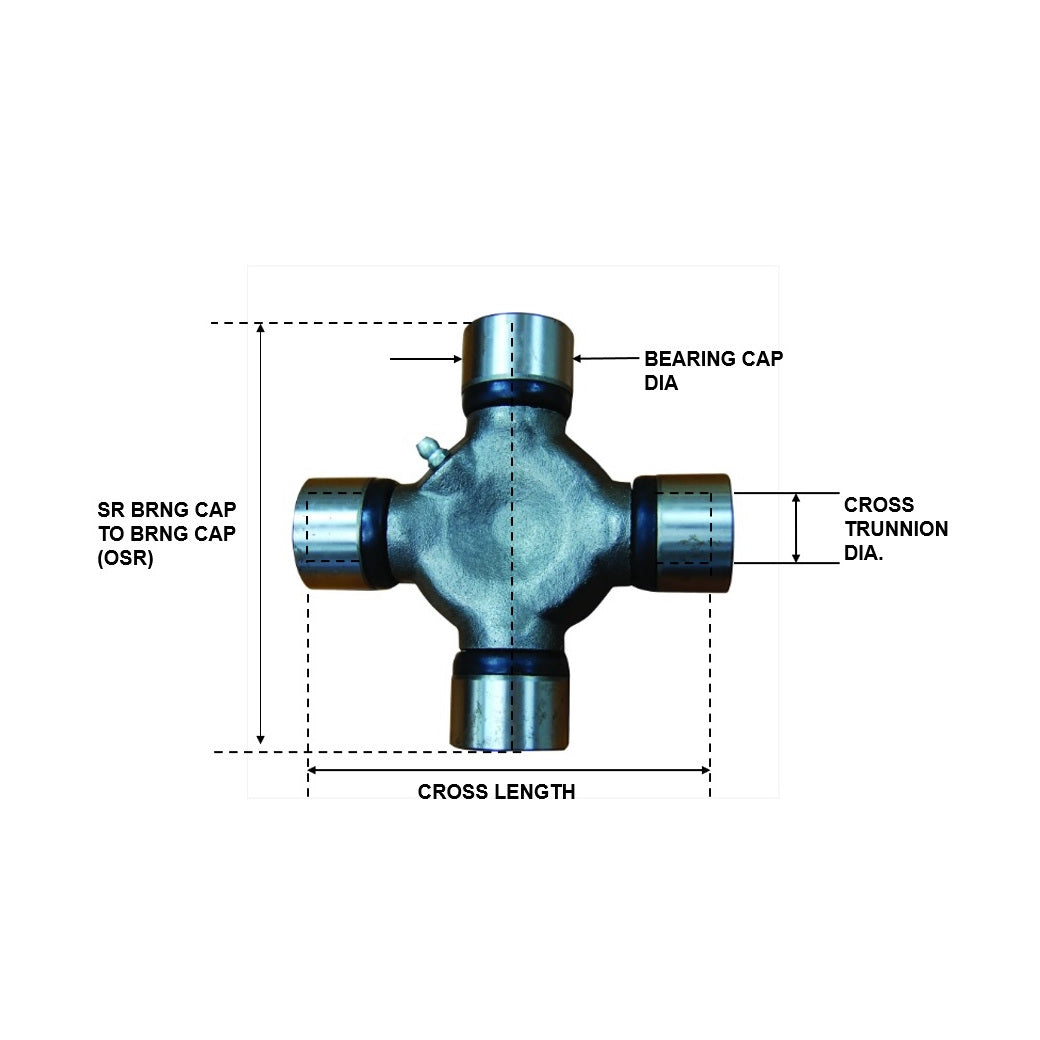

  • Bearing Cap Diameter (1): 1625
  • Bearing Cap Diameter (2): 1625
  • SR(1)Brng Cap to Brng Cap(OSR): 4957
  • SR(2)Brng Cap to Brng Cap(OSR): 4957
  • VMRS: 24002046
  • Weight: 3.75 LB
  • Country of Origin: United States


  • Automann: 752SPL90X
  • Dana: SPL100-1X, SPL1001X, SPL90X, SPL1001X
  • Meritor : US90X
  • Neapco: 4-1090, 41090
