The Fortpro Air Spring F245580 is an air suspension component that elevates performance and comfort in automotive vehicles. Precision manufactured using premium materials and advanced technology, this air spring ensures exceptional durability and strength. With its strong cylindrical design, the F245580 features a reinforced synthetic rubber membrane that offers exceptional load capacity and superior fatigue resistance.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag, Air Bag Suspension |
| OEM Part Number | W01-358-9875 |
Application/Fitment Attributes2 attributes
| Application Type | Semi-Trucks, Heavy Duty Trucks |
|---|---|
| VMRS Code | 016-008-000 |

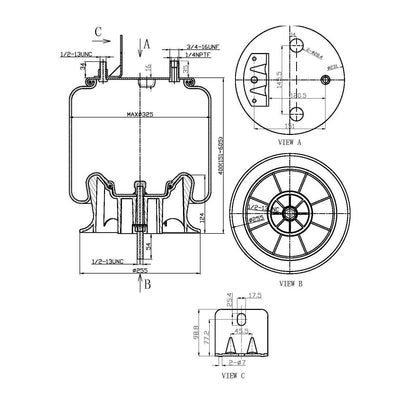

Dimensional/Physical Attributes13 attributes
| Material | Fiber reinforced rubber bellows |
|---|---|
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4-16 UNF |
| Body Diameter | 10.00 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.00 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 4.65 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 3/4-10 UNC |
Technical/Performance Attributes3 attributes
| Air Spring Type | 1T Reversible Sleeve |
|---|---|
| Collapsed Length | 6.70 in. |
| Extended Length | 23.00 in. |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 13.04 lb. |
|---|
Intended Application
- Compatible with International/Navistar Trucks equipped with Bead Plate Bracket (Single Hole) Suspension Mounting
- Automann: 566CT73746, AB1DF23IP1067
- Contitech: 910S18P1067(BK)
- Dayton Parts Batco: 1R121077, 1R12432, 3521191
- Firestone: W013581191, W01-358-1191
