Fortpro Air Spring Replaces 9648, 1R12-538 | F245595

Fortpro Air Spring Replaces 9648, 1R12-538 | F245595

SKU: F245595

Availability: Out of stock

$110.54 USD
$0.00 USD $110.54 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Constructed with high-quality materials and advanced technology for durability.
  • Improves vehicle stability and reduces driver fatigue
  • Exceptional load capacity and maximum resistance to fatigue.
  • Provide a smoother, more comfortable ride, reducing fatigue on traditional heavy-vehicle suspension systems
  • Efficient shock and vibration absorption for a smooth and comfortable ride
View full details

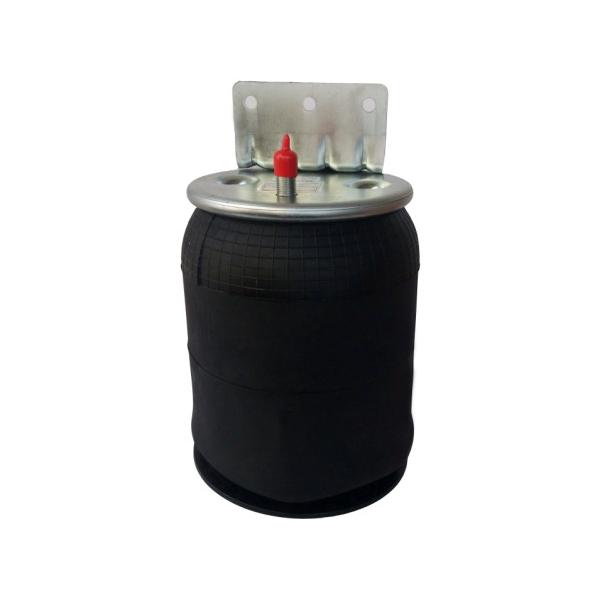

Fortpro Air Spring F245595 is a high quality air spring designed for commercial and cargo vehicles. It offers height adjustment, shock absorption, and robust load capacity, all backed by its durable construction and compressed air-based functionality



Fortpro Logo

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information5 attributes
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameAir Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag, Air Bag Suspension
OEM Part NumberW01-358-9648
Application/Fitment Attributes2 attributes
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
VMRS Code016-008-000

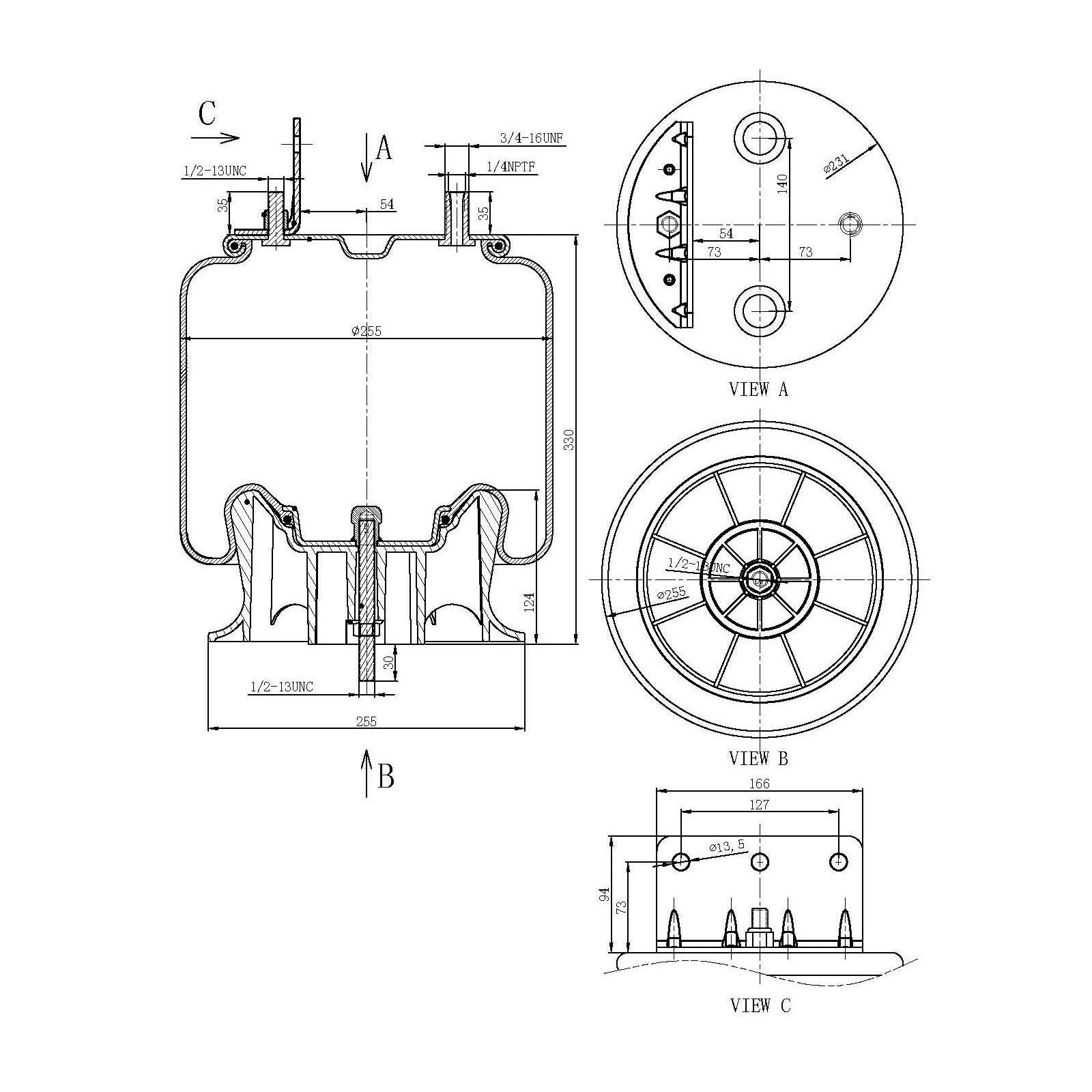

Dimensional/Physical Attributes13 attributes
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPT
Air Inlet Outside Thread3/4-16 UNF
Body Diameter10.12 in.
Bottom Plate AlignmentParallel
Bottom Plate Diameter10.00 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom1
Mounting Stud Configuration - Top4
Piston Height4.65 in.
Piston Material TypeComposite
Top Plate Diameter9.00 in.
Top Plate Stud3/4-10 UNC
Technical/Performance Attributes3 attributes
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length6.70 in.
Extended Length20.00 in.
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight14.05 lb.
Intended Application
Intended Application
  • Compatible with International 9200, 9400, 8100, and LT Series Trucks equipped with Navistar IROS / Air Ride Rear Suspension Systems
  • Automann: AB1DK23M9648
  • Contitech: 910175P456, 910S16P1068(BK)
  • Dayton Parts Batco: 1R12538, 3529648
  • Firestone: 9648, W013589648, W01-358-9648
  • Goodyear: 1R12398, 1R12398, 1R12538, 1R12538, 1R12539
  • Sirco - Brake : AS9648
Dimensions Not Available.
