Fortpro Air Spring F245599 is a high quality air suspension system designed to improve the comfort, stability and load capacity of commercial and cargo vehicles. This air spring suspension uses a compressed air bag made of strong and durable materials, ensuring reliable performance over time.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Suspension Bag, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring |
| OEM Part Number | W01-358-9039 |
Application/Fitment Attributes2 attributes
| Application Type | Semi-Trucks, Heavy Duty Trucks |
|---|---|
| VMRS Code | 016-008-000 |

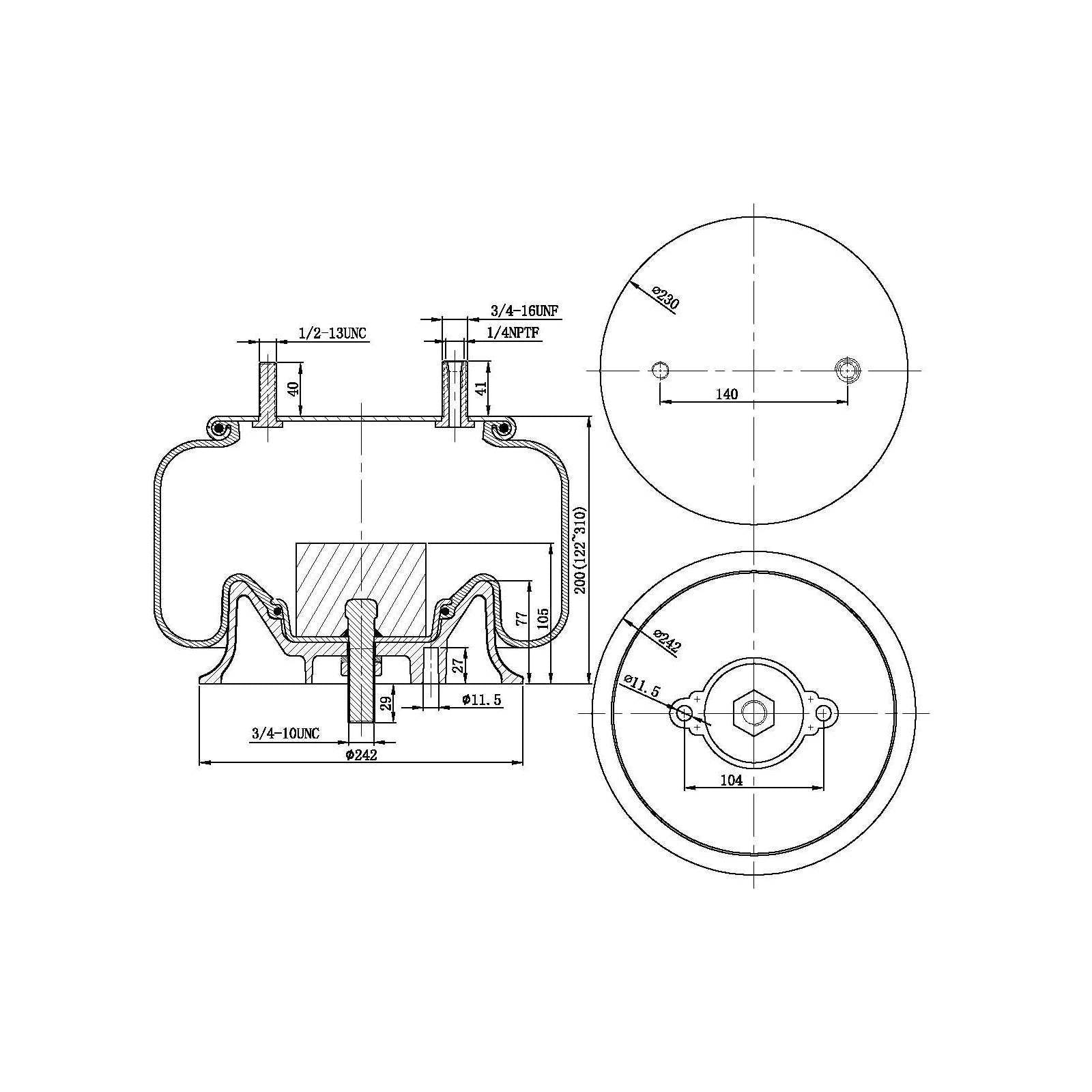

Dimensional/Physical Attributes13 attributes
| Material | Fiber reinforced rubber bellows |
|---|---|
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4-16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 9.25 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 3.00 in. |
| Piston Material Type | Steel |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2-13 UNC |
Technical/Performance Attributes3 attributes
| Air Spring Type | 1T Reversible Sleeve |
|---|---|
| Collapsed Length | 4.40 in. |
| Extended Length | 13.50 in. |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 15.25 lb. |
|---|
Intended Application
- Compatible with Hendrickson (S-Series), Holland (Neway), Hutchens, R & S Truck & Body, Ridewell, FabTek, Sauer, and Watson & Chalin Trailer Air Suspension Systems.
- Airtex: AB1DK23F9039
- Automann: 566CT64260
- Contitech: 91010P311, 91010P311
- Dayton Parts Batco: 1R12095, 1R12097, 3529039, S2063
- Firestone: 9039, W013589039, W01-358-9039
- Goodyear: 1R12095, 1R12095, 1R12097, 1R12097, 1R12097SA, 1R12122, 1R12122
