Fortpro Air Spring Replaces 8708,1R13-177 | F245598

Fortpro Air Spring Replaces 8708,1R13-177 | F245598

SKU: F245598

Availability: More than 50 in Stock

$124.61 USD
$0.00 USD $124.61 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Reliable cargo protection during transportation
  • Maximum reduction in impacts and vibrations
  • Increased stability and safety on the road
  • Adaptability to different load conditions and terrains
  • Advanced design with maximum strength for long-term service
View full details

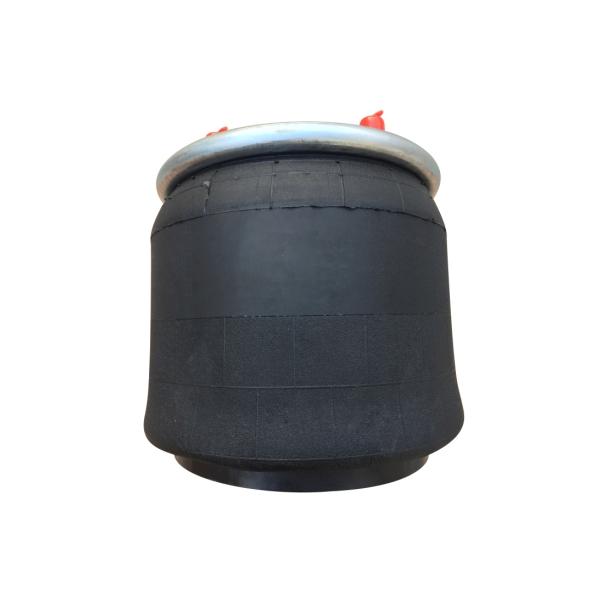

Fortpro Air Spring F245598 is a leading air suspension choice for heavy duty vehicles and other applications. Providing a smooth and stable ride, reliable cargo protection, and superior durability, this air spring ensures optimum performance and safe driving.



Fortpro Logo

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information
Product Line Suspension Category Name Air Springs and Bags
Part Type Rolling Lobe Air Spring Alternate Part Name Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag
OEM Part Number W01-358-8708
Application/Fitment Attributes
Application Type Heavy Duty Trucks, Semi-Trucks VMRS Code 016-008-000

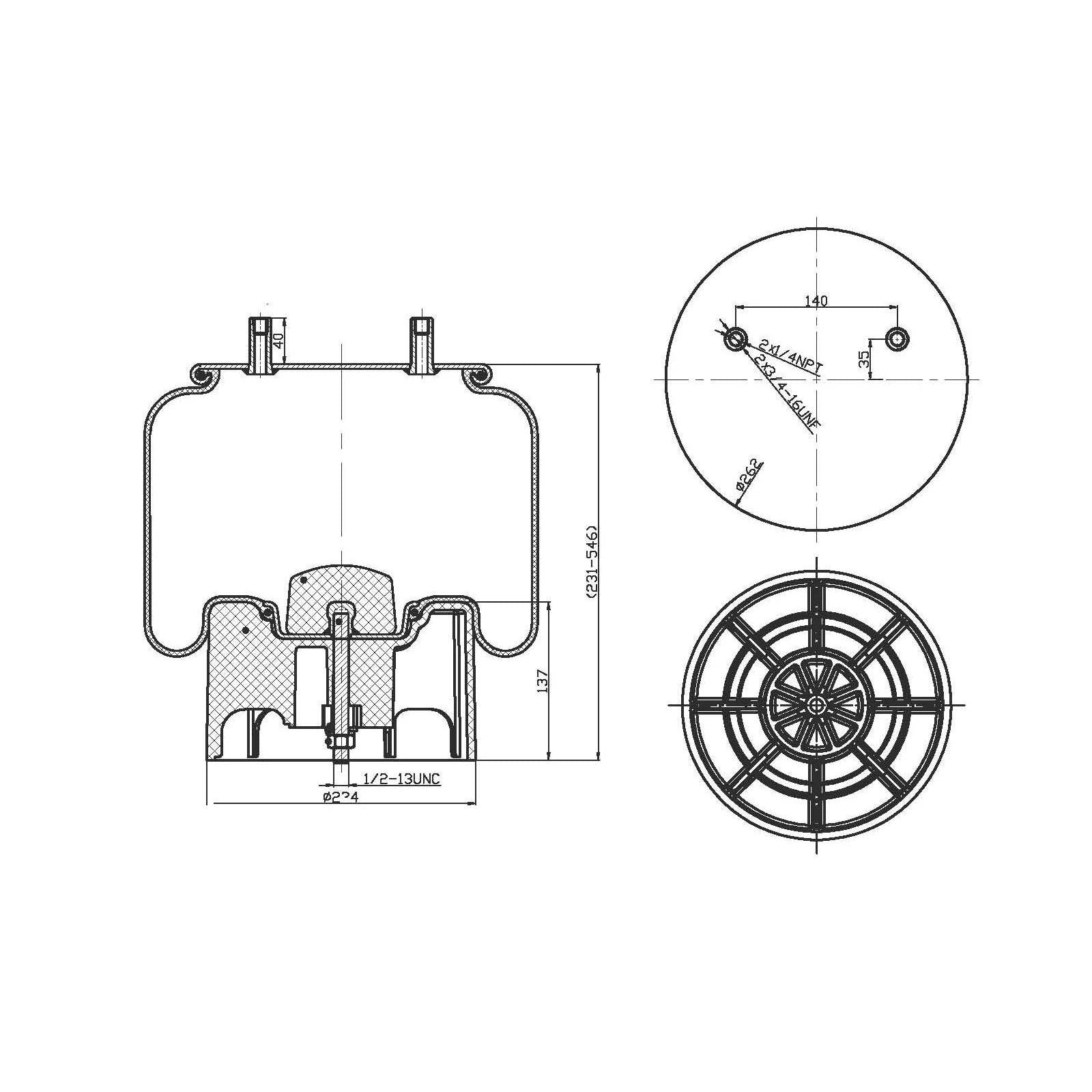

Dimensional/Physical Attributes
Material Fiber reinforced rubber bellows Air Inlet Inside Thread 1/4-18 NPT
Air Inlet Outside Thread 3/4 16 UNF Body Diameter 10.62 in.
Bottom Plate Alignment Parallel Bottom Plate Diameter 8.80 in.
Bottom Plate Stud 1/2-13 UNC Mounting Stud Configuration - Bottom 1
Mounting Stud Configuration - Top 2 Piston Height 5.38 in.
Piston Material Type Composite Top Plate Diameter 10.30 in.
Technical/Performance Attributes
Air Spring Type 1T Reversible Sleeve Collapsed Length 9.10 in.
Extended Length 19.00 in.
Packaging / Logistics Attributes
Net Weight 20.15 lb.
Additional Information
Intended Application
  • Compatible with Hendrickson Trailers equipped with HKA200 Special Rear Air Suspension System
  • Automann: 566CT64638, AB1DK25E8708
  • Contitech: 101016S526
  • Dayton Parts Batco: 1R13177, 3528708, S21966
  • Firestone: 8708, W013588708, W01-358-8708
  • Goodyear: 1R13128, 1R13177, 1R13177
  • Meritor: FS8708, MAF8708
Dimensions Not Available.
