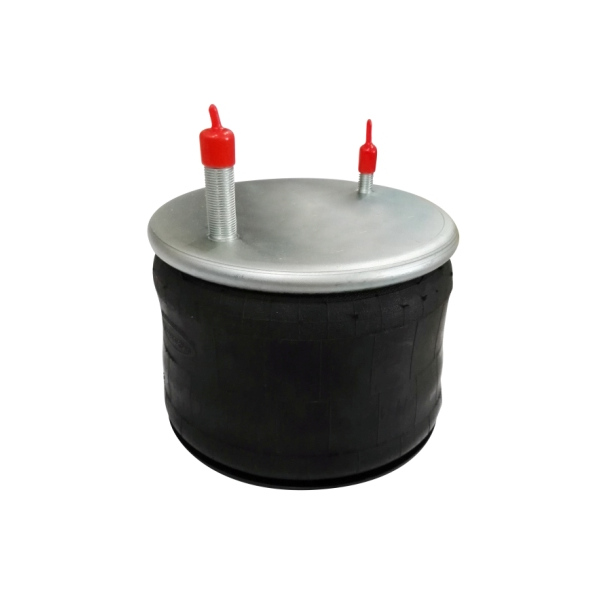

Fortpro Air Spring Replaces 9422, 1R11-028 For Kenworth Trucks | F245588

Fortpro Air Spring Replaces 9422, 1R11-028 For Kenworth Trucks | F245588

SKU: F245588

Availability: More than 50 in Stock

$90.45 USD
$0.00 USD $90.45 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Secure your trip. Discover the benefits of Air Springs Fortpro. Comfort, stability and protection on every journey
  • Increase the life of tires and brake pads and substantially reduce breakage and maintenance on other vehicle components including the chassis and drive train.
  • Lasts twice as long as traditional steel springs and improves vehicle balance
  • Allow perfect load compensation between axes
  • Manufactured with high quality materials and high standards of resistance
View full details

Fortpro Air Spring F245588 works by using compressed air to absorb shocks and vibrations caused by irregularities in the road, which improves comfort, reduces driver fatigue and protects the transported load. Additionally, the Air Spring F245588 can be adjusted to accommodate different loads and riding conditions, providing a consistent level of ride height and stability.



Fortpro Logo

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information
Product Line Suspension Category Name Air Springs and Bags
Part Type Rolling Lobe Air Spring Alternate Part Name Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Air Bag Suspension, Suspension Air Bag
OEM Part Number W01-358-9422
Application/Fitment Attributes
Application Type Heavy Duty Trucks, Semi-Trucks VMRS Code 016-008-000

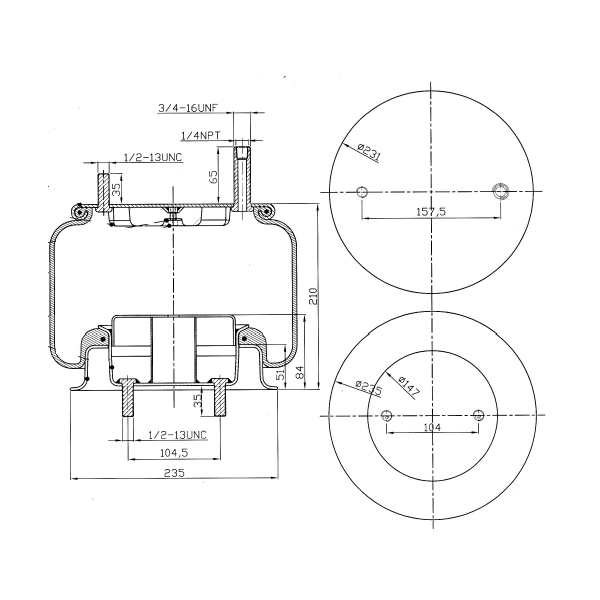

Dimensional/Physical Attributes
Material Fiber reinforced rubber bellows Air Inlet Inside Thread 1/4-18 NPT
Air Inlet Outside Thread 3/4 16 UNF Body Diameter 9.12 in.
Bottom Plate Alignment Parallel Bottom Plate Diameter 9.50 in.
Bottom Plate Stud 1/2-13 UNC Mounting Stud Configuration - Bottom 2
Mounting Stud Configuration - Top 2 Piston Height 2.80 in.
Piston Material Type Composite Top Plate Diameter 9.00 in.
Top Plate Stud 1/2-13 UNC
Technical/Performance Attributes
Air Spring Type 1T Reversible Sleeve Collapsed Length 3.80 in.
Extended Length 13.30 in.
Packaging / Logistics Attributes
Net Weight 13.00 lb.
Additional Information
Intended Application
  • Compatible with Kenworth Airglide 100 Rear Air Suspension – older version without bracket.
  • Automann: 566CT64255, AB1DK20D9422
  • Contitech: 9912P314, 9912P314
  • Dayton Parts Batco: 1R11028, 3529422, 3529422AG
  • Firestone: 9205, 9422, 9614, 9615, W013589422, W01-358-9422
  • Goodyear: 1R11028, 1R11028
  • Hendrickson: S13032
  • Kenworth: K30314, K30315, K3036
Dimensions Not Available.
