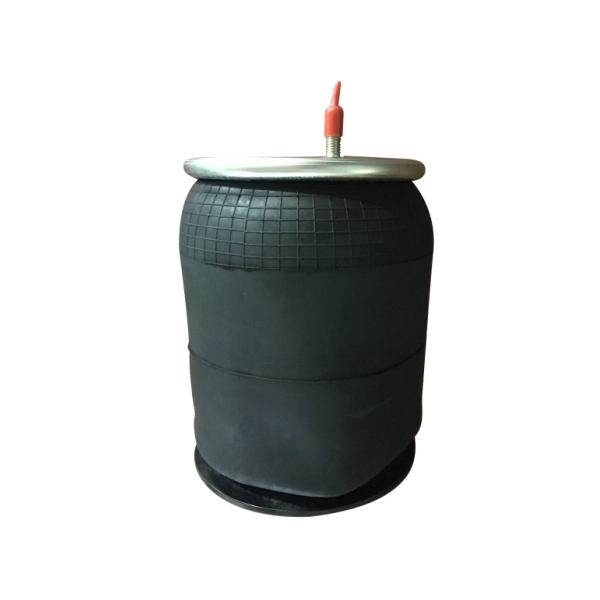

Fortpro Air Springs F245581 is an air suspension solution with a strong design and made with high quality materials. They offer greater load capacity, flexibility, stability and driving comfort. Plus, they're easy to install and maintain, making them a reliable and long-lasting option for upgrading your commercial vehicle suspension.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Suspension Bag, Air Bag Suspension, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Ride Spring, Suspension Air Bag, Pneumatic Spring |
| OEM Part Number | W01-358-9375 |
Application/Fitment Attributes2 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| VMRS Code | 016-008-000 |
Dimensional/Physical Attributes12 attributes
| Material | Fiber reinforced rubber bellows |
|---|---|
| Air Inlet Inside Thread | 1/4-18 NPT |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.00 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 4.85 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2-13 UNC |
Technical/Performance Attributes3 attributes
| Air Spring Type | 1T Reversible Sleeve |
|---|---|
| Collapsed Length | 8.10 in. |
| Extended Length | 22.00 in. |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 16.40 lb. |
|---|
Intended Application
- Compatible with Mack (CH612, CH613, MR688S, MR688P) Hendrickson (Rear Air Suspension System).
- Automann: AB1DK23M9375
- Contitech: 910175P451, 910185P451(BK)
- Dayton Parts Batco: 1R121076, 1R12404, 3529375, 50899002L
- Firestone: 9375, W013589375
- Goodyear: 1R12404, 1R12404, 1R12488, 1S12030, 1S12031
- Hendrickson: 50899001, 50899002
- Mack: 364QS27, 57QL414M
