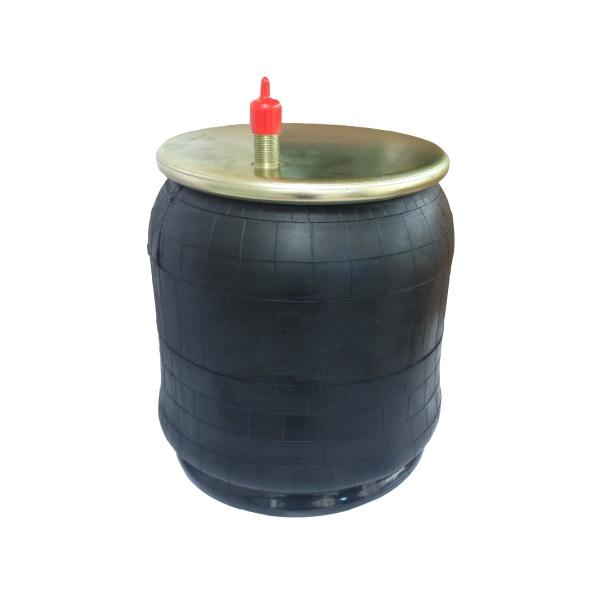

Fortpro Air Spring Replaces 9270, 1R13-119 | F245586

Fortpro Air Spring Replaces 9270, 1R13-119 | F245586

SKU: F245586

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $125.84 USD
Regular price Sale price $125.84 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Upgrade your heavy vehicles with Fortpro Air Springs: Improved smooth ride, stability and load capacity. Experience the difference today
  • Compatible with a variety of heavy vehicle applications
  • Simple to install and requires little maintenance to maintain optimal performance
  • Improves vehicle stability and control, especially on uneven terrain, increasing safety and reducing the risk of accidents
  • Can be adjusted to support different loads and driving conditions


Fortpro air springs F245586 are an innovative form of suspension for heavy vehicles. They offer a smoother and more comfortable ride, greater stability and control on uneven terrain, greater load capacity, greater durability and adaptability. Air springs are an excellent option to improve the safety and performance of commercial and cargo transportation vehicles.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9270, W013589270, W01-358-9270
  • Position: Primary Truck & Trailer Axle

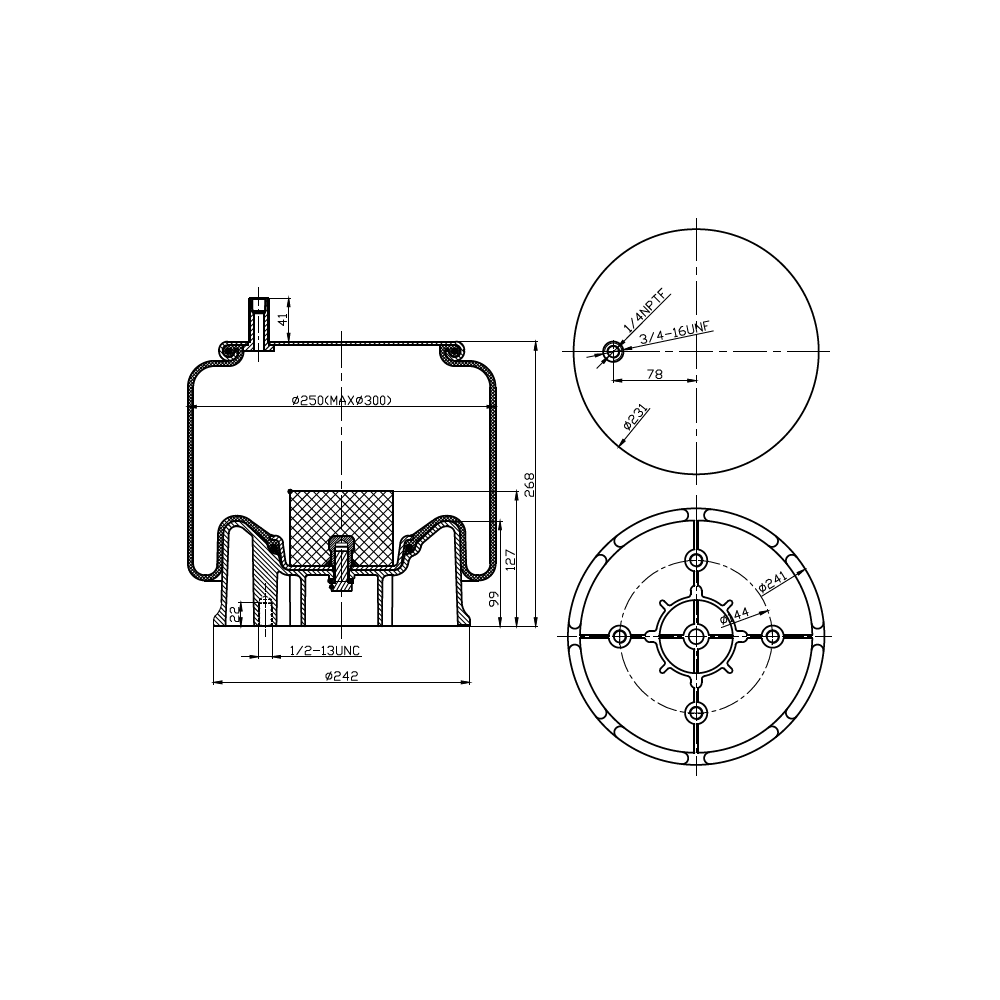

  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Aluminum
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 5.60"
  • Max. Height: 16.90"
  • Part Diameter: 10.12"
  • Piston Height: 3.90"
  • Stud Configuration - Bottom: 4
  • Stud Configuration - Top: 1
  • VMRS: 016-008-000


  • Automann: 566CT64287, AB1DK23I9270, AB1DK25BS1015
  • Contitech: 910135S433, 910135S433
  • Dayton Parts Batco: 1R13119, 3529270, S20010
  • Firestone: 9270, W01-358-9270, W013589270
  • Goodyear: 1R12225, 1R12225, 1R13077, 1R13077, 1R13102, 1R13119, 1R13119
  • Hendrickson: S25559
  • Meritor: FS9270, MAF9270
