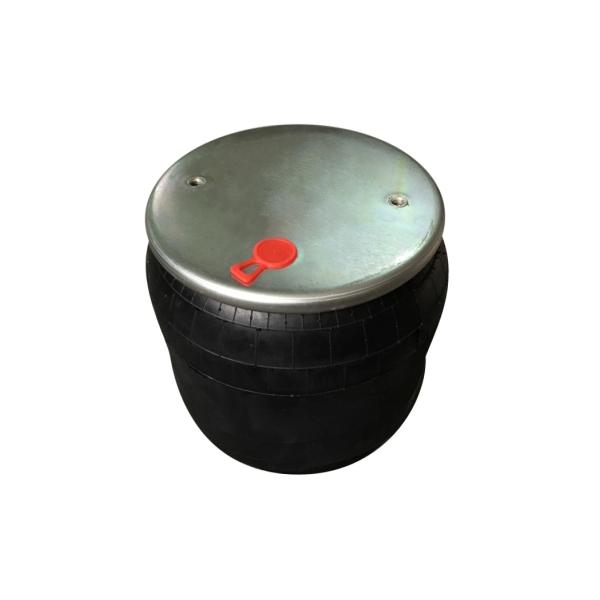

Fortpro Air Spring Replaces 9069, 1R12-069 For Peterbilt Trucks | F245587

Fortpro Air Spring Replaces 9069, 1R12-069 For Peterbilt Trucks | F245587

SKU: F245587

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $111.10 USD
Regular price Sale price $111.10 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Optimize your transport. Air Springs Fortpro: durability, efficiency and comfort in one package. Find out more now
  • Provide greater protection against shock and vibration, ensuring better load integrity.
  • Manufactured with high quality materials and have a robust construction that allows them to withstand rigorous conditions of use in commercial transport.
  • Experience less wear than conventional steel springs, and require minimal maintenance
  • Offers a quiet, cushioned ride and outlasting steel springs due to less vibration


Fortpro Air Spring F245587 offers a combination of durability, comfort, safety and cargo protection that makes it a reliable and efficient option for commercial vehicles. Their superior performance and benefits in terms of productivity and maintenance make them a popular choice in the transportation industry.


  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9069, W013589069, W01-358-9069
  • Position: Primary Truck & Trailer Axle

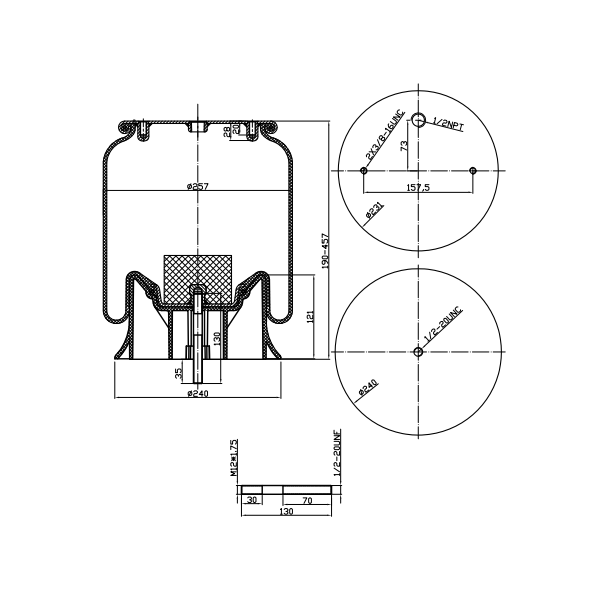

  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.50"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 7.50"
  • Max. Height: 18.00"
  • Part Diameter: 10.12"
  • Piston Height: 4.75"
  • Stud Configuration - Bottom: 1
  • Stud Configuration - Top: 3
  • Application: Peterbilt
  • VMRS: 016-008-000


  • Automann: 566CT64274, 566ER9069, AB1DK23I9069, AB1DK23IA312
  • Contitech: 91014P312, 91014P312
  • Dayton Parts Batco: 1R12069, 1R12669, 1R12676, 3529069
  • Firestone: 9069, W013589069, W01-358-9069
  • Goodyear: 1R12069, 1R12069, 1R12669, 1R12669
  • Hendrickson: 9069, S13031
  • Meritor: FS9069, MAF9069
