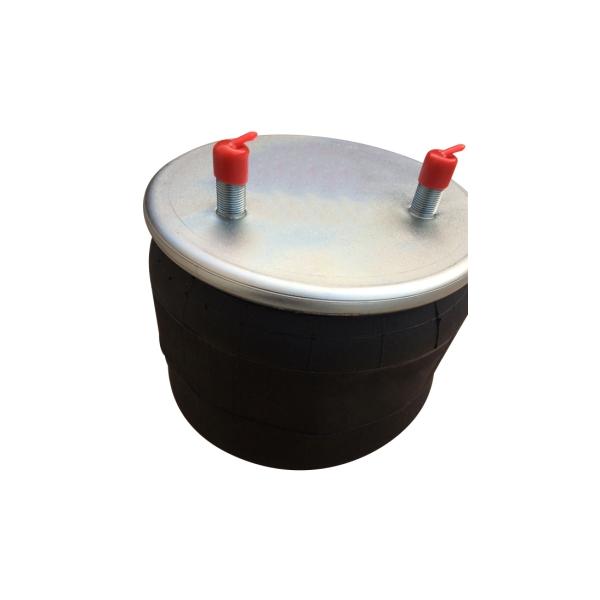

Fortpro Air Spring F245592 is a high quality air suspension component designed to provide excellent load carrying capacity and comfort in automotive applications. Constructed with strong, durable materials, this air spring offers reliable performance and long life. The F245592 features a cylindrical design and is built with a reinforced synthetic rubber membrane, which guarantees excellent resistance to tension and fatigue. This allows the air spring to support heavy loads efficiently without compromising its performance.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-8755 |
Application/Fitment Attributes2 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| VMRS Code | 016-008-000 |

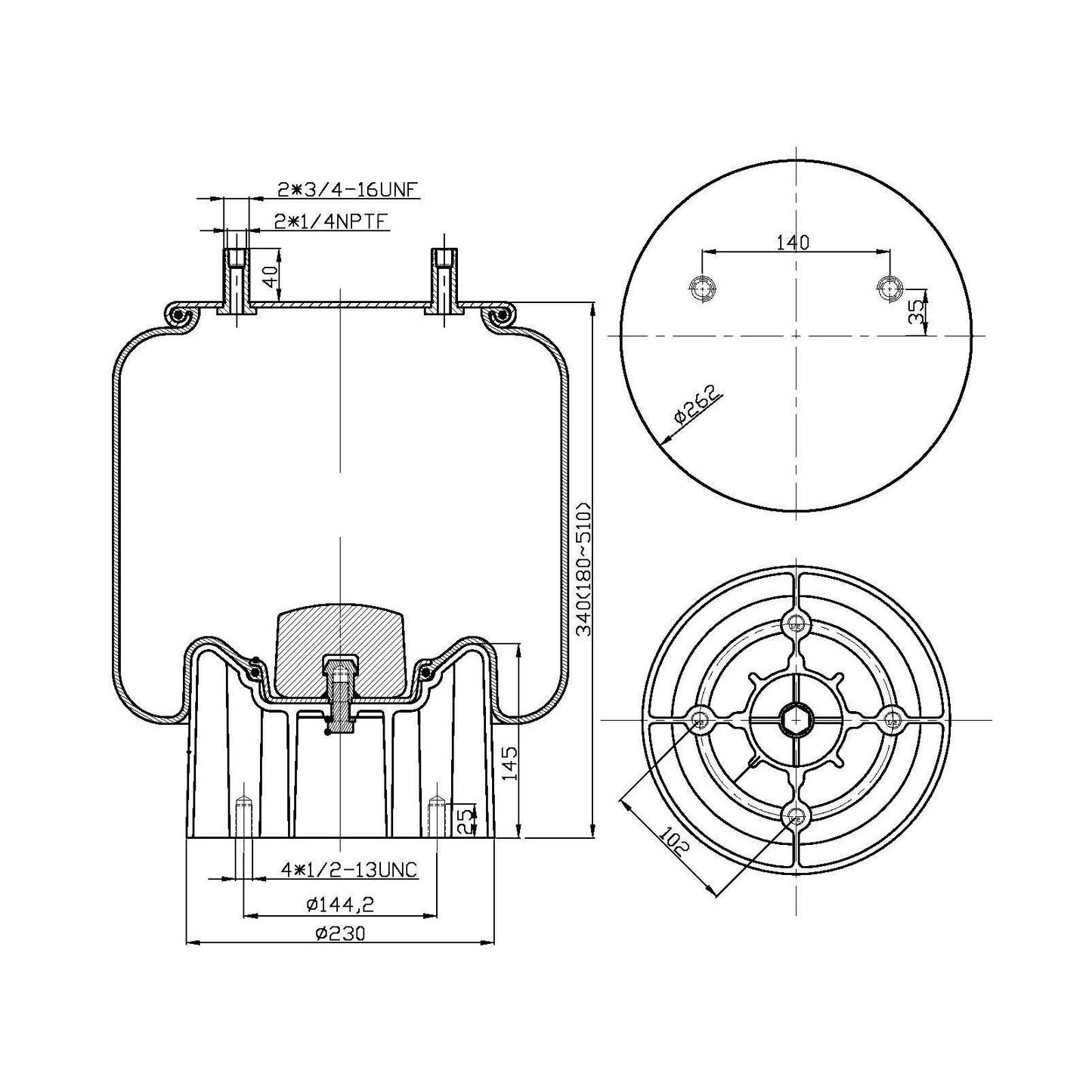

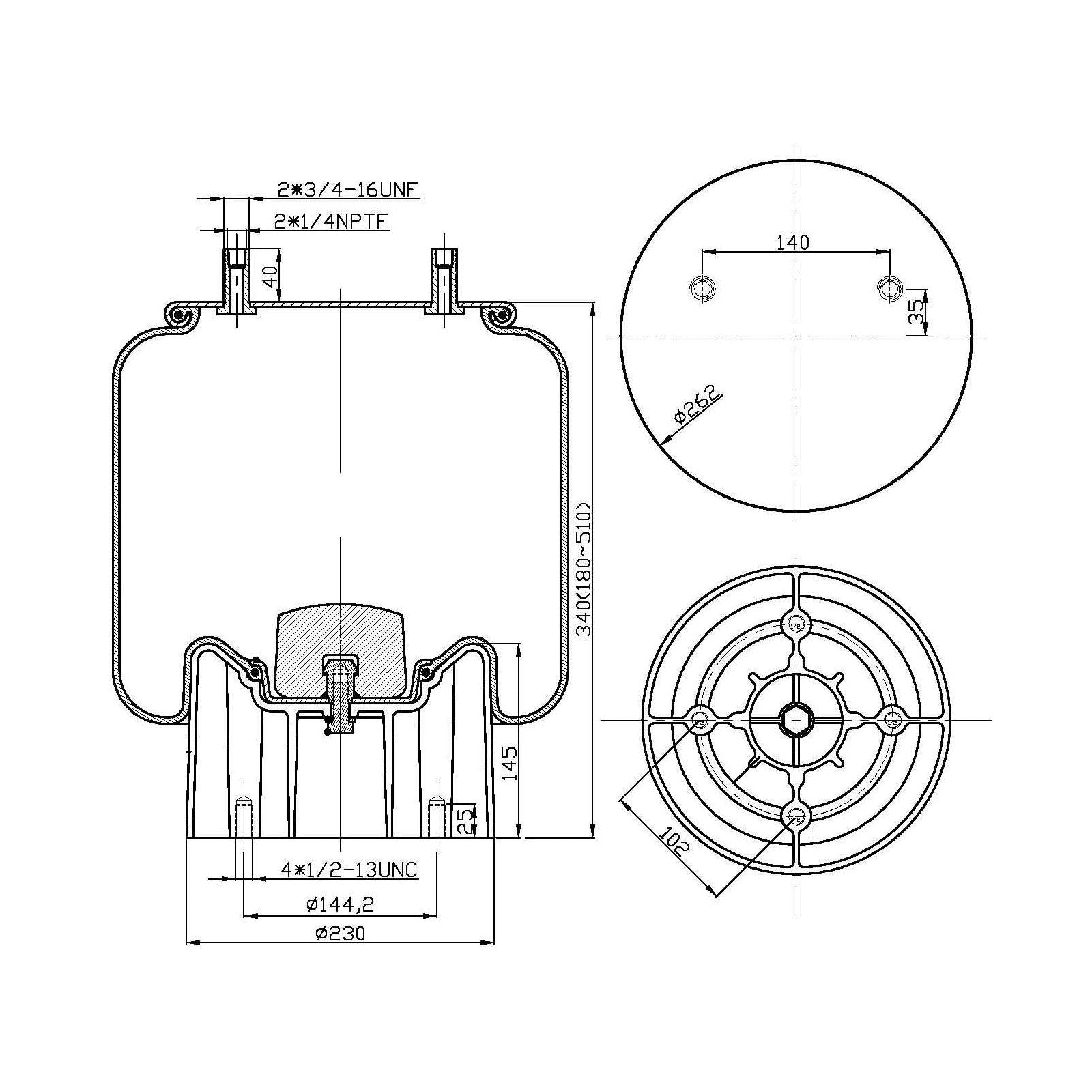

Dimensional/Physical Attributes12 attributes
| Material | Fiber reinforced rubber bellows |
|---|---|
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4-16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.20 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 4 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 5.60 in. |
| Piston Material Type | Steel |
| Top Plate Diameter | 10.30 in. |
Technical/Performance Attributes3 attributes
| Air Spring Type | 1T Reversible Sleeve |
|---|---|
| Collapsed Length | 7.30 in. |
| Extended Length | 18.50 in. |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 26.45 lb. |
|---|
Intended Application
- Compatible with Hendrickson Trailer (HK190T) and Hendrickson Trailer Prototype Rear Air Suspension Systems.
- Automann: AB1DK25B8755
- Contitech: 101015S522
- Dayton Parts Batco: 3528755, S22045
- Firestone: 8755, W013588755, W01-358-8755
- Goodyear: 1R13124, 1R13-124
- Meritor: FS8755
