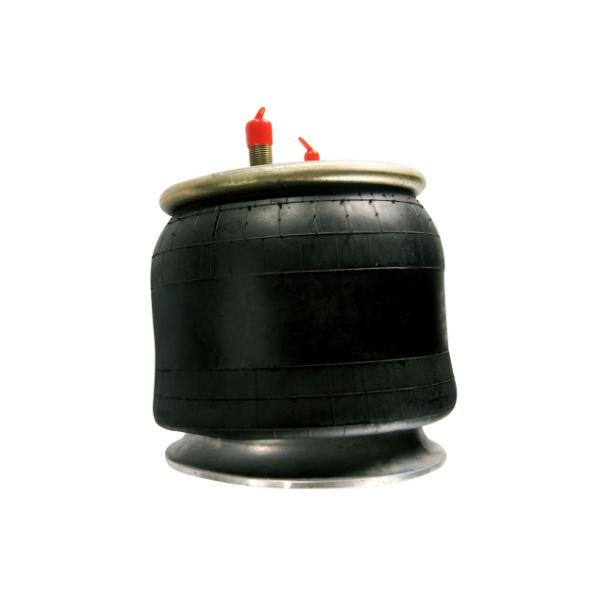

Fortpro Air Spring F245590 offers exceptional load capacity for a wide range of applications, from commercial vehicles to trailers and recreational vehicles (RVs). Its high-quality construction and innovative design ensure superior strength and durability in any condition. Enjoy a smooth and stable ride thanks to the improved shock absorption capabilities of this air spring. Carefully designed and high-strength materials ensure a more comfortable driving experience, reducing vibrations and road shock.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-8204 |
Application/Fitment Attributes2 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| VMRS Code | 016-008-000 |

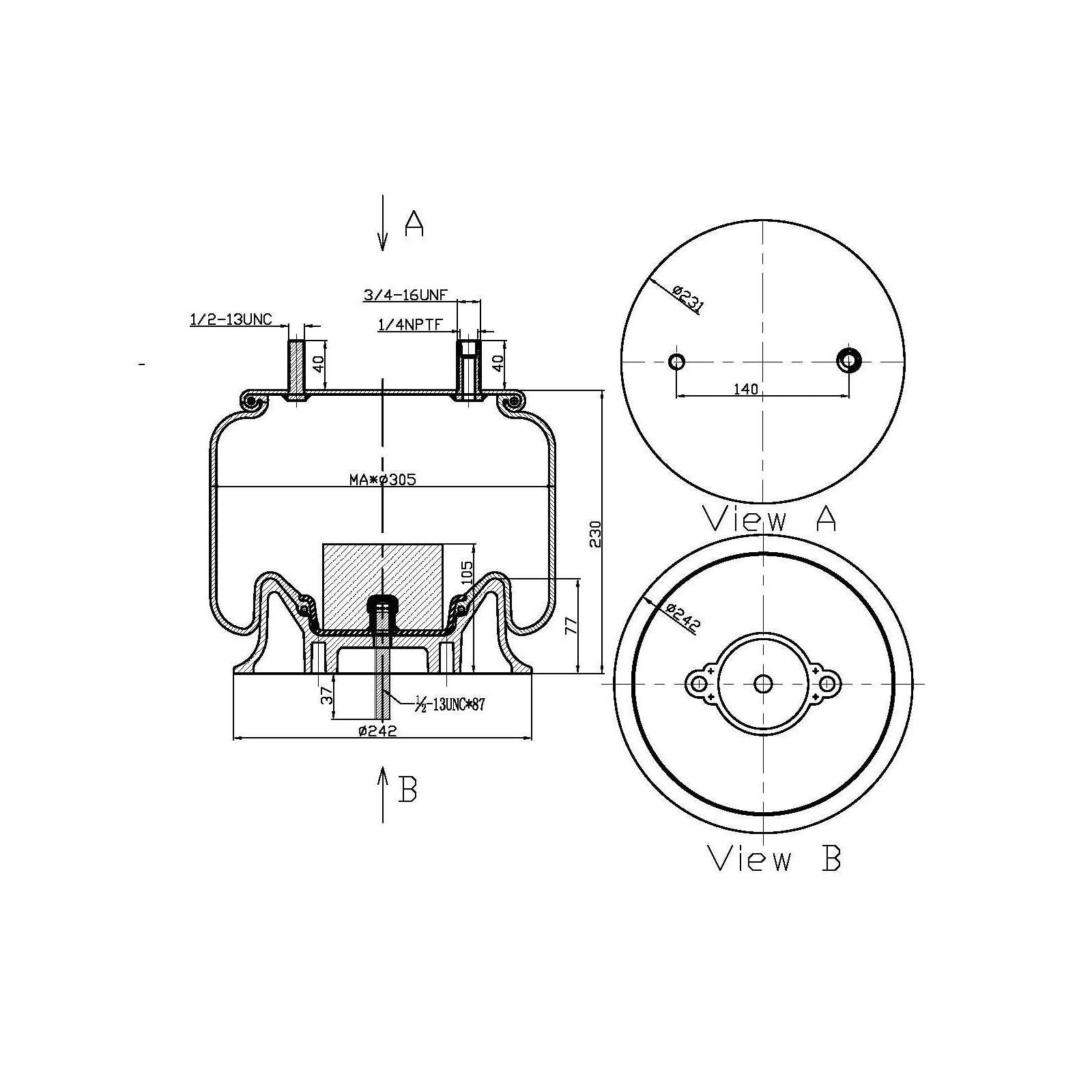

Dimensional/Physical Attributes13 attributes
| Material | Fiber reinforced rubber bellows |
|---|---|
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4-16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 9.30 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 2.83 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2-13 UNC |
Technical/Performance Attributes3 attributes
| Air Spring Type | 1T Reversible Sleeve |
|---|---|
| Collapsed Length | 4.40 in. |
| Extended Length | 14.00 in. |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 10.34 lb. |
|---|
Intended Application
- Compatible with Holland (Neway) Binkley Newlite Rear Air Suspension Systems.
- Automann: 566CT64456, AB1DK23H8204
- Contitech: 91012P484
- Dayton Parts Batco: 1R12508, 3528204
- Firestone: 8204, W013588204, W01-358-8204
- Goodyear: 1R12508, 1R12522, 1R12522
- Meritor: FS8204, MAF8204
