Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Specific attributes
| LeftF265861 | RightF265860 | |
|---|---|---|
| Basic Part Information | ||
| Alternate Part Name | Left Hand Tie Rod End, Tie Rod End Socket, Steering Tie Rob End | Right Hand Tie Rod End, Tie Rod End Socket, Steering Tie Rob End |
| OEM Part Number | 10QH248P2 | 10QH248 |
| Dimensional/Physical Attributes | ||
| Rod Thread Direction | Left Hand | Right Hand |
| Cross-references | ||
| Cross-references | 10QH243P2, 110362R91, 110362R92, 1643278, 2456810, 2597359, 2692041, 310121, 3948867, A3144Q225, ARE-9984, ARE9984, B5TZ3A131A, C1TZ3A131C, ES187L, FTR187L, L20SV8115A12, L24SV5000A14, L24SV5009F12, LS0SV8116A12, SP692041, 10QH248P2, R230060 | 10QH242P1, 10QH248, 10QK248, 110363R92, 1643277, 2456811, 2466811, 2597557, 310122, 3948868, A3144R226, ARE-9955, ARE9955, B4TZ3A130B, B5TZ3A130A, C1TZ3A130C, C8TZ3A130A, E4611, ES187R, FTR187R, L20SV8116A12, L24SV5001A13, L24SV5001A14, L24SV5008C13, R230061, SP692042 |
Common Attributes14 attributes
| Basic Part Information | |
|---|---|
| Product Line | Steering Components |
| Category Name | Tie Rods & Ends |

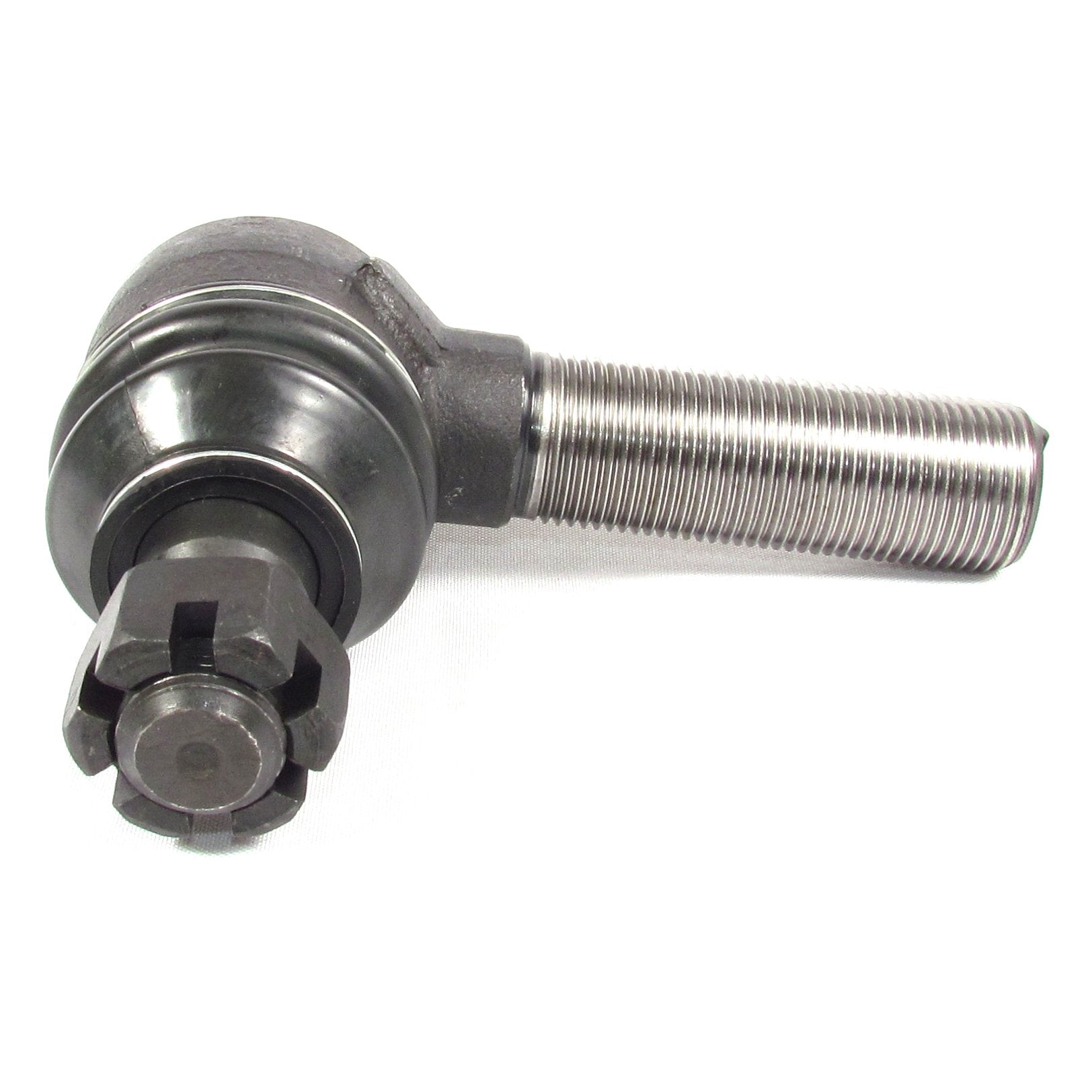

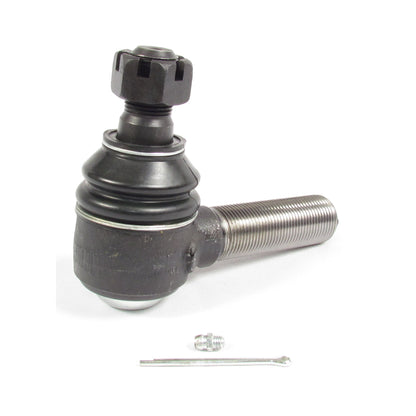

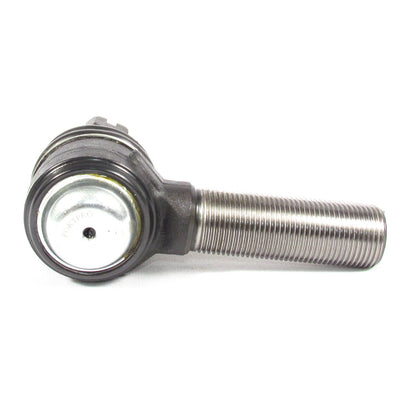

| Part Type | Tie Rod End |
| Application/Fitment Attributes | |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Mounting Location | Front Axle |
| Dimensional/Physical Attributes | |
| Material | Forged Steel |
| Rod End Thread Size | 1.125 in.- 12 |
| Stud Center to Rod End Length | 4.875 in. |
| Stud Thread Diameter | 0.875 in. - 14 |
| Taper Diameter - Large | 1.107 in. |
| Taper Diameter - Small | 0.967 in. |
| Taper Length | 1.08 in. |
| Technical/Performance Attributes | |
| Tie Rod Design Type | Straight |
| Packaging / Logistics Attributes: | |
| Net Weight | 3.30 lb. |
Intended Application
- Steering linkage component for heavy-duty truck front axles (Compatible with Meritor FF/FL Axle series) used in on-highway and vocational applications.
- Mack: 10QH248
- Meritor: R230061
- Dana: SP692042
- Dayton Parts Batco: 310122
- Federal Mogul: ES187R, L24SV5001A13, L24SV5008C13
- Flagg: ES187R
- Marmon: A3144R226
CrossReference (F265861 Left Side)::
- Mack: 10QH248P2
- Meritor: R230060
- Dana: SP692041
- Dayton Parts Batco: 310121
- Federal Mogul: ES187L, L24SV5000A14
- Flagg: ES187L
- Marmon: A3144Q225
Dimensions Not Available.
