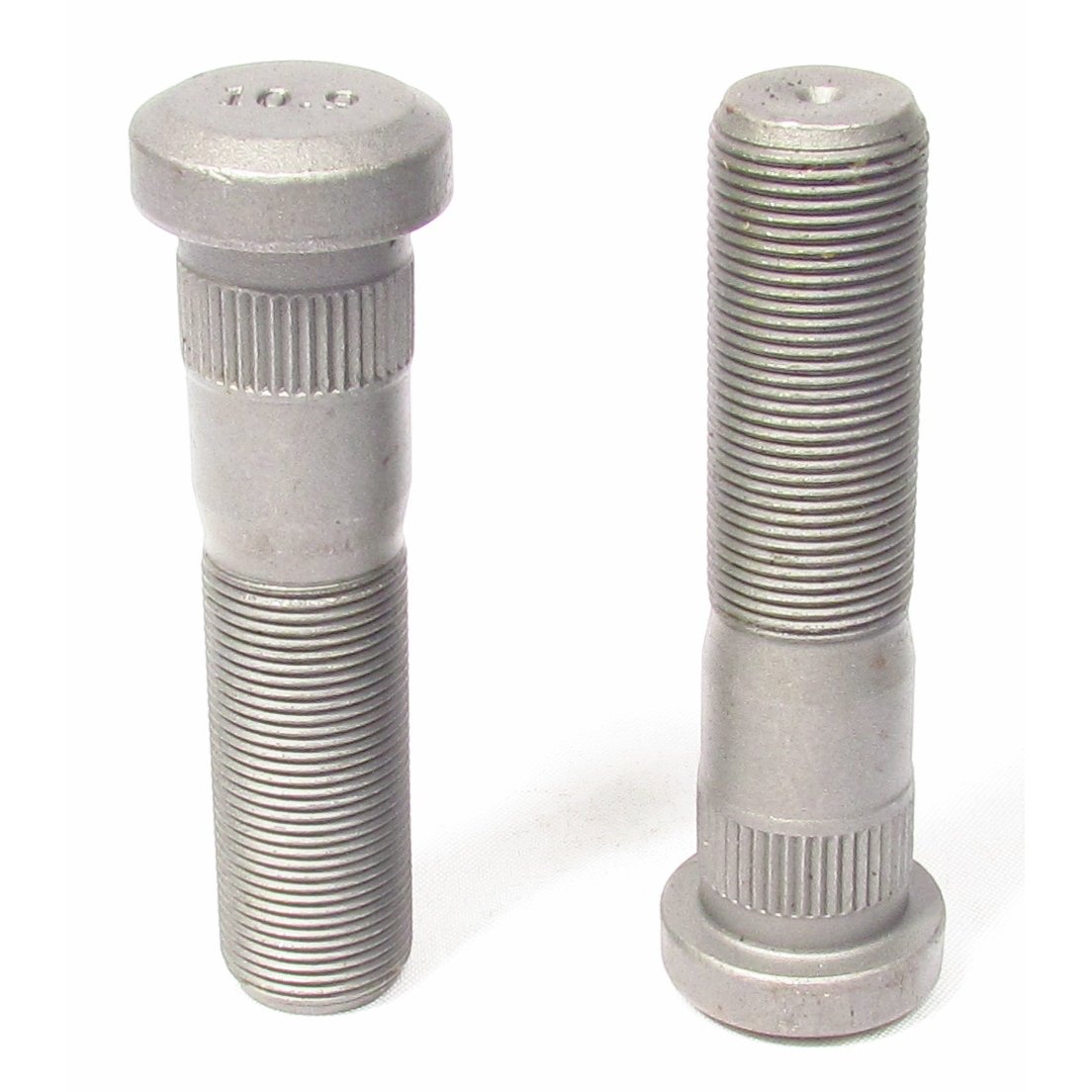

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Studs F286686 specifically designed to provide a secure and reliable hold. With their design that combines a splined section on one end and an M22 x 1.5 metric thread on the other, these studs ensure a solid connection between wheels and wheel hubs. This ensures a strong hold and prevents loosening of the bolts, significantly improving the stability and safety of the vehicle.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Driveline & Axles |
|---|---|
| Category Name | Wheel Fasteners |
| Part Type | Wheel Stud |
| Alternate Part Name | Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs |
| OEM Part Number | E5997 |
Application/Fitment Attributes2 attributes
| Application Type | Semi-Trucks, Heavy Duty Trucks |
|---|---|
| Stud Type | Headed |

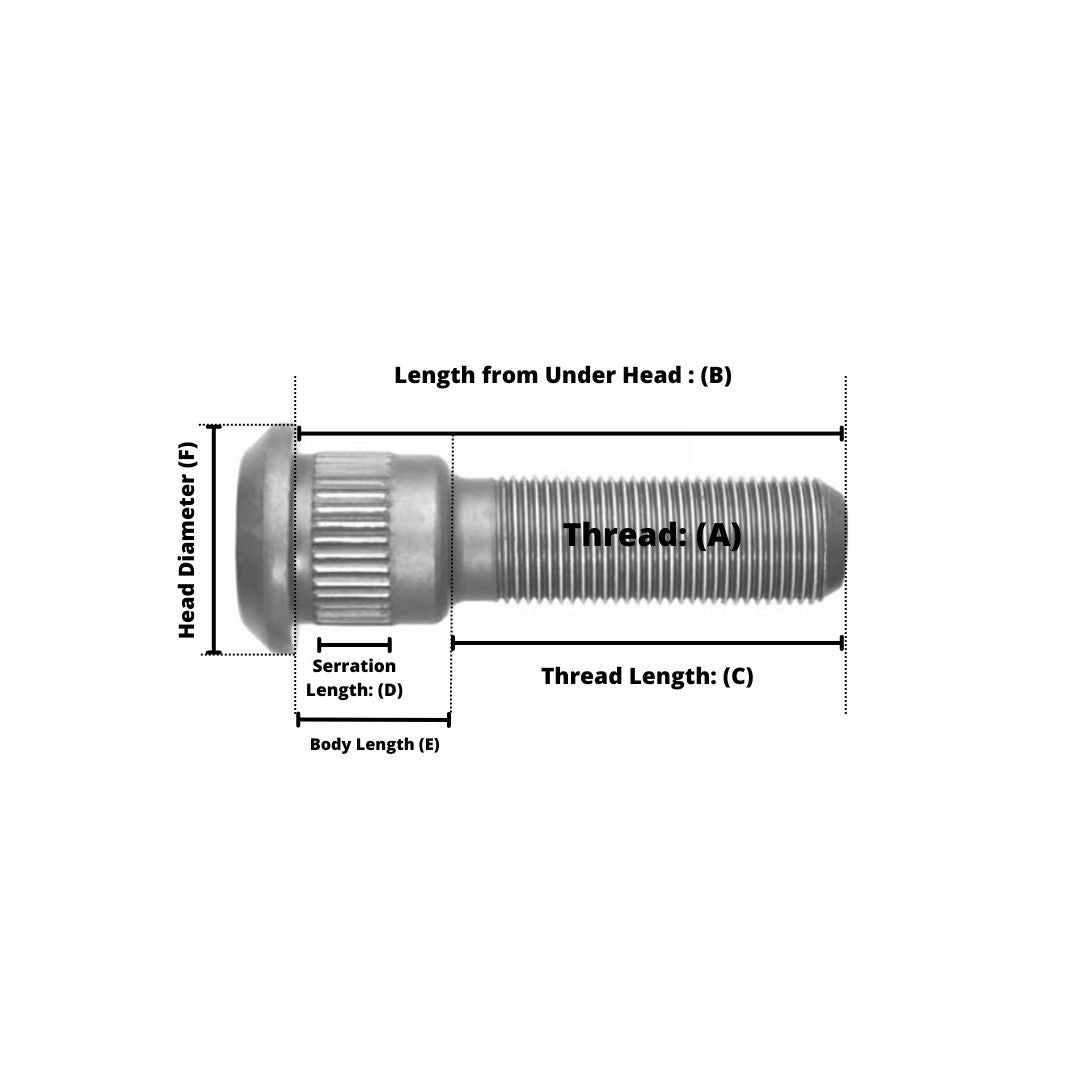

Dimensional/Physical Attributes16 attributes
| Material | Carbon Alloy Steel |
|---|---|
| Body Diameter (G) | 0,900 in. |
| Body Length (E) | 0.880 in. |
| Head Diameter (F) | 1.260 in. |
| Head Style | Round |
| Head Thickness | 0.390 in. |
| Length from Under Head (B) | 3-5/8 in. |
| Serration | Serrated |
| Serration Diameter | 0.950 in. |
| Serration Length (D) | 0.390 in. |
| Thread (A) | M22 x 1.5 |
| Thread Diameter (H) | 22.0 mm |
| Thread Direction | RH (Right Hand) |
| Thread Length (C) | 2.450 in. |
| Thread Size | M22 X 1.5-6g |
| Threads | 1.5 per mm |
Technical/Performance Attributes1 attribute
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) |
|---|
Packaging / Logistics Attributes:1 attribute
| Net Weight | 0.73 lb. |
|---|
Intended Application
- Wheel End Hardware. Designed to be used with an F286669 nut.
- Automann: 2016132
- BWP: M3201
- Budd: 106216, 3018503
- Dayton Parts Batco: 131581
- Euclid: E5997. E-5997
- Meritor: R005997
- Navistar: IT5997
- Sirco Brake: 335
- Spicer: 501285
- Trailmobile: 385997
- World Truck: 15427002
