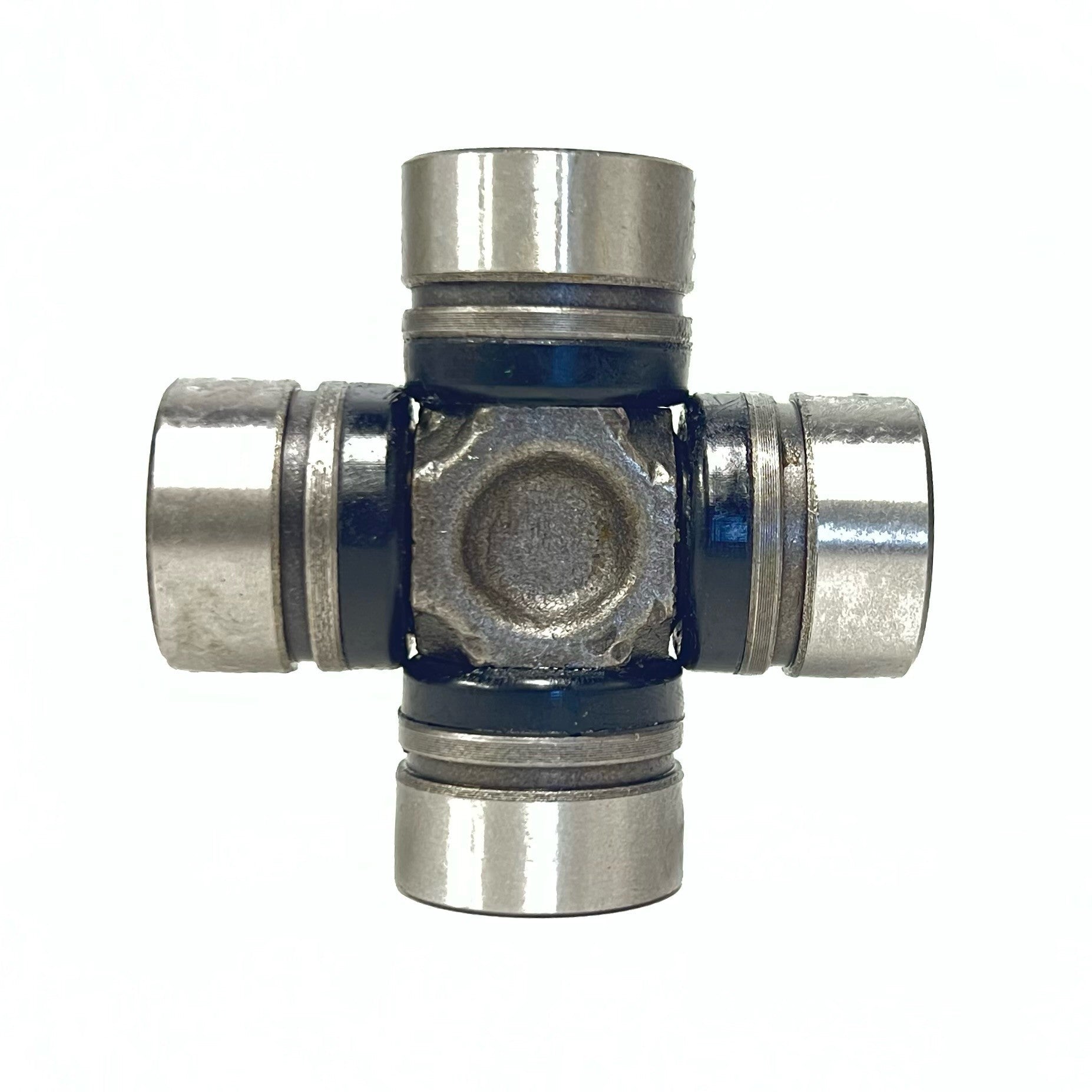

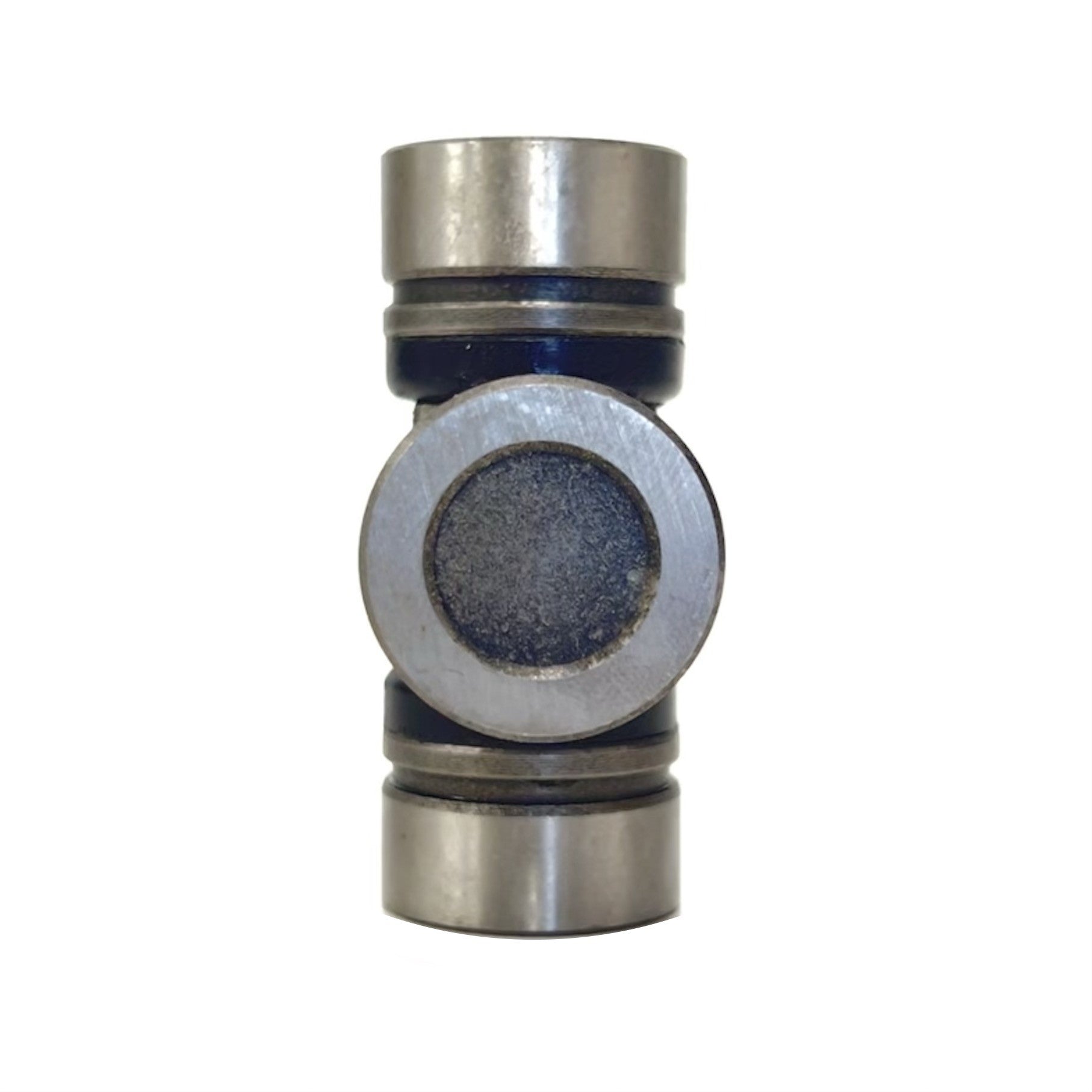

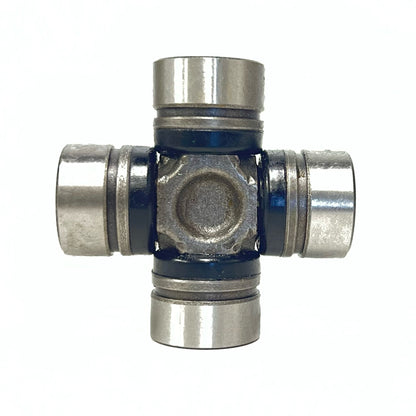

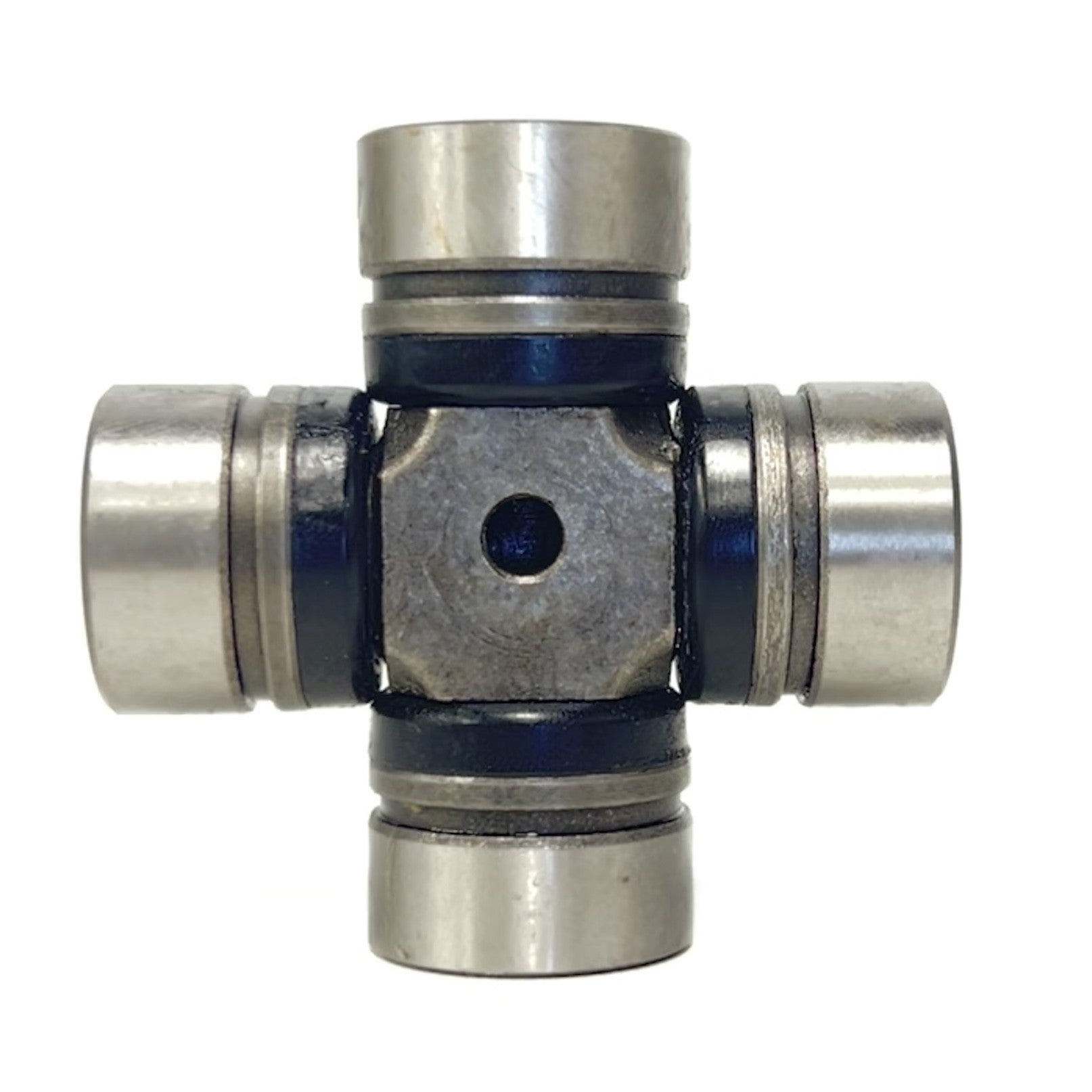

Fortpro F276111 Universal Joint. Specifically engineered for 1000 series drivelines, replacing Spicer 5-170X and 5-103X. Optimized for steering shafts and PTO applications requiring precise motion control. Features high-quality internal bearings for smooth rotation and reduced wear. The inside snap ring style provides secure retention for 0.938" diameter bearing caps. Durable construction ensures safety and performance in compact power transfer and mechanical linkages.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Driveline & Axles |
|---|---|
| Category Name | Driveline Components |
| Part Type | Universal Joint |
| Alternate Part Name | U Joint |
| OEM Part Number | 5-170X |
Application/Fitment Attributes4 attributes
| Application Type | Semi-Trucks, Heavy Duty Trucks |
|---|---|
| Series | 1000 |

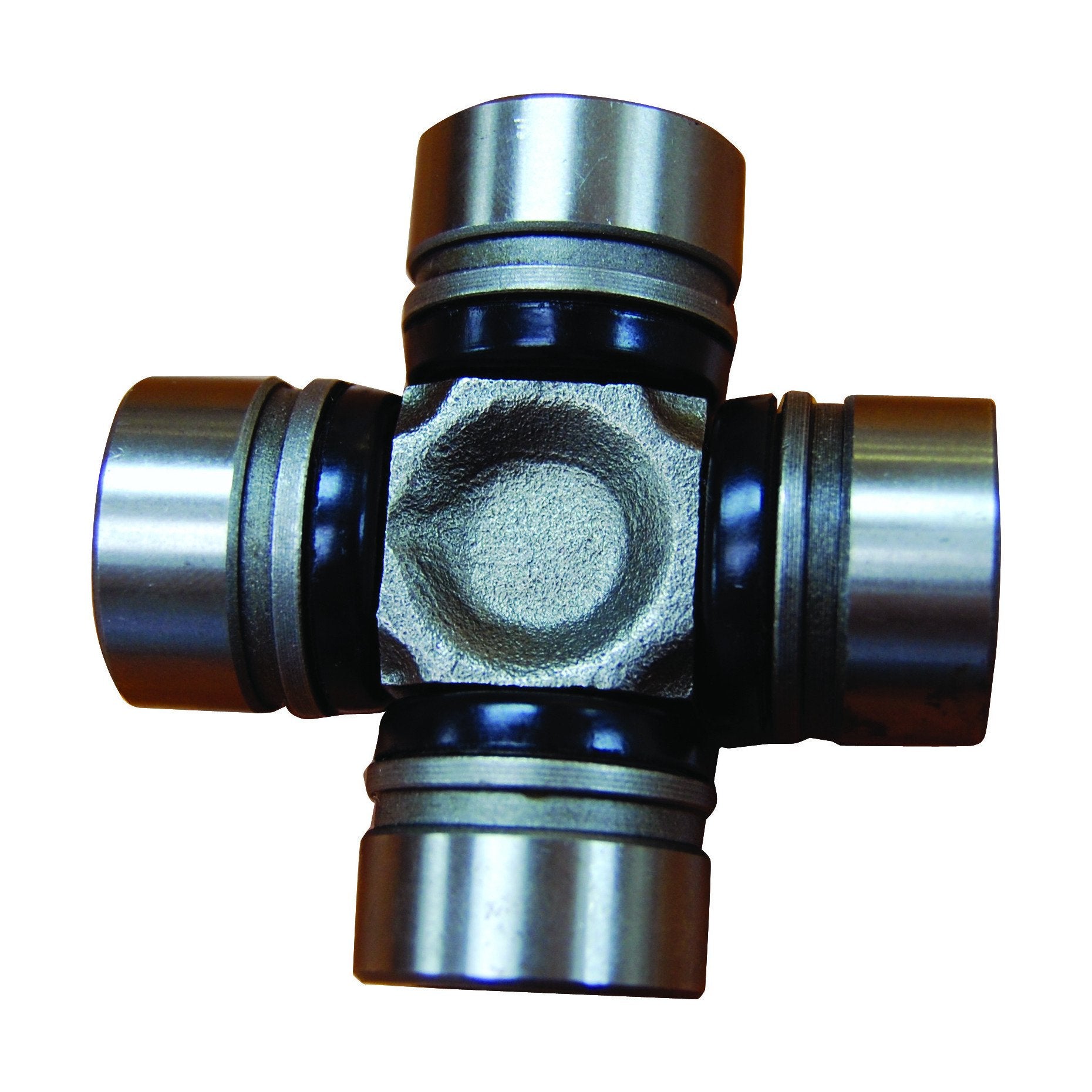

| Universal Joint Type | Inside Snap Ring Style |
| VMRS Code | 24002046 |

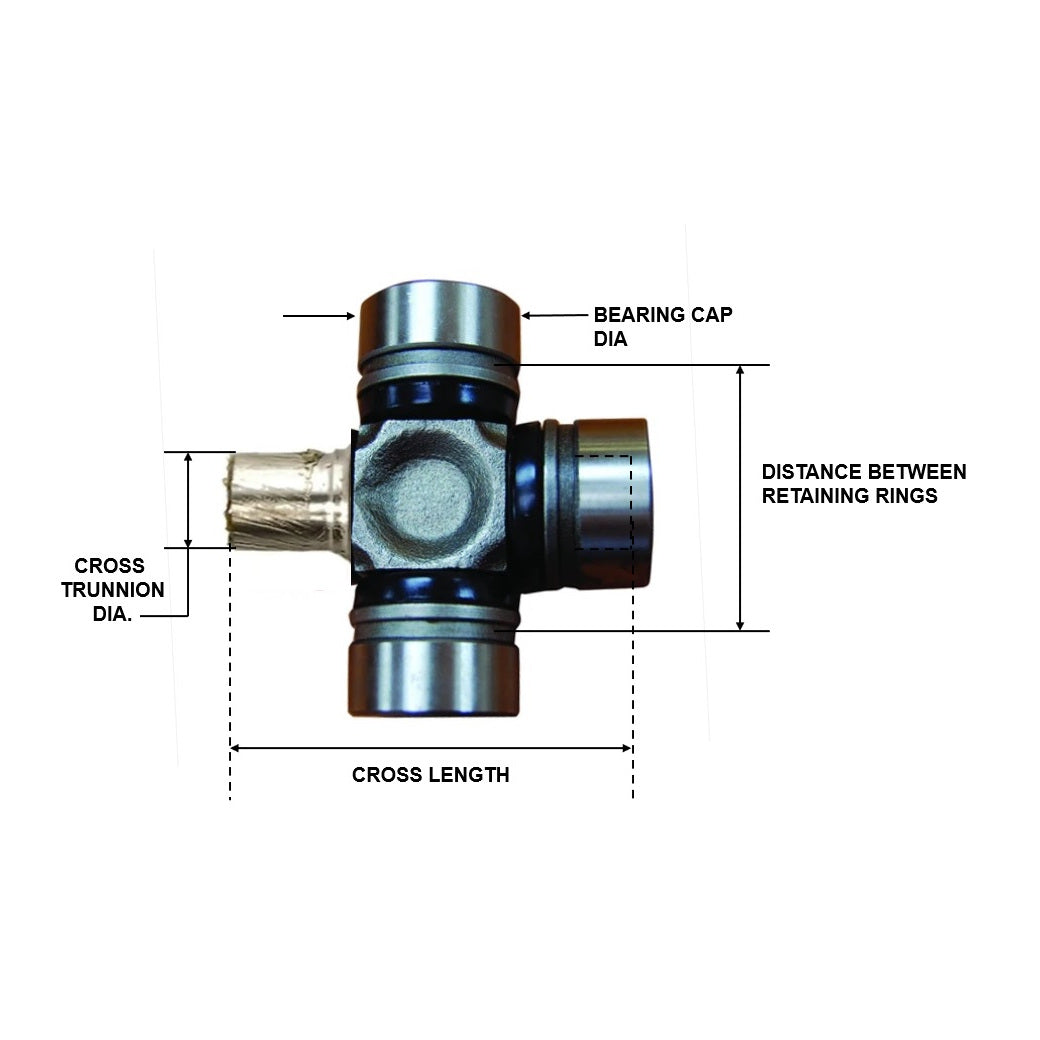

Dimensional/Physical Attributes7 attributes
| Material | Steel |
|---|---|

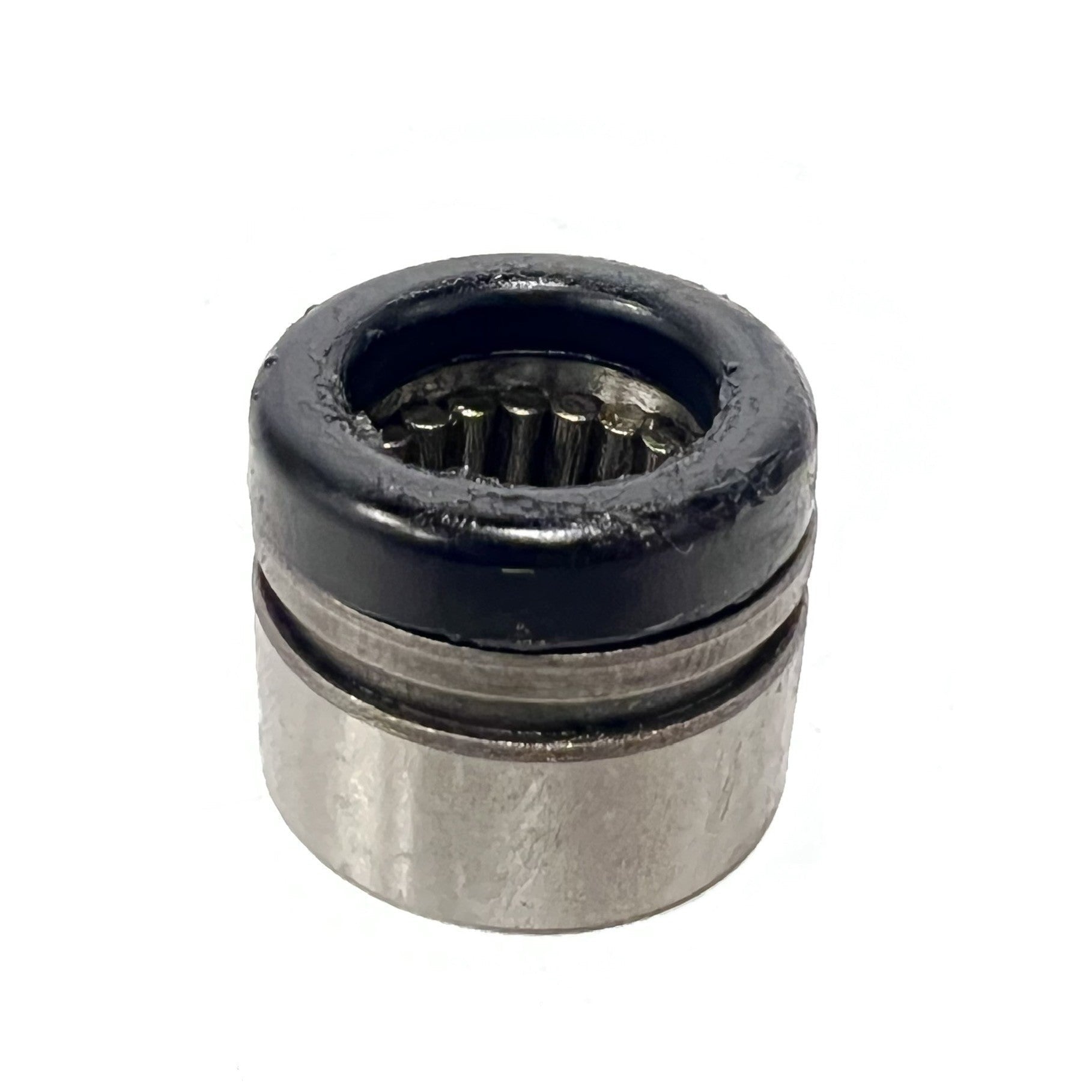

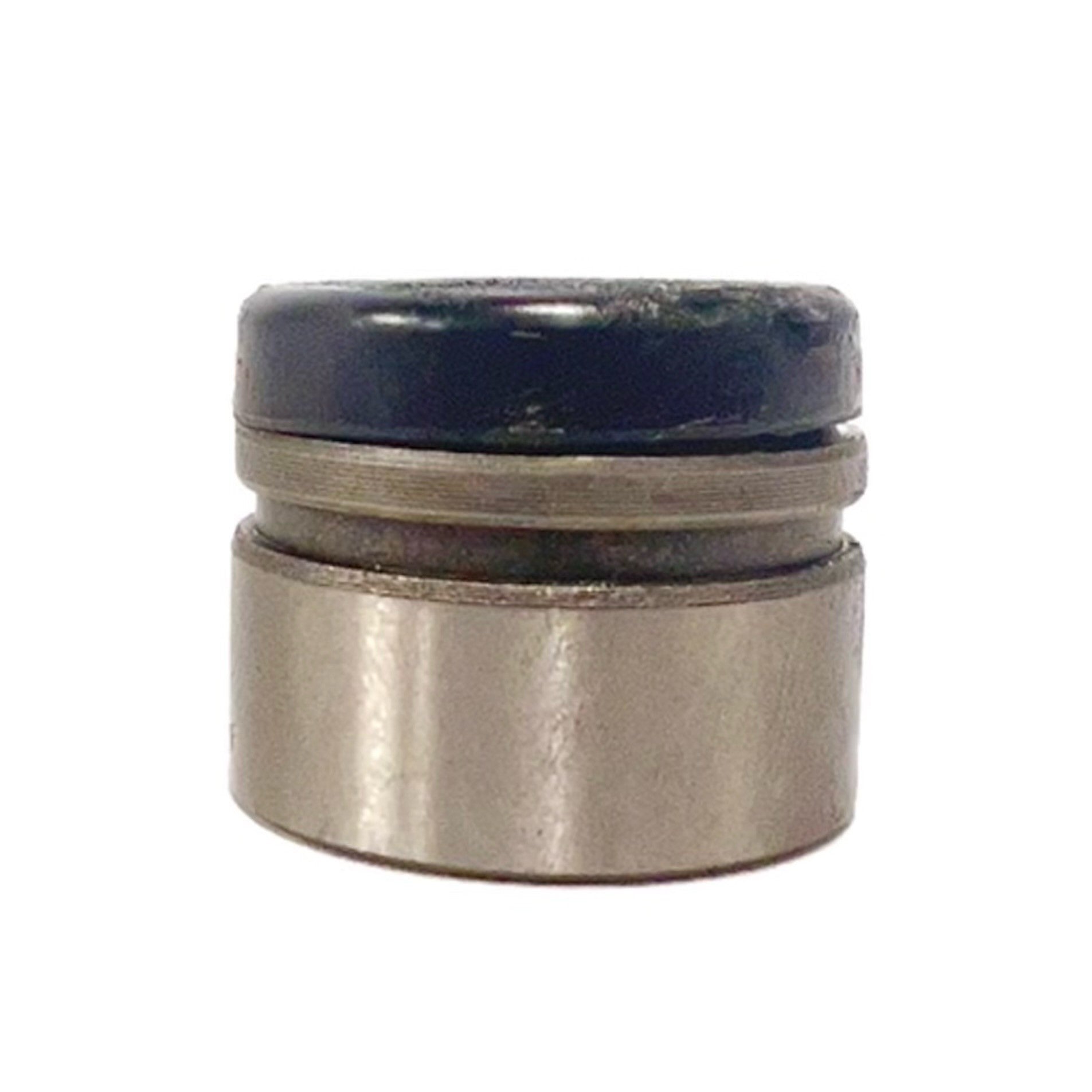

| Bearing Cap Diameter | 0.938 in. |
| Bearing Cap Type | Round with OSR Groove |
| Cross Length | 2.065 in. |
| Outside Snap Ring to Snap Ring | 2.080 in. |
| Snap Ring Type | Internal |

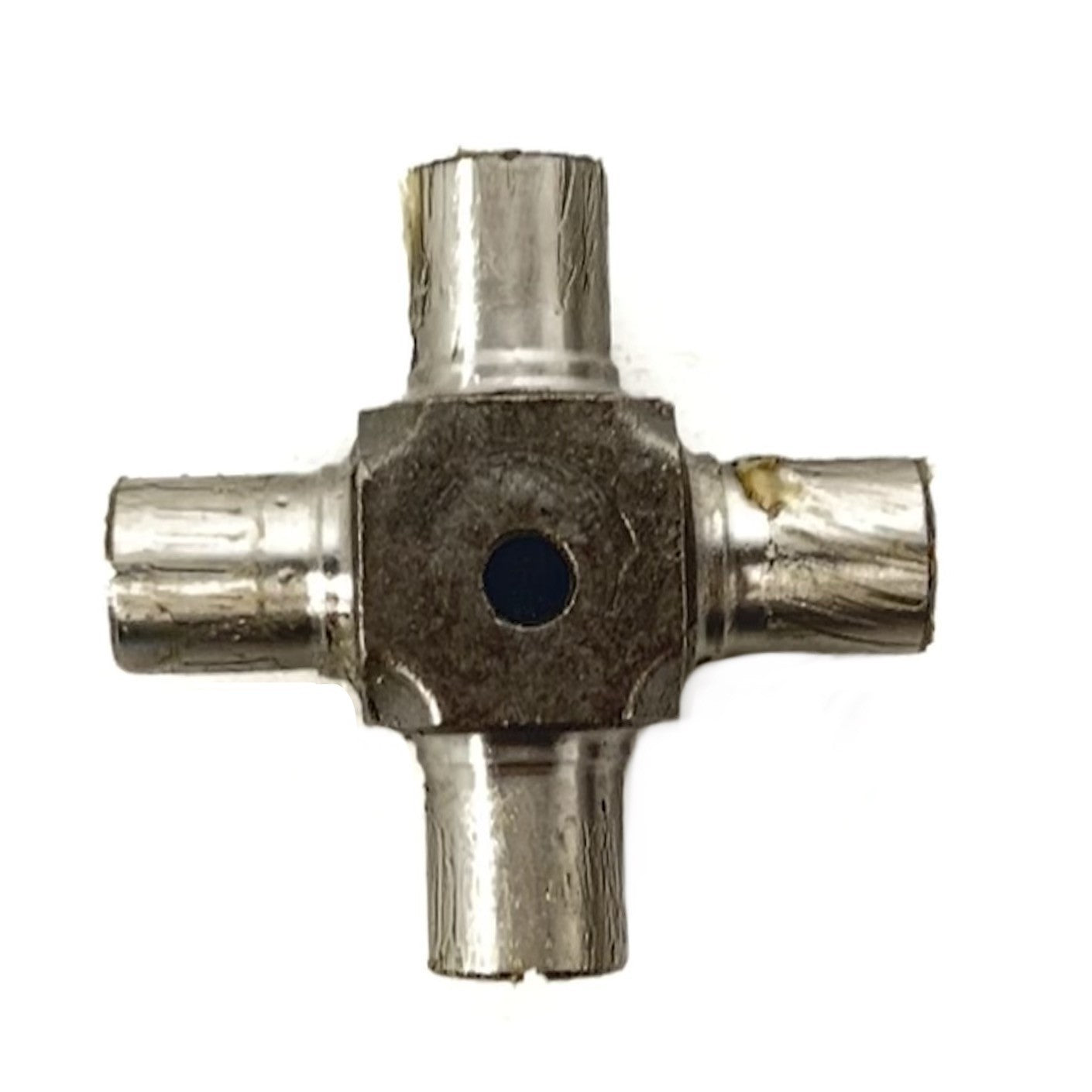

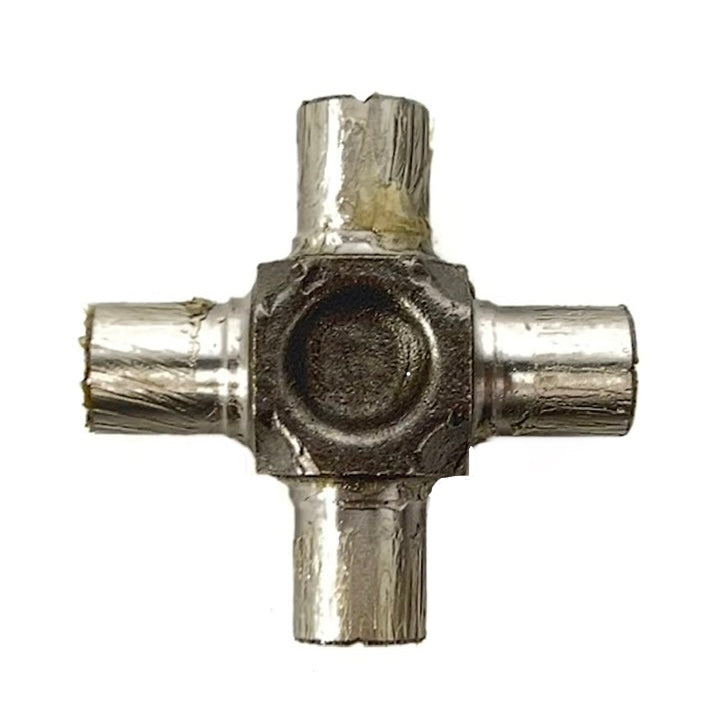

| Trunnion Diameter | 0.549 in. |
Technical/Performance Attributes2 attributes
| Grease Fitting Location | Center of Cross |
|---|---|
| Greaseable | Yes |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 0.66 lb. |
|---|

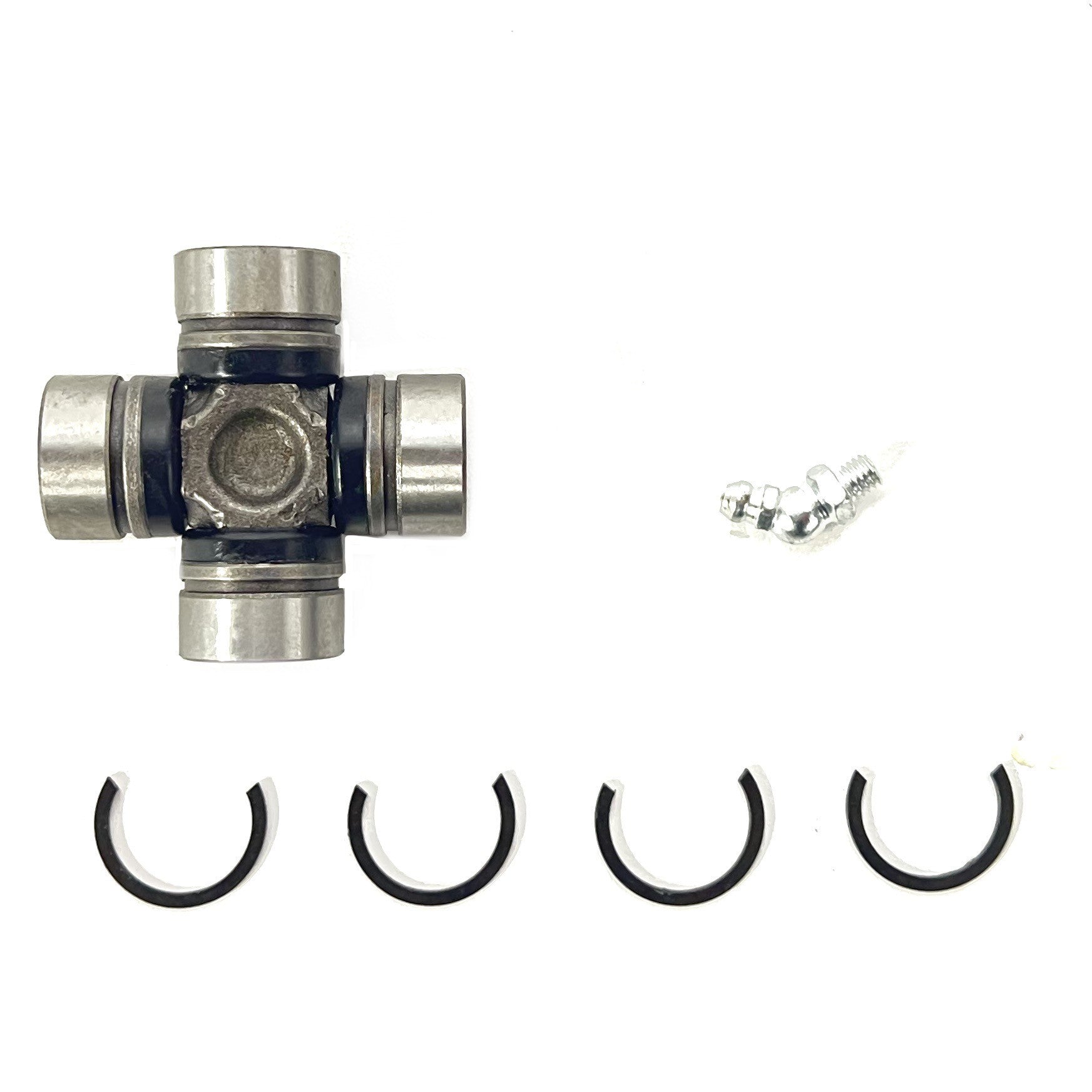

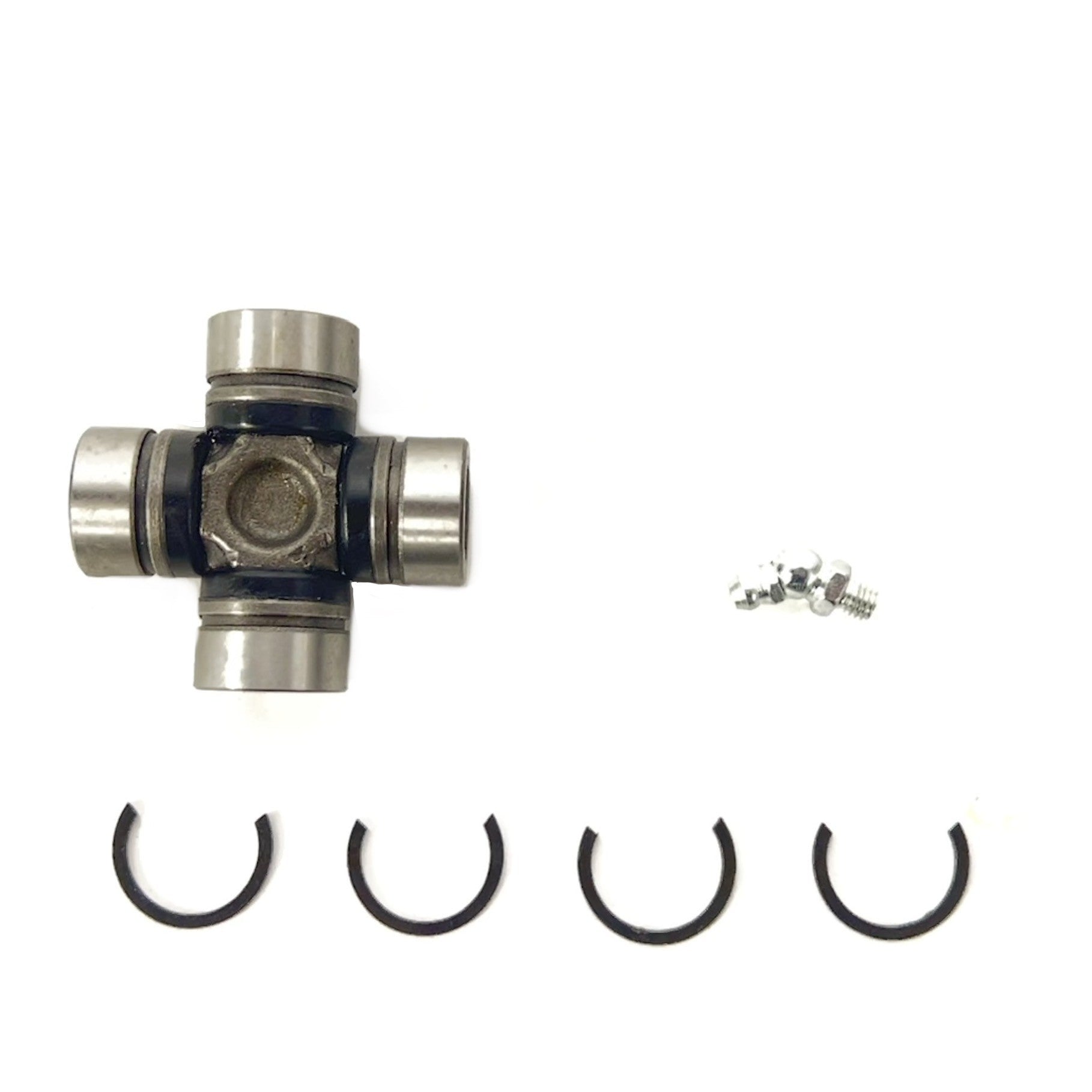

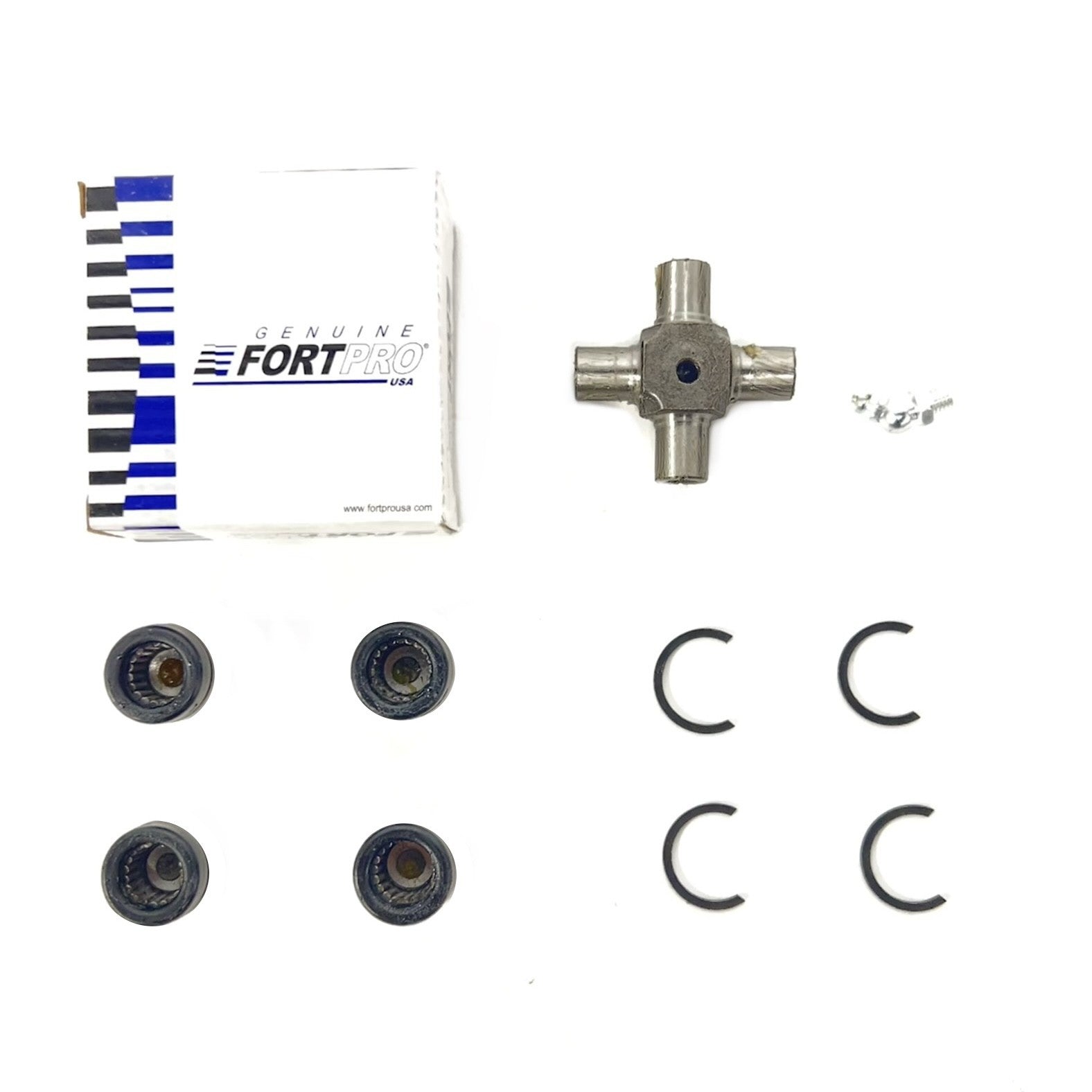

Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 4 Snap Ring
- 1 Lube Fitting
Intended Application
- Designed for efficient power transmission between shafts with angular misalignment. With a bearing cup diameter of 0.938 in (23.825 mm) and an internal circlip distance of 1.500 in (38.1 mm), its main applications are in power take-off (PTO Power Take-Off) systems on agricultural equipment, on driveshafts of light and off-road vehicles, and in some steering systems, ensuring torque transmission under conditions of bending and relative motion.
- Neapco: 1-0605
- Rockwell/Meritor: CP103X
