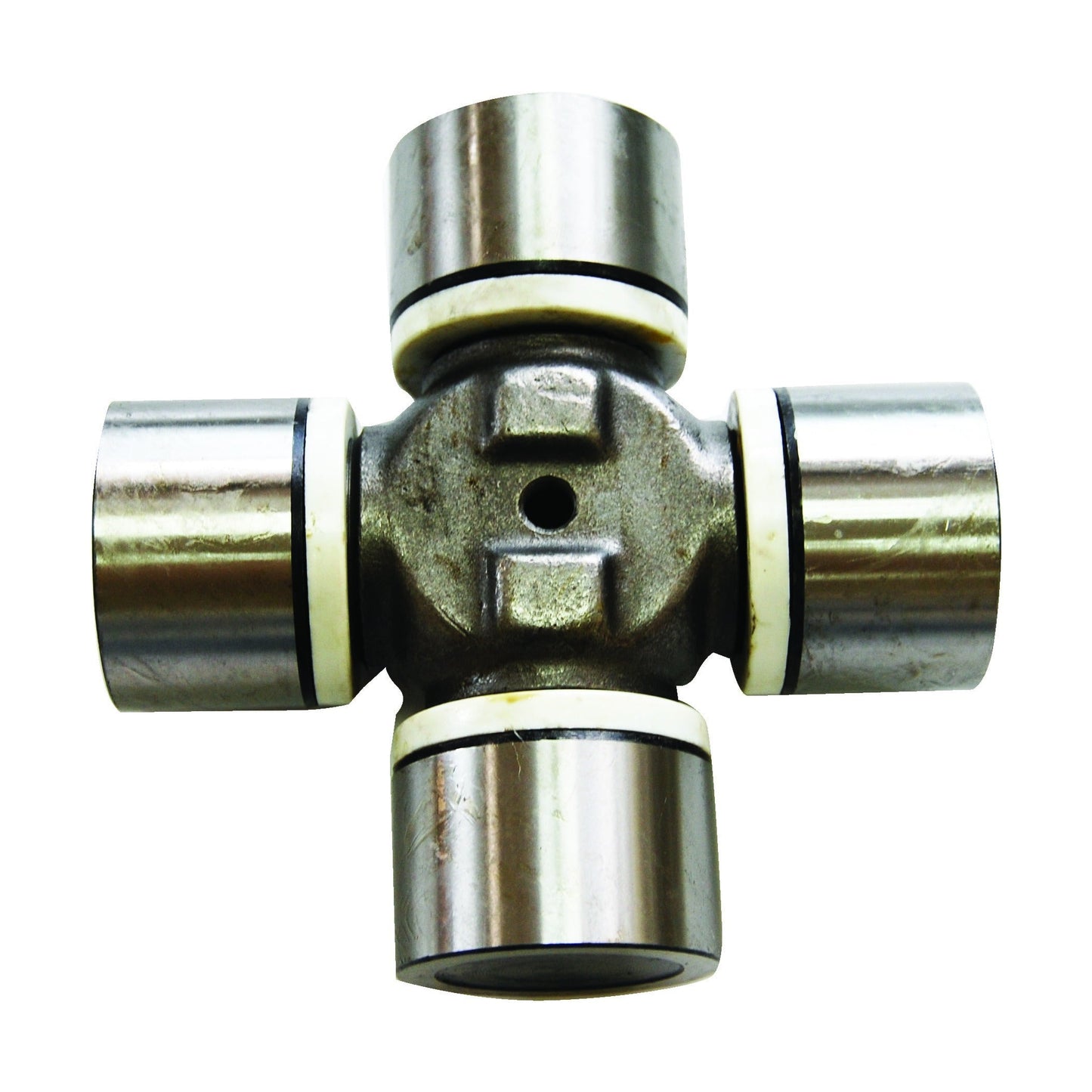

Fortpro F276108 Universal Joint SPL Type. Engineered as a professional aftermarket replacement for Spicer SPL170X in heavy-duty commercial drivelines. Built with high-strength materials to handle extreme torque loads. Features industry-standard dimensions for a perfect fit into SPL series spring tab yokes. The advanced sealing package ensures ultimate protection from grit and heat, supporting high cycles to failure and long-term reliability for heavy-duty vehicle fleets.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Driveline & Axles |
|---|---|
| Category Name | Driveline Components |
| Part Type | Universal Joint |
| Alternate Part Name | U Joint |
| OEM Part Number | SPL170X |
Application/Fitment Attributes4 attributes
| Application Type | Semi-Trucks, Heavy Duty Trucks |
|---|---|
| Series | SPL170 |
| Universal Joint Type | Spring Tab Style |
| VMRS Code | 24002046 |
Dimensional/Physical Attributes5 attributes
| Material | Steel |
|---|---|
| Bearing Cap Diameter | 2.165 in. |
| Bearing Cap Type | Round |
| Snap Ring Type | SPRTAB |
| Spring Tab Distance | 6.456 in. |
Technical/Performance Attributes2 attributes
| Grease Fitting Location | Center of Cross |
|---|---|
| Greaseable | Yes |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 9.88 lb. |
|---|
Bill Of Material
- 1 Universal Joint
- 4 Bearing Caps
- 8 Drive Shaft Bolt (4 M12 X 1.25 / M8 x 1.00in)
- 4 Spring Tab
- 1 Lube Fitting
- Verificar Imagen por cantidad de 4 Spring Tab??
Intended Application
- Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
- Spicer: SPL170-4X, SPL170-3X
- Meritor: US170X
