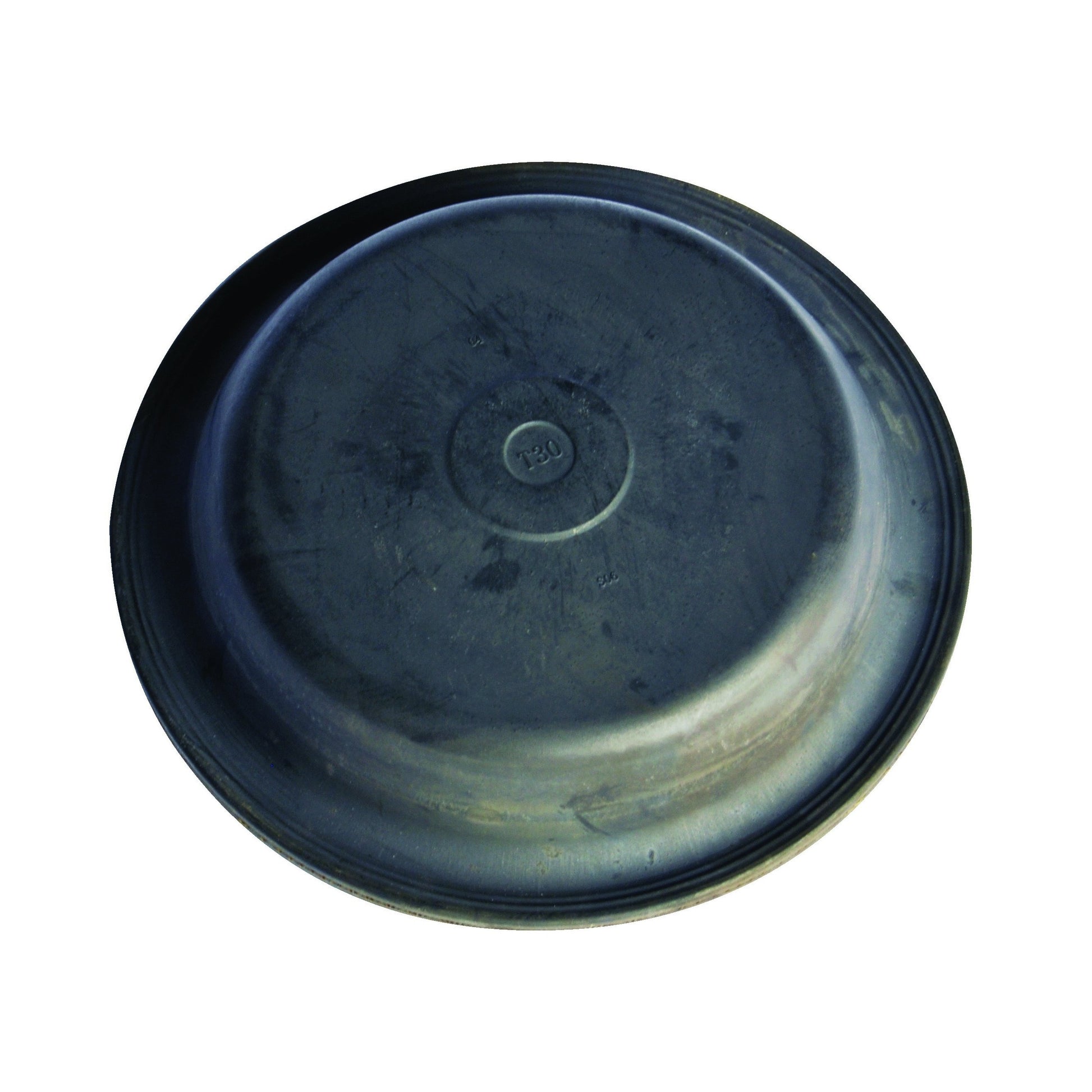

Fortpro Type 12 Brake Chamber Diaphragm - 5 1/2" OD Replaces 236664 | F224758

Fortpro Type 12 Brake Chamber Diaphragm - 5 1/2" OD Replaces 236664 | F224758

SKU: F224758

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $2.52 USD
Regular price Sale price $2.52 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Made of Nylon Fabric Reinforced Rubber
  • Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards
  • Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
  • Standard Stroke with Length: 1 3/4"
  • Type 12 - Outside Diameter: 5 1/2"


Check Specification & Cross-references


  • Part: Brake Chamber Diaphragm
  • Chamber Type: Service Chamber
  • Brake Type: S-Cam Brake (Drum)
  • Diaphragm Type: Type 12
  • Material: Rubber
  • Outside Diameter: 5 1/2"
  • Stroke Type: Standard
  • Stroke Length: 1 3/4"
  • Notes: Brake service chamber for S-Cam brakes


  • Automann: 179DT12
  • Bendix: 236664, 234226
  • BPW: M461
  • Dayton Parts: 1240012
  • Euclid: E-8889, E-12730
  • Haldex: DP12
  • Meritor: 2797D56
  • Velvac: 31023

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test
