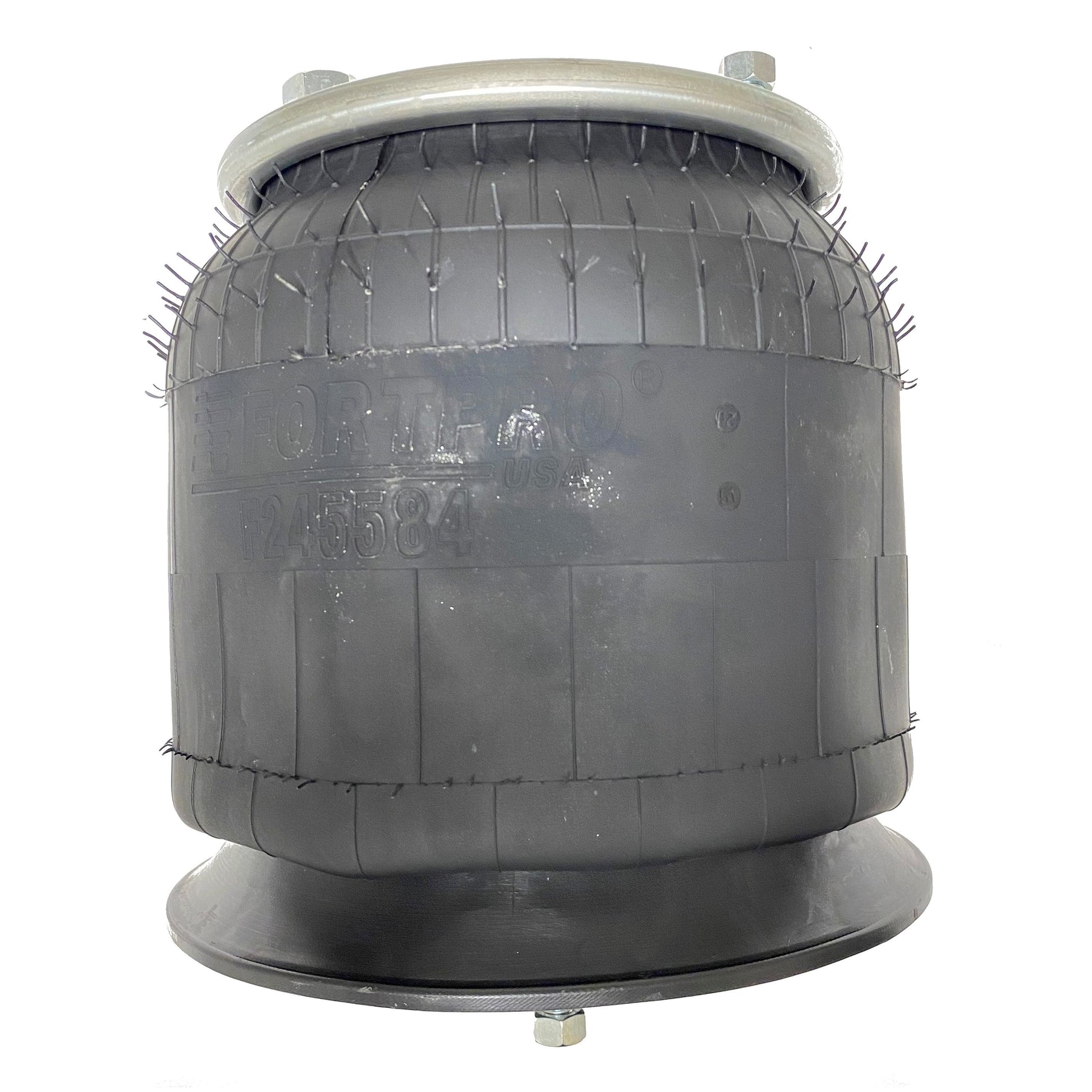

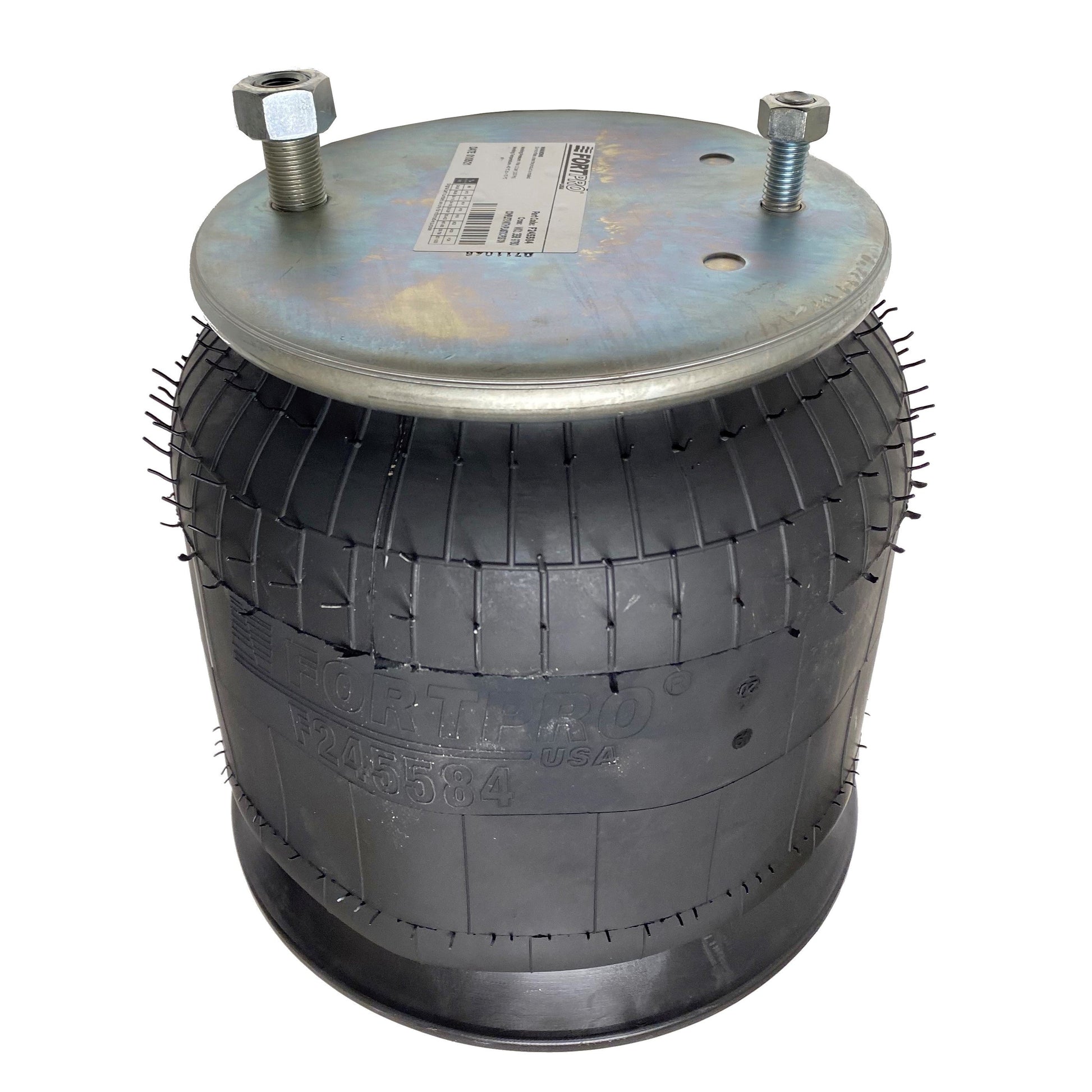

Fortpro Air Springs F245584 is a high-quality air suspension component that provides increased driving stability, reduces vibration and shock while driving, and is easy to install. They are specifically designed for use in Freightliner trucks and other similar commercial vehicles.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
| Basic Part Information | |||
|---|---|---|---|
| Product Line | Suspension | Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring | Alternate Part Name | Air Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag |
| OEM Part Number | W01-358-9780 | ||
| Application/Fitment Attributes | |||
| Application Type | Semi-Trucks, Heavy Duty Trucks | VMRS Code | 016-008-000 |
| Dimensional/Physical Attributes | |||
| Material | Fiber reinforced rubber bellows | Air Inlet Inside Thread | 1/4-18 NPTF |
| Air Inlet Outside Thread | 3/4 16 UNF | Body Diameter | 10.62 in. |

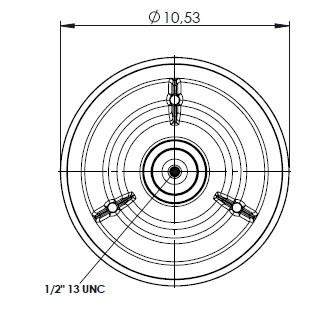

| Bottom Plate Alignment | Parallel | Bottom Plate Diameter | 10.53 in. |
| Bottom Plate Stud | 1/2-13 UNC | Mounting Stud Configuration - Bottom | 1 |

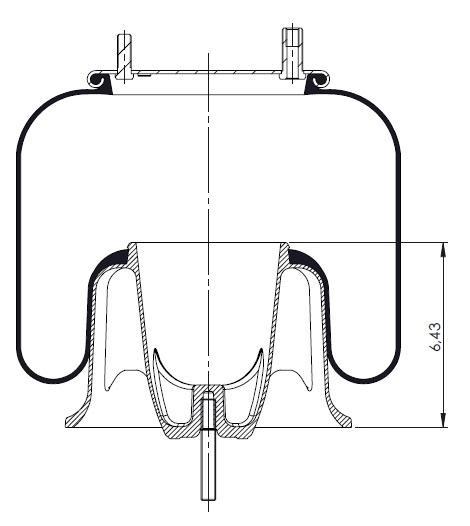

| Mounting Stud Configuration - Top | 2 | Piston Height | 6.89 in. |

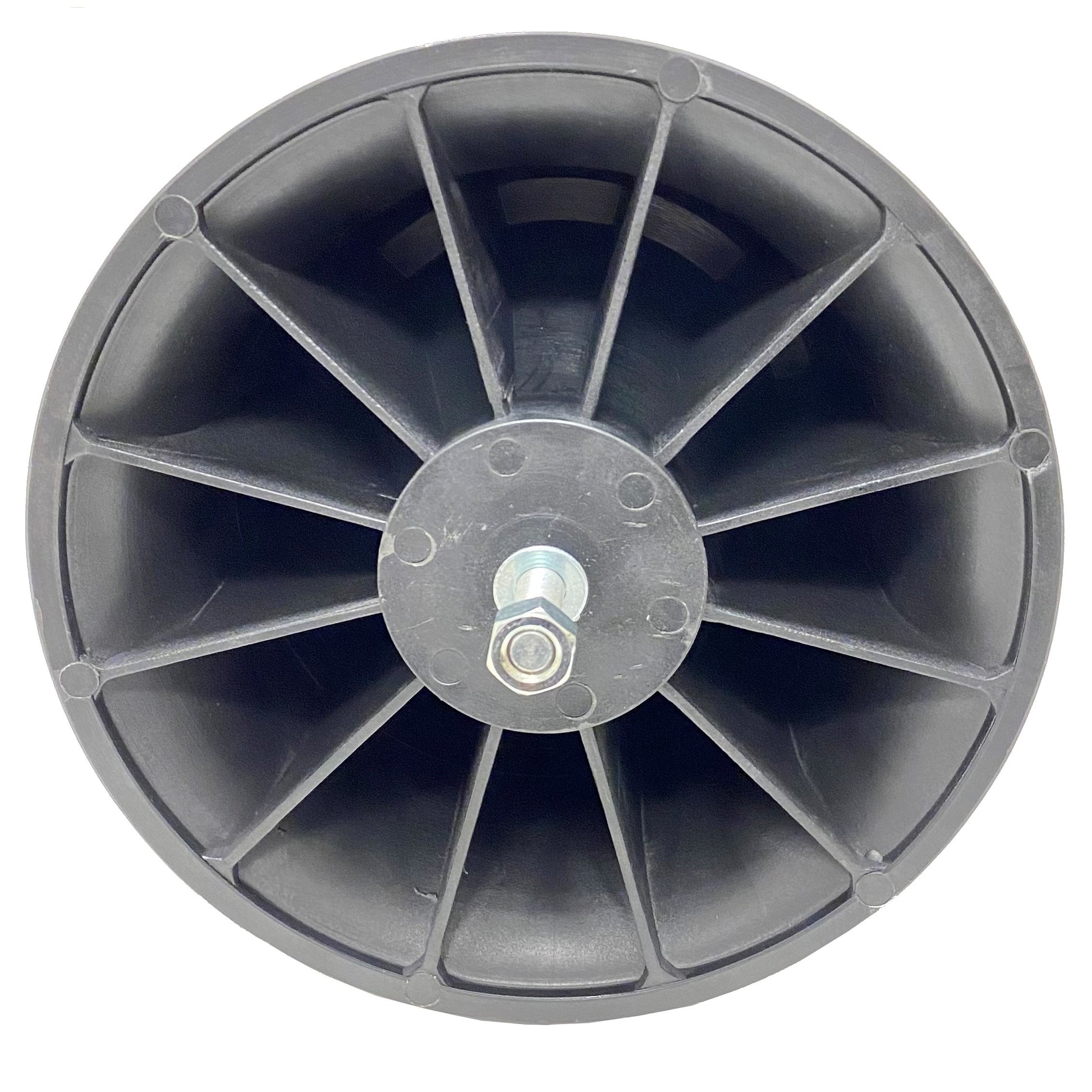

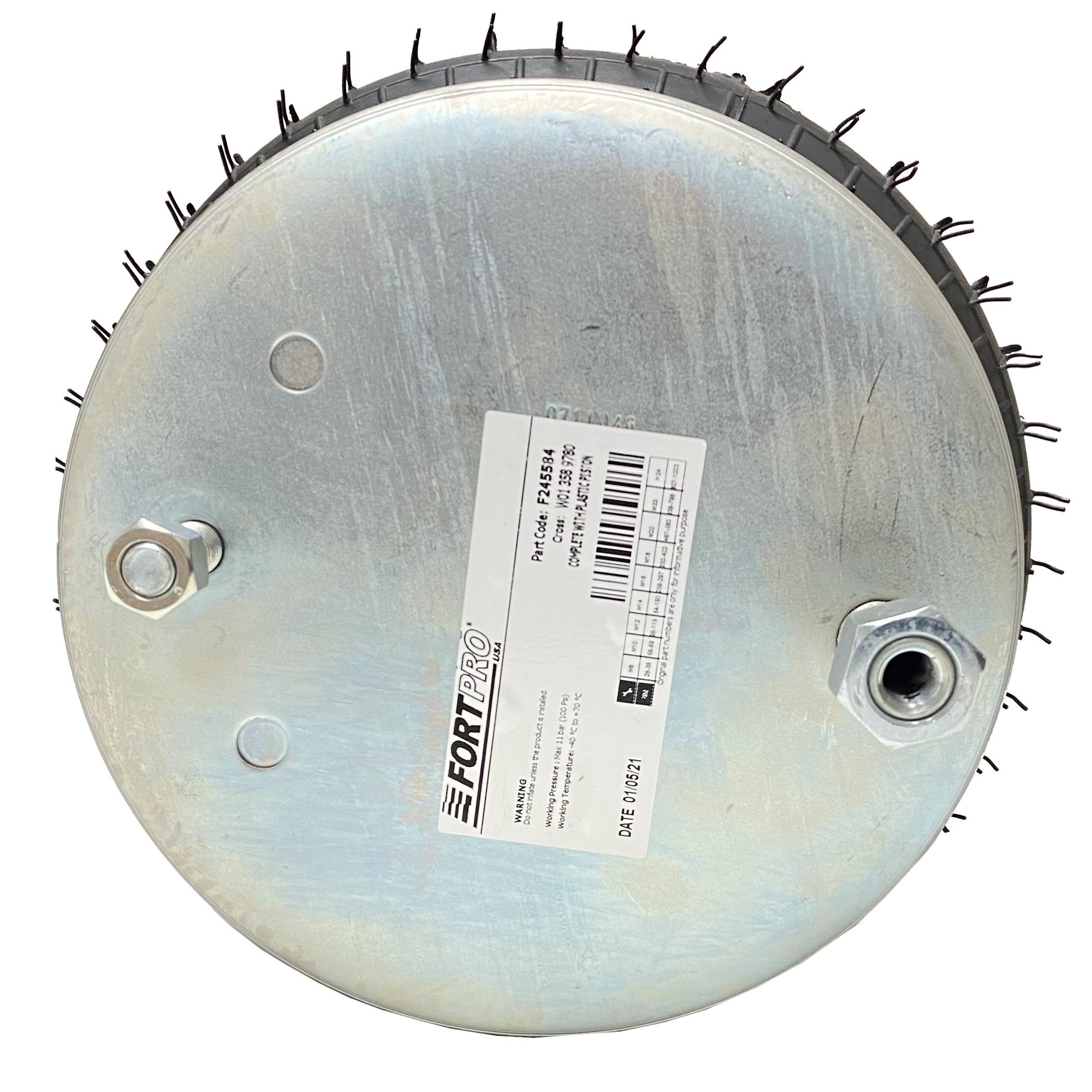

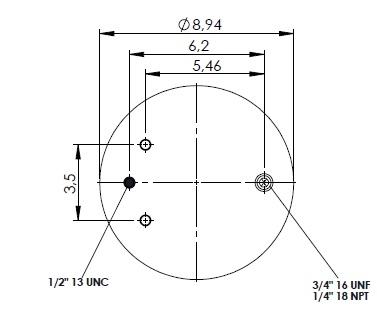

| Piston Material Type | Composite | Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2-13 UNC | ||
| Technical/Performance Attributes | |||
| Air Spring Type | 1T Reversible Sleeve | Collapsed Length | 8.60 in. |
| Extended Length | 23.00 in. | ||
| Packaging / Logistics Attributes | |||
| Net Weight | 13.60 lb. | ||
| Additional Information | |||
| Intended Application |
|
||
- Automann: 566CT67473, AB1DF239780
- Contitech: 1DK23K9780, 910S16A382, 910S16A382, 910S16P382
- Dayton Parts Batco: 1R12303, 3529781
- Firestone: 9780, AS9780, W013589780, W013778528
- Freightliner: 1613810000, 1613810000, 1613810001, 1613810001, 1613810002, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 6813200017, 6813200017, 6813280001, A1613668002, A1614004000, A1614004000, A1614004001, A1614004001
- Goodyear: 1R12186, 1R12186, 1R12189, 1R12189, 1R12303, 1R12303, 1R12603
- Meritor: FS9780, MAF9780,
