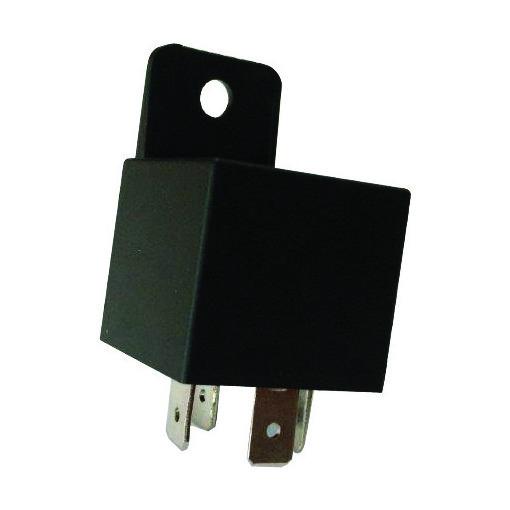

Fortpro Relay Switch 12V 4 Pole 30 Amp Replacement for 965400001 | F235445

Fortpro Relay Switch 12V 4 Pole 30 Amp Replacement for 965400001 | F235445

SKU: F235445

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $4.94 USD
Regular price Sale price $4.94 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Manufactured under HELLA's most accurate standards
  • Mounting Bracket included
  • Features heavy-duty contacts and high conductivity terminals
  • Engineered and Designed to work under the most extreme weather conditions
  • Direct replacement for a one-step installation

Description

Check Specification & Cross-references

Specifications

  • Nominal Voltage: 12V
  • Rated Continuous Load: 30A at 85° C
  • Ambient Temperature: -40° C...+85° C
  • Operating / Drop out Voltage: < 7.2V / > 1.2V
  • Max. Coil Voltage: 18V
  • Suppression: None
  • Mechanical Cycles: 10,000,000
  • Vibration: 20 - 200HZ, 5 g, no contact openings 10µs
  • Terminals: 30, 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn 87: ISO 8092 6.3 x 0.8, CuZn

Cross-references

Check Description & Specifications

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com

Dimensions

View full details
