| Basic Part Information | |||
|---|---|---|---|
| Product Line | Brakes | Category Name | Air Brake Valves |

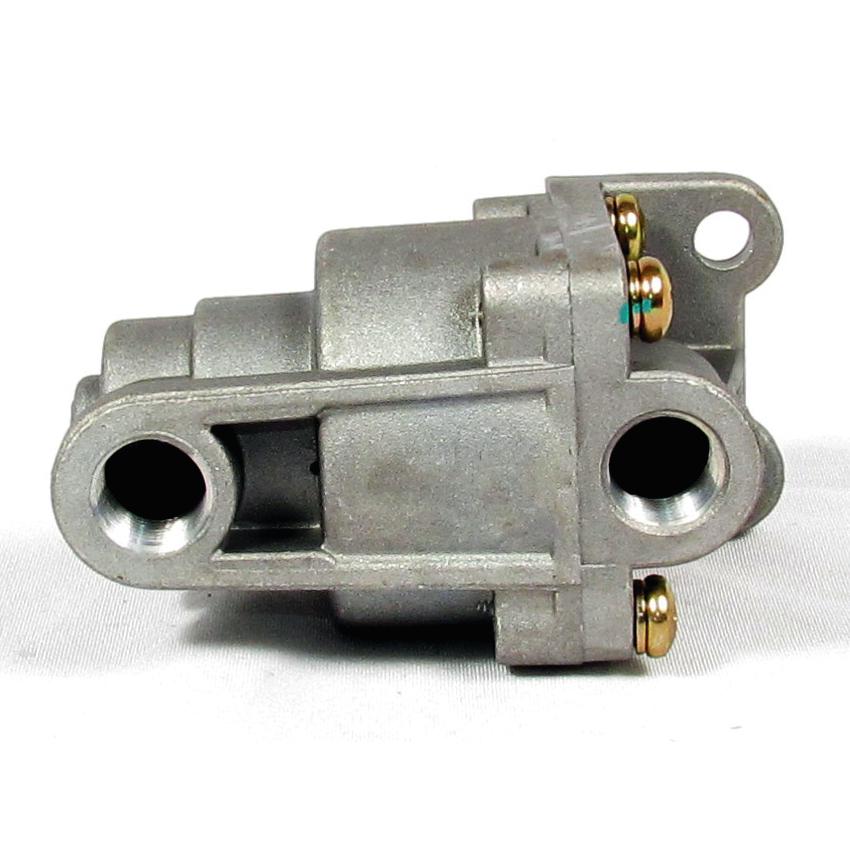

| Part Type | Front Axle Valve | Alternate Part Name | Pressure Proportioning Valve, Limiting & Quick Release Valve |
| Model | LQ-5 | OEM Part Number | 65154 |
| Application/Fitment Attributes | |||
| Application Type | Heavy Duty Trucks, Semi-Trucks | Control Port Size | 1/8-27 NPT |
| Delivery Port Orientation (CW from Mounting) | 180 deg. | Delivery Port Size | 3/8-18 NPT |
| Exhaust Port | Open | Mounting Hole Qty | 2 |
| Mounting Hole Size | Ø .34 in. | Supply Port Size | 3/8-18 NPT |
| Dimensional/Physical Attributes | |||
| Material | Die-cast Zinc | ||
| Technical/Performance Attributes | |||
| Maximum Operating Temperature | 200 deg. F (93 deg. C) | Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Nominal Equalizing Pressure (Blend Back) | Variable based on Control pressure (Standard) | Nominal Hold-Off Pressure | 8 psi |
| Packaging / Logistics Attributes | |||
| Net Weight | 0.94 lb. | ||
| Additional Information | |||
| Intended Application |
|
||
- Automann: 170065154
- Bendix: 065154, 107196
- Dayton Parts: AV065154
- Haldex: 65154X
- Mack: 20QE3338, 745-065154
- Navistar-International: 1619733C91, BX065154
Dimensions Not Available.
