The ExoAir SP-25 is a 100% electric split air conditioning system designed for heavy-duty trucks, vans, and RVs. This updated version features a high-efficiency compressor that reduces power consumption from 30 to 25 amp hours, ensuring lower energy draw and longer battery life. It provides high-performance cooling for eight to 10 hours with the engine off, eliminating fuel costs and engine wear during rest periods.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | HVAC & Climate Control |
|---|---|
| Category Name | Heating & Cooling Components |
| Part Type | Air Conditioner |
| Alternate Part Name | 12V Split AC System 8000 BTU No Idle Needed, SP-25 Split AC Unit |
| Model | SP-25 |
Application/Fitment Attributes5 attributes
| Application Type | Heavy Duty Trucks |
|---|---|
| Condenser Location | Rear Side |
| Condenser Mounting Position | Rear or Lateral Side |
| Evaporator Location | Lateral Side of the Cabin |
| Evaporator Mounting Position | Rear or Lateral Side |
Dimensional/Physical Attributes4 attributes
| Color | Grey |
|---|---|
| Condenser Cover Material | 430 stainless steel |
| Condenser Dimensions | 21.26 x 20.07 x 7.48 in. |
| Evaporator Dimensions | 20.87 x 11.81 x 5.51 in. |
Technical/Performance Attributes17 attributes
| Air Velocity | 3 |
|---|---|
| Airflow Rate | 560 m³/h |
| Battery Protection Feature | Yes |
| Compressor Oil Type | POE R68H |
| Compressor Type | Electric Scroll |
| Cooling Capacity | 8000 BTU; 2400 W; 2000 Frigories |
| Current Draw (Eco Mode) | 14–25 A |
| Current Draw (Engine Running) | 15–32 A |
| Eco/Parking Mode | Energy Economizer (A) |
| Fan Function | Yes |
| Intended Operating Mode | Shutdown or Running Engine |
| Mode Configuration | Max. cold/Eco Mode |
| Operating Voltage | 12 V |
| Power Consumption | Eco mode: 14-25 A – Running engine: 15-32 A |
| Recommended Cooling Area | 253 to 353 sq. Ft |
| Refrigerant Type | R134a |
| Remote Control Included | Yes |
Compliance & Certifications1 attribute
| Regulatory Compliance | ISO 9001 |
|---|
Packaging / Logistics Attributes:4 attributes
| Package Length | 16 |
|---|---|
| Package Width | 12 |
| Package Height | 12 |
| Net Weight | 56 |

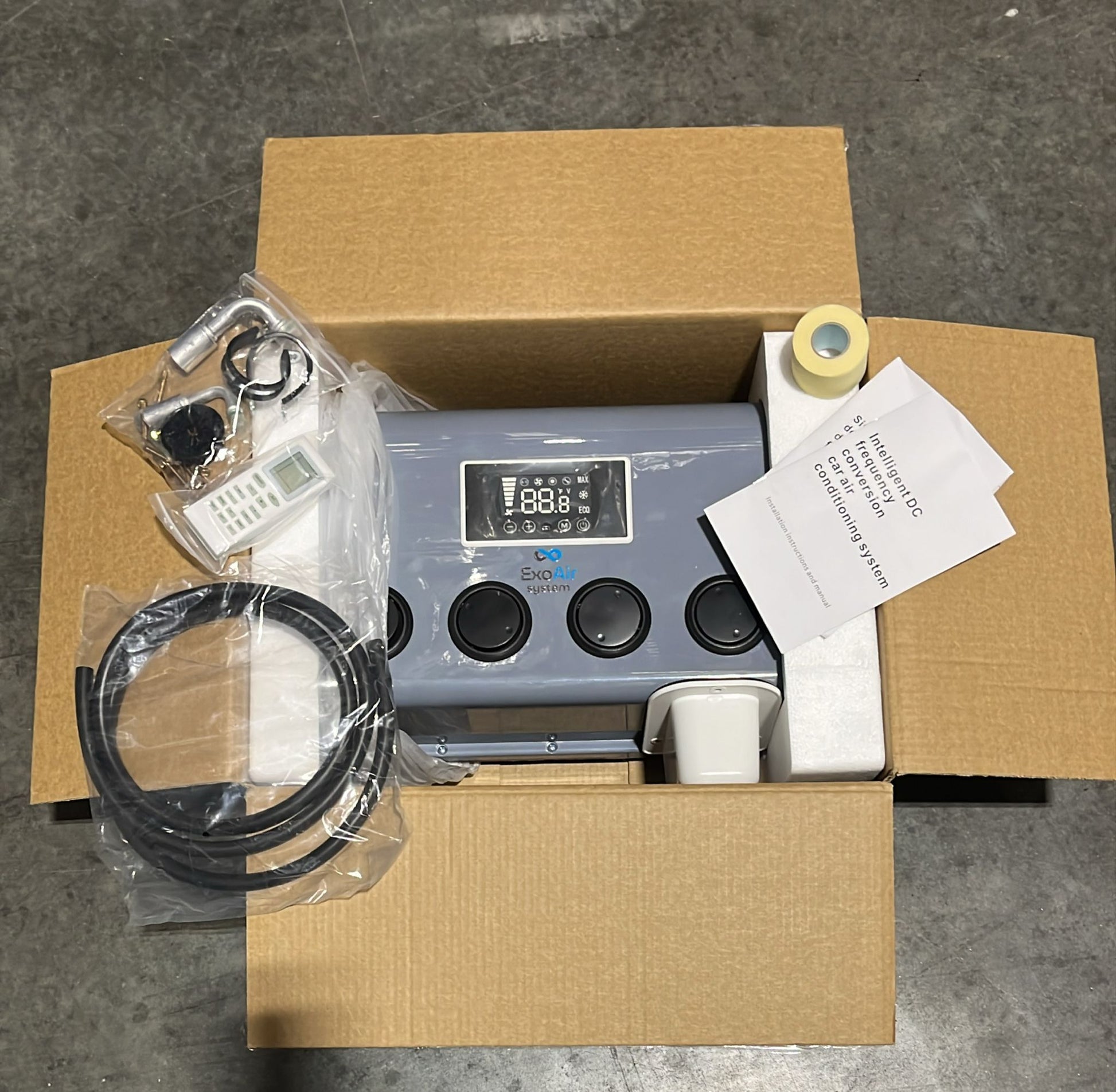

Bill Of Material

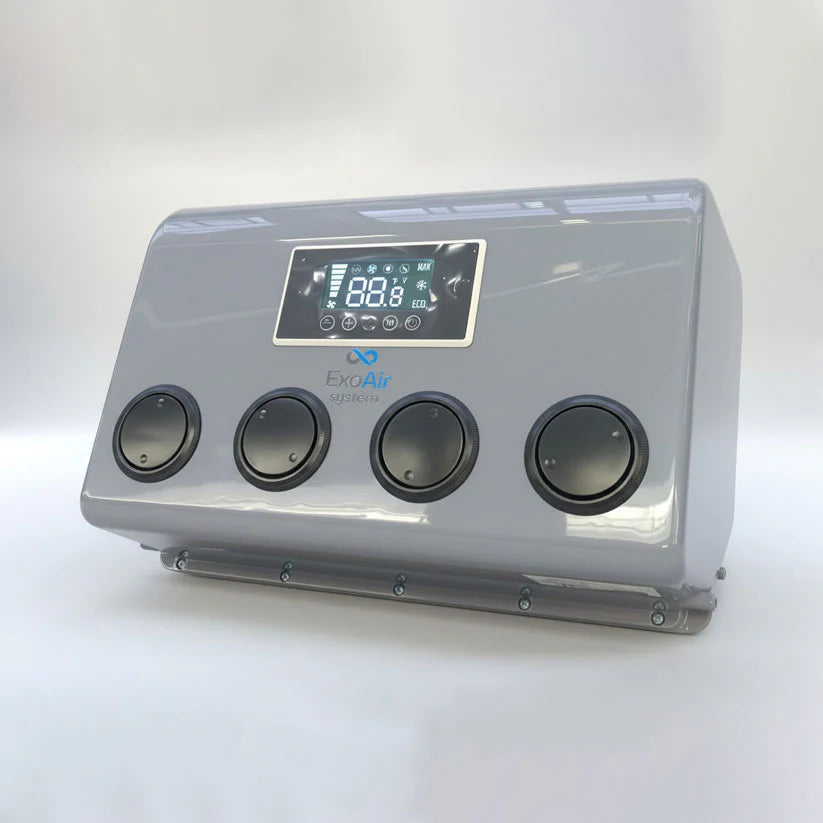

- Evaporator Unit: Internal cooling unit with three-speed fan and digital display.

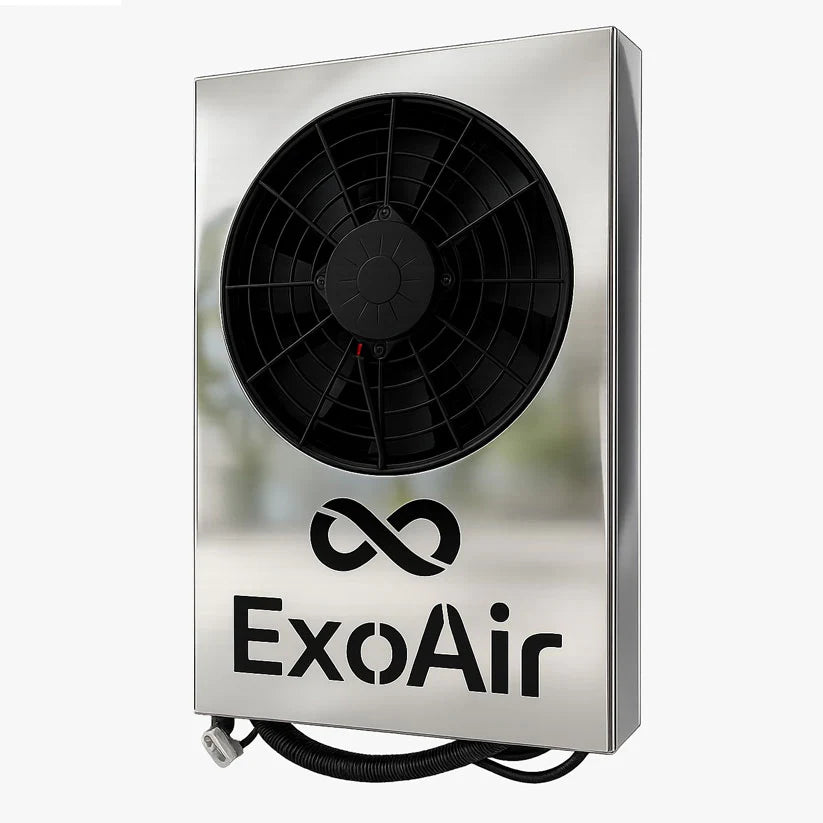

- Condensing Unit: External heat exchange unit containing the electric scroll compressor.
- Stainless Steel Covers: High-grade 430 protective plates for both units.
- Connection Hoses: Flexible refrigerant lines and a dedicated drain hose.
- Wiring Harness: Complete battery connection cables including positive (red) and negative (black) lines.
- Remote Control: Wireless controller for temperature, fan speed, and mode adjustments.
- Mounting Kit: Includes security plates, screws, and vibration-minimizing hardware.
- Refrigerant: 550 grams of R134a required for full system charge (typically added during installation).
Intended Application
- Compatible Vehicles: Specifically designed for sleeper cabs in cargo trucks, transport vans, and RVs
- Operational Use: Suitable for use as a primary AC system while driving or as a sleeper AC for up to 10 hours with the engine off
- Installation: Features a versatile split design for mounting on the rear or lateral sides of the vehicle cabin wall
Package: 20 in x 17 in x 17 in
Weight: 56.0 lb
