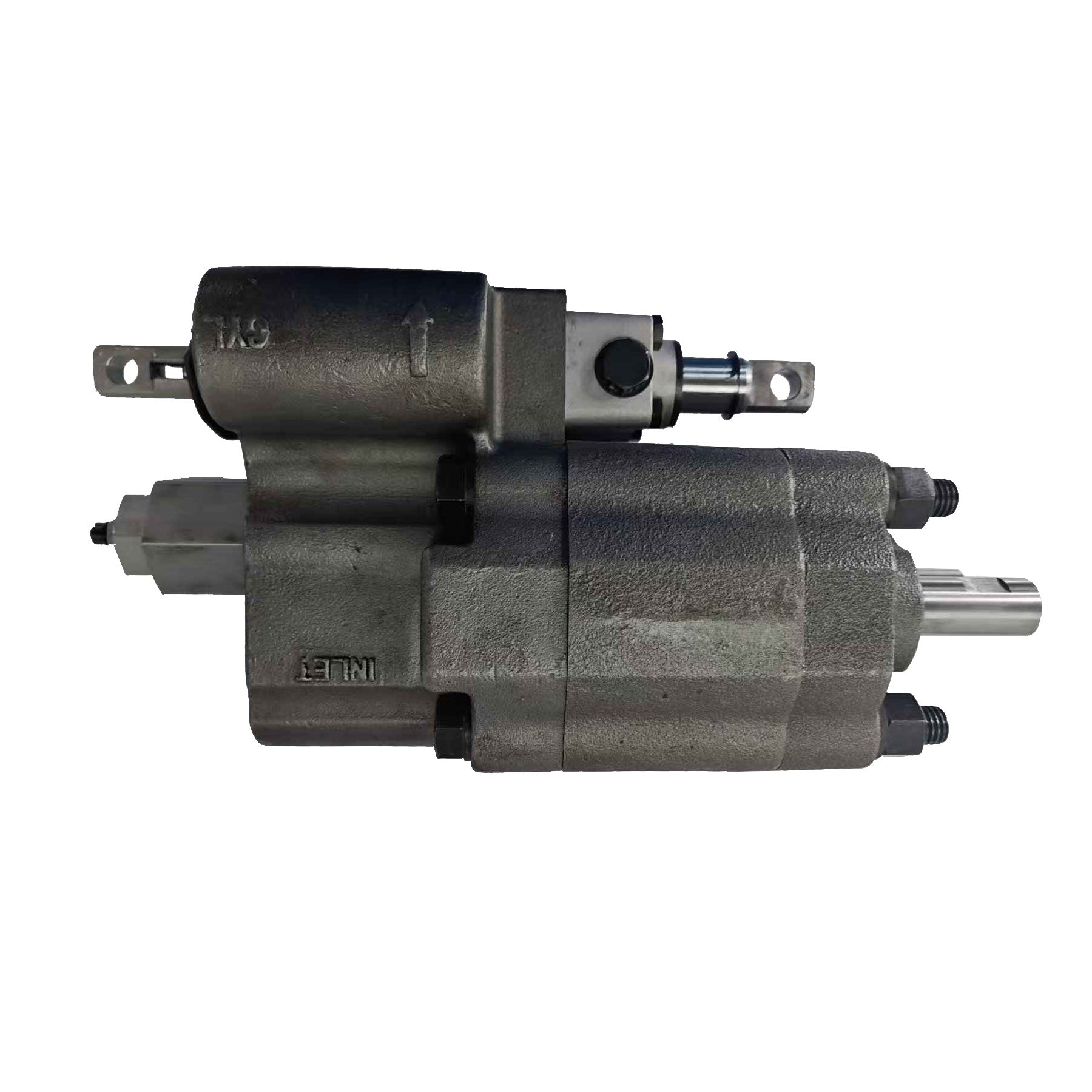

The Fortpro Dump Pump is a high-performance hydraulic solution engineered specifically as a reliable replacement for C101 models used in heavy-duty truck applications. Designed for remote PTO configurations, this pump ensures efficient power transfer for demanding hydraulic systems. Built with premium materials to withstand pressure and vibration, it provides a direct-fit solution that maintains the operational integrity of your vehicle dumping and lifting mechanisms.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information6 attributes
| Product Line | Pump & Motors |
|---|---|
| Category Name | Hydraulic Pumps |
| Part Type | Dump Pump |
| Alternate Part Name | Dump Pump, Hydraulic Dump Pump |
| Model | C101 |
| OEM Part Number | C101D25 |
Application/Fitment Attributes7 attributes
| Application Type | Dump Trucks, Trailers |
|---|---|
| Cylinder Port | 1 in. |
| Inlet Port Size | 1-1/4 NPT |
| Mounting Type | Remote |
| Outlet Port Thread Size | 1 in. |
| Port Location | Rear Ports |
| System Installation | 2 or 3 line circuits |
Dimensional/Physical Attributes5 attributes
| Material | Cast Iron |
|---|---|
| Gear Width | 2-1/2 in. |
| Overall Length | 16-1/8 in. |
| Pump Type | Gear, Fixed |
| Shaft Diameter | 1 in. |
Technical/Performance Attributes10 attributes
| Circuit Path | Open |
|---|---|
| Hydraulic Fluid Type | Standard Hydraulic Fluids, Phosphate-ester |
| Maximum Fluid Temperature | 80 deg. C, 180 deg. F |
| Maximum Operating Pressure | 2500 psi (172 bar) |
| Maximum Operating Speed | 2400 rpm |
| Minimum Fluid Temperature | 0 deg. F, -20 deg. C |
| Nominal Flow Rate | 27.6 GPM @ 1000 rpm up 49 GPM @ 1800 rpm |
| Pump Displacement | 105 cm3/rev (6.4 in3/rev) |
| Shaft Rotation Direction | Counterclockwise, Bi-Rotational, Clockwise |
| Shift Type | Air |
Packaging / Logistics Attributes:1 attribute
| Net Weight | 70 lb. |
|---|
Intended Application
- Compatible with hydraulic dump body/underbody hoist systems on heavy-duty trucks and trailers using a remote PTO. Remote mount configuration with SAE 4-bolt type B flange (4-Bolt B/Remote).
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
- Chelsea: 3149310226
- Muncie: E2XL12701RPRB, E2XL271RPRB
- OTR: VPC10125ZMS25
- Parker Hannifin: C101, C101D-25, 3149310226
