Fortpro

Fortpro Double Convoluted Air Spring Replaces 7135, 554800C1 | F245647

Fortpro Double Convoluted Air Spring Replaces 7135, 554800C1 | F245647

SKU: F245647

Availability: Low stock: 9 left

$114.78 USD
$0.00 USD $114.78 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Uses the principle of compression and decompression of the air to absorb the impacts and vibrations generated by the irregularities of the terrain.
  • Reduces wear on tires and other suspension components
  • Compressed air in the spring allows you to precisely adjust the height and stiffness of the suspension.
  • Provide greater comfort for the driver
  • Supports heavy loads and distributes weight evenly across the vehicle's axles, contributing to proper balance and better road holding.
View full details

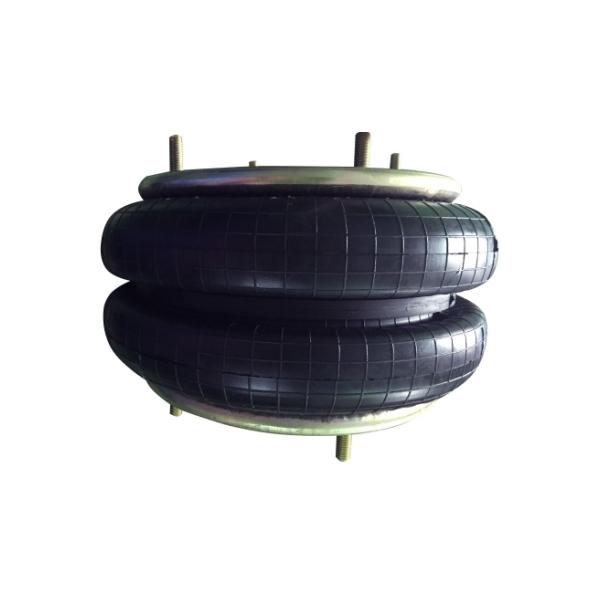

Fortpro Double Convoluted Air Spring F245647 is an exceptional component designed to optimize suspension in heavy transport vehicles. As part of the renowned Fortpro line, this double convolution air spring ensures superior performance and exceptional durability.



Fortpro Logo

Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.

Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.

Basic Part Information
Product Line Suspension Category Name Air Springs and Bags
Part Type Double Convoluted Air Spring Alternate Part Name Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag
OEM Part Number W01-358-7135
Application/Fitment Attributes
Application Type Heavy Duty Trucks, Semi-Trucks VMRS Code 016-008-000

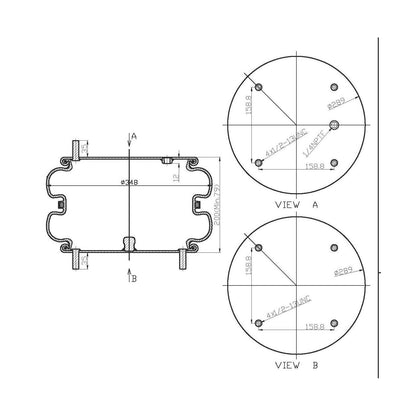

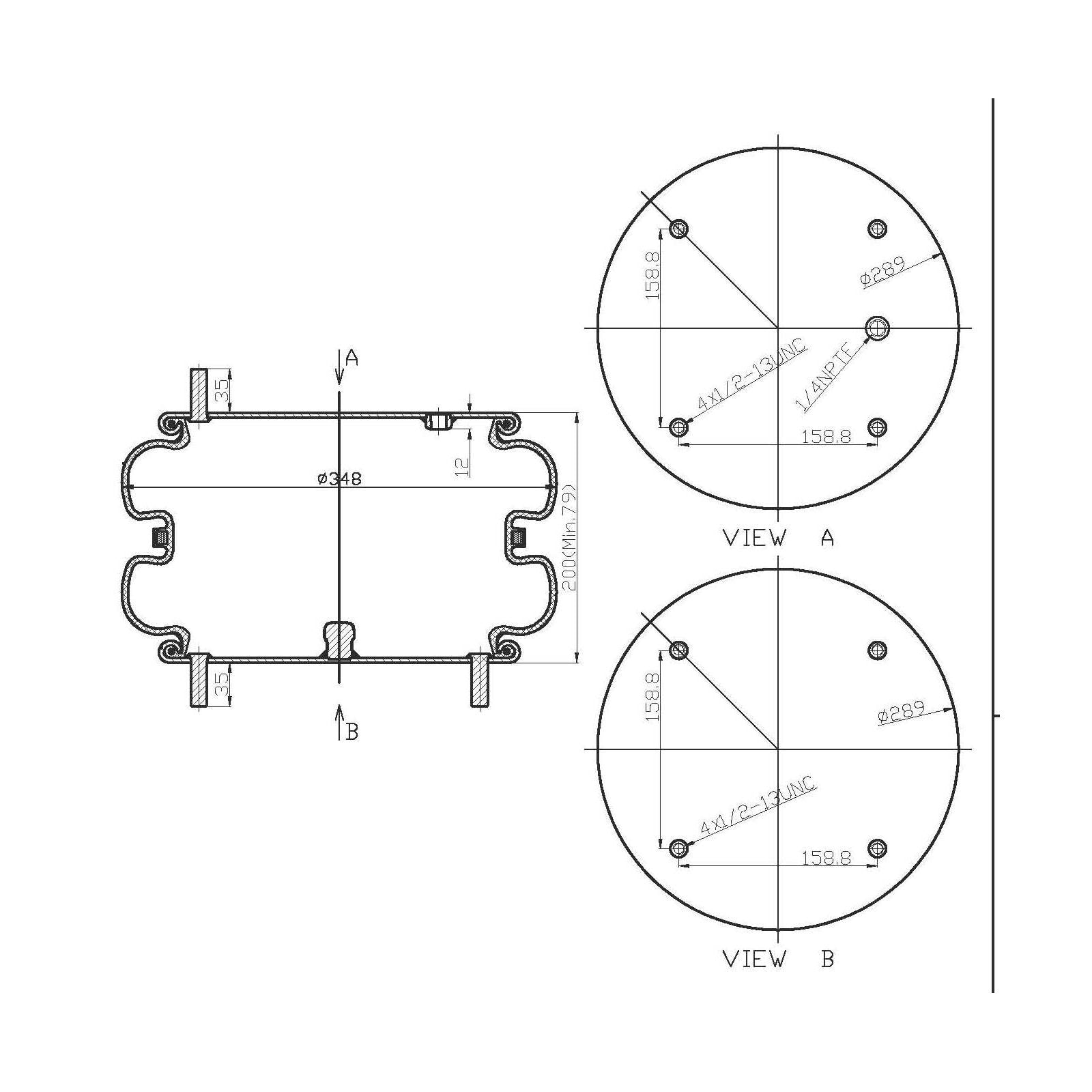

Dimensional/Physical Attributes
Material Fiber reinforced rubber bellows Body Diameter 14.50 in.
Bottom Mounting Stud Size 1/2-13 UNC Bottom Plate Alignment Parallel
Bottom Plate C To C Diameter 8.84 in. Bottom Plate Diameter 11.30 in.
Bottom Plate Stud Qty 4 Top Plate Air Inlet 1/4-18 NPTF
Top Plate C To C Diameter 6.25 in. Top Plate Diameter 11.30 in.
Top Plate Stud Qty 4 Top Plate Stud Thread Size 1/2-13 UNC
Technical/Performance Attributes
Air Spring Type Double Convoluted Collapsed Length 3.70 in.
Extended Length 11.30 in.
Packaging / Logistics Attributes
Net Weight 19.55 lb.
Additional Information
Intended Application
  • Compatible with Hendrickson HAS230, HAS400, HT250 and HT300 suspension systems, installed on Freightliner, Kenworth, Peterbilt, Volvo, Mack and Western Star vehicles.
  • Automann: 566ER7135
  • Contitech: FD53022311
  • Firestone: 7135, W013587135, W01-358-7135
  • Flagg: 2B14360, 4311, AS4311
  • Goodyear: 2B14360, 2B14-360
  • Meritor: FS7135, MAF7135
Dimensions Not Available.
