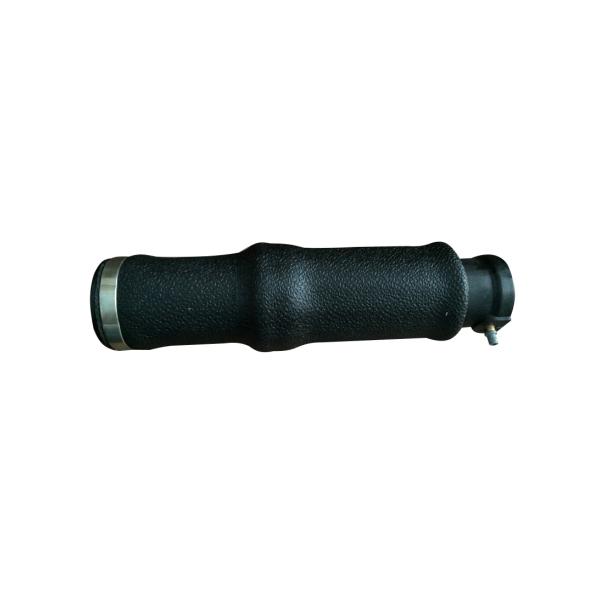

Fortpro Sleeve-style Seat Air Springs provide drivers and passengers with comfort by isolating cab vibrations, resulting in a safe and confident ride for cargo.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Suspension |
|---|---|
| Category Name | Air Springs and Bags |
| Part Type | Seat Air Spring |
| Alternate Part Name | Seat Air Bag Kit, Air Spring Seat Kit |
| OEM Part Number | 800-6222086001 |
Application/Fitment Attributes2 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| VMRS Code | 016-008-000 |

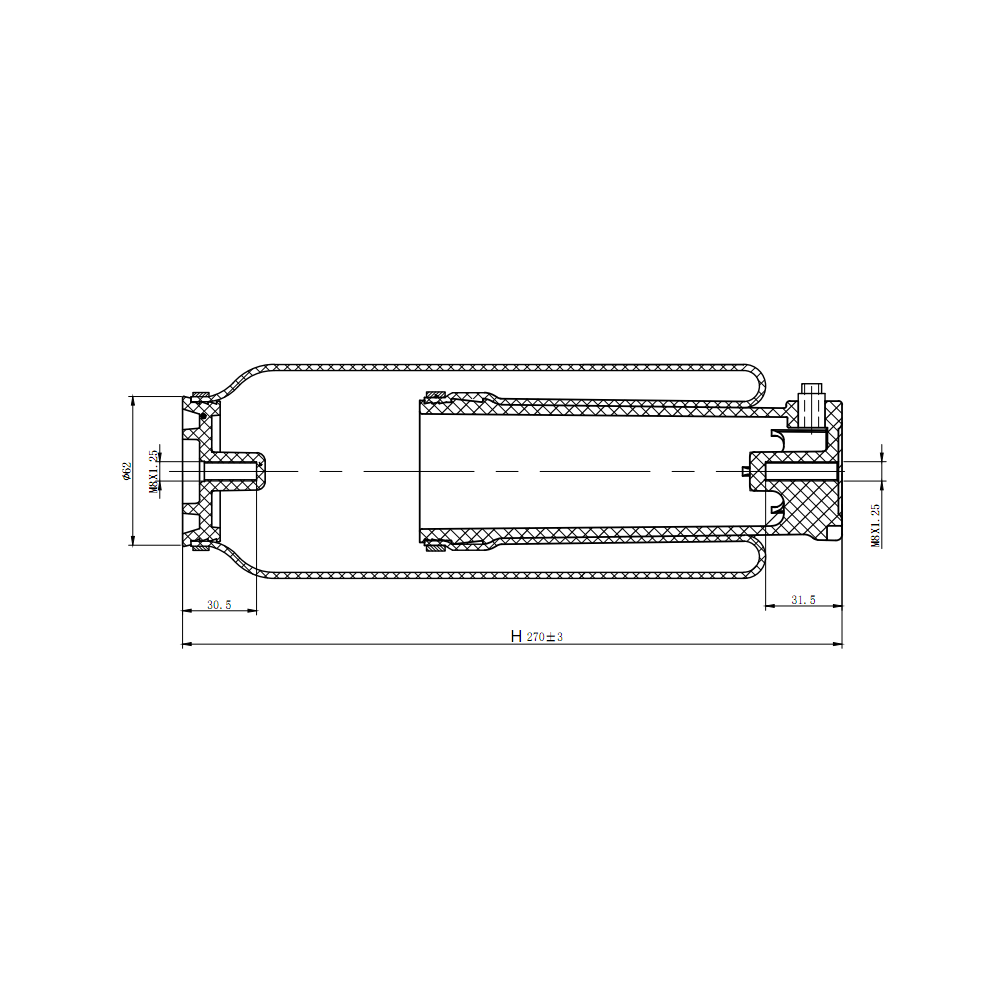

Dimensional/Physical Attributes6 attributes
| Material | Reinforced rubber + aluminum |
|---|---|
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 2.25 in. |
| Bottom Plate Hole Size | M8 x 1.25 |
| Top Plate Diameter | 2.60 in. |
| Top Plate Hole | M8 x 1.25 |
Technical/Performance Attributes1 attribute
| Air Spring Type | Sleeve |
|---|
Packaging / Logistics Attributes:1 attribute
| Net Weight | 1.94 lb. |
|---|

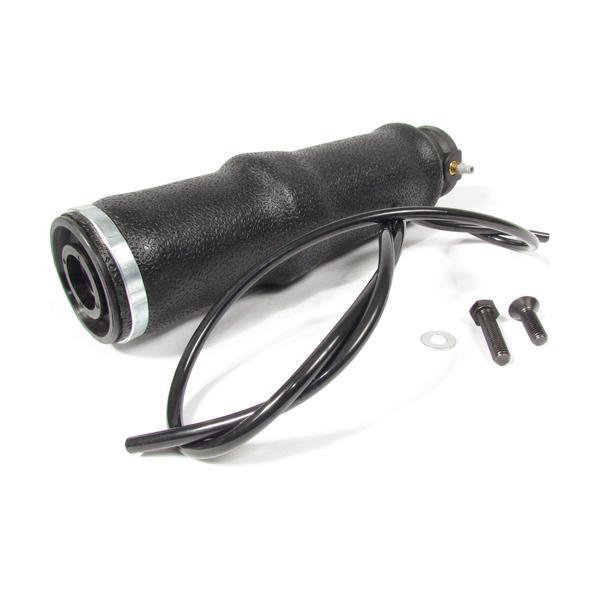

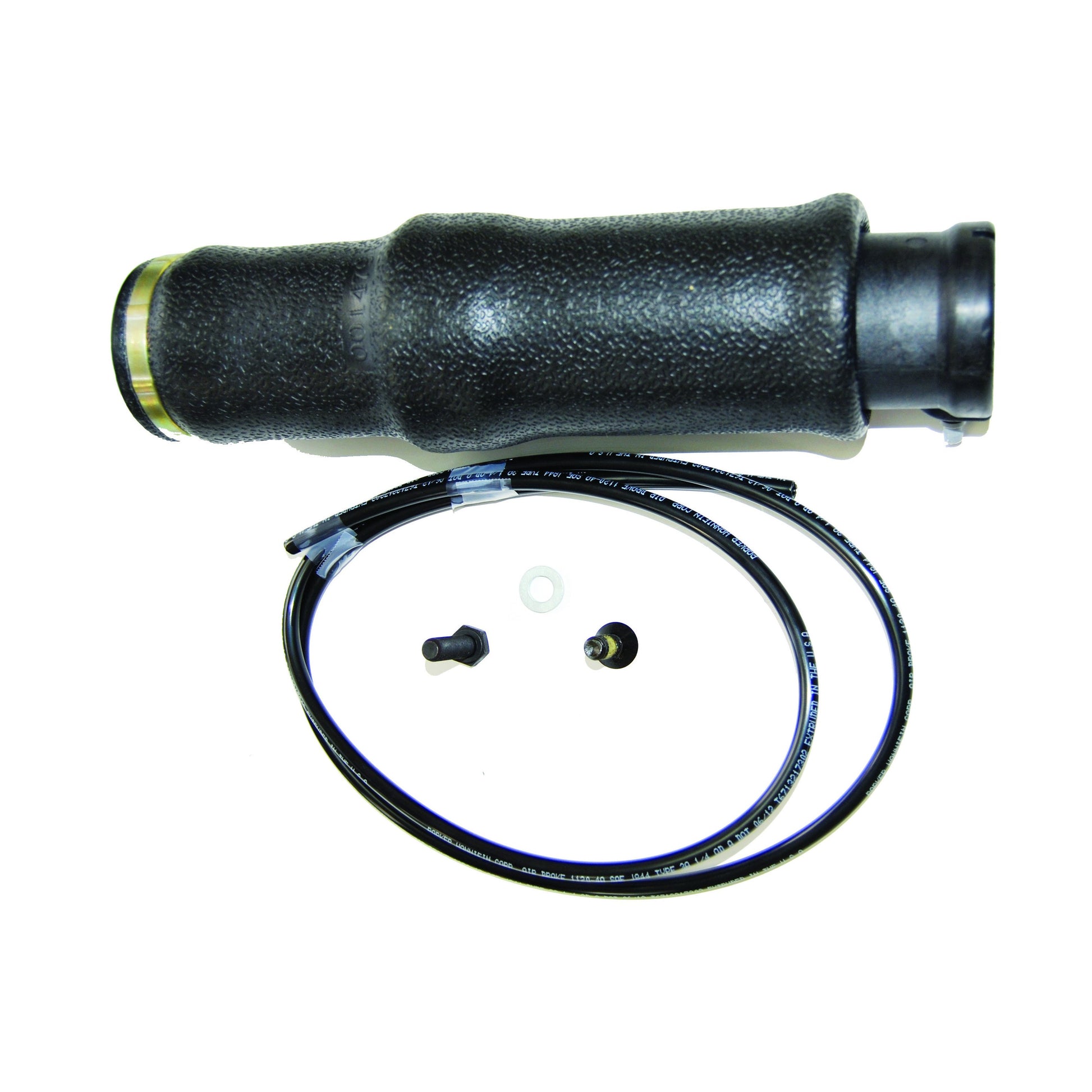

Bill Of Material
- 1 Spring
- 1 Tubing 1/4 in. x 4 ft
- 1 Hardware Kit
Intended Application
- Universal Use on Mack Trucks, Fits T914 T915 T960 914 and 915 seat Bostrom models.
- Mack: 800-6222086001, 8006222086001
- PAI: 803720
- Bostrom: 6222086001, 11087070, 1108707001
- IHC: 1696124C91, 1696134C91, 44259101
- Goodyear: 1S4-197, 1S4197
