Bendix

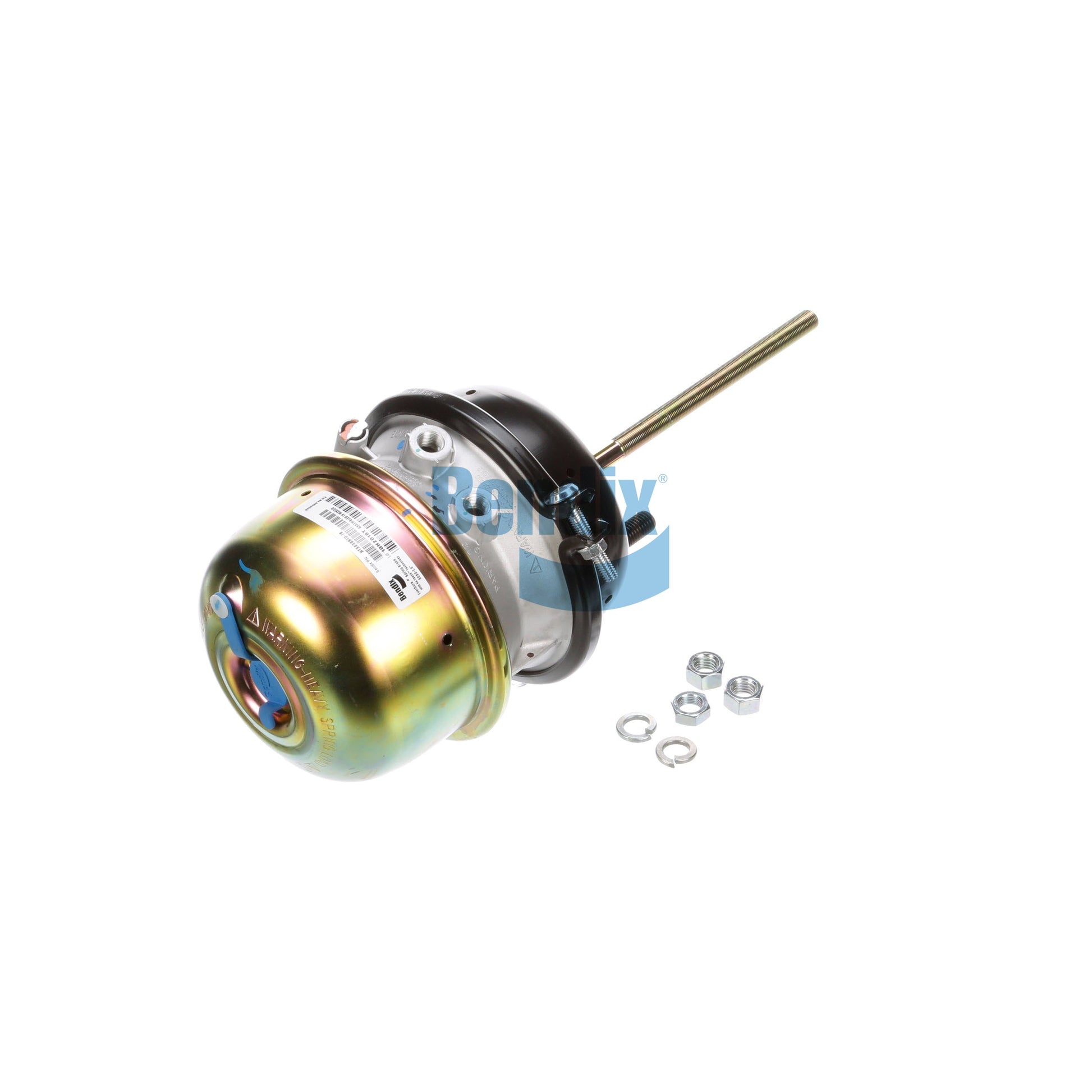

Bendix® 30 30 Brake Chamber - 2.5" STD Stroke - 7.8" Push Rod - Threaded

Bendix® 30 30 Brake Chamber - 2.5" STD Stroke - 7.8" Push Rod - Threaded

SKU: 745-NT3030STD78DS

Availability: More than 50 in Stock

Free Shipping

$68.87 USD
$54.99 USD $68.87 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Install directly onto the automatic adjuster thanks to the pre-cut 7.8-inch shaft, reducing shop labor time.
  • Protect the parking section from environmental wear with its corrosion-resistant epoxy-coated power spring.
  • Align components to the suspension geometry using the swiveling pneumatic ports positioned at a 270° angle.
  • Drain internally via the lower drain plugs, preventing moisture buildup on the body.
  • Provide safe and stable braking force on Class 7 and 8 axles with its double diaphragm design for a standard 2.50 stroke.
View full details

Optimize the maintenance of your drum brakes with the Bendix® EnduraSure® T30/30 Chamber (NT3030STD-78DS). Equipped with a factory-cut 7.8 stem for quick installation, this standard-stroke (2.50) dual chamber incorporates a corrosion-resistant epoxy-coated power spring that extends service life up to three times compared to conventional units. Designed for heavy-duty Class 7 and 8 axles with S-Cam cams, it offers maximum reliability under SAE standards.

Basic Part Information5 attributes
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeSpring Brake (S-Cam)
Alternate Part NameS-Cam 30/30 Double Chamber Spring Brake Chamber, 30/30 Brake Chamber, Bendix 270° Double Clamp Band Spring Brake, Spring Brake (S-Cam)
OEM Part NumberNT3030STD-78DS
Application/Fitment Attributes10 attributes
Application/Fitment Attributes
Application TypeSemi-Trucks, Semi-Trailers, Heavy Duty Trucks, Buses, Trailers
Chamber StyleDouble Diaphragm
Chamber TypeT30/30
Mounting Stud Center-to-Center Spacing4.75 in. (120.7 mm)
Mounting Stud Length1.50 in. (38.1 mm)
Parking Port 123/8-18 NPTF
Port Angle270 Deg.
Push Rod Length7.80 in.
Service Chamber Joint TypeDouble Clamp Band
Service Port 113/8-18 NPTF
Technical/Performance Attributes3 attributes
Technical/Performance Attributes
Maximum Operating Temperature175 °F (79 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Stroke Length2.50 in. (63.5 mm)
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight24.69 lb.
Intended Application
Intended Application
  • Compatible with S-Cam cam drum brake systems on Meritor®, Dana Spicer®, Hendrickson® and Eaton® axles; compatible with Bendix® Versajust®, Haldex® and Gunite® automatic slack adjusters; directly replaces 7.8 stem T30/30 cams from brands such as MGM® (3430051), Haldex® (GC3030), Automann® (179SB3030S) and VMRS code 013-004-027.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Bendix: NT3030STD-78DS
Dimensions Not Available.
