Bendix

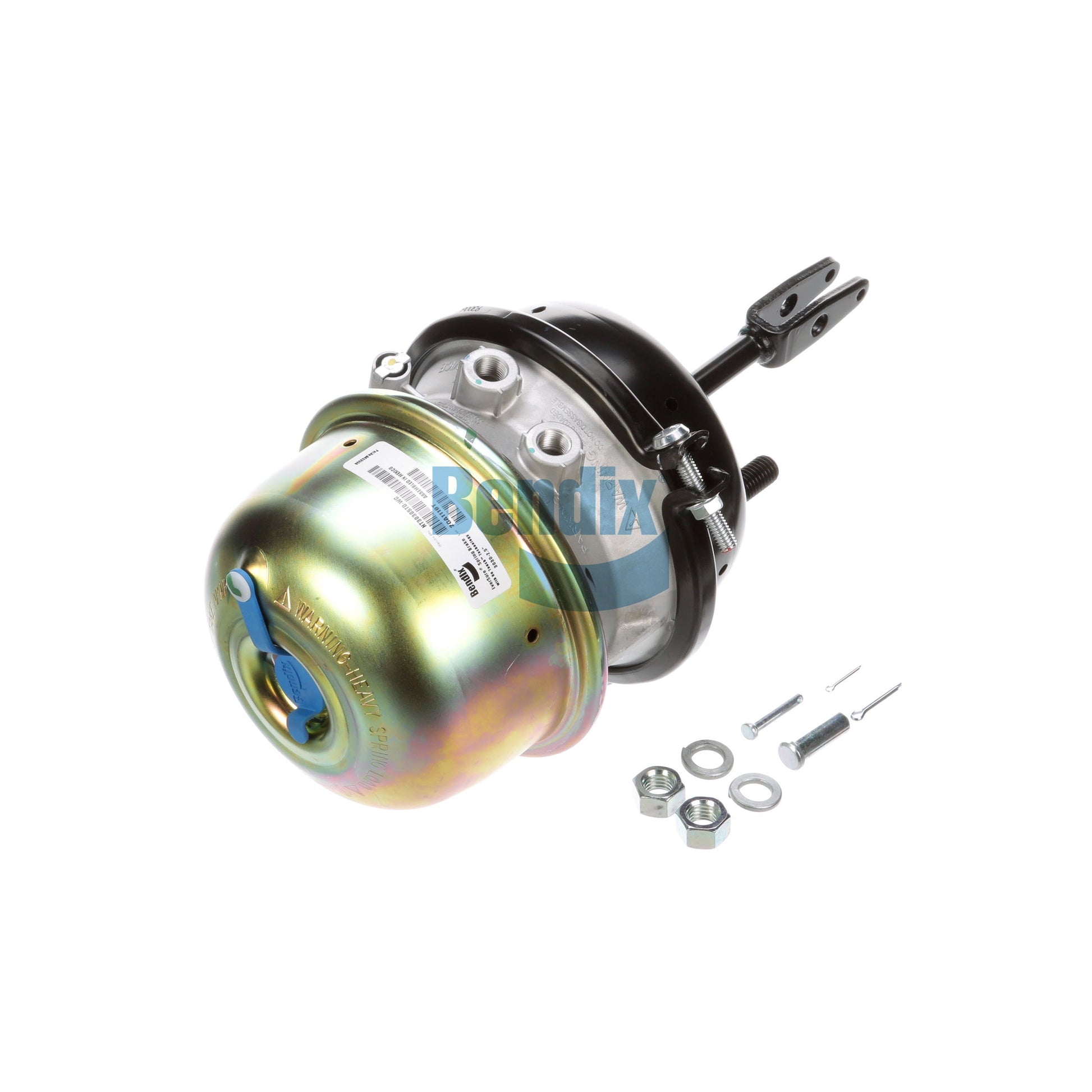

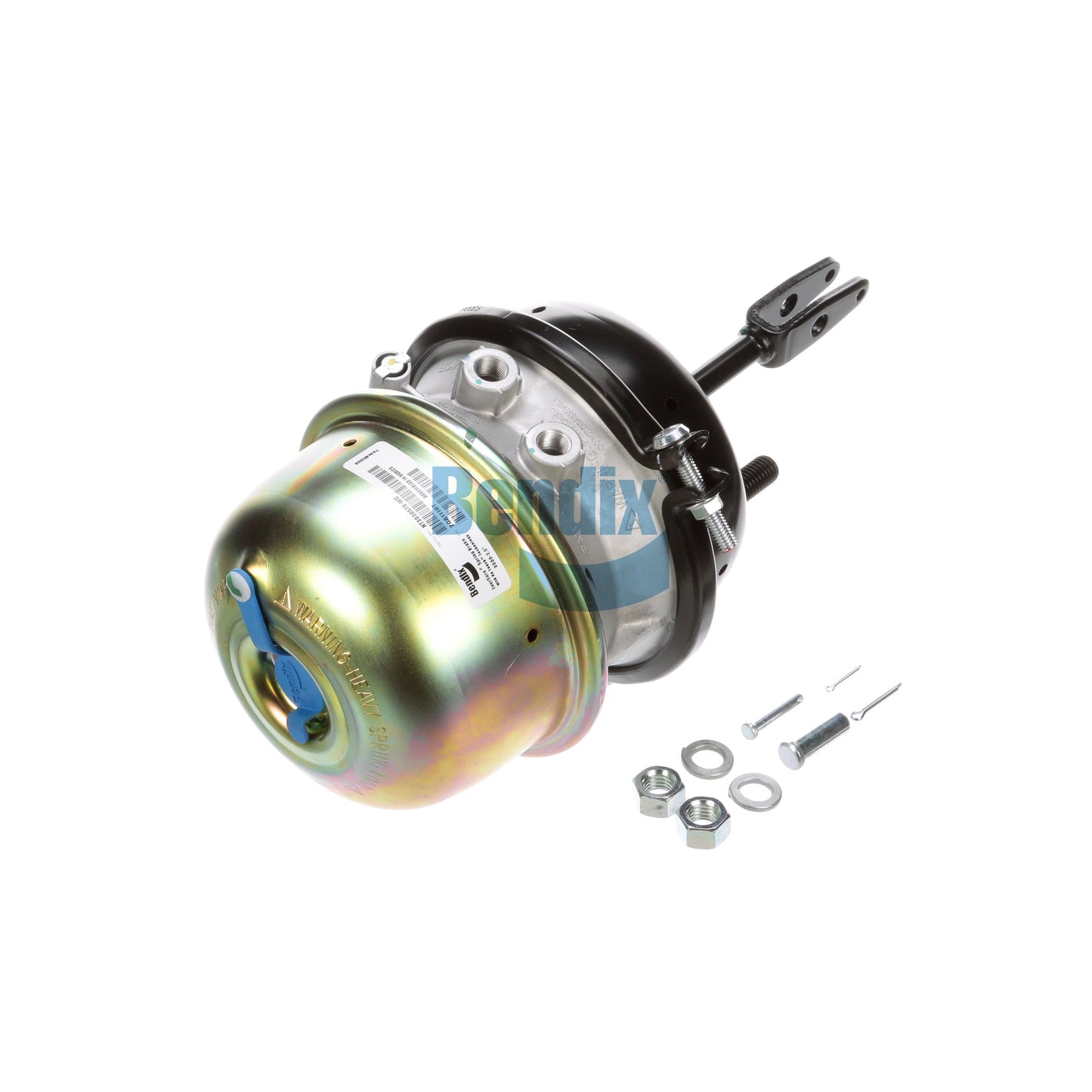

Bendix® 30 30 Brake Chamber - 2.5" STD Stroke - 2.25" Push Rod - Welded Clevis

Bendix® 30 30 Brake Chamber - 2.5" STD Stroke - 2.25" Push Rod - Welded Clevis

SKU: 745-NT3030STDWCDS

Availability: Out of stock

Free Shipping

$81.87 USD
$54.99 USD $81.87 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Protects the emergency spring section against internal corrosion with WeatherSeal® technology, blocking the ingress of water, salt, and road debris.
  • Ensures reliable braking force on Class 7 and 8 axles with a standard 2.50 stroke chamber designed for S-Cam cam-driven drum systems.
  • Extends system life with a low-friction center seal design and springs treated with a high-strength e-coat electrophoretic coating.
  • Simplifies sway bar installation and adjustment using an 11-inch threaded stem that can be cut to the exact length required by the unit manufacturer.
  • Directly replaces, without modifications, worn-out T30/30 chambers from leading brands such as MGM®, Haldex®, and Anchorlok® under OE dimensional standards.
View full details

Ensure maximum performance and durability of your drum brakes with the Bendix® EnduraSure® T30/30 Chamber (NT3030STD-WCDS). Designed for Class 7 and 8 heavy-duty S-Cam actuated axles, this standard-stroke (2.50) dual chamber incorporates WeatherSeal® technology to protect the parking spring from environmental corrosion. Guarantee safe braking, reduced downtime, and full compatibility with your automatic adjusters.

Basic Part Information5 attributes
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeSpring Brake (S-Cam)
Alternate Part NameBendix 270° Double Clamp Band Spring Brake, 30/30 Brake Chamber with Welded Clevis, S-Cam 30/30 Double Chamber Spring Brake Chamber, Spring Brake (S-Cam)
OEM Part NumberNT3030STD-WCDS
Application/Fitment Attributes11 attributes
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks, Semi-Trailers, Trailers, Buses
Chamber StyleDouble Diaphragm
Chamber TypeT30/30
Clevis TypeWelded
Mounting Stud Center-to-Center Spacing4.75 in. (120.7 mm)
Mounting Stud Length1.50 in. (38.1 mm)
Parking Port 123/8-18 NPTF
Port Angle270 Deg.
Push Rod Length2.25 in.
Service Chamber Joint TypeDouble Clamp Band
Service Port 113/8-18 NPTF
Technical/Performance Attributes3 attributes
Technical/Performance Attributes
Maximum Operating Temperature175 °F (79 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Stroke Length2.50 in. (63.5 mm)
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight18.47 lb.
Additional Information1 attribute
Additional Information
Stud Thread Size5/8-11 UNC-2A
Intended Application
Intended Application
  • Compatible with S-Cam cam-operated drum brake systems on Meritor®, Dana Spicer®, Eaton®, and Hendrickson® axles; compatible with Bendix® Versajust®, Haldex®, and Gunite® automatic slack adjusters; directly replaces MGM® TR3030, Haldex® Gold Seal/LifeSeal, Wabco® Anchorlok standard stroke T30/30 chambers and VMRS code 013-004-027.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Bendix: NT3030STD-WCDS, NT3030STDWCDS
  • Euclid: EBC3030C
  • Haldex: GC3030CW
Dimensions Not Available.
