Bendix

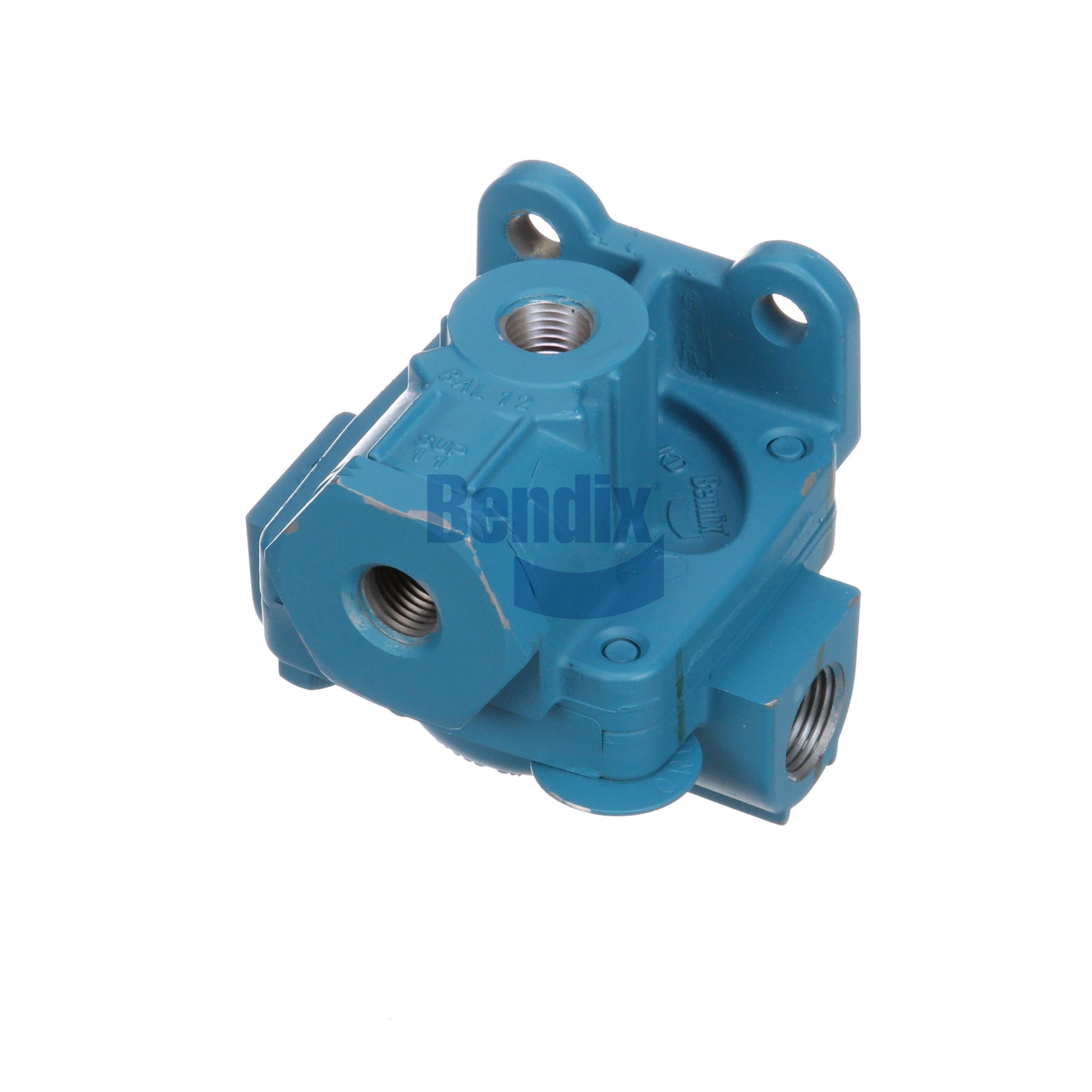

Bendix® QR-1C® Double Check and Quick Release Valve - OR289714X

Bendix® QR-1C® Double Check and Quick Release Valve - OR289714X

SKU: 745-OR289714X

Availability: Out of stock

$43.67 USD
$8.62 USD $43.67 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Prevents brake compounding in the spring chamber thanks to its integrated double check function, preventing simultaneous application of the service and parking brakes.
  • Accelerates air release in spring brake actuators with the quick release valve, optimizing system response time on axle-mounted systems.
  • Optimizes chassis space by combining two critical pneumatic control functions into a single compact unit mounted directly on the vehicle axle.
  • Eliminates leaks in low differentials with the optional bias-beaded seat, designed for superior sealing in specific pneumatic control applications.
  • Ensures operational safety in commercial units with a valve that delivers air within 1 PSI of the control pressure in its standard configuration.
View full details

Maximize pneumatic efficiency and protect your actuators with the Bendix® QR-1C® Valve. Designed for shaft mounting, this dual-function valve acts as a quick exhaust for spring brakes and an anti-compound device, preventing simultaneous application of the service and emergency brakes. It offers precise delivery within 1 PSI of the control pressure and skewed sealing options to minimize leakage at low pressures, ensuring maximum safety.

Basic Part Information6 attributes
Basic Part Information
Product LineBrakes
Category NameAir Brake Valves
Part TypeDouble Check and Quick Release Valve
Alternate Part NameCheck Valve/Quick Release, Quick Release Valve with Double Check Valve, Bendix® QR-1C® Double Check Quick Release Valve
ModelQR-1C
OEM Part NumberOR289714X
Application/Fitment Attributes8 attributes
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
Delivery Port Qty2
Delivery Port Size3/8-18 NPT (Female)
Exhaust PortOpen
Mounting Hole Qty2
Mounting Hole SizeØ .34 in.
Supply Port Size1/4-18 NPT Female
TMC WasherQR000
Dimensional/Physical Attributes1 attribute
Dimensional/Physical Attributes
MaterialDie-cast Aluminum
Technical/Performance Attributes5 attributes
Technical/Performance Attributes
Differential Pressure0 psi
Maximum Operating Temperature200 °F (93 °C)
Minimum Operating Temperature-50 °F (-45 °C)
Sustained HoldNo
Zero HysteresisYes
Packaging / Logistics Attributes:4 attributes
Packaging / Logistics Attributes:
Package Length6.00 in.
Package Width4.00 in.
Package Height3.00 in.
Net Weight1.12 lb.
Special Attributes1 attribute
Special Attributes
Foam Insert IncludedNo
Intended Application
Intended Application
  • Compatible With: Spring brake actuators on drive and trailer axles; integrated with foot brake valve delivery lines or relay valves (Balance Port), dash parking control valves (Supply Port) and standard, zero-hysteresis Bendix® QR-1C® configurations with foam mufflers or biased beaded seats, as well as Aftermarket Haldex®, Wabco® and Meritor® equivalents under standard VMRS 013-010-008.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Armada: BH289714
  • Automann: 170289714
  • Bendix: 289714, 289714N, 289714RX, 289714X, 289915X, OR289714, OR289714X
  • Bepco Inc: 289714, 289714X
  • Dayton Parts Batco: AV289714
  • Euclid: EBN289714N
  • Haldex: 289714RX
  • Meritor: R955289714X
  • PAI Industries: EM36260, LQV-3626
  • Wabco: RKN32011
Dimensions Not Available.
