Bendix

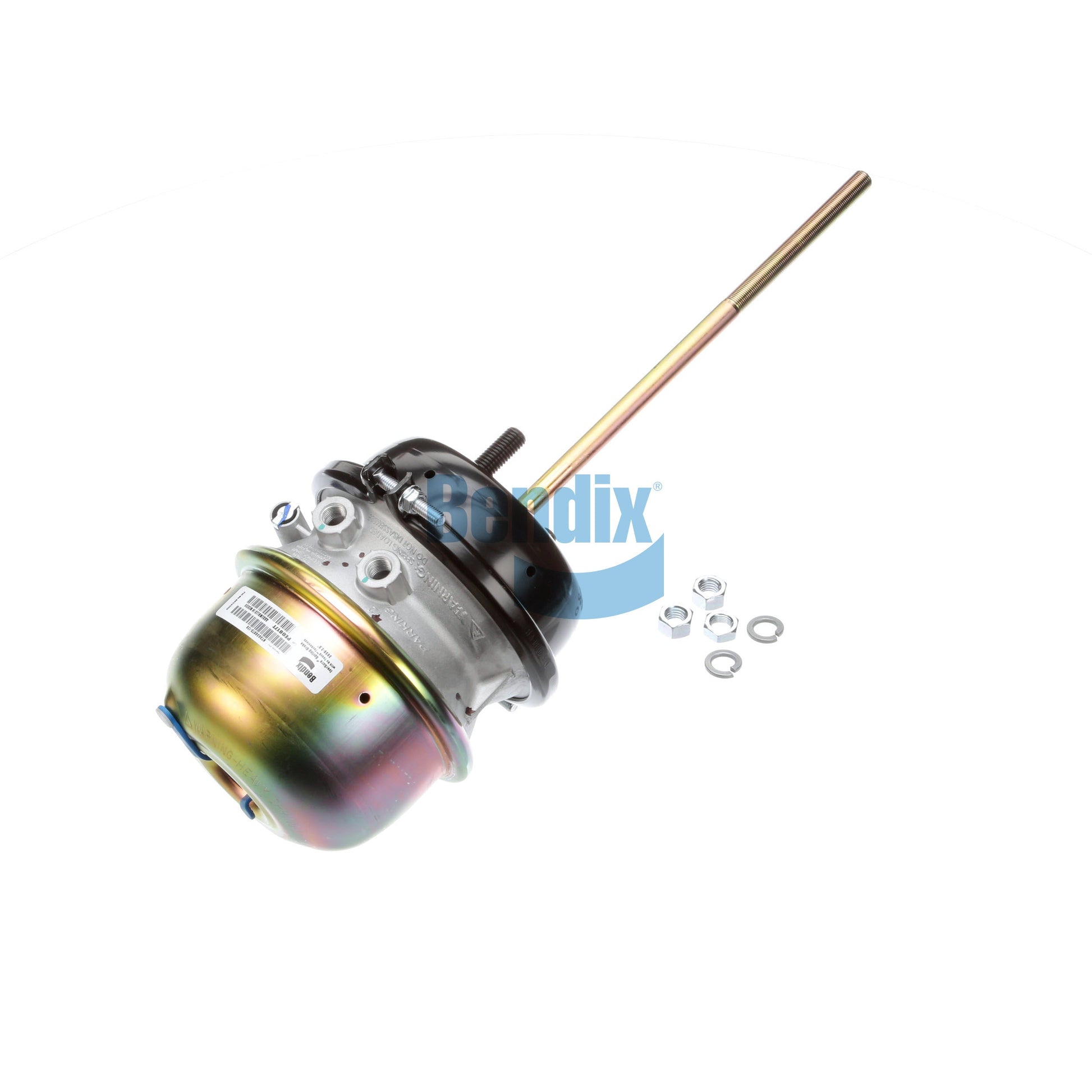

Bendix® EnduraSure® 30 30 Brake Chamber - 2.5" STD Stroke - 12" Push Rod - Threaded

Bendix® EnduraSure® 30 30 Brake Chamber - 2.5" STD Stroke - 12" Push Rod - Threaded

SKU: 745-NT3030STD120DS

Availability: More than 50 in Stock

Free Shipping

$75.37 USD
$54.99 USD $75.37 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Facilitates integration with your suspension geometry via the extended 12.0-inch (5/8-18 UNF-2A) threaded stem, designed to be cut to exact length in the shop.
  • Optimally synchronizes pneumatic connections with its 3/8-18 NPTF ports arranged at fixed 0° and 180° angles.
  • Ensures consistent thermal performance under extreme conditions thanks to a certified operating range of -40°F to 175°F (-40°C to 79°C).
  • Secures mounting to the chassis with 1.50-inch (38.1 mm) 5/8-11 UNC-2A mounting bolts.
  • Delivers reliable braking force on S-Cam drive axles using a lightweight T30/30 double diaphragm spring with a standard 2.50-inch stroke.
View full details

Optimize the pneumatic system of your Class 7 and 8 vehicles with the Bendix® EnduraSure® T30/30 Brake Chamber (NT3030STD-120DS). Designed for S-Cam cam-actuated drum brakes on drive and trailer axles, this dual-diaphragm unit with a standard 2.50 stroke incorporates a long, 12.0 threaded stem for custom cutting. It operates efficiently in temperatures ranging from -40°F to 175°F with ports at 0° and 180°, ensuring maximum adaptability and commercial durability.

Basic Part Information5 attributes
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeSpring Brake (S-Cam)
Alternate Part Name30/30 Brake Chamber, S-Cam 30/30 Double Chamber Spring Brake, Spring Brake (S-Cam)
OEM Part NumberNT3030STD-120DS
Application/Fitment Attributes10 attributes
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks, Semi-Trailers, Trailers, Buses
Chamber StyleDouble Diaphragm
Chamber TypeT30/30
Mounting Stud Center-to-Center Spacing4.75 in. (120.7 mm)
Mounting Stud Length1.50 in. (38.1 mm)
Parking Port 123/8-18 NPTF
Port Angle0 Deg.
Push Rod Length12 in.
Service Chamber Joint TypeDouble Clamp Band
Service Port 113/8-18 NPTF
Technical/Performance Attributes3 attributes
Technical/Performance Attributes
Maximum Operating Temperature175 °F (79 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Stroke Length2.50 in. (63.5 mm)
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight19.09 lb.
Intended Application
Intended Application
  • Bendix® EnduraSure® T30/30 standard stroke (2.50) combination spring brake chamber with a 12.0 threaded long stem for S-Cam cam-operated drum brake systems on drive and trailer axles of Class 7 and 8 commercial vehicles. Designed for applications requiring adaptability through custom stem cutting to match specific suspension geometry or automatic adjuster specifications.
  • Compatible With: S-Cam cam-operated drum brake systems on Meritor®, Dana Spicer®, Hendrickson®, and Eaton® axles; compatible with Bendix® Versajust®, Haldex®, and Gunite® automatic slack adjusters; direct replacement for long-stem T30/30 chambers from brands such as MGM® (3430001), Haldex® (GC3030L), Wabco® Anchorlok, and VMRS code 013-004-027.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Automann: 179SB3030S, 179.SB3030S
  • Bendix: NT3030STD-120DS
Dimensions Not Available.
