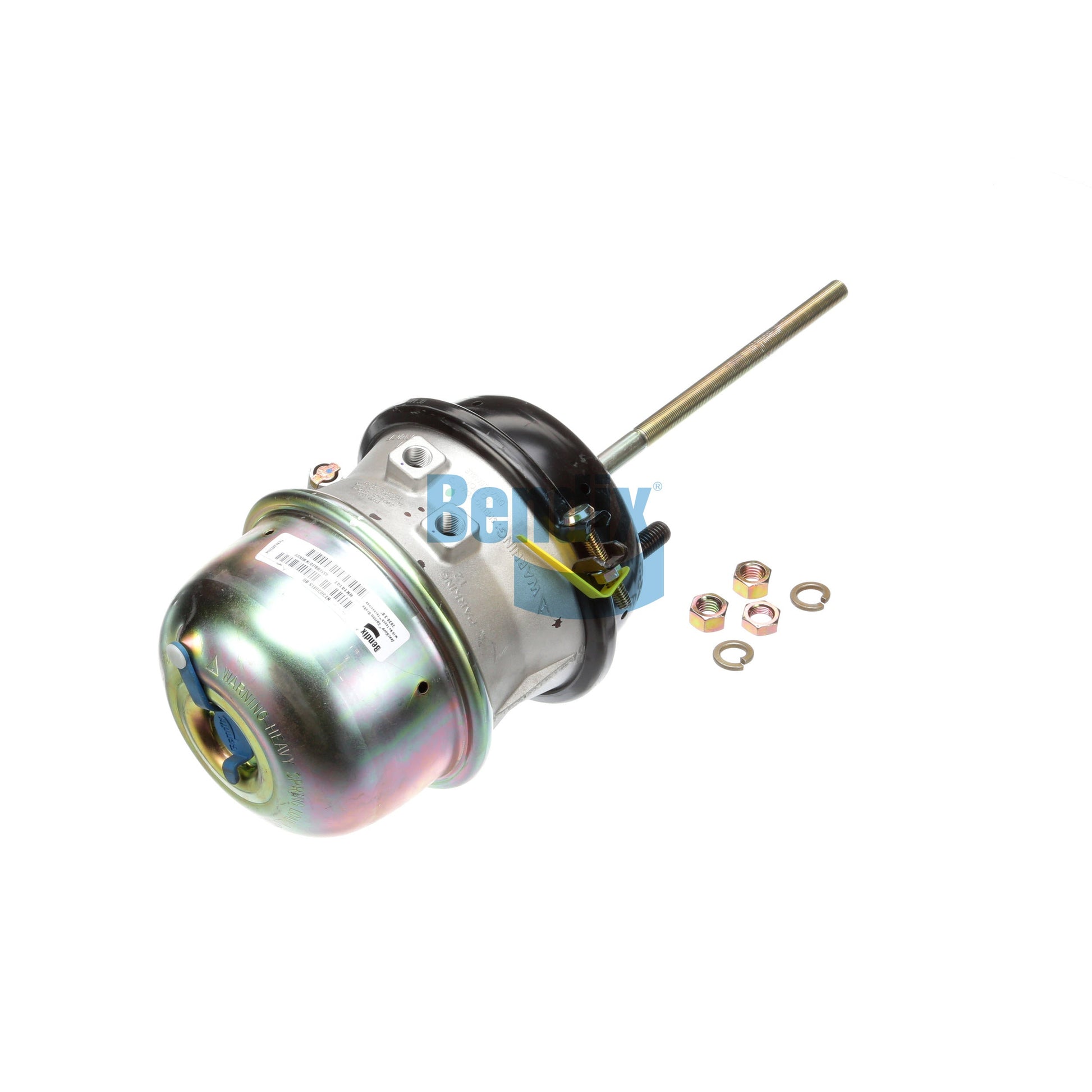

Bendix® EnduraSure® 30 30 Brake Chamber - 3.00" LNG Stroke - 8" Push Rod - Threaded

Bendix® EnduraSure® 30 30 Brake Chamber - 3.00" LNG Stroke - 8" Push Rod - Threaded

SKU: 745-NT3030ELS80DS

Availability: More than 50 in Stock

Free Shipping

$81.87 USD
$54.99 USD $81.87 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Increase braking safety reserve with its 3.00-inch (76.2 mm) long stroke design.
  • Streamline shop installation with its factory-pre-cut 8.0-inch (5/8-18 UNF) stem, eliminating the need for manual cutting.
  • Prevent internal moisture buildup using its swiveling drain plugs, reducing the risk of corrosion in the spring chamber.
  • Ensure a secure fit to the chassis with its 5/8-11 UNC mounting bolts.
  • Withstand demanding operating conditions on Class 7 and 8 axles with its durable, dual-diaphragm S-Cam construction.
View full details

Maximize the safety margin on your drum brakes with the Bendix® EnduraSure® T30/30 Chamber (NT3030ELS-80DS). Designed for heavy-duty Class 7 and 8 S-Cam actuated axles, this dual-diaphragm unit offers a long 3.00 stroke, providing greater tolerance for drum thermal expansion. Its pre-cut 8.0 stem speeds up shop installation, while drain plugs prevent moisture buildup and internal corrosion.

Basic Part Information5 attributes
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeSpring Brake (S-Cam)
Alternate Part NameSpring Brake (S-Cam), S-Cam 30/30 Double Chamber Spring Brake Chamber, 30/30 Brake Chamber
OEM Part NumberNT3030ELS-80DS
Application/Fitment Attributes10 attributes
Application/Fitment Attributes
Application TypeSemi-Trailers, Buses, Trailers, Heavy Duty Trucks, Semi-Trucks
Chamber StyleDouble Diaphragm
Chamber TypeT30/30
Mounting Stud Center-to-Center Spacing4.75 in. (120.7 mm)
Mounting Stud Length1.48 in. (37.5 mm)
Parking Port 123/8-18 NPTF
Port Angle270 Deg.
Push Rod Length8.00 in.
Service Chamber Joint TypeDouble Clamp Band
Service Port 113/8-18 NPTF
Technical/Performance Attributes3 attributes
Technical/Performance Attributes
Maximum Operating Temperature175 °F (79 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Stroke Length3.00 in. (76 mm)
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight19.10 lb.
Intended Application
Intended Application
  • Bendix® EnduraSure® T30/30 long-stroke (3.00) combination spring brake chamber with an 8.0 pre-cut stem for S-Cam cam-operated drum brake systems on drive and trailer axles of Class 7 and 8 commercial trucks. Designed for vehicles operating under high thermal demands, providing increased stroke reserve to prevent brake failure beyond CVSA limits.
  • Compatible with S-Cam cam-operated drum brake systems on Meritor®, Dana Spicer®, Hendrickson®, and Eaton® axles; compatible with Bendix® Versajust®, Haldex®, and Gunite® automatic slack adjusters. It directly replaces T30/30 long stroke (3.00) cameras with an 8.0 stem from brands such as MGM® (1430051), Haldex® (GC3030L), Automann® (179SB3030LS) and VMRS code 013-004-027.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
  • Bendix: NT3030ELS80DS, NT3030ELS80TC
  • Euclid>: E-GC3030L
  • Fleetrite: FLT3030LB20, FLT3030LCB20
  • Haldex: 3030054, GC3030L, MA15473
  • MGM Brakes: 3230051, 5010414, 5010435
Dimensions Not Available.
