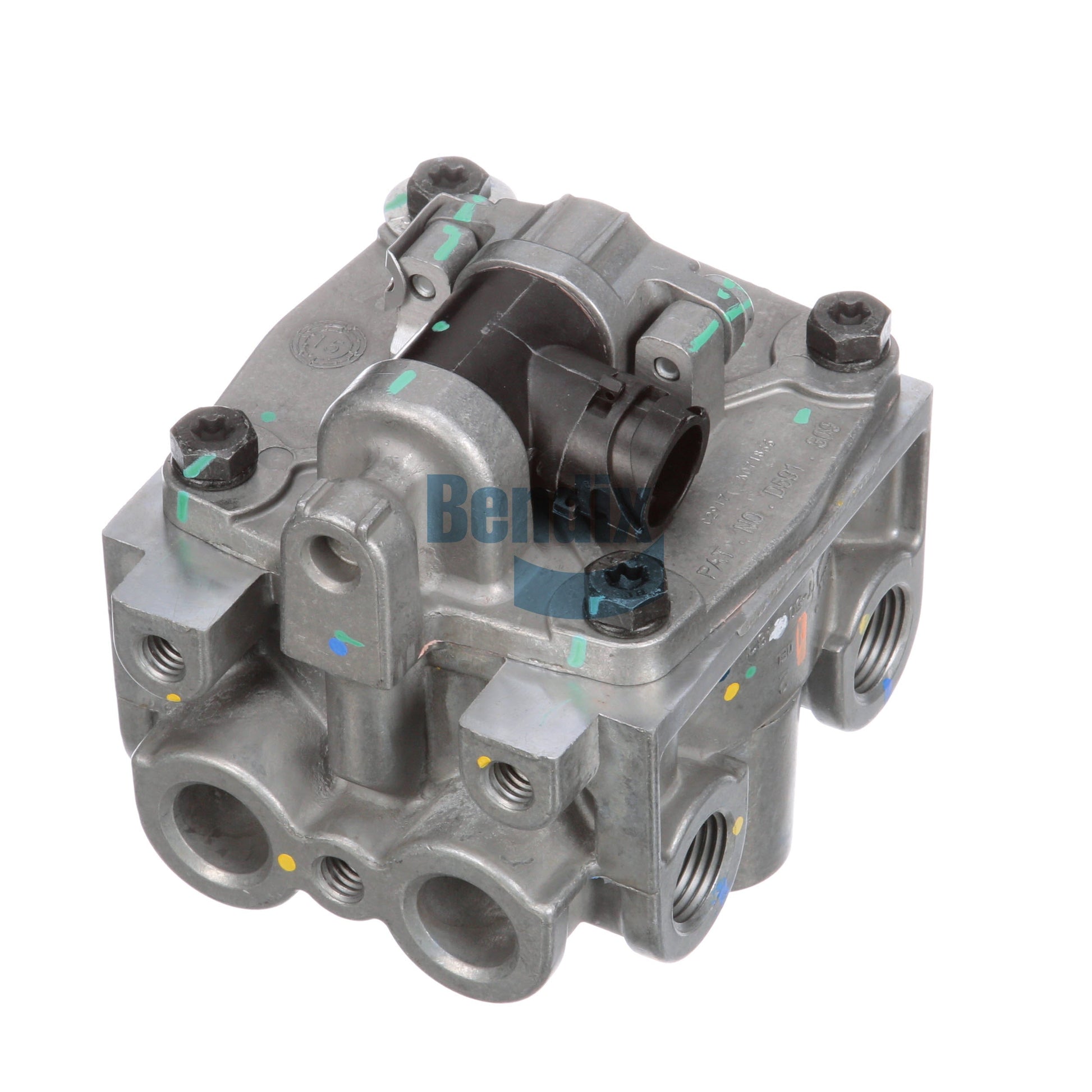

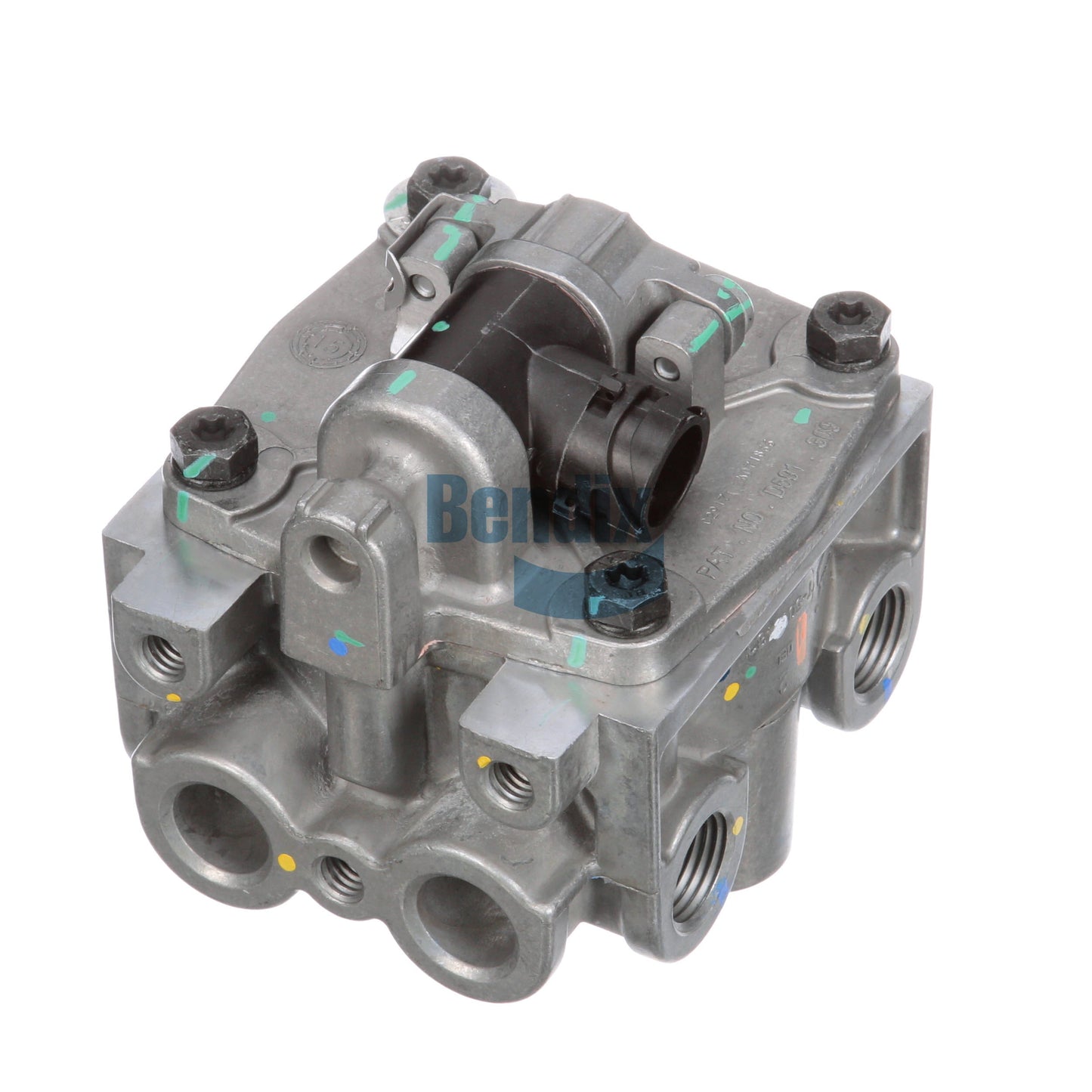

Bendix® ATR-6 Traction Relay Valve - K070951

Bendix® ATR-6 Traction Relay Valve - K070951

SKU: 745-K070951

Availability: More than 50 in Stock

$392.82 USD
$8.62 USD $392.82 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • Electropneumatic Integration: Combines a conventional service relay valve with a modified cover that houses a pneumatic control solenoid and interacts directly with the ABS/ATC system ECU.
  • Standard Platform Construction: Belongs to the R-12® relay valve family, sharing internal relay body components and interchangeability with that series.
  • Rapid Response to Traction Events: When the solenoid is activated by a signal from the ABS controller, it immediately supplies air from the reservoir tank to the modulating valves to apply differential braking to the wheel without traction.
  • Crack Pressure: Factory set to 4 psi for air delivery initiation, adjustable according to the vehicle's technical application via a differential spring.
  • Design for Efficient Maintenance: Allows for quick and direct replacement of the air inlet/exhaust valve without removing the entire relay body from the vehicle.
View full details

The Bendix® ATR-6™ (K070951) is an electro-pneumatic anti-lock traction control relay valve for commercial vehicles with ABS and ATC. Operating on the R-12® platform, it acts as a regular service valve and active traction/stability interface. Its integrated solenoid supplies air directly from the tank to the ABS modulators upon detecting a loss of traction, applying controlled braking to the slipping wheel to regain traction. It allows for direct maintenance without disassembly.

Basic Part Information6 attributes
Basic Part Information
Product LineBrake System
Category NameAir Brake Valves
Part TypeTraction Relay Valve
Alternate Part NameAntilock Traction Relay Valves, Automatic Traction Control Relay Valve for ABS, ATR-6 Traction Relay Valve
ModelATR-6
OEM Part NumberK070951
Application/Fitment Attributes14 attributes
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks
Control Port Size1/4-18 NPT
Delivery Port 1 Size1/2-14 NPT
Delivery Port 2 Size1/2-14 NPT
Delivery Port 3 Size1/2-14 NPT
Delivery Port 4 Size1/2-14 NPT
Delivery Port 5 SizeClosed Port
Delivery Port 6 SizeClosed Port
Delivery Port 7 SizeClosed Port
Delivery Port 8 SizeClosed Port
Exhaust Port SizeDust Shield
Mounting Hole Qty3
Mounting Hole Size3/8-16 UNC-2B
Washer TypeRV055
Dimensional/Physical Attributes3 attributes
Dimensional/Physical Attributes
MaterialAluminum Alloy
Mounting Orientation (CW from Front Face)180 deg.
Valve Body Configuration1 SUP / 8 DEL (6H + 2V)
Technical/Performance Attributes6 attributes
Technical/Performance Attributes
Control Port Orientation0 Deg.
Crack Pressure5.5 psi
Internal Supply Passage to CoverYes
Maximum Operating Temperature185 °F (85 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Operating Voltage12 V
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight3.08 lb.
Intended Application
Intended Application
  • Designed for use on heavy-duty vehicles equipped with Bendix® pneumatic braking systems with ABS and Anti-Slip/Traction Control (ATC), as well as advanced ESP® stability systems. It typically replaces the standard relay valve that controls the rear axle service brakes, although it is also used on front axles in advanced ABS applications. Its function is to manage regular service braking and supply immediate air pressure during traction or stability control events modulated by the electronic controller.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
Technical Notes
Technical NotesUse caution when positioning solenoid connector.
  • Bendix: K239423
  • Mack: 745-K239423
Dimensions Not Available.
