Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information5 attributes
| Product Line | Brakes |
|---|---|
| Category Name | Slack Adjusters |

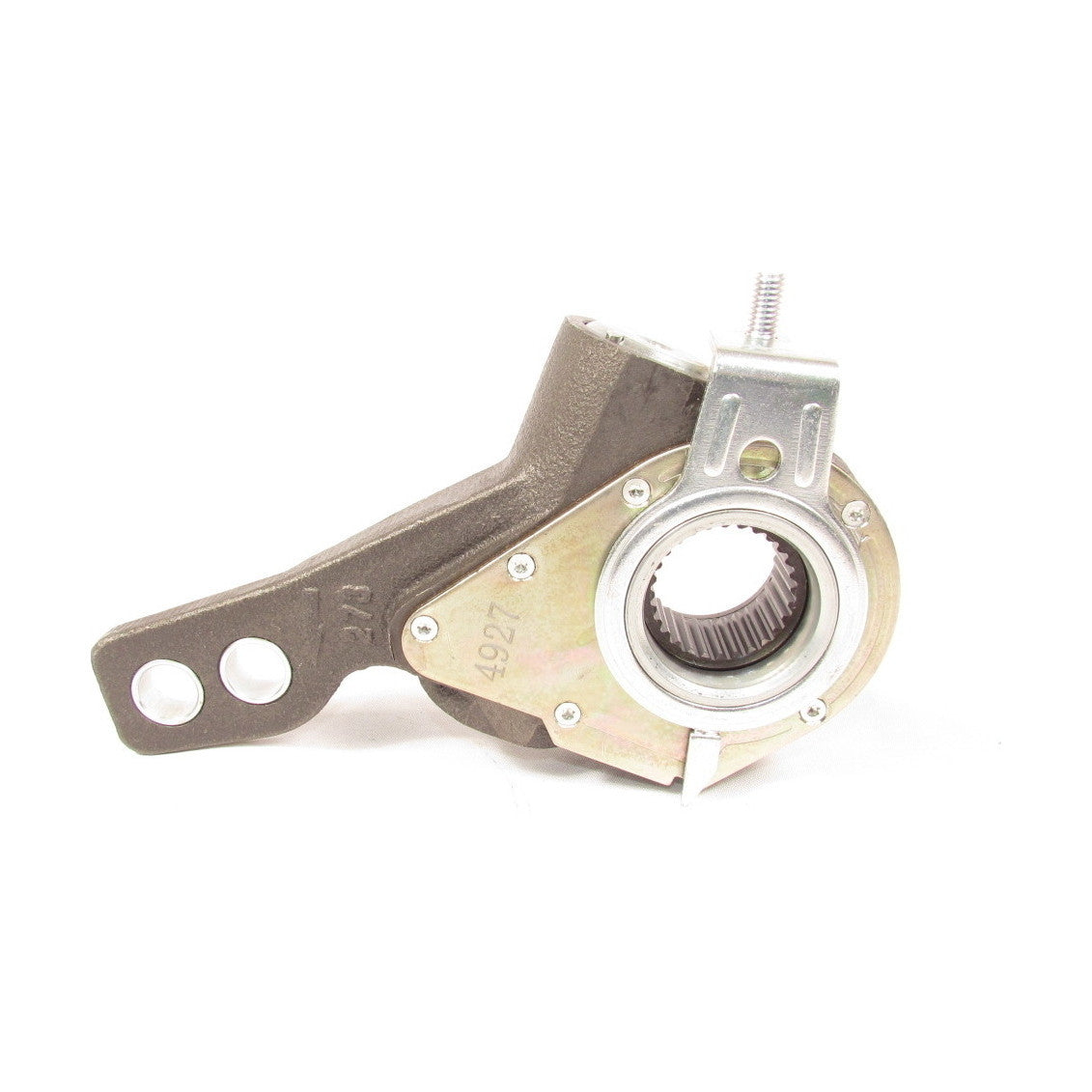

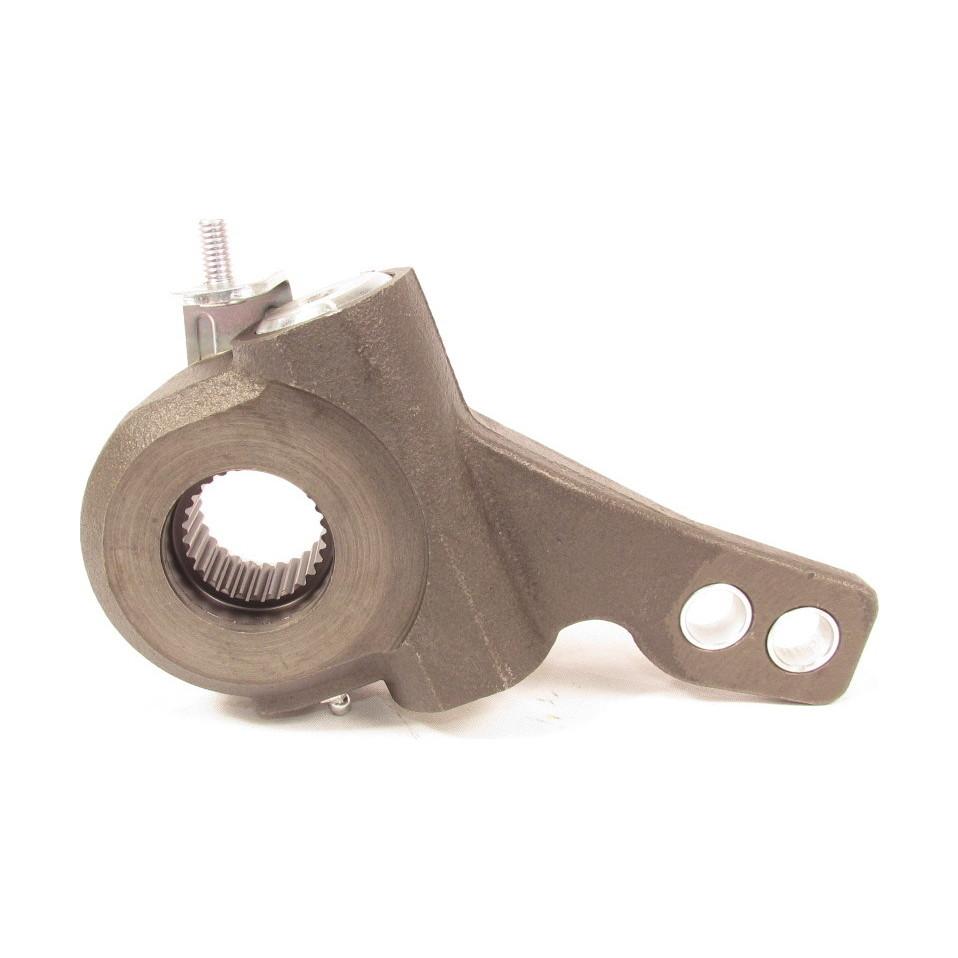

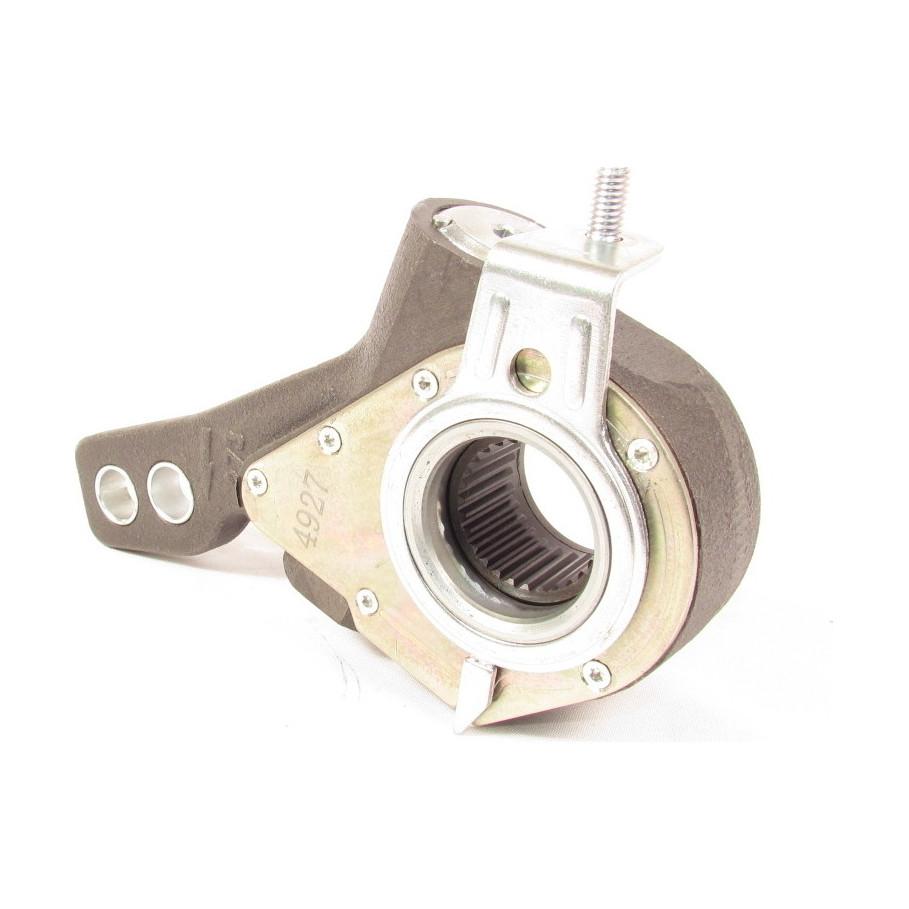

| Part Type | Automatic Slack Adjusters |
| Model | Haldex Style / AA1 |
| OEM Part Number | 40010140 |
Application/Fitment Attributes4 attributes
| Anchor Bracket Type | Strap |
|---|---|
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Brake Chamber Sizes | T-30 Std or T-16/T-24 Long Stroke |
| Clevis Type | Unclevised |
Dimensional/Physical Attributes8 attributes
| Material | Alloy Steel |
|---|---|
| Arm Bushing Inside Diameter | 5/8 in. |
| Arm Length Position 1 | 6 in. |
| Arm Length Position 2 | 5 in. |
| Arm Offset | No Offset |
| Body Inclination Angle | (-34 deg.) |
| Slack Spline Count | 28 |
| Slack Spline Diameter | 1-1/2 in. |
Technical/Performance Attributes5 attributes
| Grease Fitting Location | 180 deg. |
|---|---|
| Maximum Operating Temperature | 158 deg. F (70 deg. C) |
| Maximum Torque | 23.000 In./Lbs. |
| Minimum Operating Temperature | (-40 deg. F) (-40 deg. C) |
| Operation Type | Tension Adjuster - Torque |
- Automann: 1332830
- Bendix: 815806
- Dayton Parts: 5655
- Euclid: E-6925B
- Haldex: 400-10140
- Meritor: R806024A, M807024
- Stemco: MK42106S
Dimensions Not Available.
