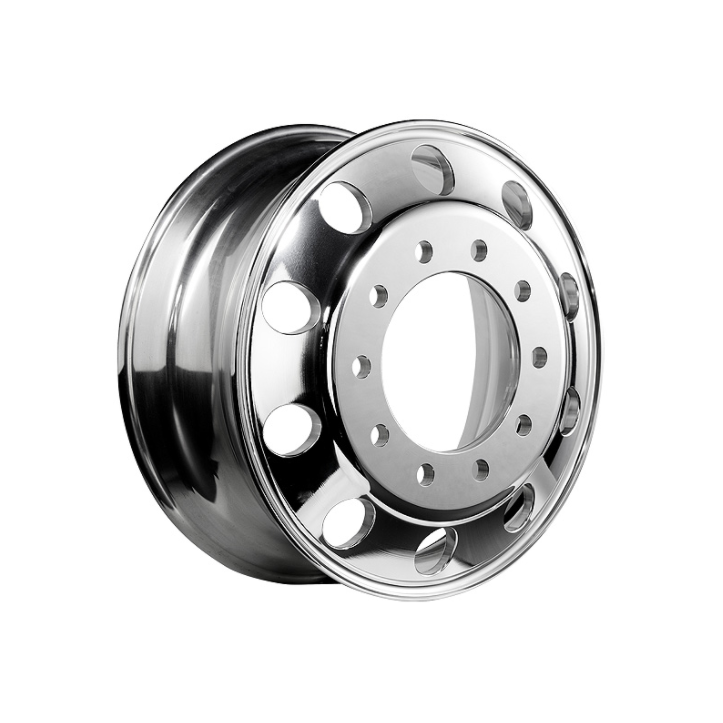

22.5 x 8.25 Alcoa Style Forged Aluminum Wheel Hub Piloted 10 HAND HOLES
22.5 x 8.25 Alcoa Style Forged Aluminum Wheel Hub Piloted 10 HAND HOLES
SKU: F286440
Availability: In Stock
Stock Level: More than 50 available.
Shipping: Calculated at Checkout
Couldn't load pickup availability
About this Item
- Forged wheels are one-piece wheels, which warranty structural integrity. Are stronger because of grain refinement due to thermal cycle and process of deformation.
- Consistent forging allows achieving the same structural integrity with less material in comparison to cast wheels, which make it lighter but stonger.
- The manufacturing process excludes occurrence of cavities, porosity, and shrinkage.
- Mechanically stronger wheels because of tight grain structure. It also ensures better wear resistance
- Machine polished on both sides
Description
Description
The latest technologies are used in Fortpro's manufacturing equipment, which also passed the third-party standard certification. Customers can trust our quality.
Aluminum wheels are lighter than steel and cast aluminum wheels. Forged wheels are stronger than cast aluminum wheels. That is why we can entirely recommend Fortpro Aluminum wheels.
Specifications
Specifications
Dimensions:
- Diameter: 22.5 in
- Width: 8.25 in
Offset:
- Outset: 167.9 mm
- Inset: 147.2 mm
Bolt Hole (mm):
- PCD: 285.75
- No: 10
- Dia 26
Hub:
- Dia: 220.20
- Thic: 20.7
Max Loading: 7400 lbs
| TIRE SIZE(1) | APPROVED RIM CONTOURS(2) |
| 255/70R 22.5 | 7.50, 8.25 |
| 265/75 ★ 22.5 | 7.50, 8.25 |
| 11 ★ 22.5 | 7.50, 8.25 |
| 275/80R 22.5 | 7.50, 8.25 |
| 295/75 ★ 22.5 | 8.25, 9.00 |
| 305/70R 22.5 | 8.25, 9.00 |
| 12 ★ 22.5 | 8.25, 9.00 |
| 12.5 ★ 22.5 | 8.25, 9.00 |
| 12.75 ★ 22.5 | 8.25, 9.00 |
| 315/80R22.5 | 8.25, 9.00, 9.75 |
(1) A ★ denotes both radial and bias tires. An R indicates radial tires only.
(2) SDC denotes semi-drop center rims. Note: For tire sizes not shown, consult the Tire Manufacturer for approved rim contours.
