Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information4 attributes

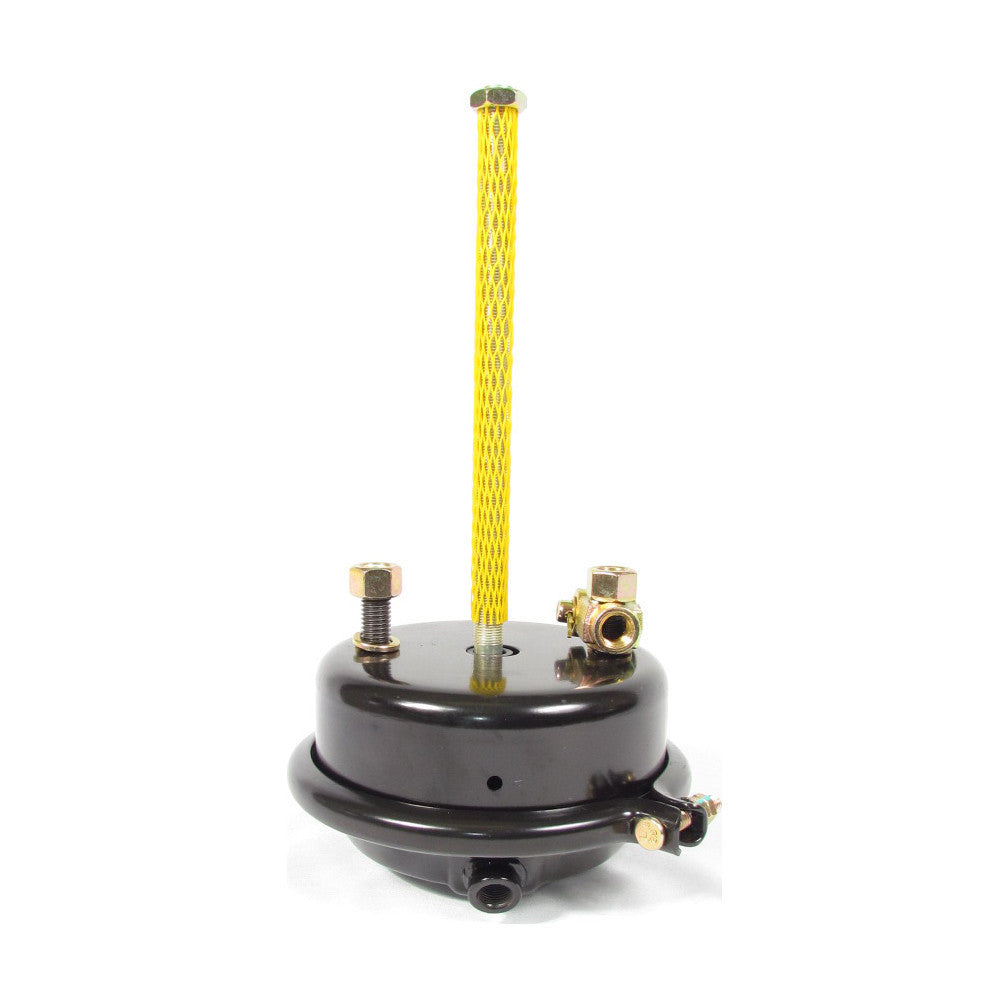

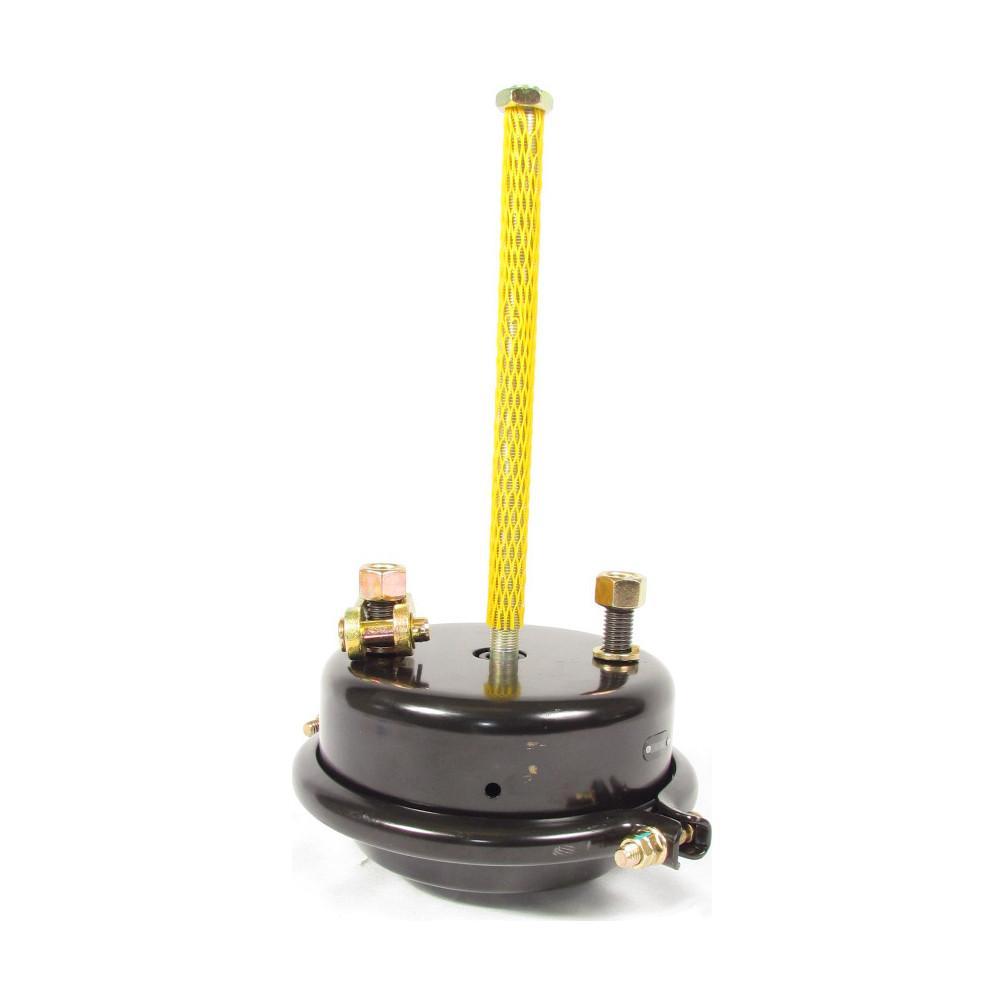

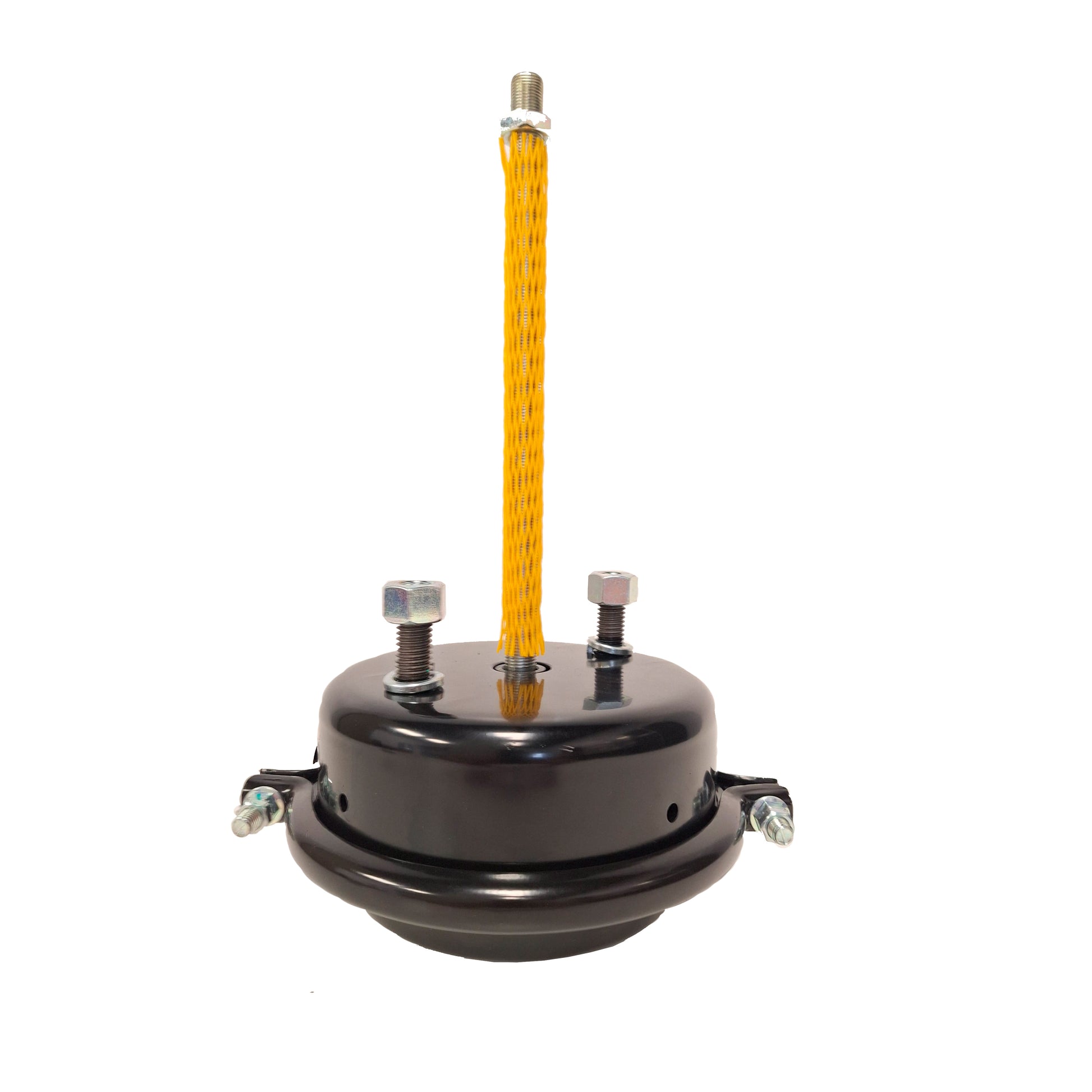

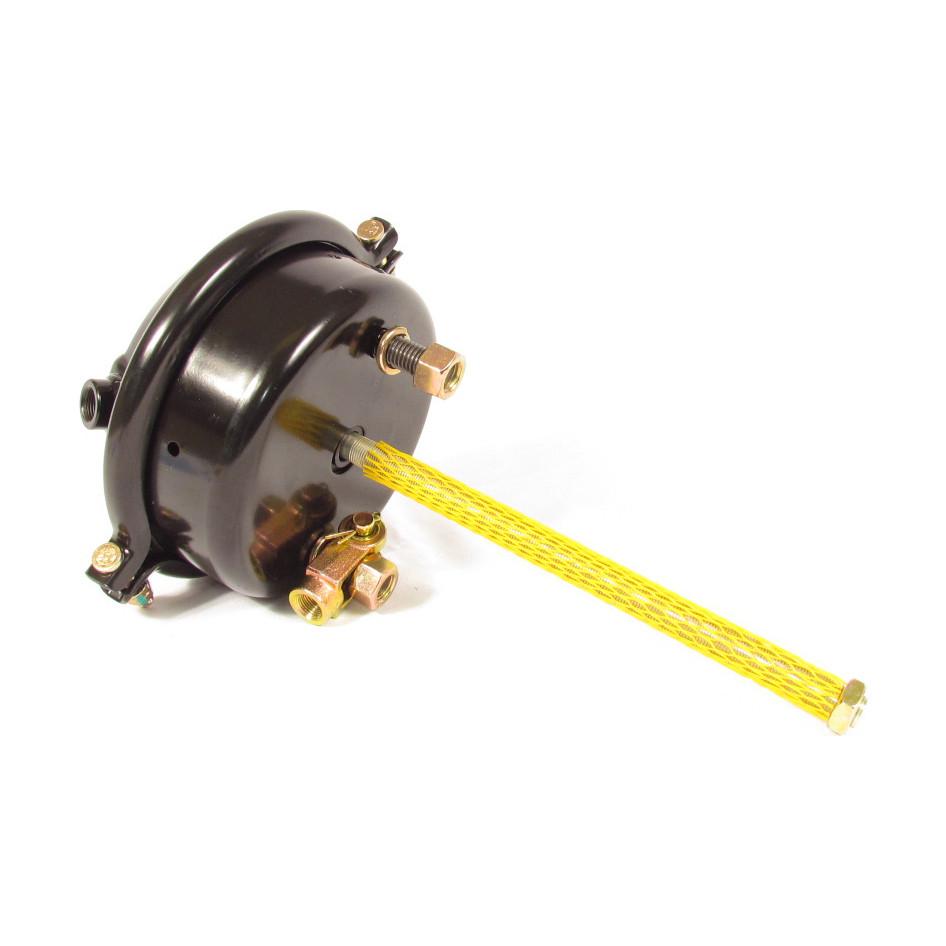

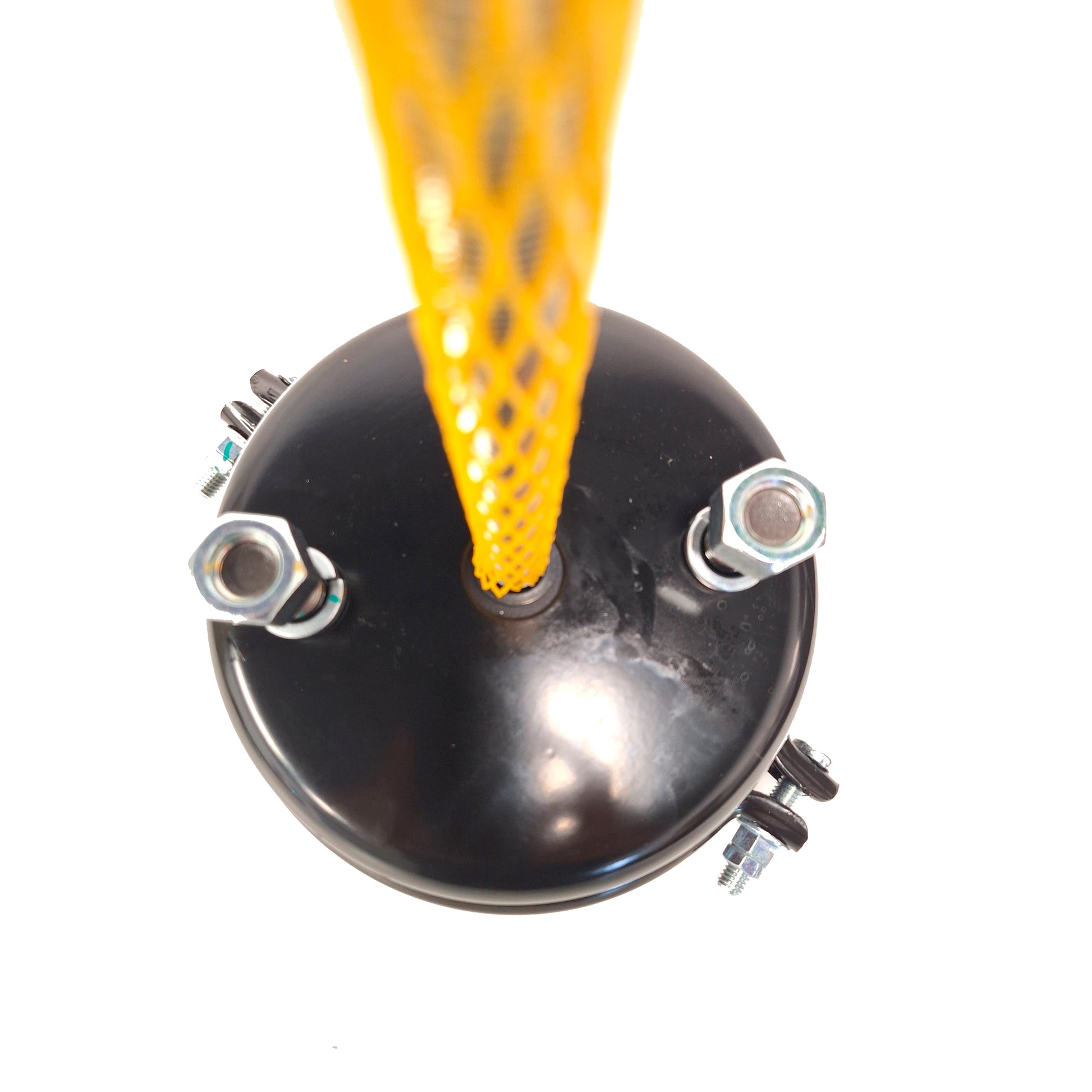

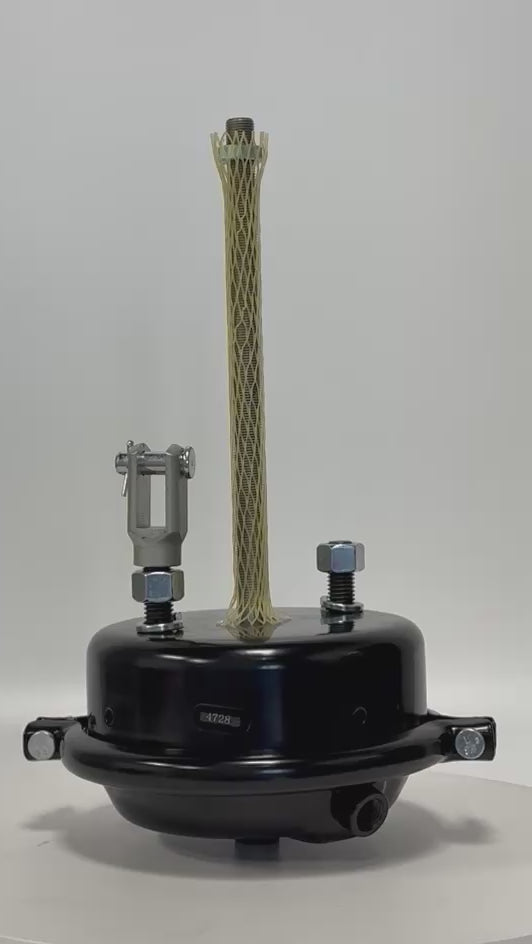

| Part Type | Air Brake Chamber |
|---|---|
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | Type 30, T30, T-30, 30 |
| OEM Part Number | 288813 |
Application/Fitment Attributes13 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Single Diaphragm |
| Chamber Type | Service Brake Chamber |
| Clevis Mounting Type | Threaded |
| Mounting Bolt Length | 1.55 in. |

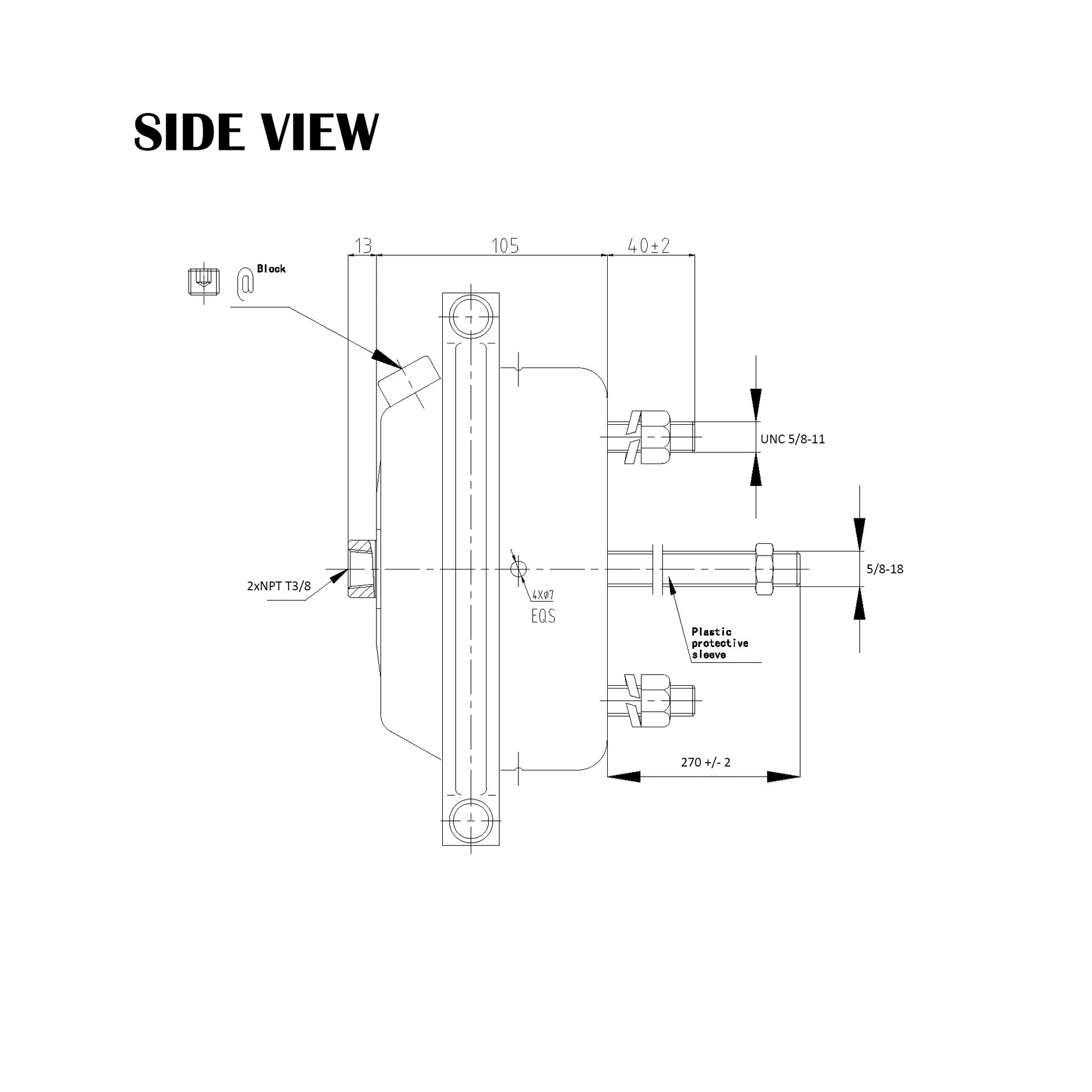

| Mounting Bolt Thread Size | 5/8-11 UNF-2A |

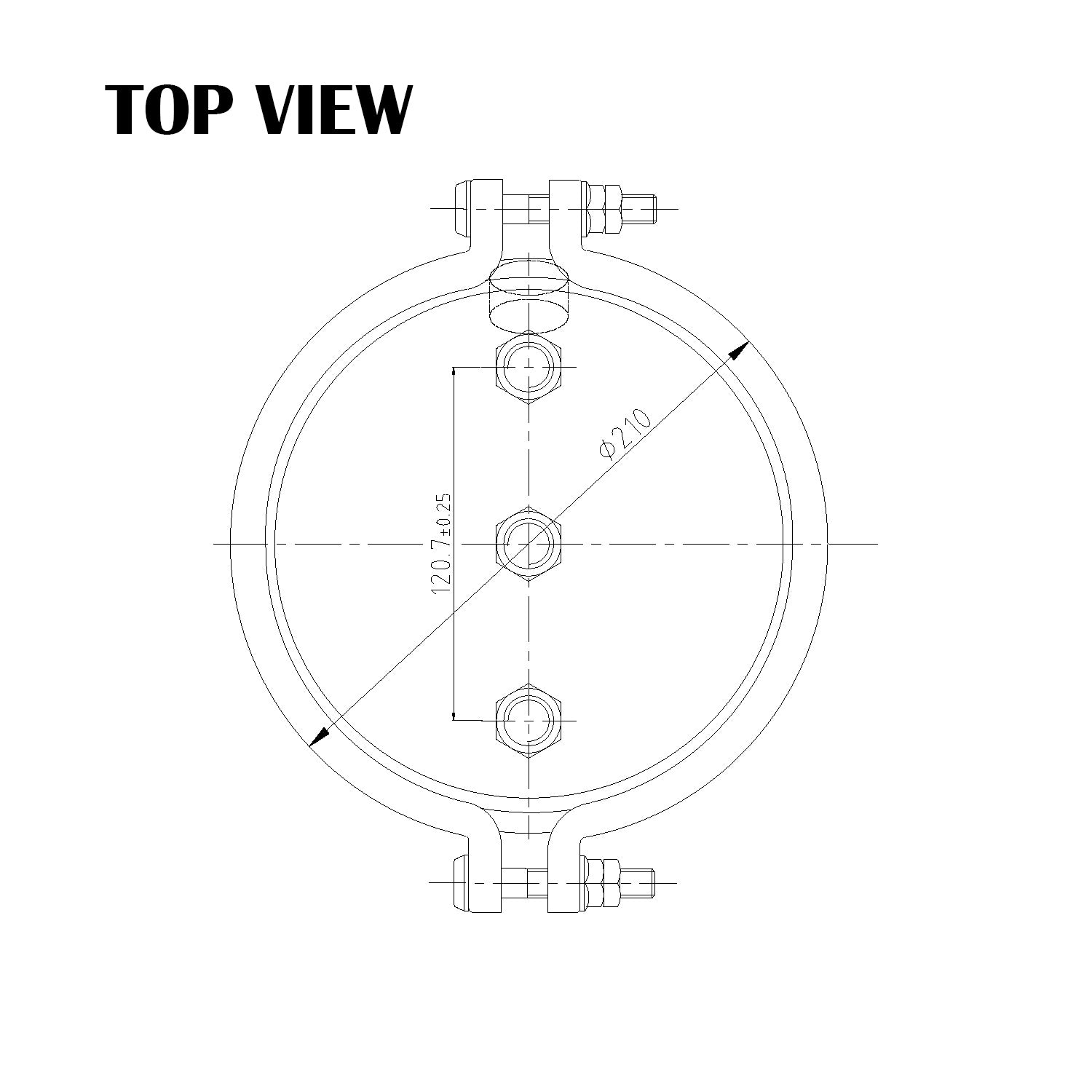

| Outside Diameter (O.D.) | 8 3/16" |
| Push Rod Length | 10 in. |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
Technical/Performance Attributes6 attributes

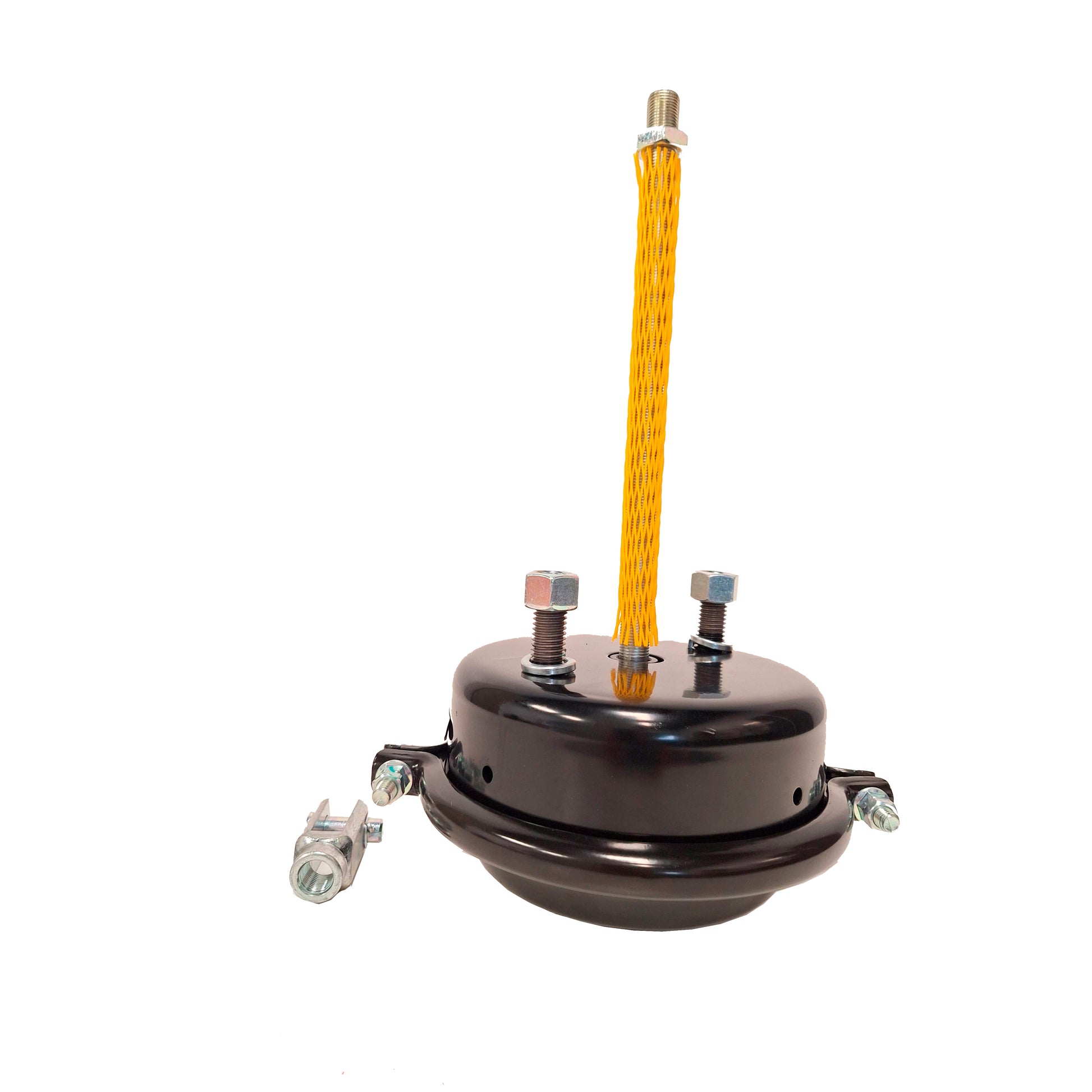

| Clevis Yoke | Included |
|---|---|
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Serviceable |
| Stroke Lenght | 2.50 in. |
| Stroke Type | Standard Stroke |
- Automann: 179.SC30
- Bendix: 288813, 288813N
- BWP: M459
- Euclid: E-30S, E-BC30S
- Haldex: SC30, SC30S
- Meritor: R870030
- PAI: HSC-0230-100
- Velvac: 30021
Dimensions Not Available.
