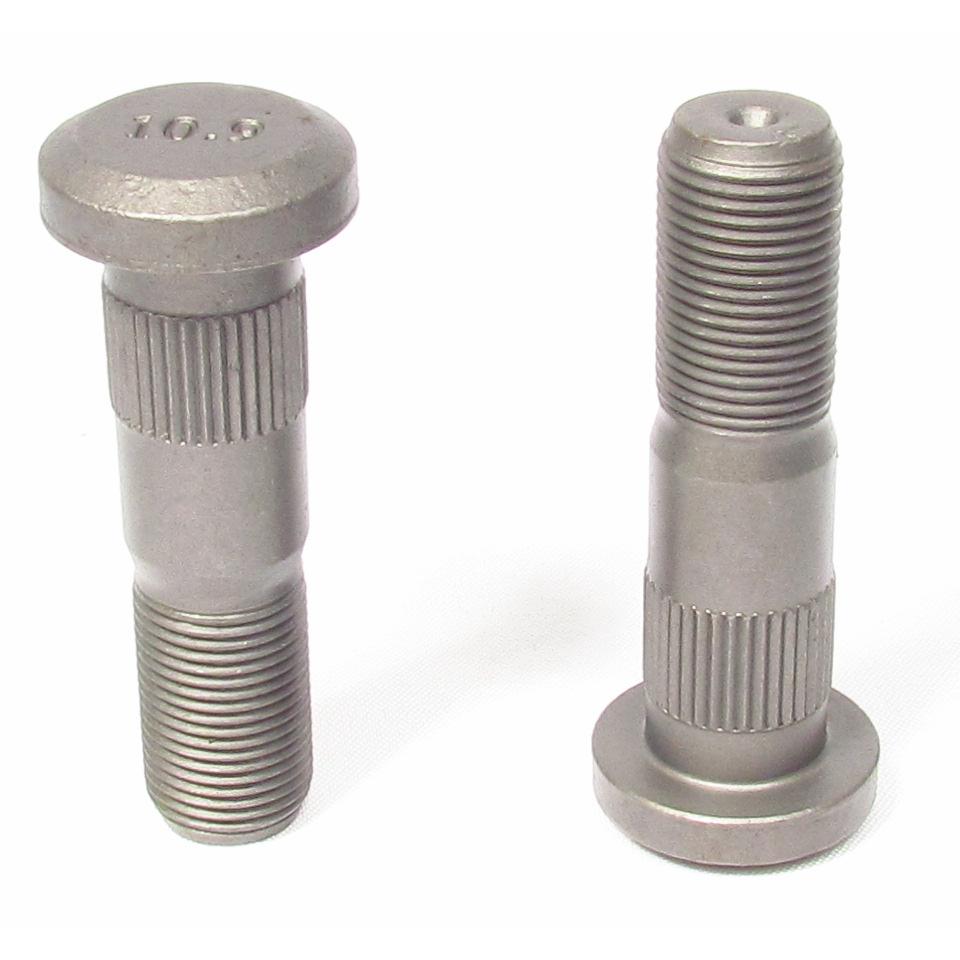

Serrated Drive Wheel Studs 3/4"-16 THD 0,785" BD x 2 7/8" Length - E4967L/E4967R - 10 Pack

Serrated Drive Wheel Studs 3/4"-16 THD 0,785" BD x 2 7/8" Length - E4967L/E4967R - 10 Pack

SKU: F286678L

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $10.86 USD
Regular price Sale price $10.86 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Durable carbon steel material that meets automotive industry standards for strength and toughness.
  • Designed to withstand the extreme demands of heavy vehicles.
  • Proven corrosion resistance
  • Connection with maximum safety between the wheel and the vehicle
  • Manufactured from Grade 10,9 steel that provides maximum strength and meets the mechanical requirements of quenched and tempered alloy steel bolts


Fortpro Serrated Drive Wheel Studs F286678L/F286678R are premium quality wheel studs for heavy-duty applications. These wheel studs offer a secure and reliable hold, especially under high-speed and high-stress conditions. Constructed with heavy-duty materials, Fortpro Serrated Drive Wheel Studs are renowned for their exceptional durability and strength. Their unique knurled design provides additional grip and increased slip resistance, making them ideal for vehicles that experience extreme forces from acceleration, braking, and cornering.


  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E4967L, E4967R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4" - 16 UNF-2A
  • Head Style: Round

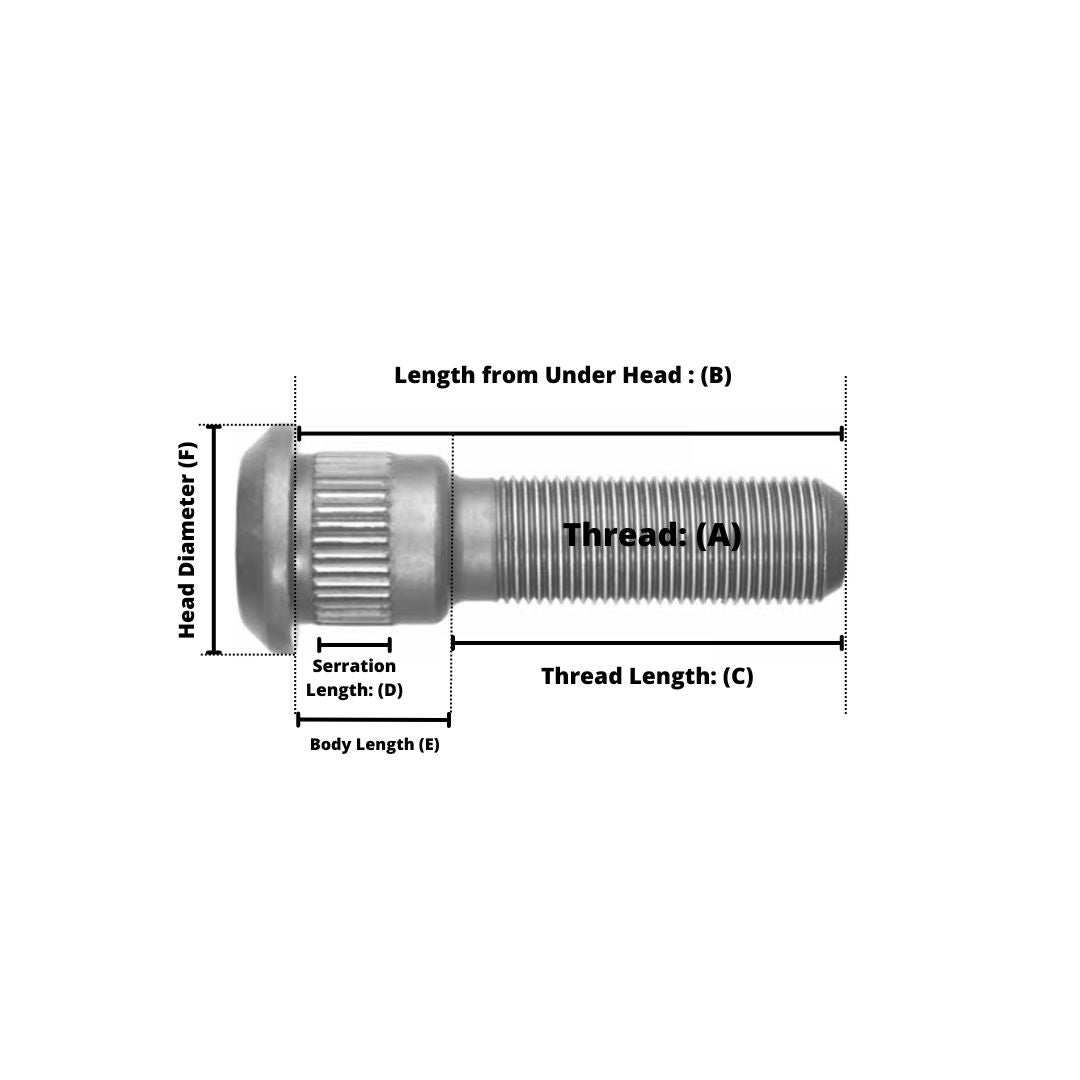

  • Thread (A): 3/4" - 16
  • Body Length (E): 1.50"

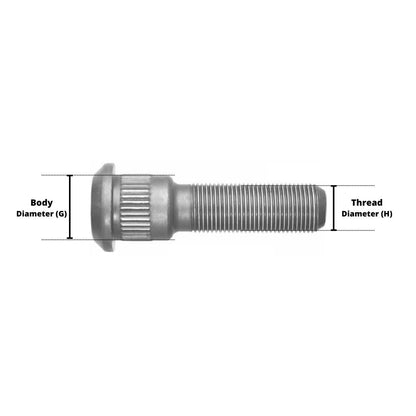

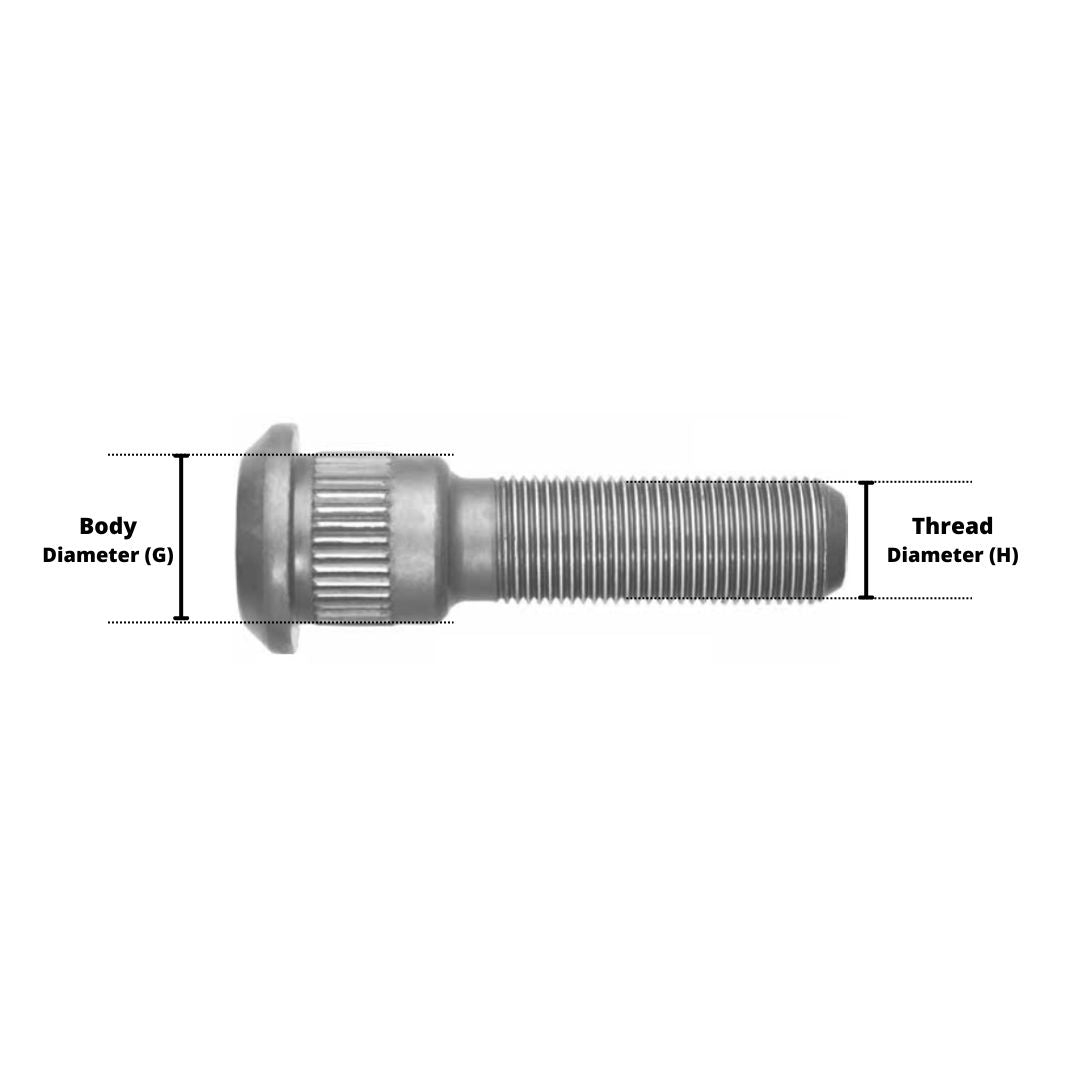

  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 7/8"
  • Head Diameter (F): 1.28"
  • Head Thickness: 0.31"
  • Thread Direction: LH (Left Hand), RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length (C): 0.97"
  • Thread Diameter (H): 0.75"
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Notes: Stepped Body Diameter

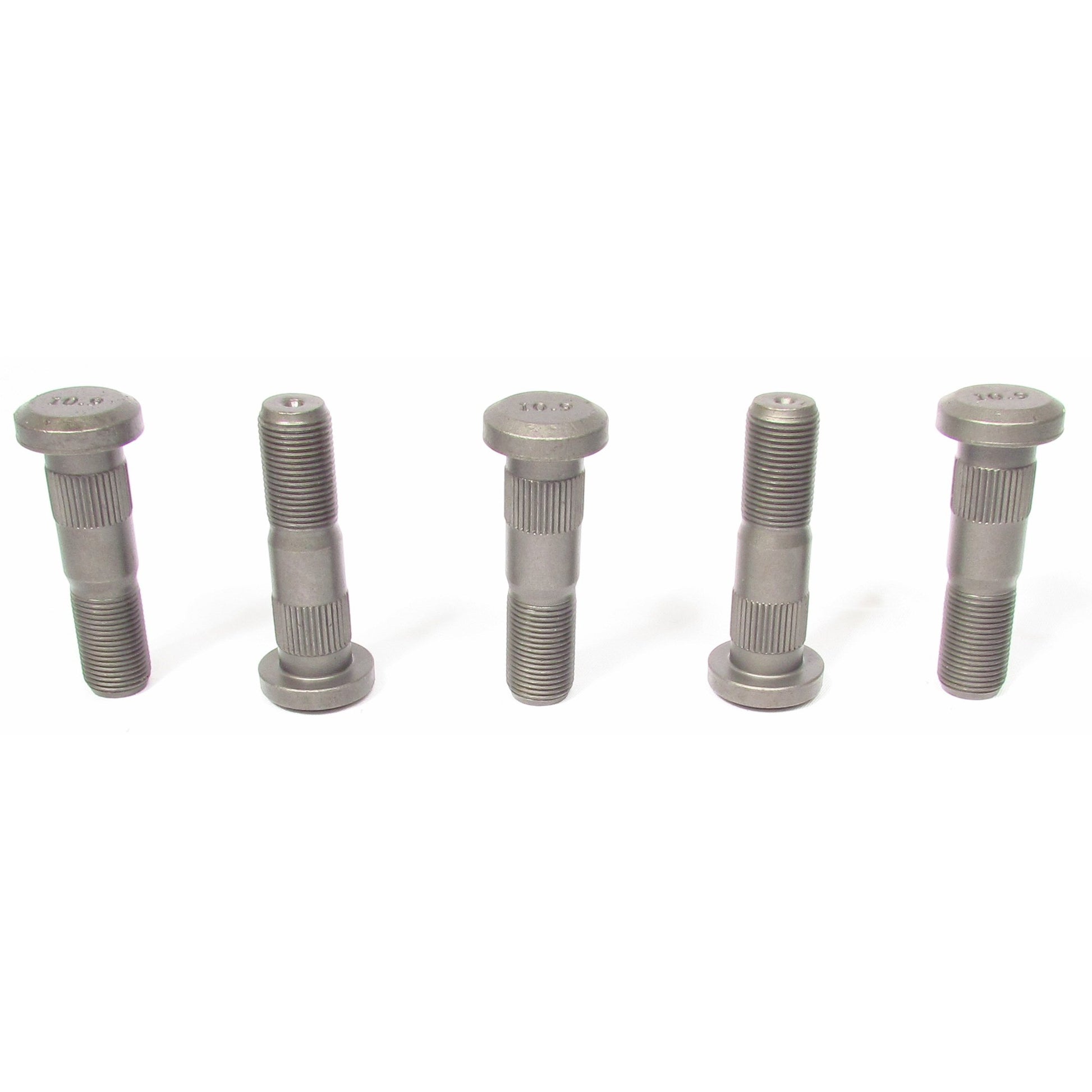

  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8


  • Automann: 2016042L, 2016042L, P22016042R
  • BWP: M79
  • Dayton Parts Batco: 131107L, 131107R
  • Euclid: E4967L, E4967R
  • Haldex: 67246
  • Meritor: R004967L, R004967R
  • Transit Parts: TP822L, TP822R
  • World Truck: 1541704L, 1541704R
