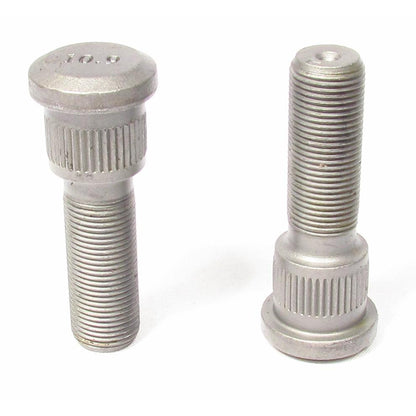

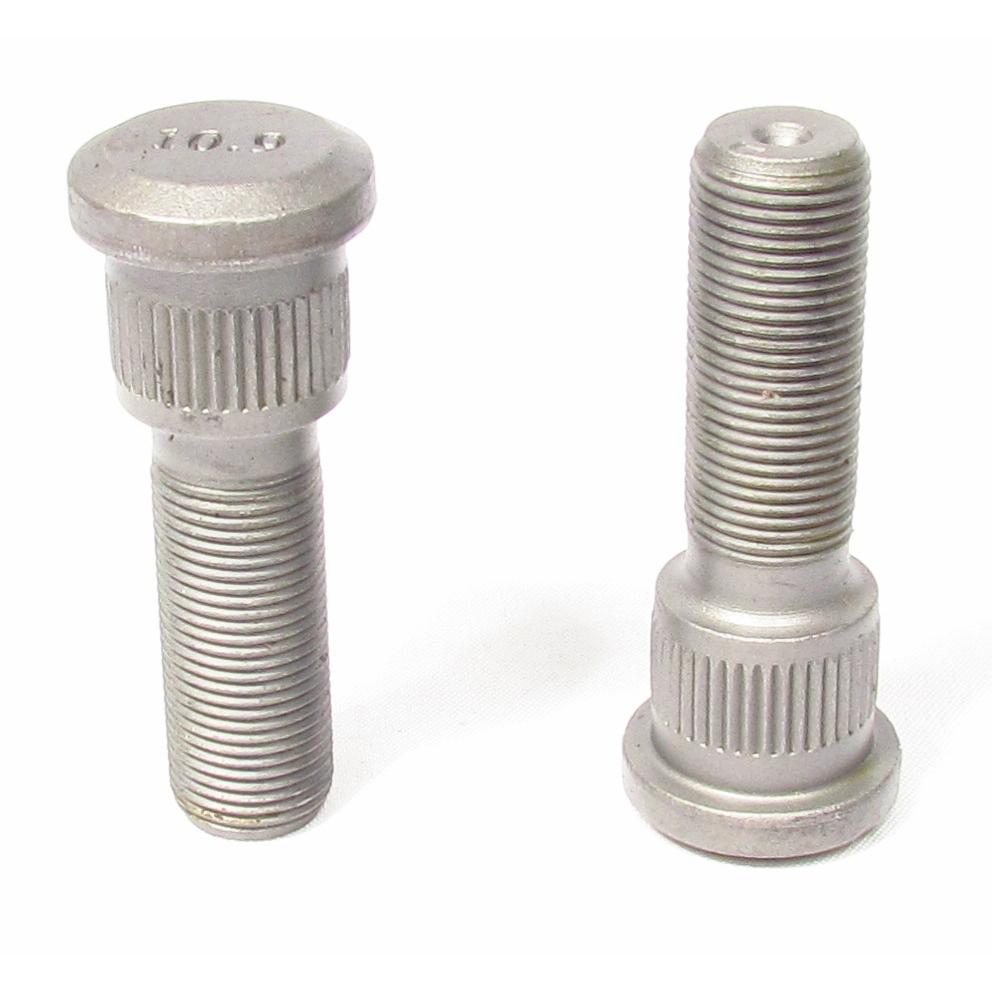

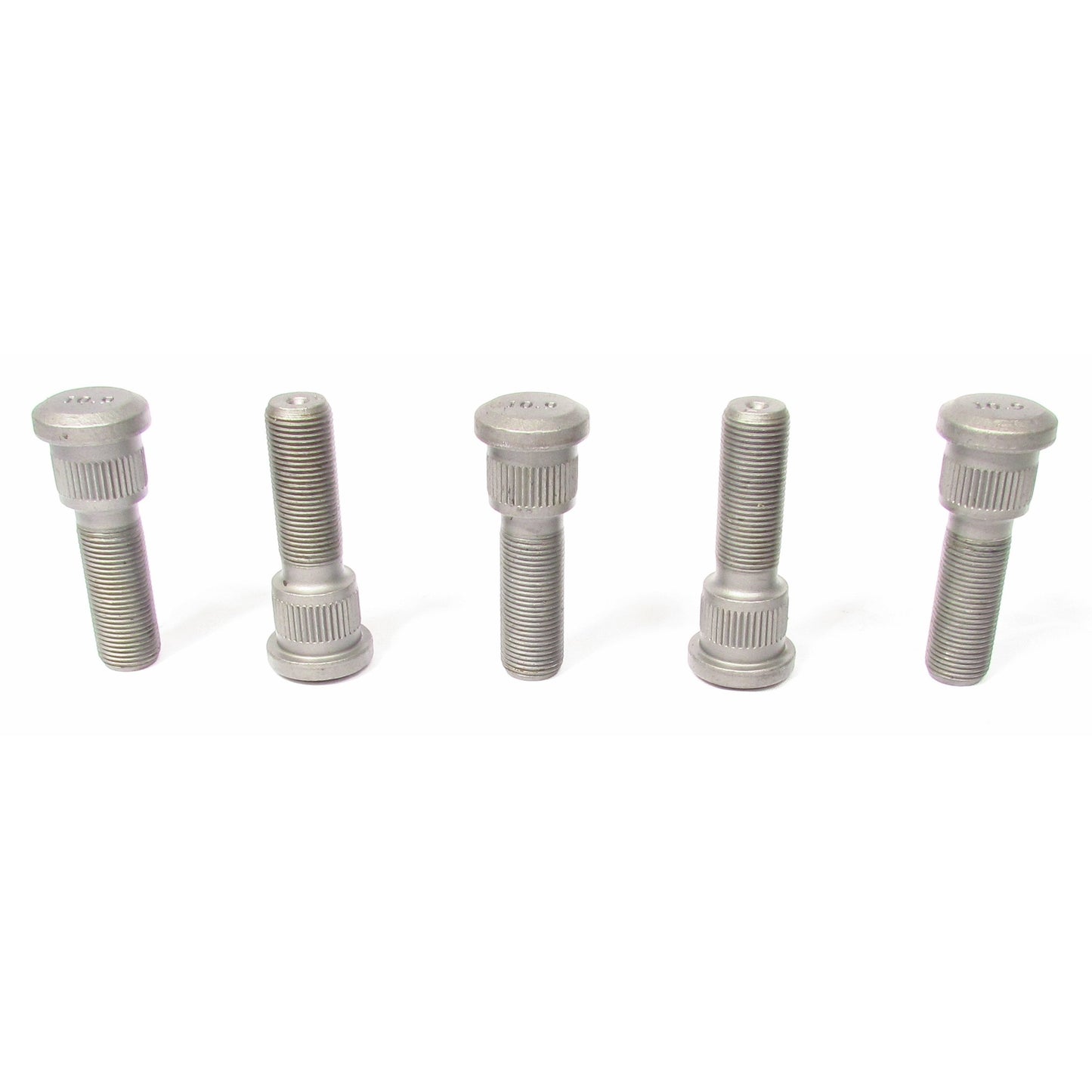

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286685 are serrated wheel studs designed to provide a secure and reliable hold for vehicle wheels. Manufactured from high strength class 10.9 steel, these studs are designed to withstand loads and stresses They feature a 3/4"-16 thread on one end and a knurled section on the other end, allowing for a tight fit into the corresponding holes in the wheel hubs.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Specific attributes
| F286685L | F286685R | |
|---|---|---|
| Basic Part Information | ||
| Alternate Part Name | Left Hand Wheel Stud, Serrated Drive Wheel Studs | Right Hand Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E9010L | E9010R |
| Dimensional/Physical Attributes | ||
| Thread Direction | LH (Left Hand) | RH (Right Hand) |
| Cross-references | ||
| Cross-references | 101173, 131273L, 1681016L, 2016106L, 2016106LWE, 36101173, 389010L, 431, E-9010-L, E9010L, M3619, R009010L, W701 | 101172, 131273R, 1681016R, 2016106R, 2016106RWE, 36101172, 389010R, 430, E-9010-R, E9010R, M3618, R009010R, W700 |
Common Attributes22 attributes
| Basic Part Information | |
|---|---|
| Product Line | Driveline & Axles |
| Category Name | Wheel Fasteners |
| Part Type | Wheel Stud |
| Application/Fitment Attributes | |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Stud Type | Headed |
| Dimensional/Physical Attributes | |
| Material | Carbon Alloy Steel |

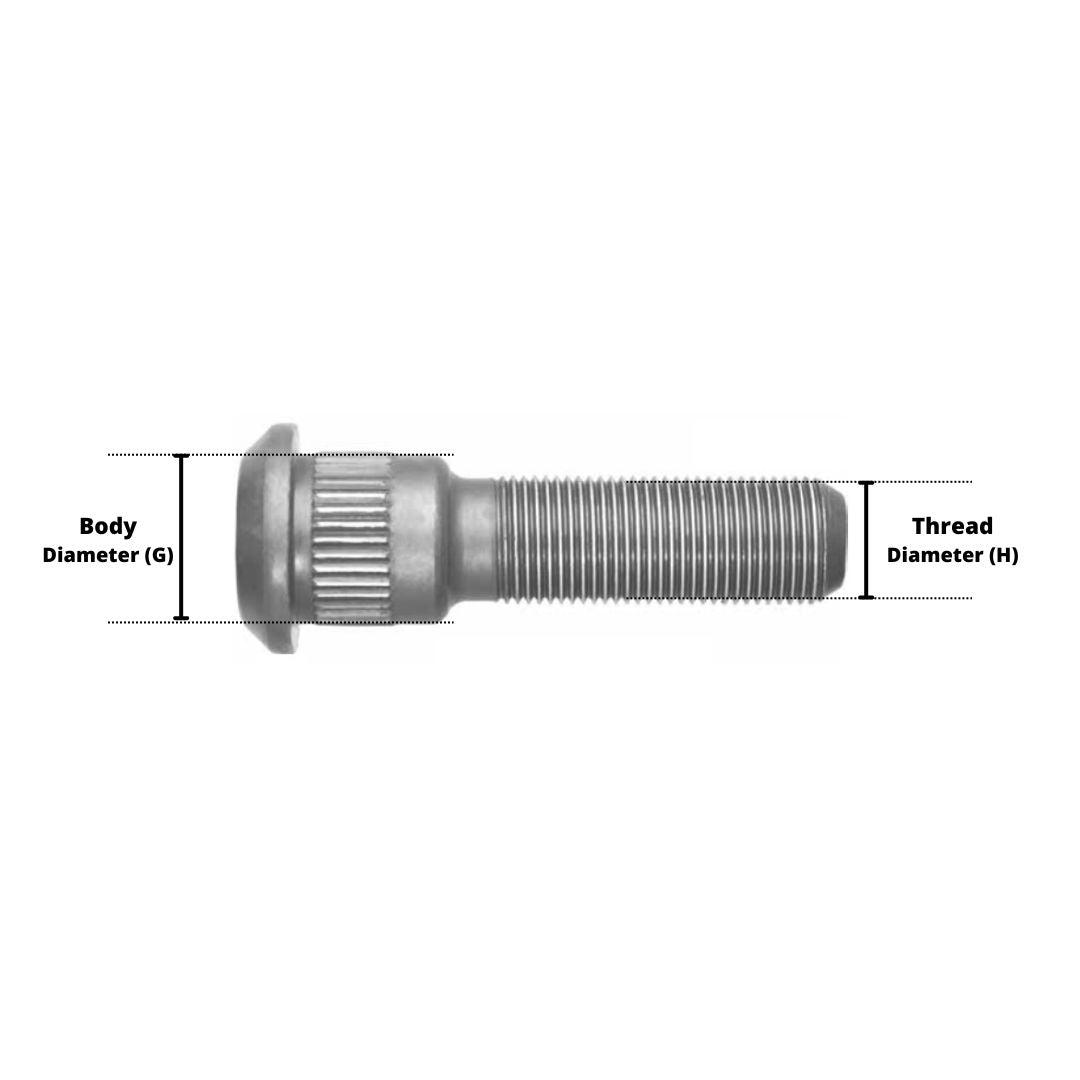

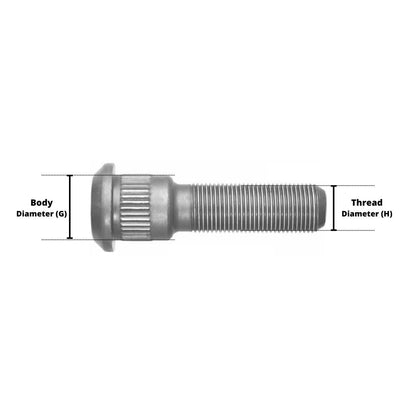

| Body Diameter (G) | 0.975 in. |

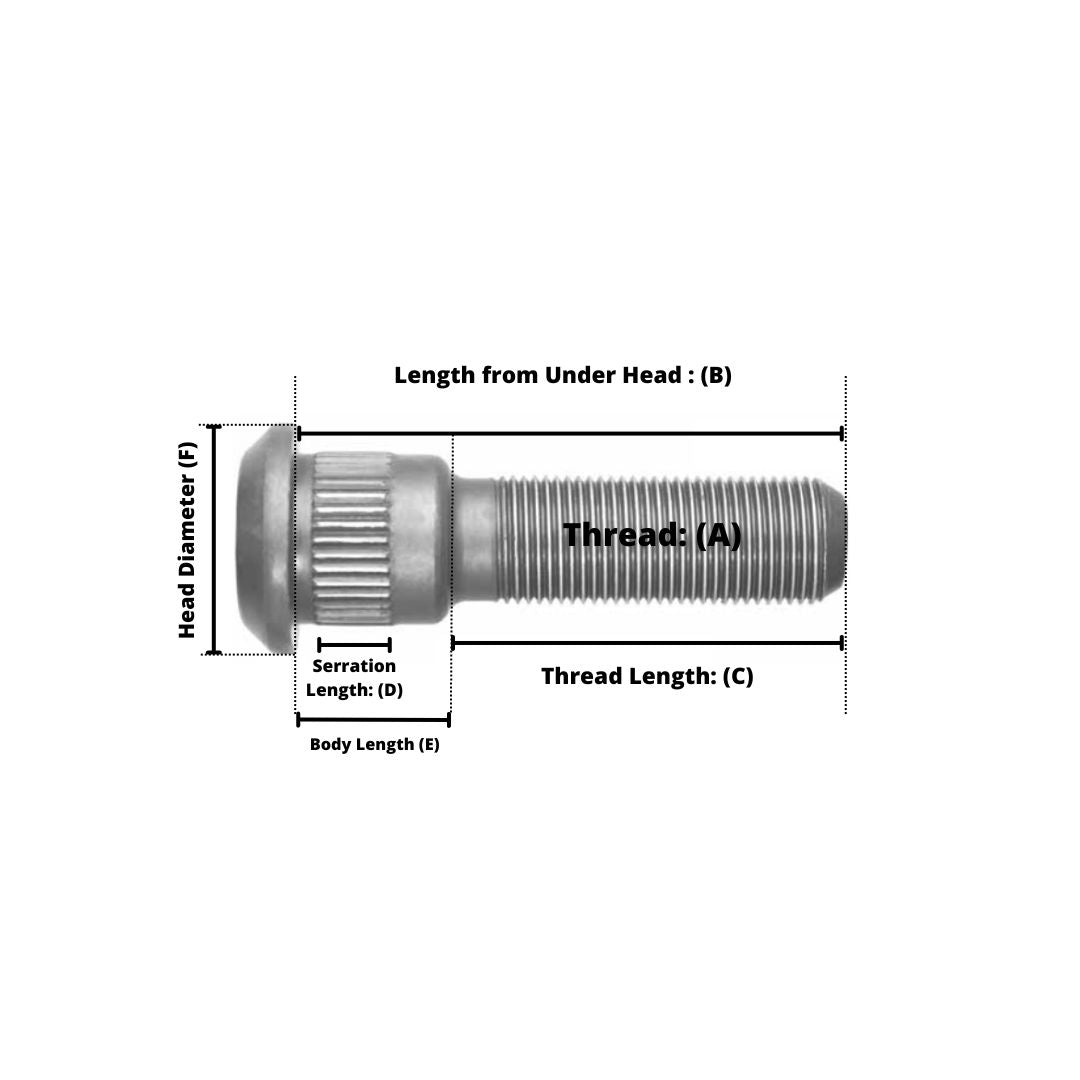

| Body Length (E) | 0.812 in. |
| Head Diameter (F) | 1.310 in. |
| Head Style | Round |
| Head Thickness | 0.310 in. |
| Length from Under Head (B) | 2-7/8 in. |
| Serration | Serrated |
| Serration Diameter | 1.015 in. |
| Serration Length (D) | 0.357 in. |
| Thread (A) | 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in. |
| Thread Length (C) | 1.180 in. |
| Thread Size | 3/4-16 UNF-2A |
| Threads | 16 per inch |
| Technical/Performance Attributes | |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) |
| Packaging / Logistics Attributes: | |
| Net Weight | 0.51 lb. |
- Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
- Automann: 2016106L, 2016106R
- Dayton Parts Batco: 131273L, 131273R
- Euclid: E9010L, E-9010-L, E9010R, E-9010-R
- Meritor: R009010L, R009010R
- World Truck: 1681016L, 1681016R
