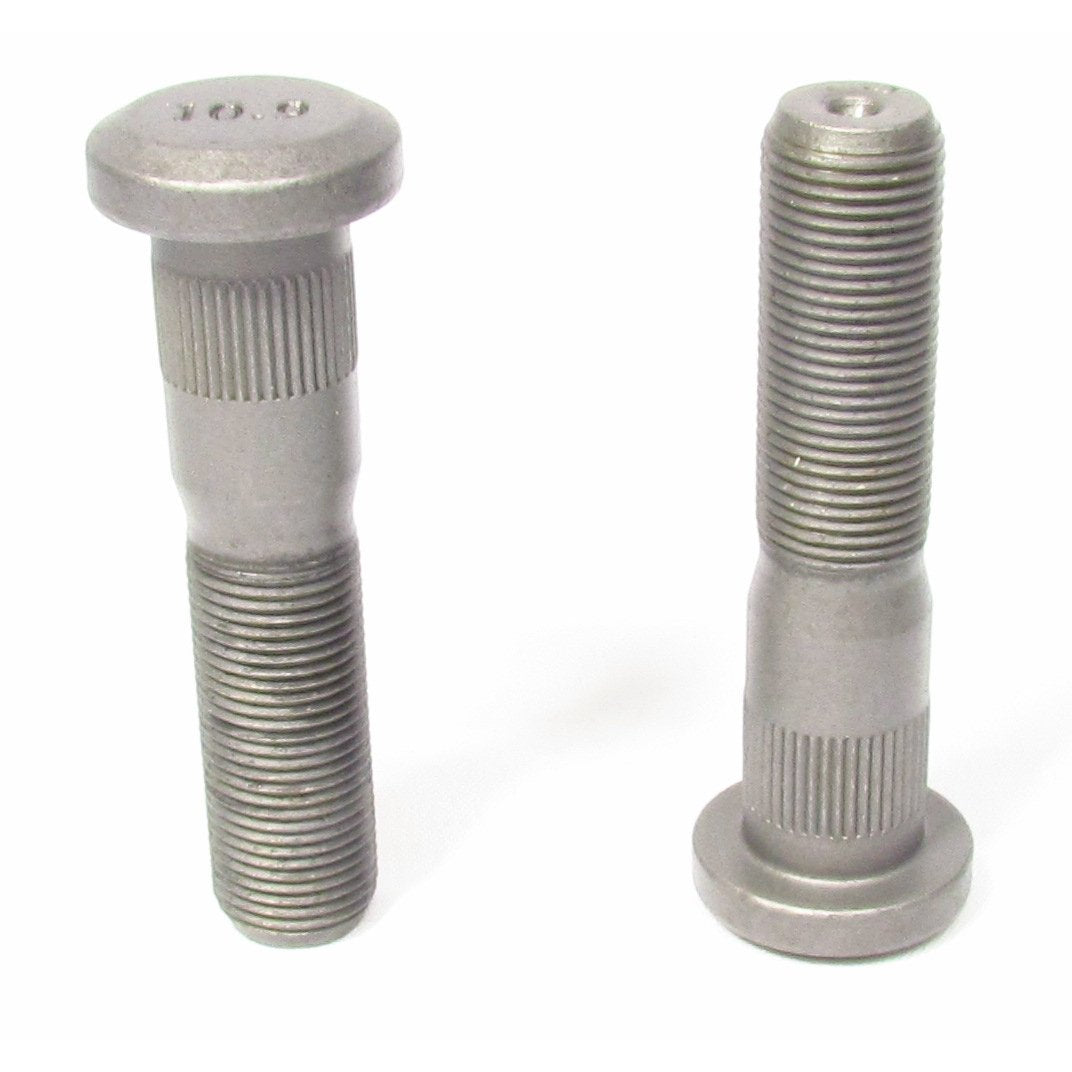

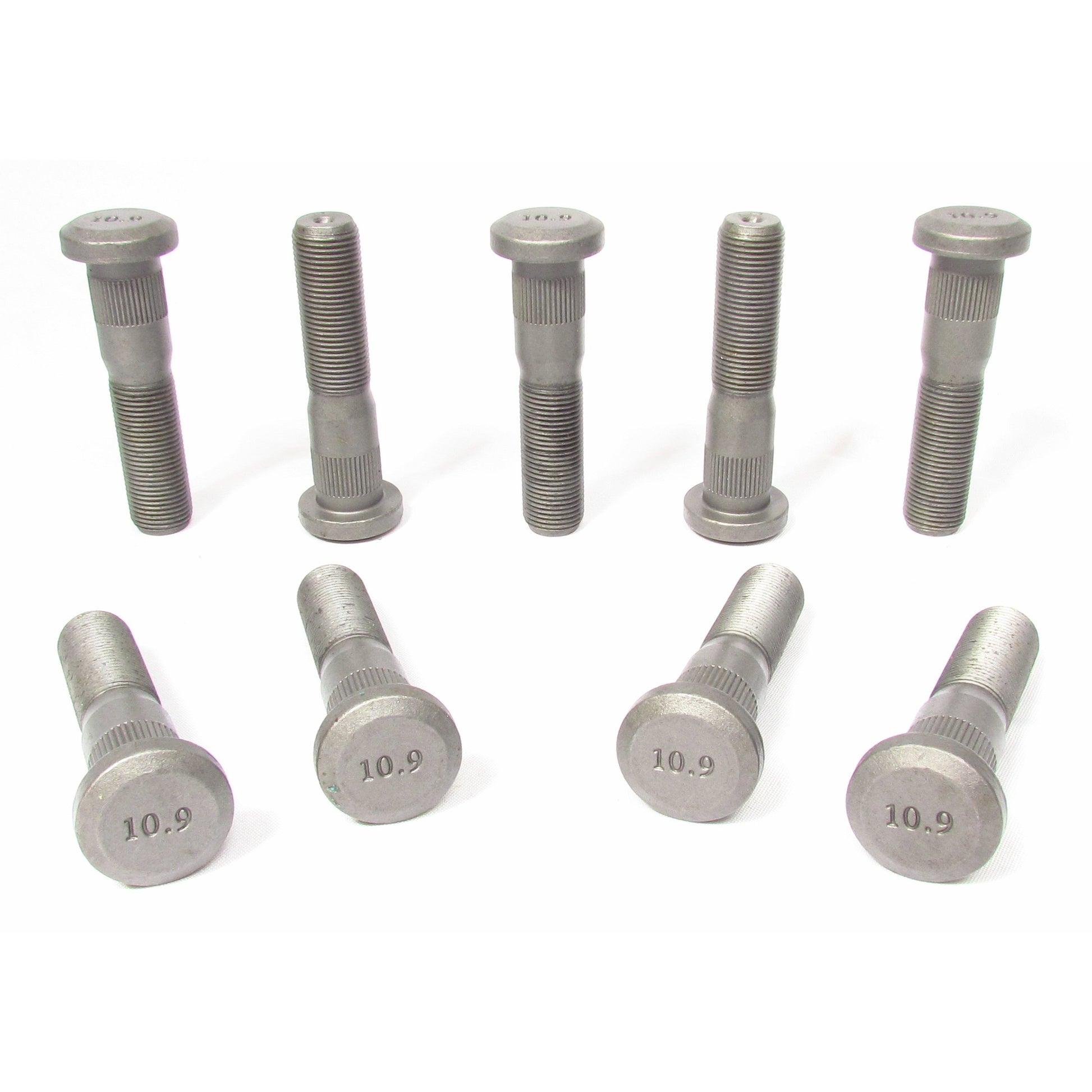

Fortpro Serrated Drive Wheel Studs F286684 is a component that provides additional grip when wheel nuts are tightened. Manufactured with exceptional strength, Fortpro's F286684L Serrated Drive Wheel Studs have a stress value of 1000 MPa, along with a yield point strength of 900 MPa. This robust construction guarantees durability and resistance in demanding conditions, making them an indispensable component for both the safety and optimum performance of the wheels.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
| Basic Part Information | |||
|---|---|---|---|
| Product Line | Driveline & Axles | Category Name | Wheel Fasteners |
| Part Type | Wheel Stud | Alternate Part Name | Serrated Drive Wheel Studs, Left Hand Wheel Stud, Right Hand Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E8979L, E8979R | ||
| Application/Fitment Attributes | |||
| Application Type | Heavy Duty Trucks, Semi-Trucks, Semi-Trucks, Heavy Duty Trucks | Stud Type | Headed |
| Dimensional/Physical Attributes | |||

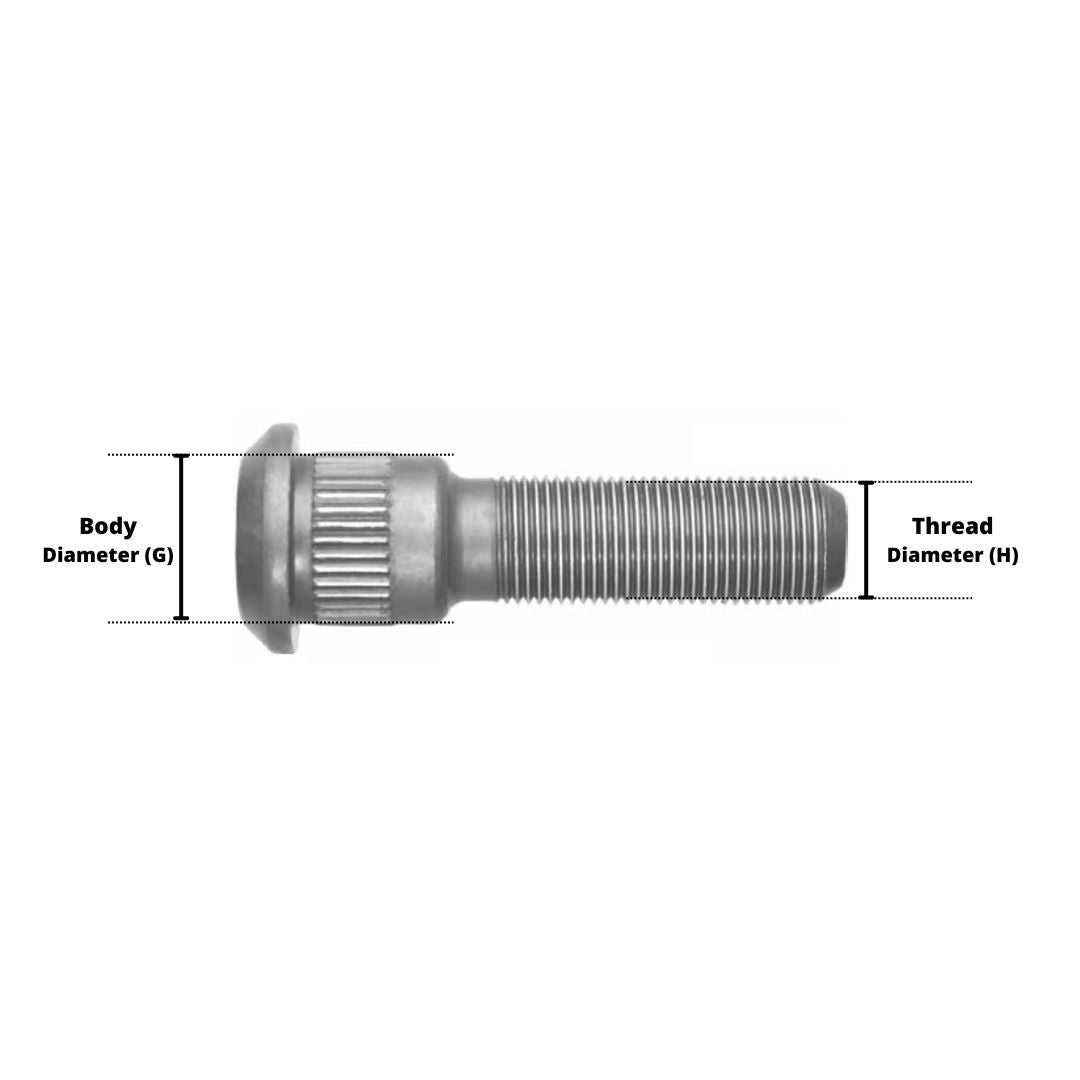

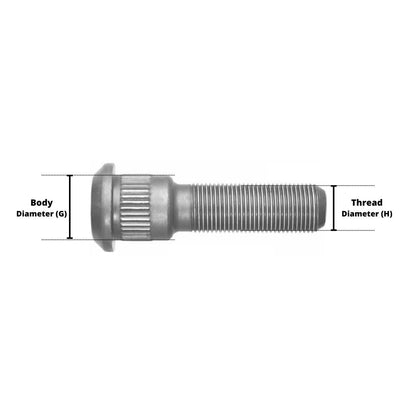

| Material | Carbon Alloy Steel | Body Diameter (G) | 0.785 in. |

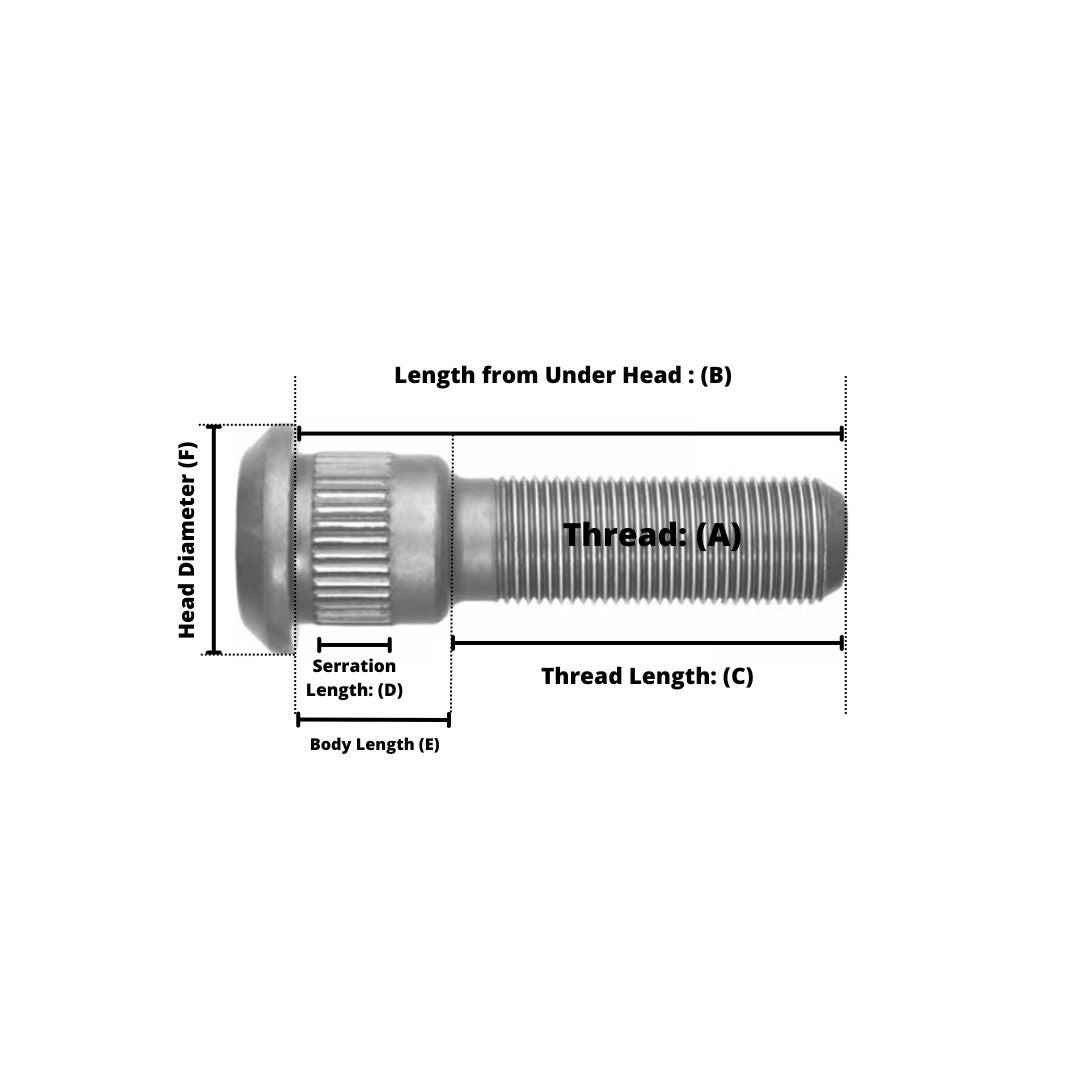

| Body Length (E) | 1.310 in. | Head Diameter (F) | 1.280 in. |
| Head Style | Round | Head Thickness | 0.310 in. |
| Length from Under Head (B) | 3-3/8 in. | Serration | Serrated |
| Serration Diameter | 0.820 in. | Serration Length (D) | 0.500 in. |
| Thread (A) | 3/4 in.-16 | Thread Diameter (H) | 0.750 in. |
| Thread Direction | LH (Left Hand), RH (Right Hand) | Thread Length (C) | 1.620 in. |
| Thread Size | 3/4-16 UNF-2A | Threads | 16 per inch |
| Technical/Performance Attributes | |||
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) | ||
| Packaging / Logistics Attributes | |||
| Net Weight | 0.52 lb. | ||
| Additional Information | |||
| Intended Application |
|
||
- Automann: 2016054L, 2016054R
- Dayton Parts Batco: 131129L, 131129R
- Euclid: E8979L, E-8979-L, E8979R, E-8979-R
- Gunite: W-992L, W-1133L, W-992R, W-1133R
- Meritor: R008979L, R008979R
- Navistar: 597991C1
- Trailmobile: 388979L, 388979R
- World Truck: 1681010L, 1681010R
