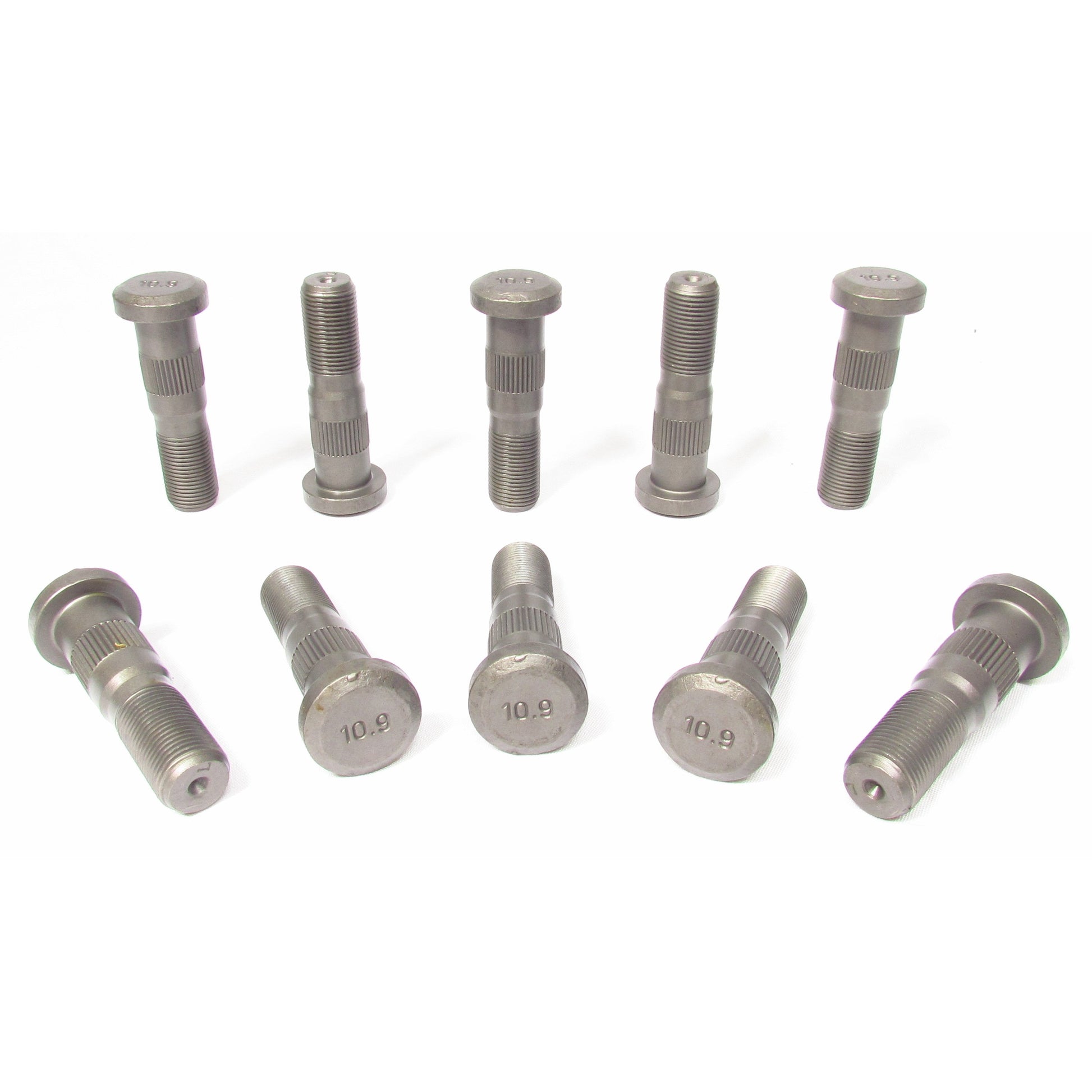

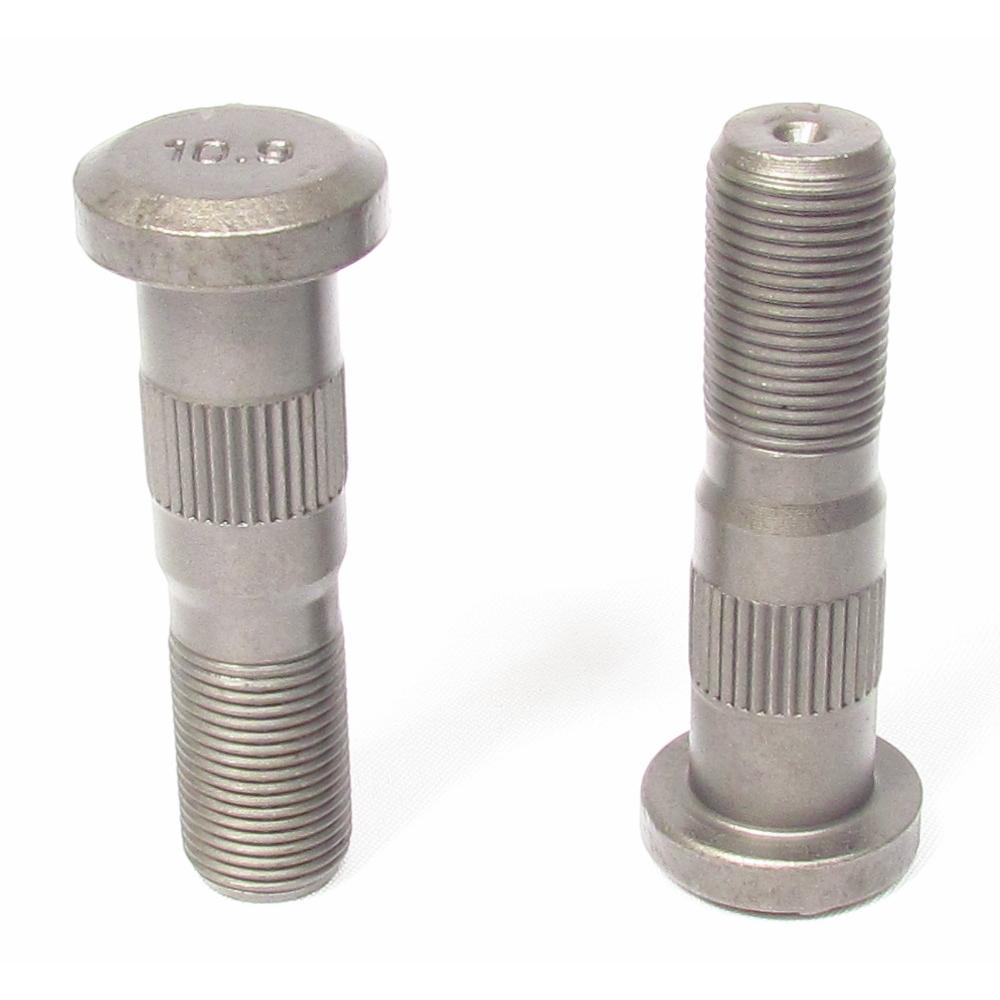

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286681 are high-performance wheel studs that offer exceptional, reliable fastening in demanding automotive applications. With their serrated design, rugged construction, and superior quality, these wheel studs deliver safety and performance on every trip.
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Specific attributes
| F286681L | F286681R | |
|---|---|---|
| Basic Part Information | ||
| Alternate Part Name | Left Hand Wheel Stud, Serrated Drive Wheel Studs, Metric Serrated Wheel Studs | Serrated Drive Wheel Studs, Right Hand Wheel Stud |
| OEM Part Number | E8947L | E8947R |
| Dimensional/Physical Attributes | ||
| Thread Direction | LH (Left Hand) | RH (Right Hand) |
| Cross-references | ||
| Cross-references | 100146, 131122L, 159183, 1681026L, 2016045L, 36159183, 947, E-8947-L, E8947L, M3609, R008947L | 100145, 131122R, 13112R, 159184, 1681026R, 2016045R, 36159184, 948, E-8947-R, E8947R, M3608, R008947R, W575 |
Common Attributes22 attributes
| Basic Part Information | |
|---|---|
| Product Line | Driveline & Axles |
| Category Name | Wheel Fasteners |
| Part Type | Wheel Stud |
| Application/Fitment Attributes | |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Stud Type | Headed |
| Dimensional/Physical Attributes | |
| Material | Carbon Alloy Steel |

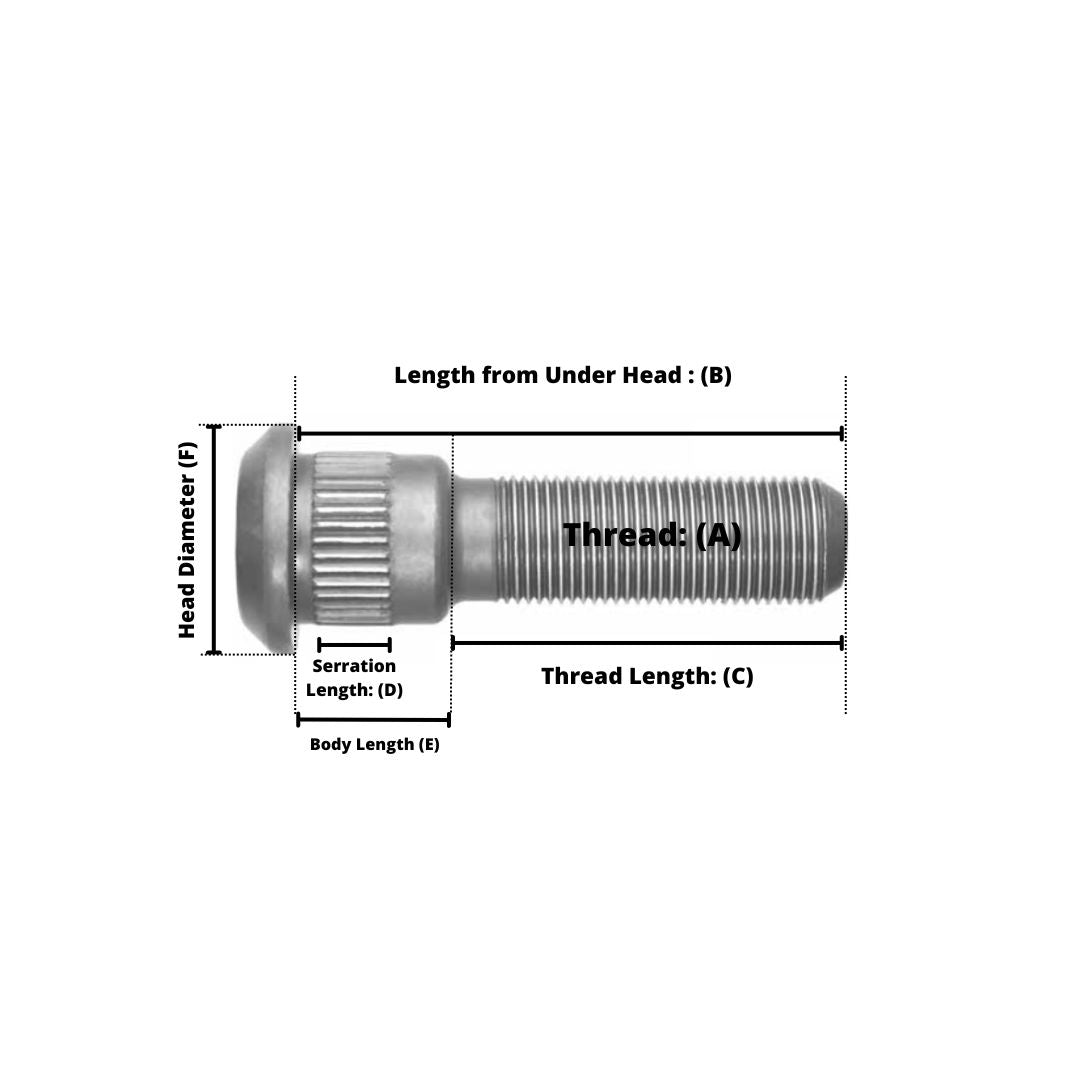

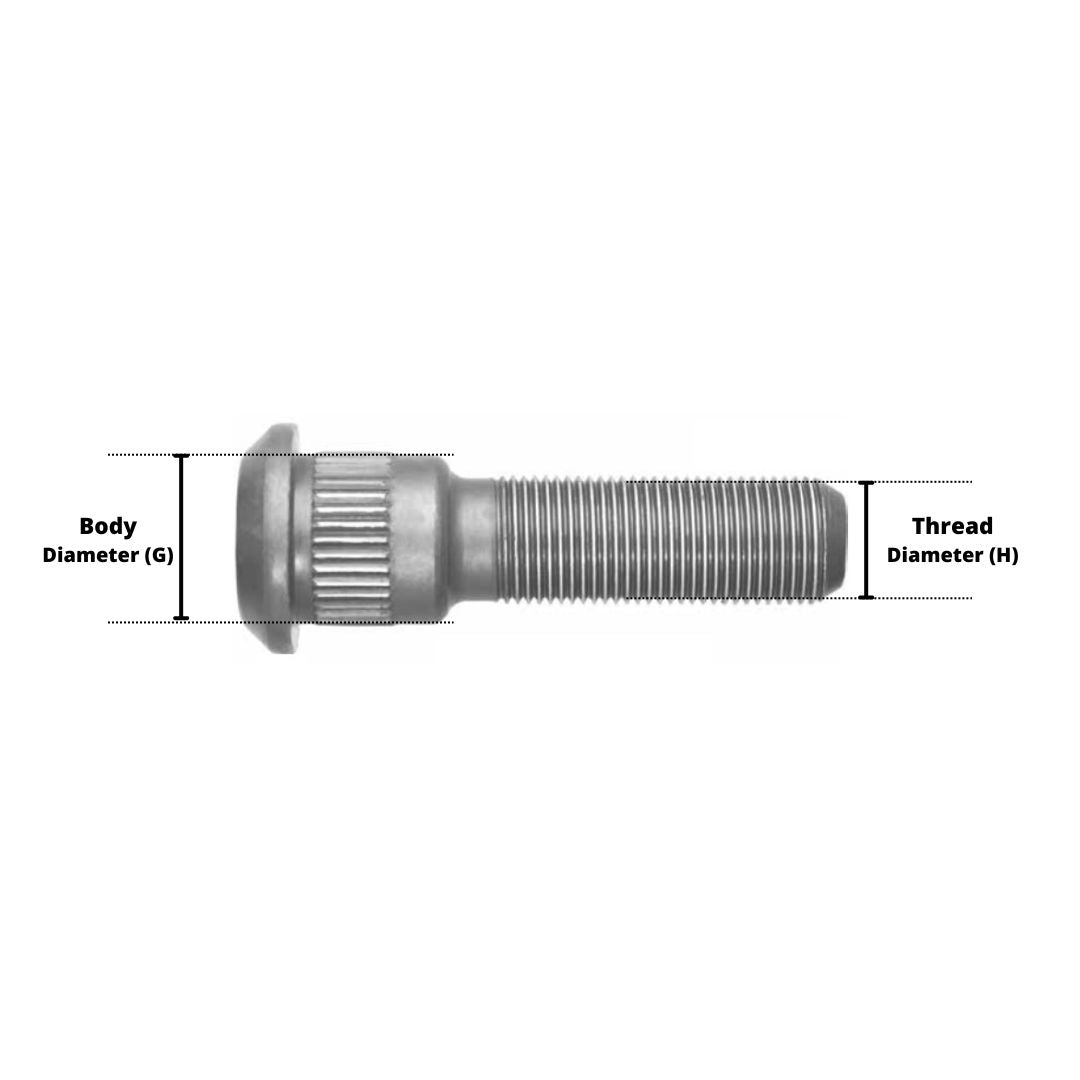

| Body Diameter (G) | 0.785 in. |
| Body Length (E) | 1.400 in. |
| Head Diameter (F) | 1.280 in. |
| Head Style | Round |
| Head Thickness | 0.310 in. |
| Length from Under Head (B) | 3 in. |
| Serration | Serrated |
| Serration Diameter | 0.820 in. |
| Serration Length (D) | 0.380 in. |
| Thread (A) | 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in. |
| Thread Length (C) | 1.160 in. |
| Thread Size | 3/4-16 UNF-2A |
| Threads | 16 per inch |
| Technical/Performance Attributes | |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) |
| Packaging / Logistics Attributes: | |
| Net Weight | 0.47 lb. |
- Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
- Automann: 2016045L, 2016045R
- Dayton Parts Batco: 131122L, 131122R
- Euclid: E8947L, E-8947-L, E8947R, E-8947-R
- Meritor: R008947L, R008947R
- World Truck: 1681026L, 1681026R
