Serrated Drive Wheel Studs 3/4"-16 THD 0.975" B.D. x 3 3/8" Length - E5896 - 10 Pack

Serrated Drive Wheel Studs 3/4"-16 THD 0.975" B.D. x 3 3/8" Length - E5896 - 10 Pack

SKU: F286680L

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $30.20 USD
Regular price Sale price $30.20 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • 3/4"-16 UNF-2A metric thread for secure and accurate installation
  • Maximum resistance to corrosion
  • DIN / ISO Grade 10,9 wheel studs for exceptional strength and durability
  • Round head construction for increased strength and a consistent fit
  • Serrated design provides increased slip resistance and a solid grip


Fortpro 3/4"-16 Serrated Drive Wheel Studs F286680 are high performance wheel studs designed to offer exceptional hold in demanding automotive applications. These wheel studs are specially designed with a serrated surface to provide superior grip and prevent slippage, making them an ideal choice for high-performance, heavy-duty vehicles. Constructed from quality materials and meeting the highest industry standards, these wheel bolts offer outstanding strength, durability, and reliability.


  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E5896L, E-5896-L, E5896R, E-5896-R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4-16 UNF-2A

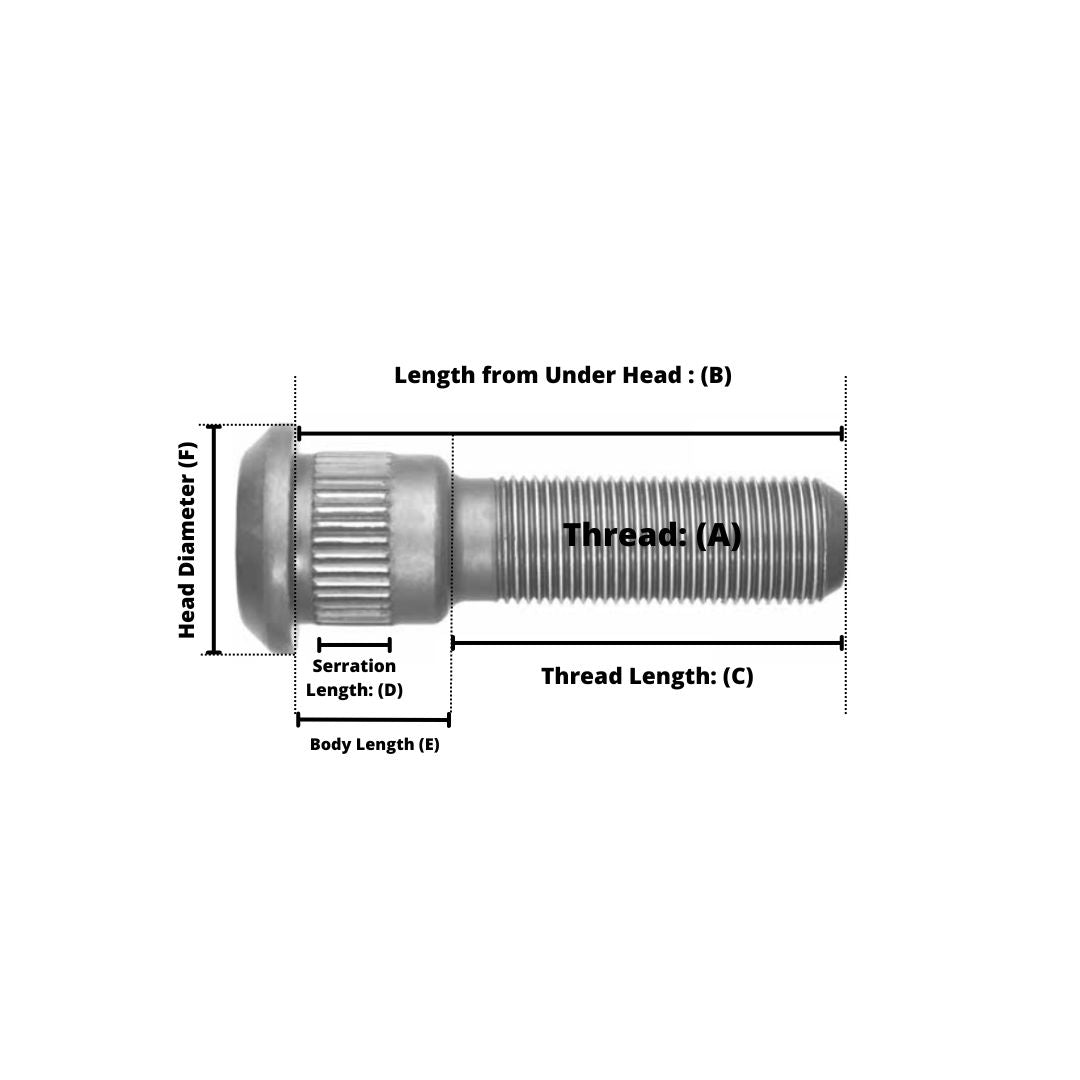

  • Body Length: 1.31 in.

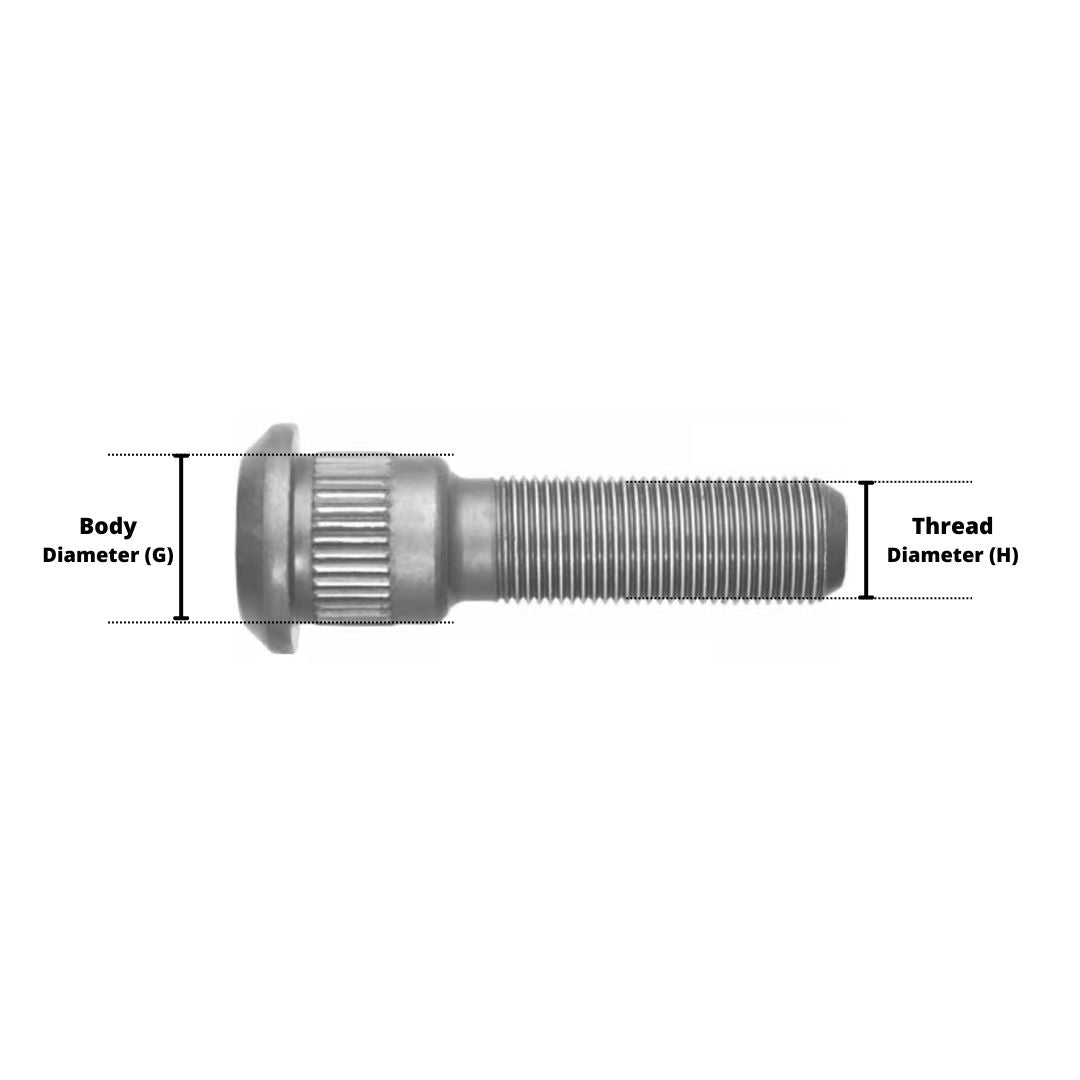

  • Body Diameter: 0.975"
  • Length from Under Head: 3 3/8"
  • Head Diameter: 1.31"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread: 3/4"-16
  • Thread Diameter: 0.75"
  • Thread Direction: LH (Left Hand), RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length: 1.23"
  • Serration: Serrated
  • Serration Length: 1.02"
  • Serration Diameter: 1.006"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8


  • Automann: 2016114L, 2016114LP2
  • Dayton Parts Batco: 131231L, 131231R
  • Euclid: E5896L, E-5896-L, E5896R, E-5896-R
  • Kenworth: K233287L, K233287R
  • Meritor: R005896L, R005896R
  • Spicer: 501182L, 501182R
  • Trailmobile: 385896L, 385896R
  • World Truck: 1541406L, 1541406R
