Drum Shoulder Wheel Studs 3/4"-16 THD 0.785" B.D. x 2 7/8" Length - E4968 - 10 Pack

Drum Shoulder Wheel Studs 3/4"-16 THD 0.785" B.D. x 2 7/8" Length - E4968 - 10 Pack

SKU: F286679R

Availability: In Stock

Stock Level: More than 50 available.

Shipping: Calculated at Checkout

Regular price $10.60 USD
Regular price Sale price $10.60 USD
Sale Sold out
Shipping calculated at checkout.
Side

About this Item

  • Maximum resistance with grade 10,9 steel designed for heavy vehicles and intensive service.
  • 3/4" - 16 metric thread with LH (left hand) direction for a secure and reliable installation.
  • Thread with a pitch of 16 threads per inch and a length of 0.97" for a secure and stable installation in the wheel hub.
  • Serrated design that provides greater slip resistance and a solid hold under high-stress conditions.
  • Thick round head with a 1.28" diameter for even load distribution and increased strength

Description

Fortpro 3/4"-16 Drum Shoulder Wheel Stud F286679 is a high quality wheel stud designed to provide a secure and reliable hold on heavy duty vehicles. These wheel studs are especially well suited for applications requiring exceptional strength and durability prolonged

Specifications

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Drum Shoulder Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E4968L, E4968R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4"-16 UNF-2A

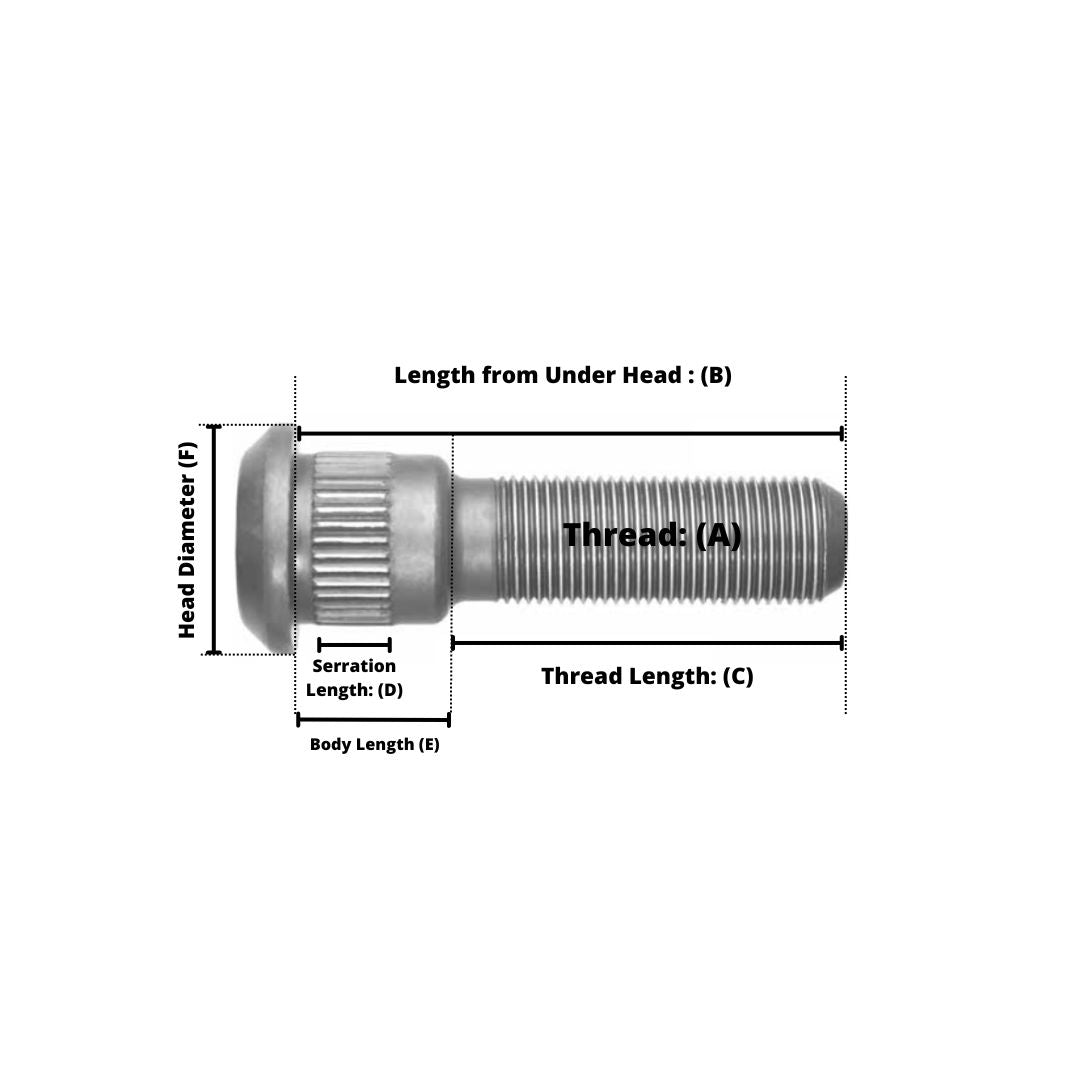

  • Body Length (E): 1.50"

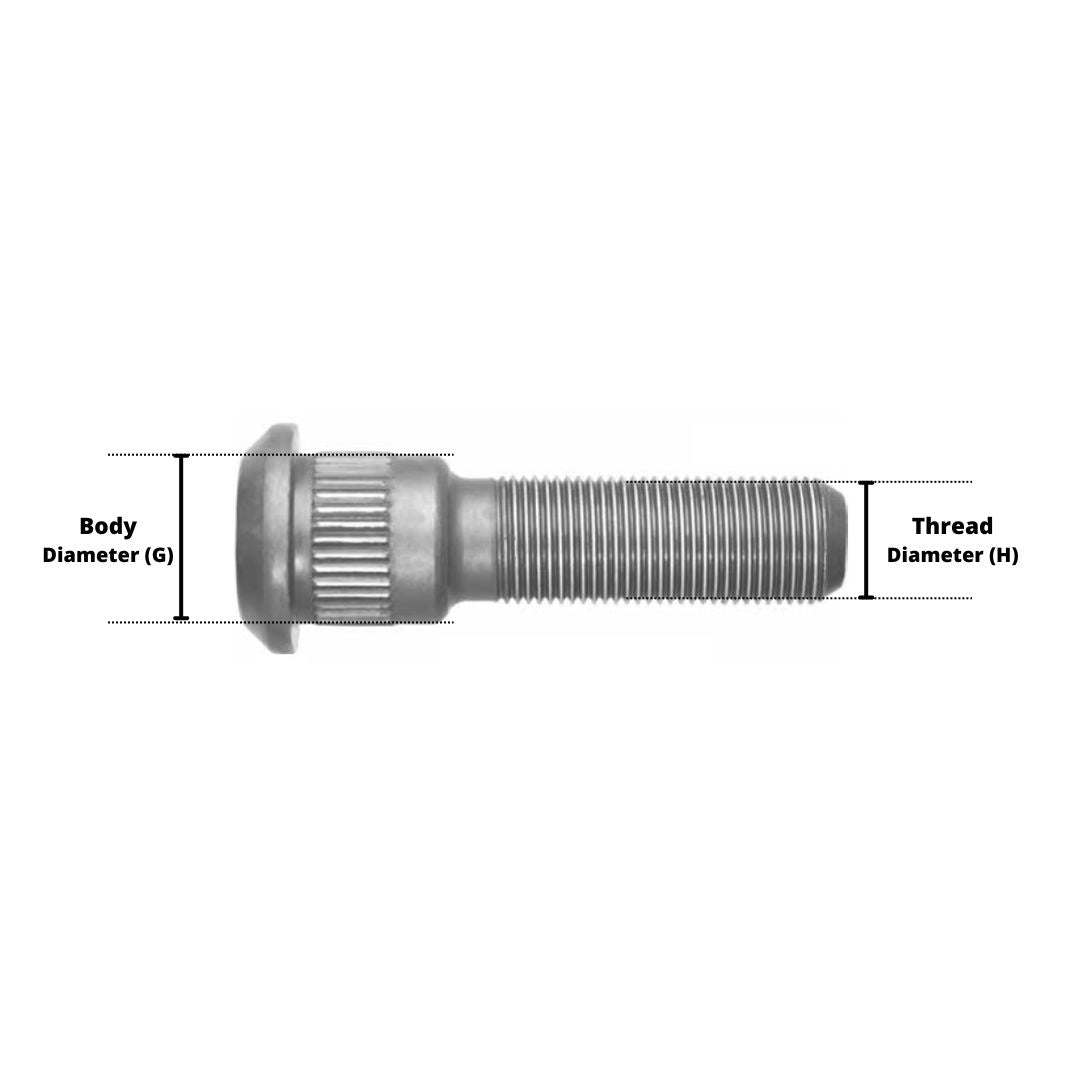

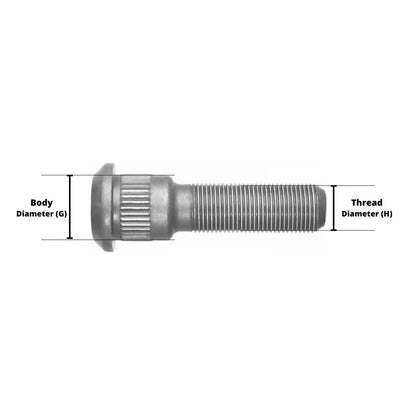

  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 7/8"
  • Head Diameter (F): 1.28"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: LH (Left Hand), RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length (C): 0.97"
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-references

  • Automann: 2016067L, 2016067R
  • BWP: M81
  • Budd: 49852
  • Dayton Parts Batco: 131104L, 131144L, 131104R, 131144R
  • Euclid: E4968L, E4968R
  • Fruehauf: MWCX01385
  • Haldex: 67248
  • Meritor: R004968L, R004968R
  • Spicer: 501128L, 501128R
  • World Truck: 1541705L, 1541705R
