Check Specification & Cross-references
Fortpro is a trusted leader in the development and manufacturing of premium-quality truck parts designed to meet the demands of semi-trucks and heavy-duty trucks. Renowned for innovation, durability, and reliability, Fortpro products are engineered to enhance performance, safety, and efficiency across a wide range of trucking applications.
Whether you're seeking OEM replacement parts or upgrades, Fortpro provides a diverse selection of components backed by a global reputation for quality and innovation. Trust Fortpro for the parts you need to keep your vehicles on the road longer and stronger.
Basic Part Information3 attributes

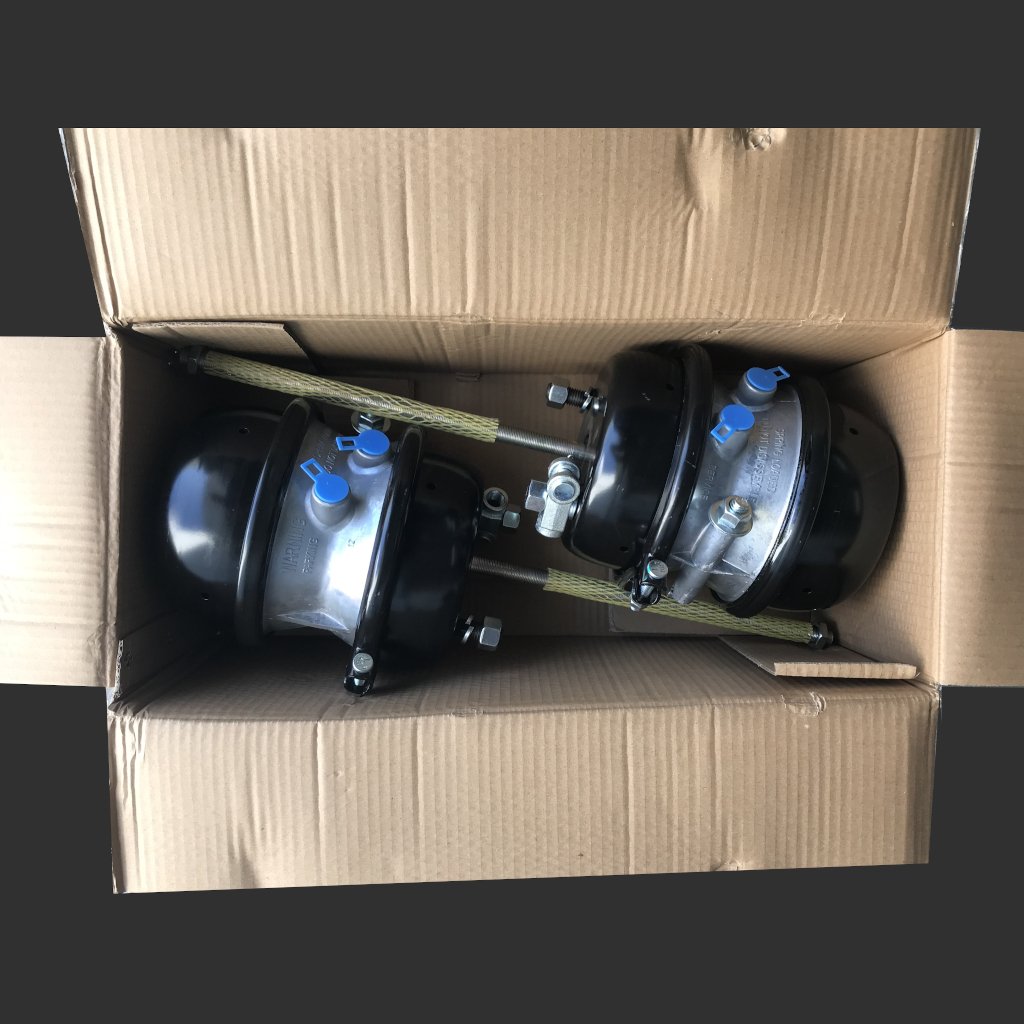

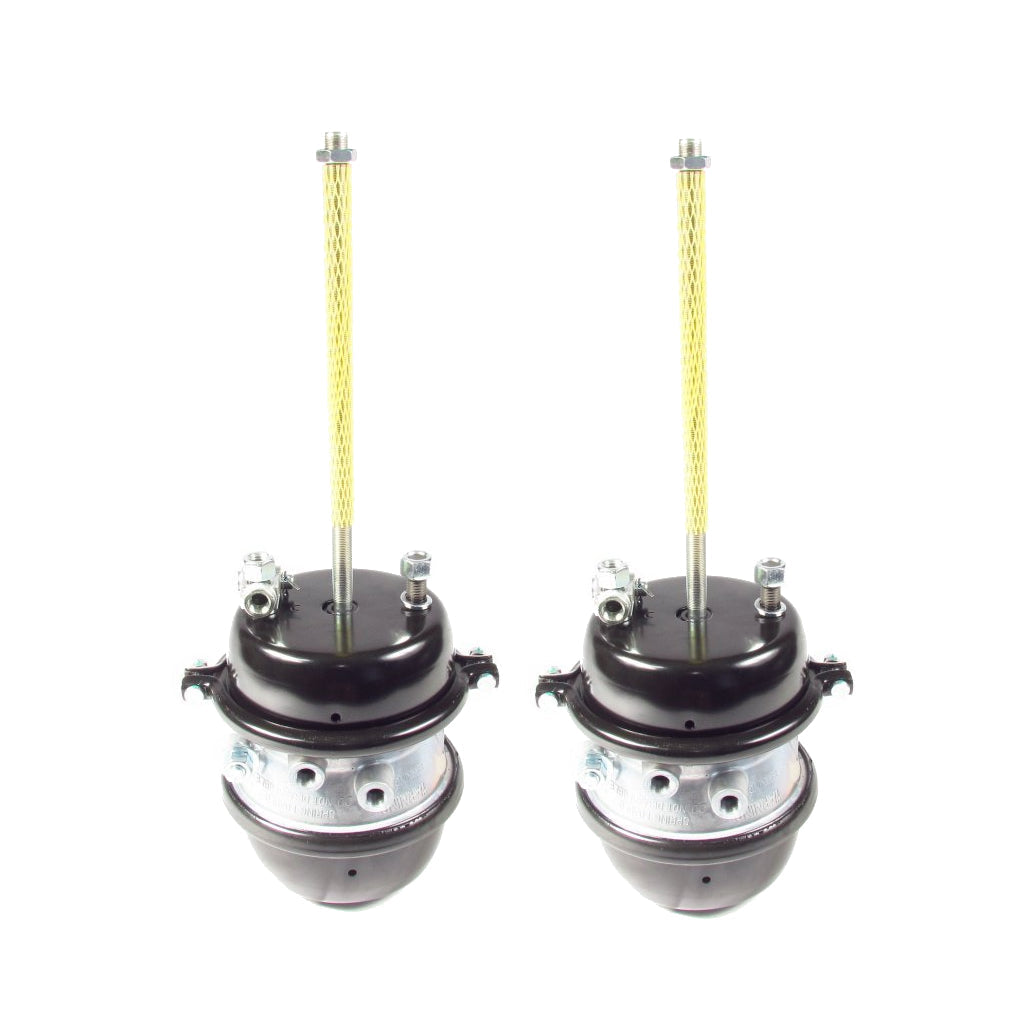

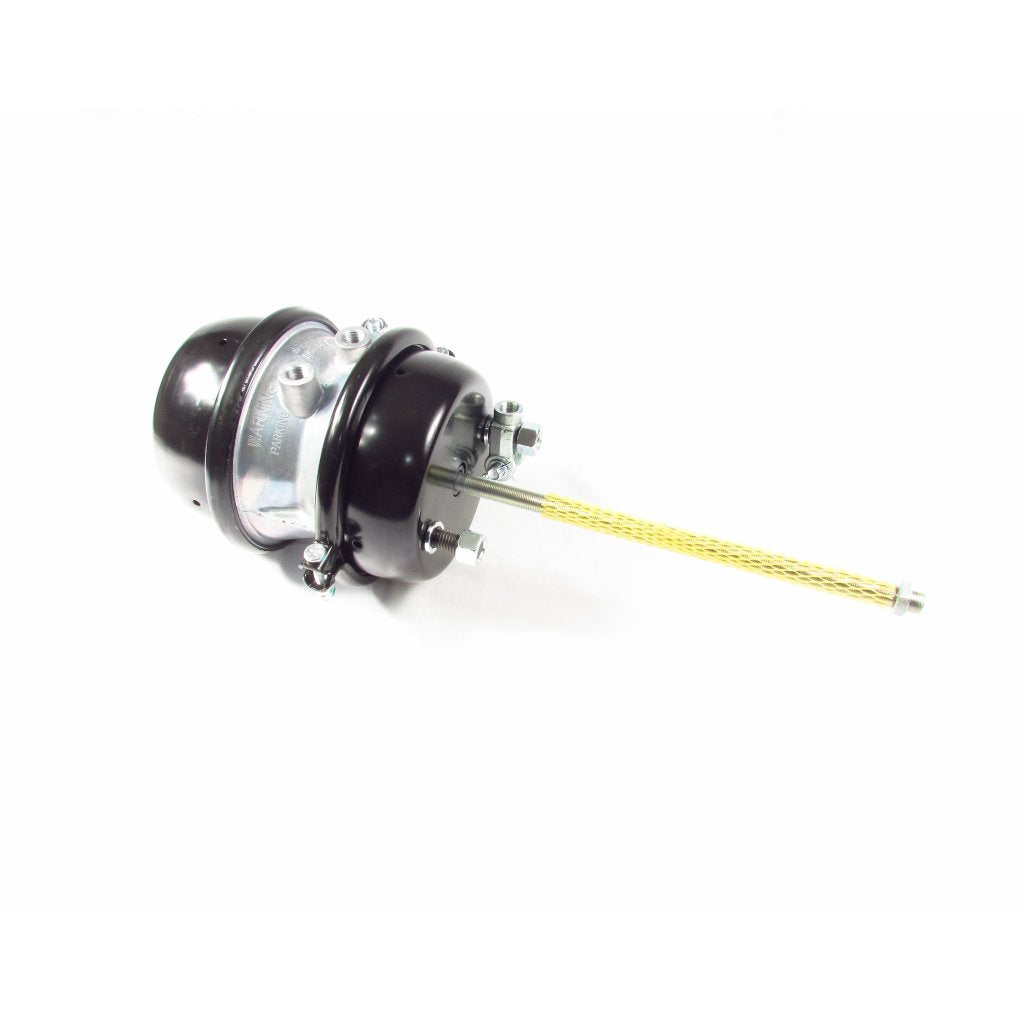

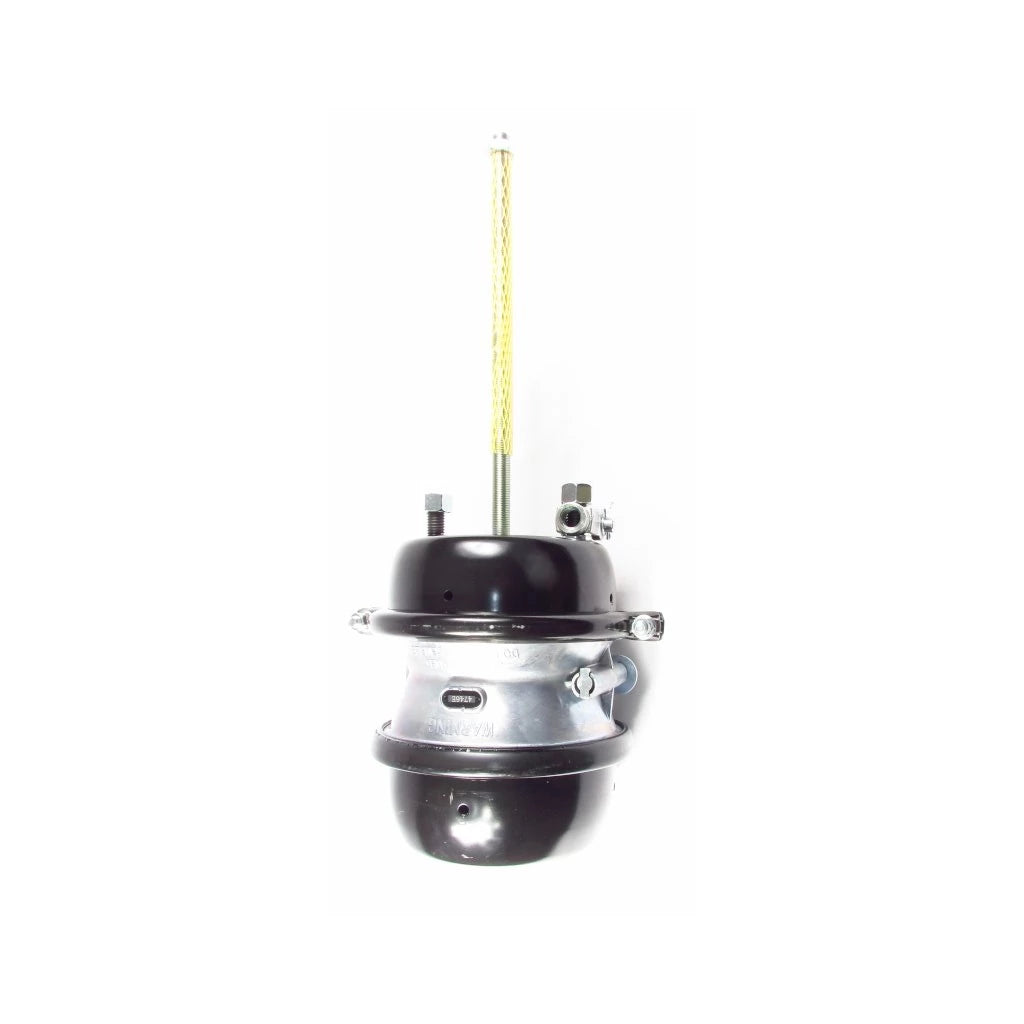

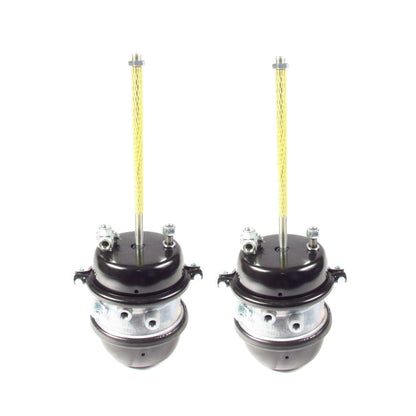

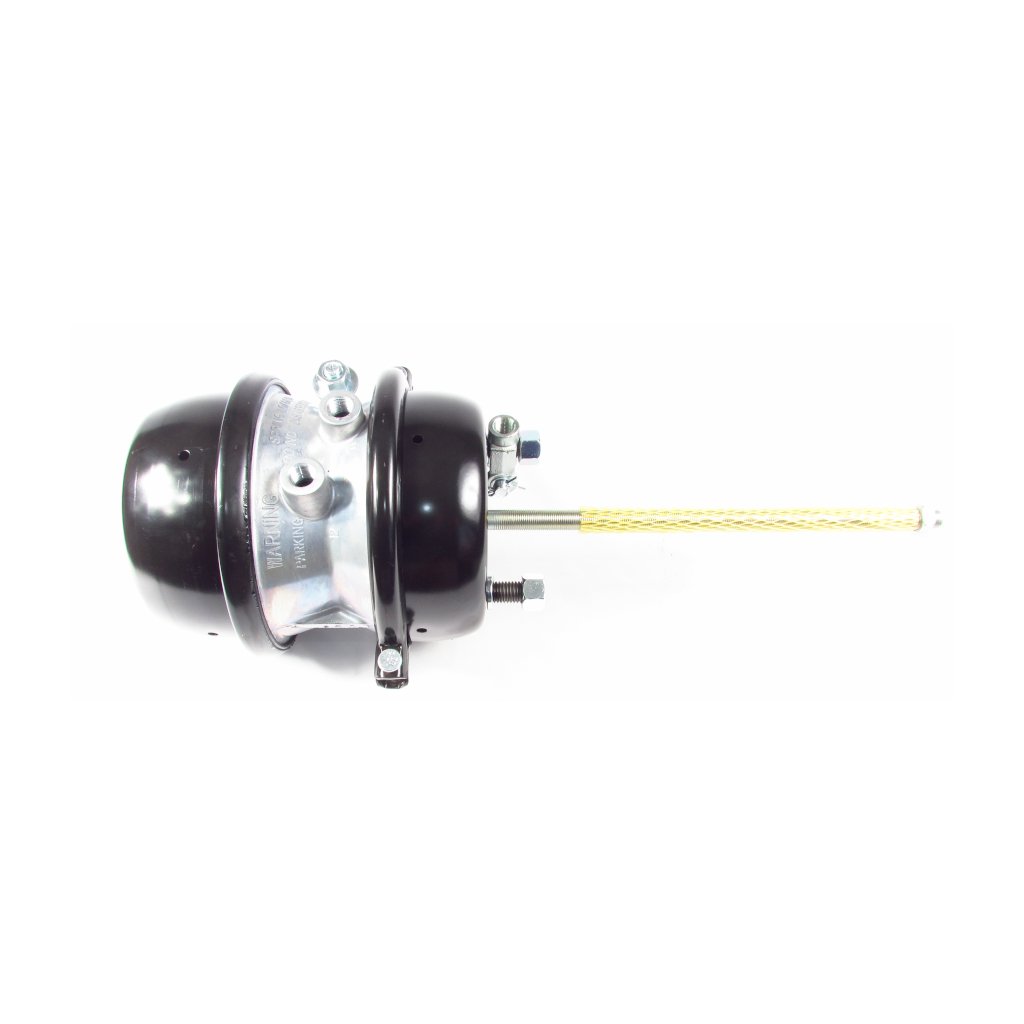

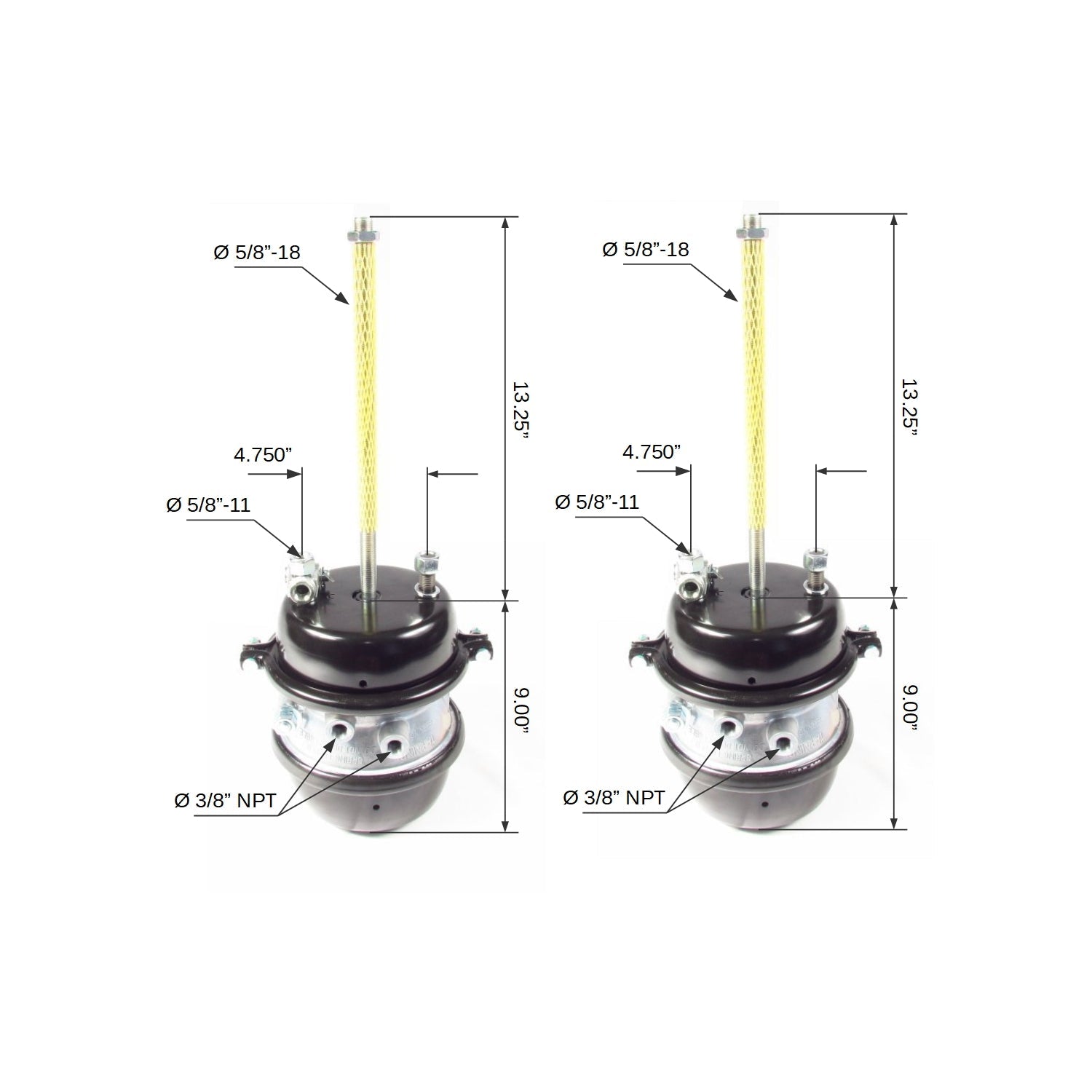

| Part Type | Air Brake Chamber |
|---|---|
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | Type 3030, T30/30, 3030, 30 30 |
Application/Fitment Attributes14 attributes
| Application Type | Heavy Duty Trucks, Semi-Trucks |
|---|---|
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Double Diaphragm |
| Chamber Type | Spring Brake Chamber |
| Clevis Mounting Type | Threaded |
| Emergency Port Thread Size | 3/8-18 NPTF |
| Mounting Bolt Length | 1.50 in. |
| Mounting Bolt Thread Size | 5/8-11 UNC-2A |
| Outside Diameter (O.D.) | 8.30 in. |
| Push Rod Length | 12.00 in |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
Technical/Performance Attributes6 attributes
| Clevis Yoke | Included |
|---|---|
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Sealed |
| Stroke Lenght | 2.50 in. |
| Stroke Type | Standard Stroke |
- Automann: 179SB3030, 179SB3030S
- Bendix: 165255, K049898, NT3030STD120
- Dayton: 3030C
- Euclid: E-BC3030C
- Freightliner: 3030TS
- Haldex: GC3030
- Mack: 19QE441RP1
- MGM: 3232951, 3232951X,
- Meritor: R873030C
- OTR: OTR3030SB,
- PAI: EM30300-100
- TRP: SB3030CC,
- WA: WA3030T
Dimensions Not Available.
