Dana

Dana Spicer Select 25-SPL170-4X U Joint For SPL 170 Series

Dana Spicer Select 25-SPL170-4X U Joint For SPL 170 Series

SKU: 25-SPL170-4X

Availability: Low stock: 5 left

$120.49 USD
$0.00 USD $120.49 USD
Sale Sold out
Shipping calculated at checkout.

Compatibility & Purchase Guidelines

  • Verify OEM Compatibility: Always match your OEM part number with our cross-reference list before purchasing to ensure proper fitment.
  • Avoid Returns: Do not rely solely on visual similarity. Parts may look identical but differ in specifications. Confirm compatibility using part numbers.
  • Truck Brand Reference Disclaimer: Mentioned truck brands are provided for general reference only and do not guarantee universal compatibility across all models.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.



Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must met the conditions stablished in our Terms & Conditions.

To start a return, you can contact us at admin@maxitrucks.com.

Key Features & Benefits

  • SPL170 Series Precision – Engineered for SPL170 series drivelines with specialized bearing cap retention.
  • Large Capacity Fitment – Features 2.165" (55mm) bearing caps and a 6.456" (164mm) span over caps.
  • Aftermarket Value – Spicer Select solution backed by Dana for the maintenance of older premium series fleets.
  • Optimized Sealing – Designed to protect internal bearings from contaminants for extended service life.
  • Seamless Integration – Direct replacement for older premium parts, ensuring safe and reliable torque transfer.
View full details

Spicer Select SPL170 Series Universal Joint. Reliable aftermarket performance for SPL170 drivelines. Backed by Dana engineering to provide long-lasting service for aging vehicles. Features 2.165" bearing caps for precise fitment and smooth torque transfer. A cost-effective solution for premium series maintenance.



Dana Spicer Logo

Dana is a global leader with 100+ years of expertise in drivetrain innovation. We engineer purpose-built components for light to heavy-duty vehicles through rigorous data and testing. From Spicer to our Spicer Select line for aging fleets, every product meets world-class engineering standards to ensure reliability. We don't just manufacture parts; we deliver high-performance solutions that keep your business and the world in motion.

Basic Part Information4 attributes
Basic Part Information
Product LineDriveline & Axles
Category NameDriveline Components
Part TypeUniversal Joint
Alternate Part NameU Joint
Application/Fitment Attributes4 attributes
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
SeriesSPL170
Universal Joint TypeSpring Tab Style
VMRS Code24002046
Dimensional/Physical Attributes5 attributes
Dimensional/Physical Attributes
MaterialSteel

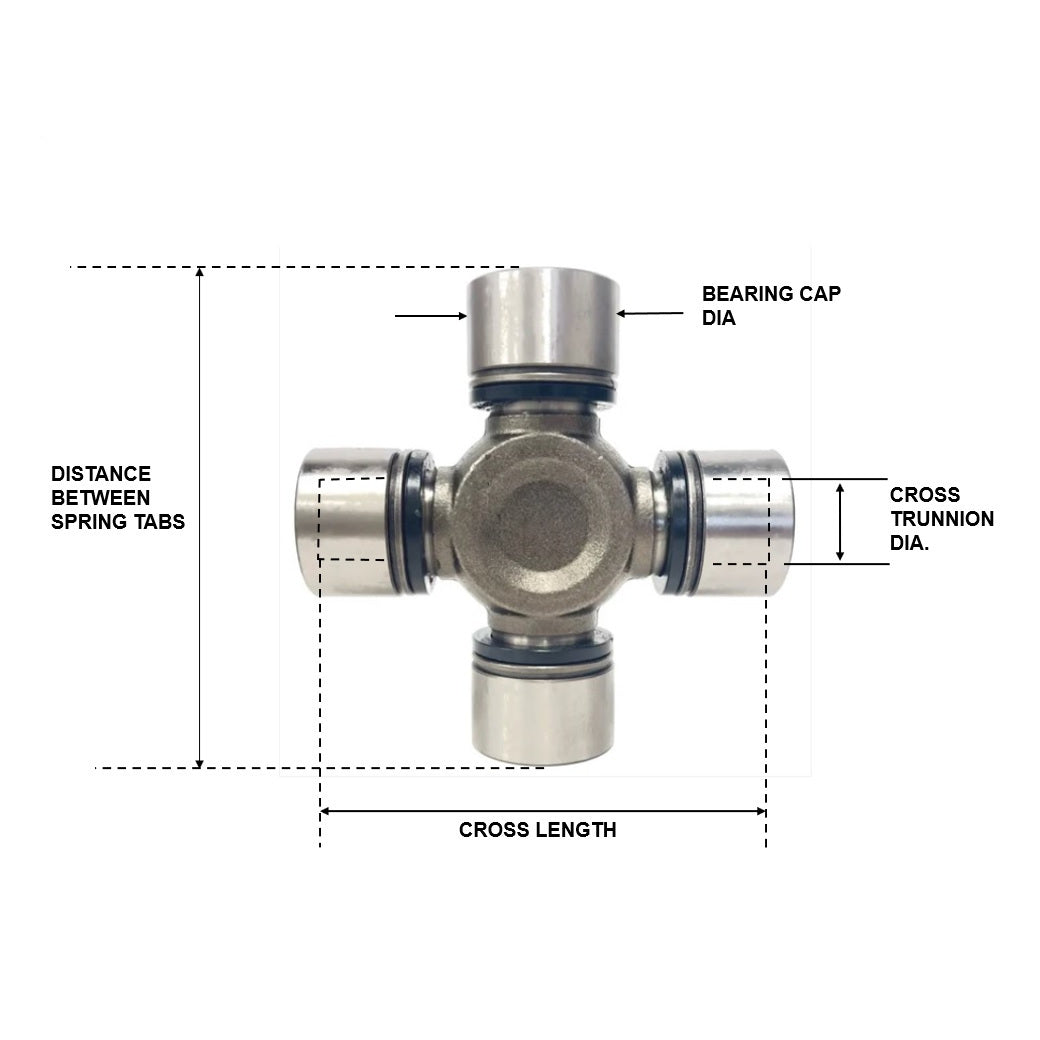

Bearing Cap Diameter2.165 in.
Bearing Cap TypeRound
Snap Ring TypeSPRTAB
Spring Tab Distance6.456 in.
Technical/Performance Attributes2 attributes
Technical/Performance Attributes
Grease Fitting LocationCenter of Cross
GreaseableYes
Packaging / Logistics Attributes:1 attribute
Packaging / Logistics Attributes:
Net Weight9.88 lb.
Bill Of Material
Bill Of Material
  • 1 Universal Joint
  • 4 Bearing Caps
  • 4 Drive Shaft Bolt (4 M12 X 1.25)
  • 4 Drive Shaft Bolt (M8 x 1.00in)
  • 2 Spring Tab
  • 1 Lube Fitting
Intended Application
Intended Application
  • Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
  • Automann: 752.SPL170X, 752SPL170X
  • Dana: 25-SPL170-4X, 25SPL1704X, SP170-3X, SP170X3, SPL170XR,
  • Mack: 2104-SPL170X, 2104SPL170X
  • Neapco: OE Series 6-1170, 61170
Dimensions Not Available.
